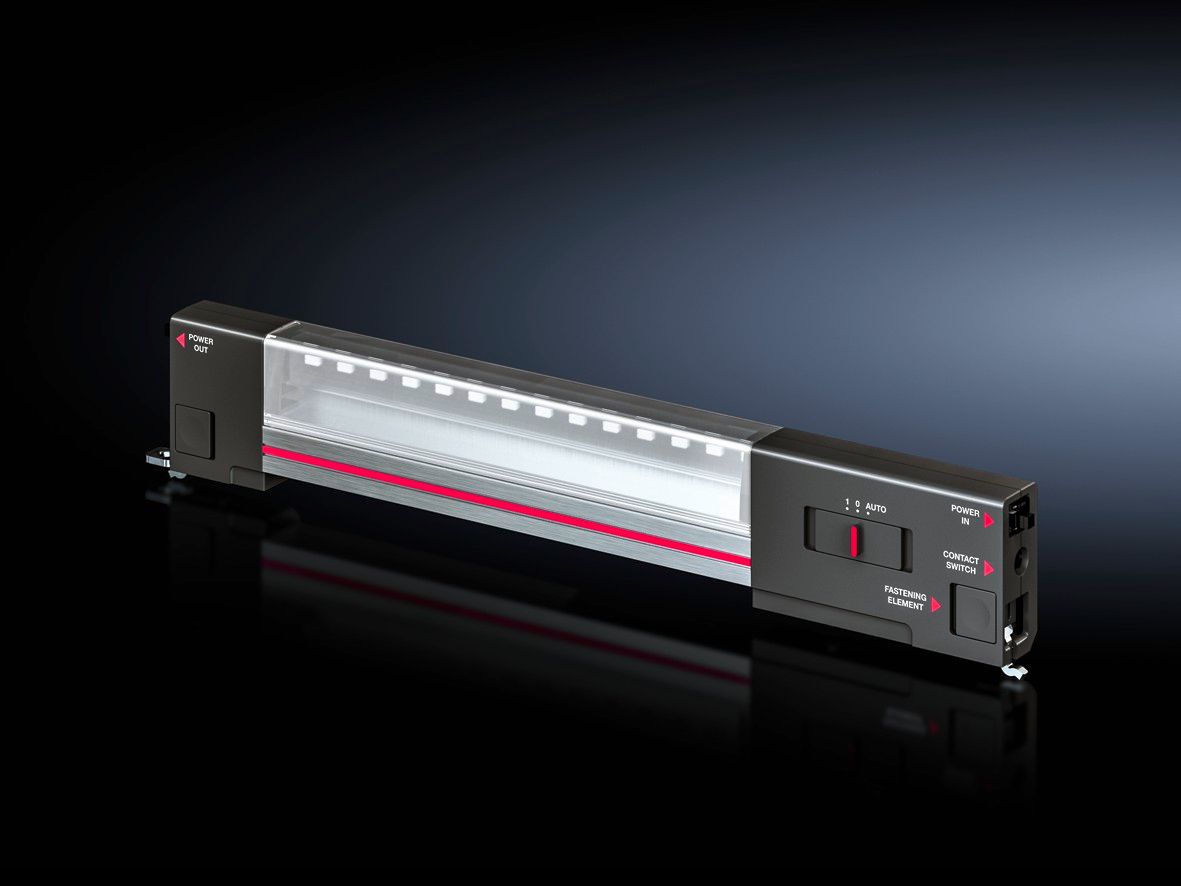

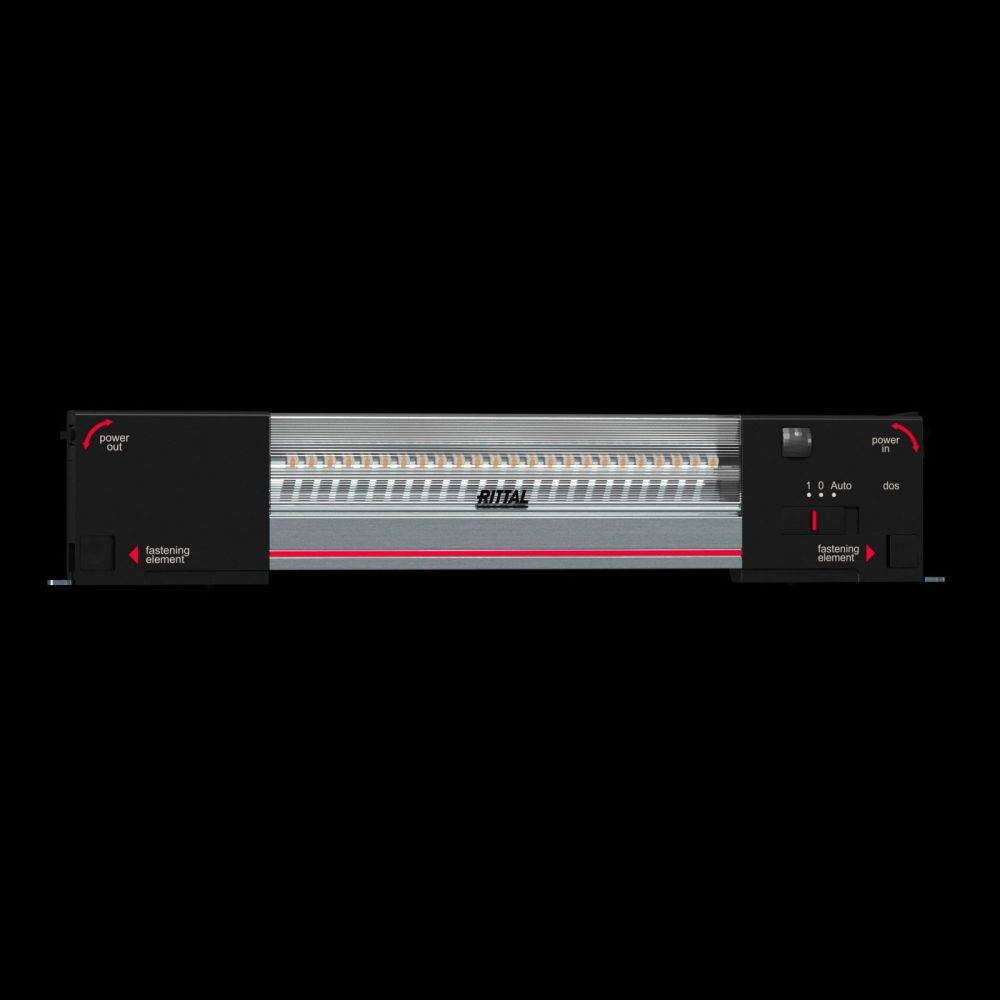

Rittal 2500110 System light LED (freight shipping)
|
62,30 EUR |
|
|
( 74,14 EUR incl. VAT ) ≈ £52.15 | ≈ $68.47 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1087030 |
| Mfg Part No: | 2500110 |
| UPC/EAN: | 4028177806948 |
| Weight: | 0.351 kg |
| Type: | SZ 2500110 |
Product information for Rittal 2500110:
Applications
This light is specifically designed for installation in industrial enclosures, particularly in compact enclosures of the AX series. It is suitable for applications requiring even, interference-free illumination inside the enclosure. Mounting is done directly onto the enclosure profile with a 25 mm grid spacing.
Functions and equipment in detail
The SZ 2500110 offers multiple connection options: power input (2-pole), pass-through wiring (2-pole), and connection to a door position switch. This flexibility allows for individual integration into existing enclosure systems. The protection class II (double insulated) ensures safe operation without an additional protective earth conductor. The delivery includes mounting screws required for installation.
Technology explained simply
The light housing is made of extruded aluminium, ensuring high mechanical stability and heat dissipation. The light cover is made of polycarbonate, a robust and transparent plastic that is UV-resistant and shatterproof. The ends of the light are made of PC-ABS, a material known for its high strength and weather resistance. The protection rating IP 20 according to IEC 60 529 protects against contact with fingers and against solid foreign objects, but is not waterproof. The operating temperature range is between -20 °C and +55 °C, allowing use in a wide range of industrial environments.
Compatibility and accessories
To extend mounting options, various accessories are available, including universal brackets, mounting brackets for internal installation, a door position switch, connection cables in lengths of 1000 mm and 3000 mm, a mounting set with magnetic mounting, and sockets and plugs for 2-pole power input and pass-through wiring. These components enable flexible and application-specific installation.
Mounting and installation
The light can be mounted using screwing, clip mounting, or magnetic mounting (accessory). Mounting is done directly onto the enclosure profile with 25 mm grid spacing. Additional mounting components are required for installation in AX enclosures. The mounting screws are included in the delivery.
Advantages in operation
The LED technology of the SZ 2500110 offers high luminous efficacy with low energy consumption. The neutral white light colour ensures clear visibility, increasing work safety. The robust construction from aluminium and polycarbonate ensures long service life and resistance to mechanical stress. The various connection options and mounting variants enable flexible integration into existing systems.
| General | |
| Model | without socket |
| Material | Luminaire body: extruded aluminium, luminaire cover: polycarbonate, luminaire ends: PC-ABS |
| Colour | Housing: RAL 7016 |
| Scope of delivery | Including mounting screws |
| Nominal power | 7 W |
| Connection options | Power supply, 2-pole, through wiring, 2-pole, door position switch |
| Protection class | II (double insulated) |
| Luminaires mounting type | Screwing, clip mounting, magnetic mounting (accessory) |
| Mounting options | For installation in compact control cabinets AX, the AX internal mounting rail and mounting bracket are required; direct mounting on cabinet profile with 25 mm grid. |
| Luminous flux | 600 lm |
| Colour of light | 4000 K (neutral white) |
| Note | Connection accessories to be ordered separately |
| Width | 337 mm |
| Height | 55 mm |
| Depth | 23 mm |
| Operating temperature range | -20 °C...55 °C |
| Rated operating voltage | 100 V - 230 V, 1~, 50 Hz/60 Hz |
| Degree of protection IP according to IEC 60 529 | IP 20 |
| PCF/VE (Cradle-to-Gate) | 7,4 |
