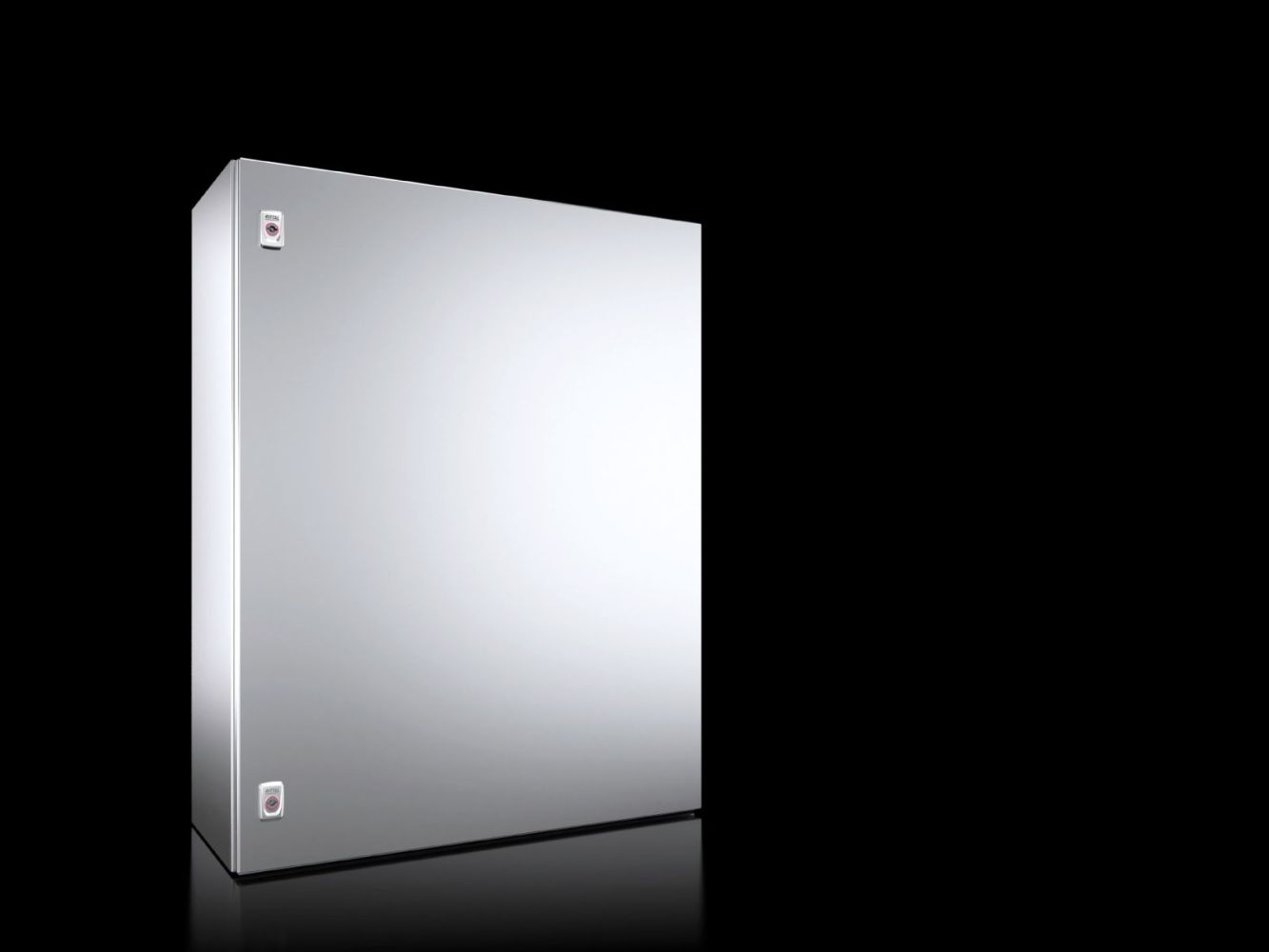

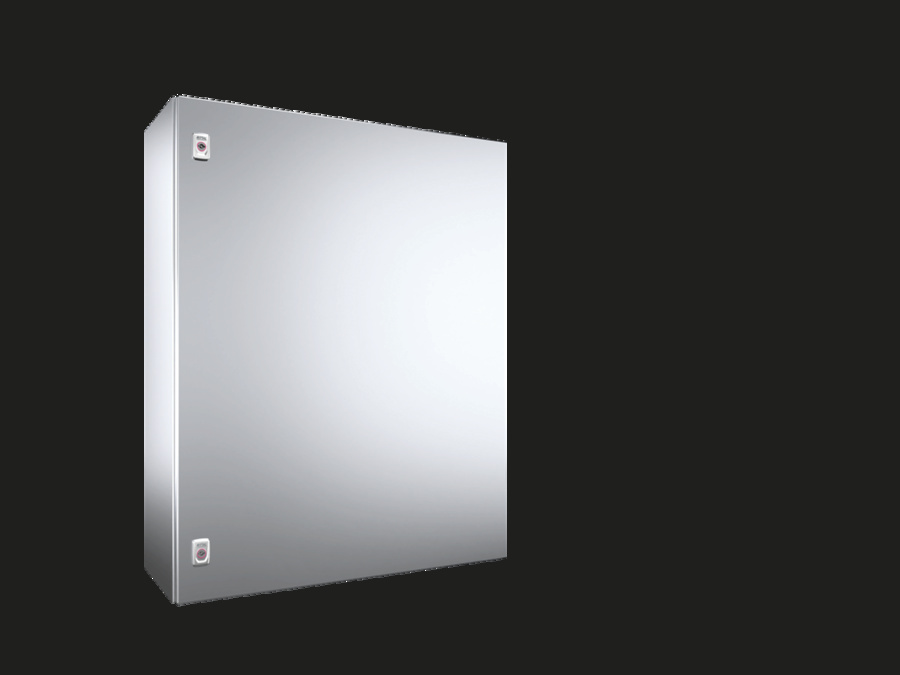

Rittal 1016000 Compact enclosure AE W x H x D 800x1000x300 mm (freight shipping)
|
-6% 757,85 EUR 803,32 EUR |
|
|
( 901,84 EUR incl. VAT ) ≈ £634.32 | ≈ $832.88 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1778554 |
| Mfg Part No: | 1016000 |
| UPC/EAN: | 4028177815025 |
| Weight: | 51 kg |
| Type: | AX 1016000 |
Product information for Rittal 1016000:
Applications
The enclosure is suitable for use in indoor and outdoor environments, particularly in settings with increased mechanical stress, such as in manufacturing industry, machine building, or process automation. The protection rating IP 66 guarantees dust-tight and water-tight shielding, even under heavy spray water conditions. Certification according to NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, and NEMA 12, as well as type rating according to UL 50E (Type 1, 3R, 4, 4X, 12), makes it suitable for various applications in different regions and standard requirements. The IK code IK10 indicates high mechanical resistance against impact and shock loads.
Functions and Equipment in Detail

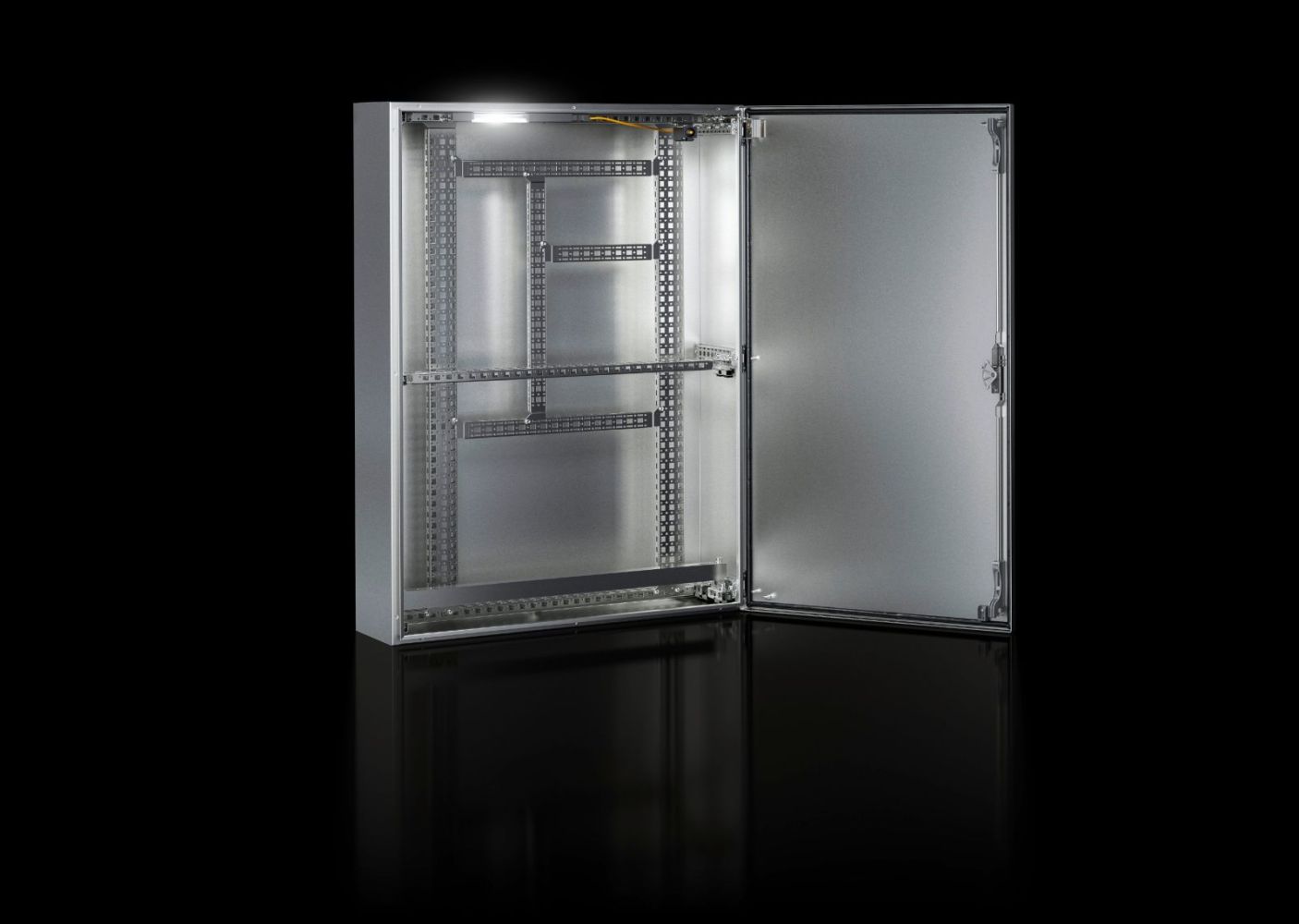

The enclosure is made of stainless steel 1.4301, offering high corrosion resistance and durability. The surface of the enclosure and door is brush-finished with grit 400, resulting in a uniform, easy-to-clean surface. The door has a material thickness of 2 mm, while the enclosure body has 1.5 mm, enhancing stability and safety. The mounting plate made of galvanized steel sheet has a material thickness of 2.5 mm and dimensions of 745 mm x 975 mm. It is equipped with grounding hole pattern and dimension marking, and is fastened with Limbach nuts. The door is fitted with two deadbolt locks operating with a 3 mm double-barrel lock insert made of zinc die-cast, ensuring secure and reliable locking.
Technology Explained Simply

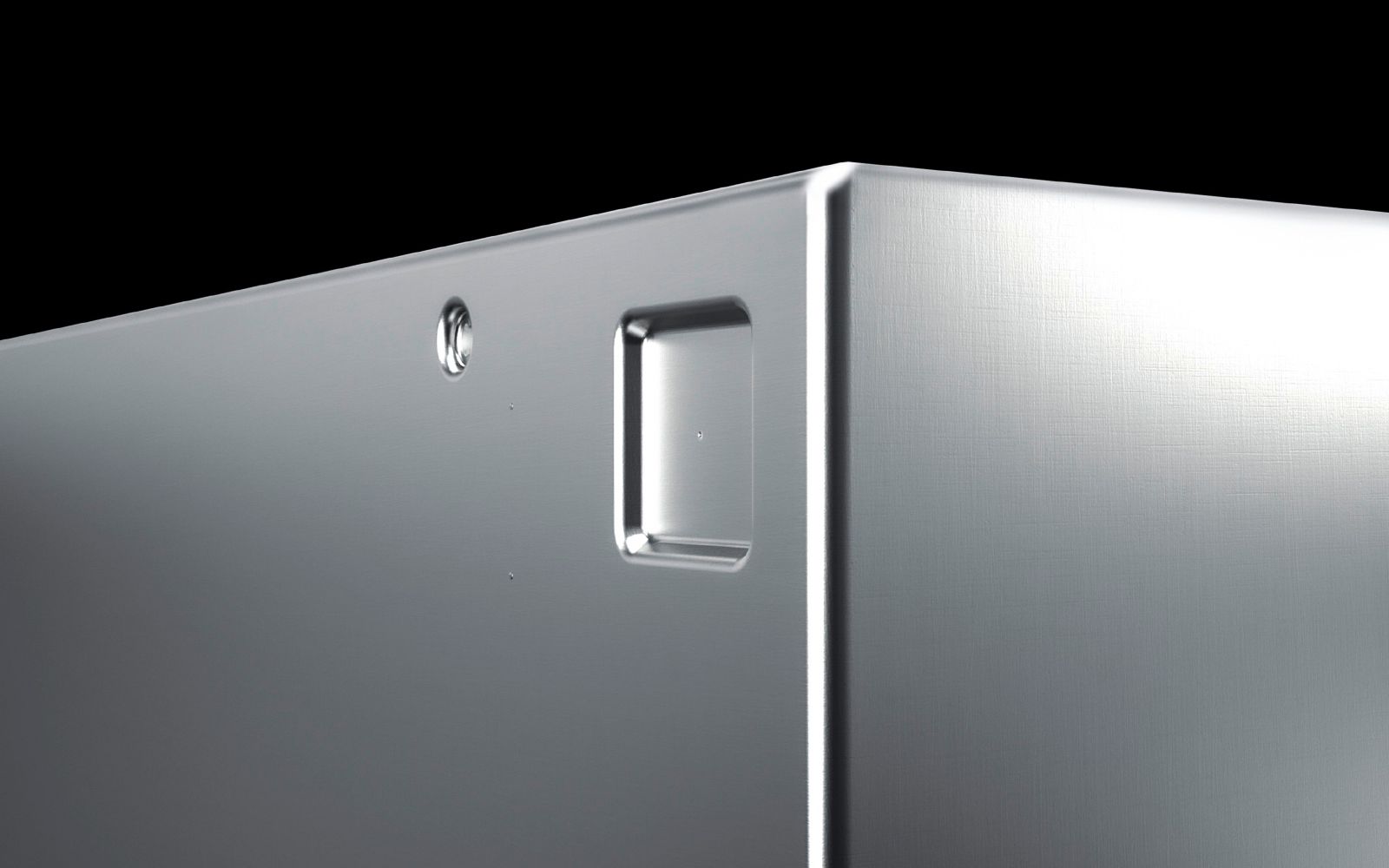

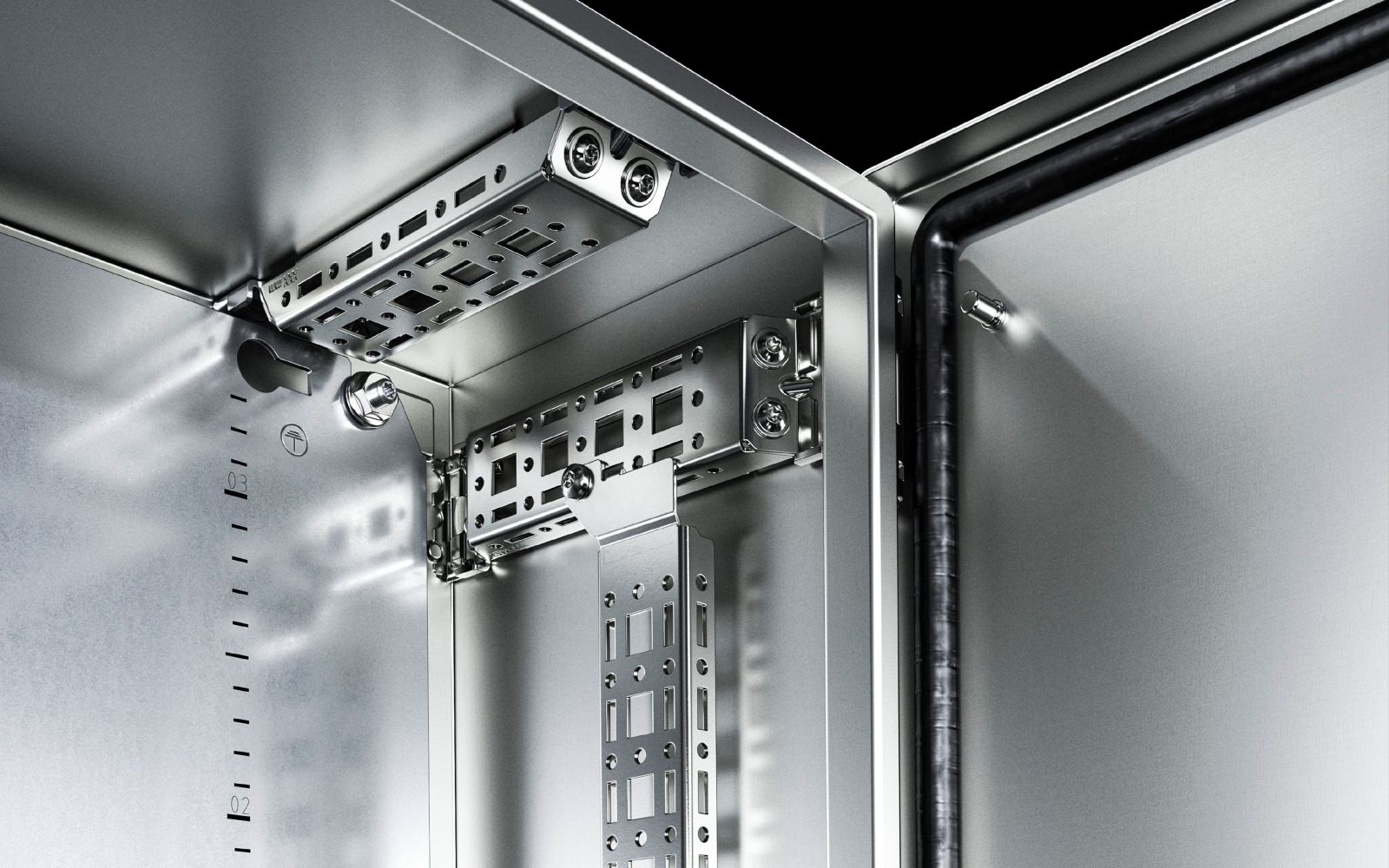

The integrated cam system technology allows for easy and quick internal assembly without drilling, simplifying installation and maintenance. The continuous PU seal ensures a tight seal, supporting the protection rating IP 66. The protection rating IP 66 means the enclosure is dust-tight and protected against heavy spray water, making it suitable for outdoor use or in damp environments. The protection rating NEMA 4X and Type 4X according to UL 50E protects against spray water, dust, and corrosion, even in salt-containing environments. The IK code IK10 guarantees high protection against mechanical impacts, such as from tools or workpieces.
Compatibility and Accessories
Various accessories are available for this enclosure, extending its functionality. These include cable glands made of brass and polyamide in various sizes (e.g. M12x1.5, M25x1.5, M40x1.5), wall mounting brackets made of stainless steel 1.4301, floor mounting rail for AX, VX system chassis in various dimensions, and circuit diagram pockets made of steel sheet for the door. These components allow individual adaptation to specific requirements, such as cable connection, mounting, or additional mounting surfaces.
Mounting and Installation

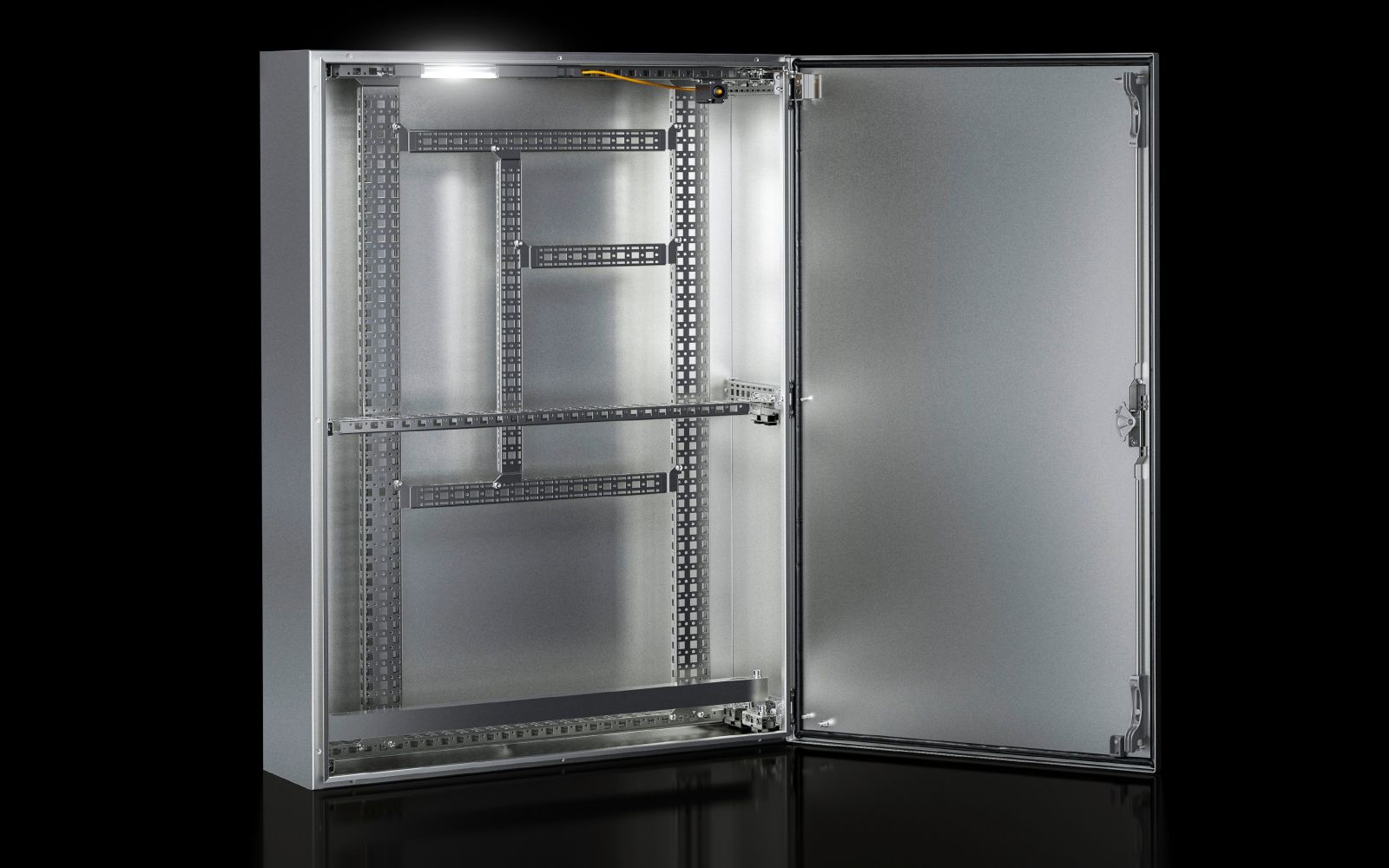

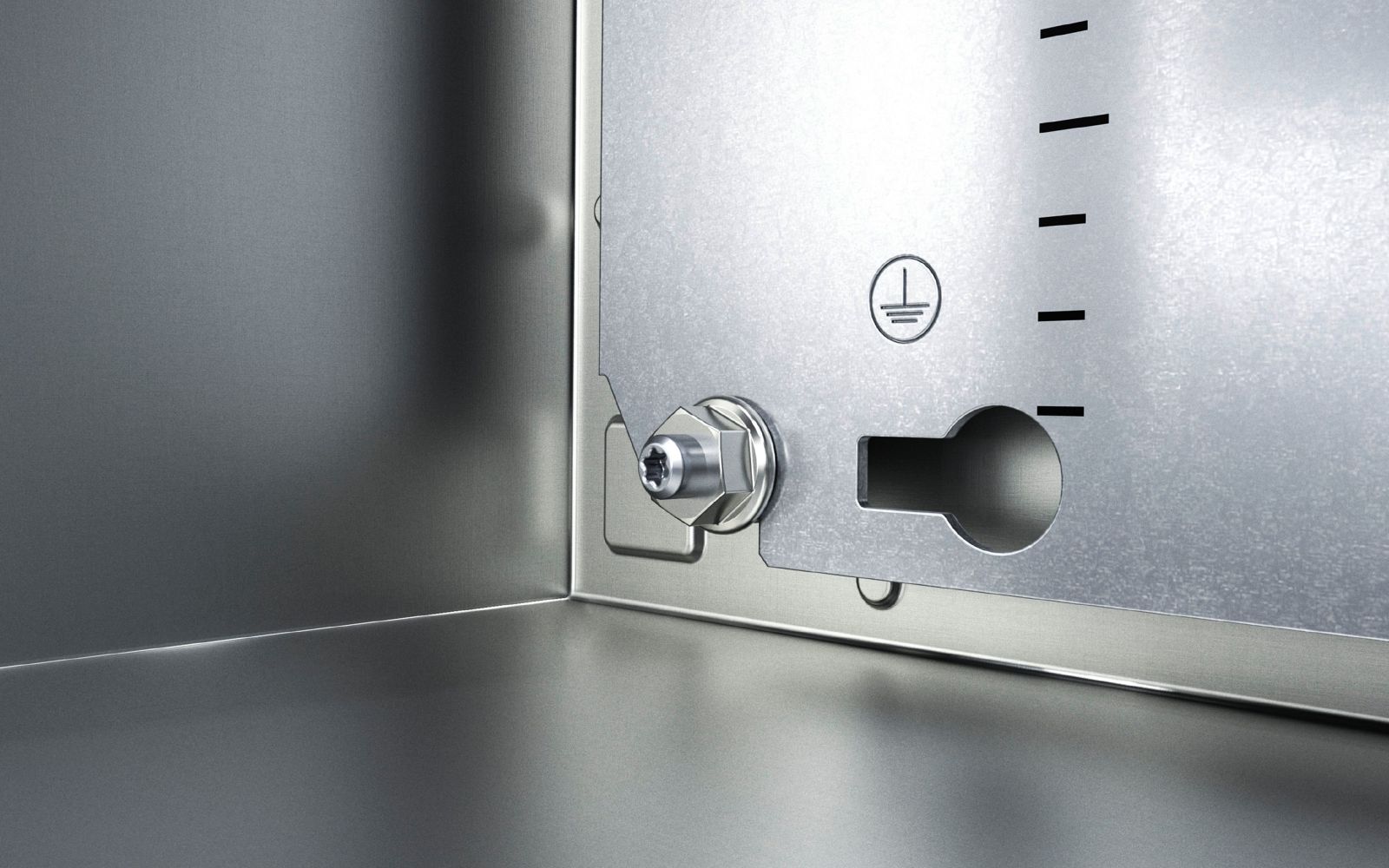

Installation is carried out using the integrated cams and the pre-fabricated mounting plate. The door can be attached using the designated hinges, which are welded. The mounting plate features grounding hole pattern and can be fastened with Limbach nuts. The pre-drilled opening for wall mounting brackets allows secure attachment to walls. QR codes on the body, door, and nameplate enable unique identification and easy access to product information and documentation.
Operational Advantages
The enclosure offers high mechanical stability and resistance to environmental influences. The integrated cam system technology simplifies internal assembly and reduces installation time. The tight seal provided by the PU seal and the protection rating IP 66 ensure reliable protection of the installed electrical components. The use of stainless steel 1.4301 ensures long service life and high corrosion resistance, even in demanding environments. The deadbolt locks with double-barrel insert provide secure locking, protecting against unauthorized access.
| General | |
| Material | Housing: stainless steel, door: stainless steel, continuous foamed PU seal, mounting plate: sheet steel, stainless steel 1.4301 (AISI 304) |
| Surface protection | Casing and door: brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet with door(s), opening angle 130°, mounting plate, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 4X, Type 12 |
| IK code | IK10 |
| Width | 800 mm |
| Height | 1.000 mm |
| Depth | 300 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 745 mm x 975 mm |
| Number of doors | 1 |

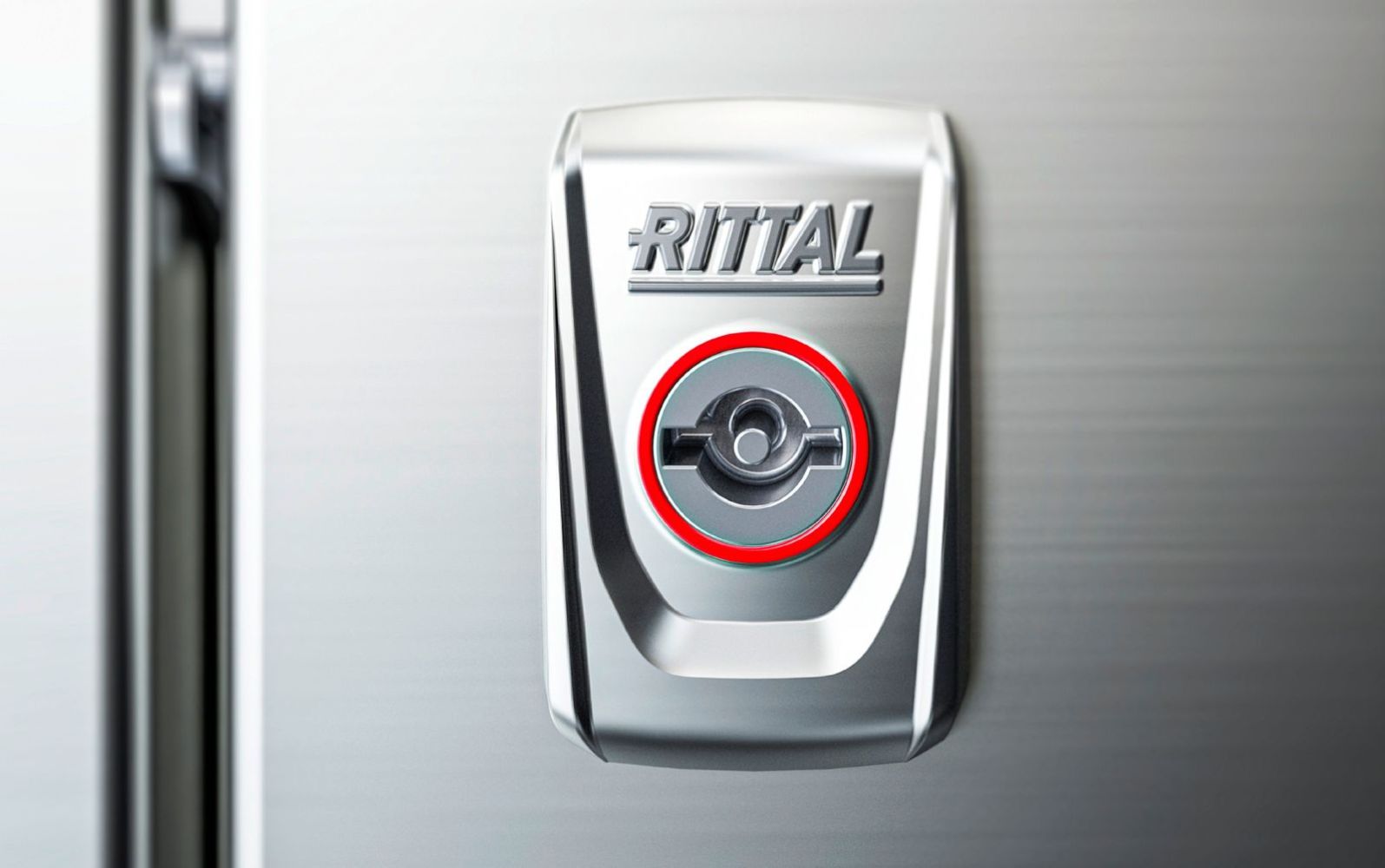

| Lock | Locking mechanism type: push-button, number of locks: 2, lock insert: 3 mm double barb, lock material: zinc die-cast |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 172,68 |
Questions & answers
What is the delivery time of Rittal 1016000 Compact enclosure AE W x H x D 800x1000x300 mm (freight shipping)?
The article Rittal 1016000 Compact enclosure AE W x H x D 800x1000x300 mm (freight shipping) is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1016000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1016000 Compact enclosure AE W x H x D 800x1000x300 mm (freight shipping) always at the best possible price. We can give you a discount of 2% on Rittal 1016000 Compact enclosure AE W x H x D 800x1000x300 mm (freight shipping) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
