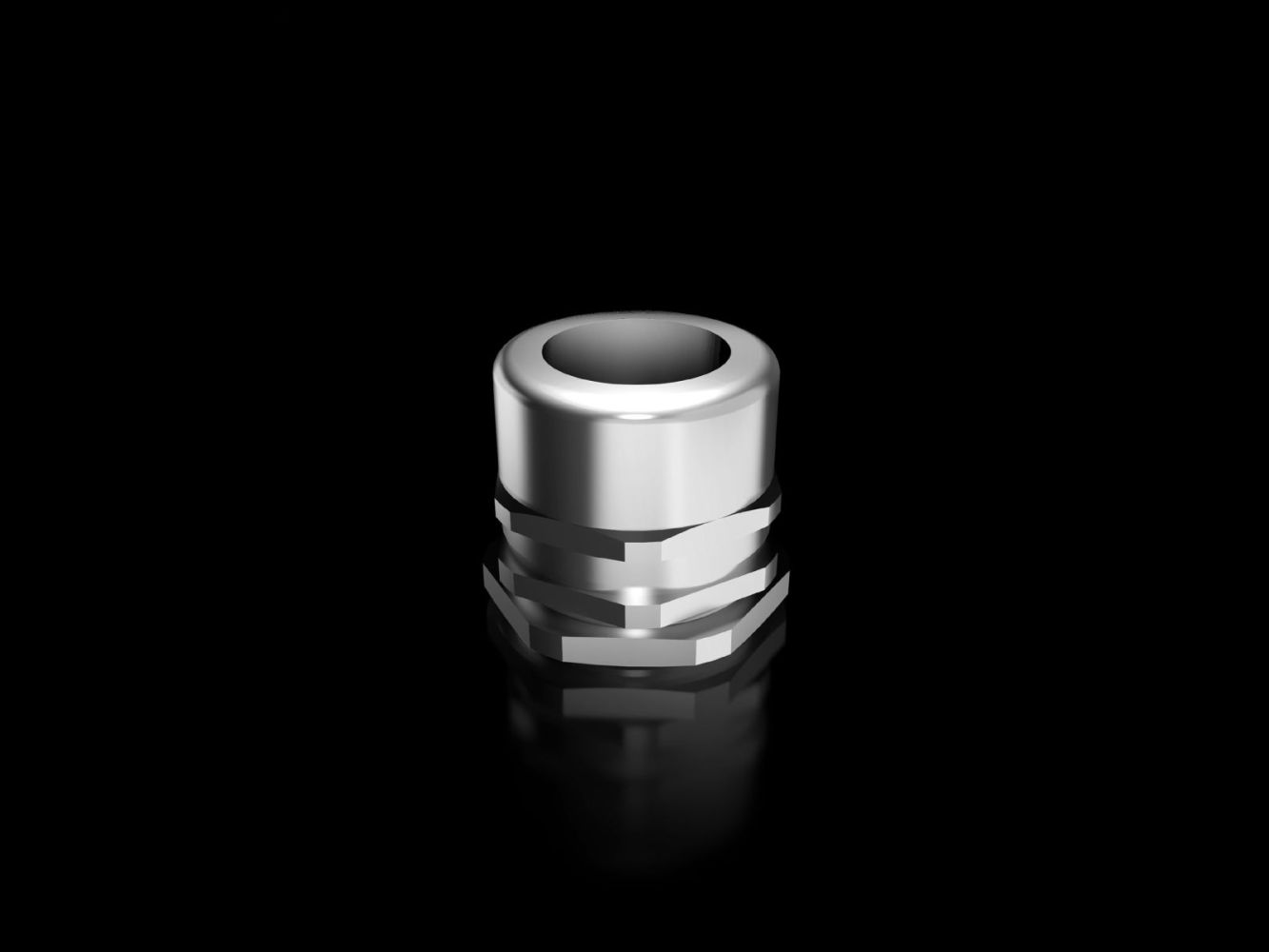

Rittal 2411851 Cable gland brass M40x1.5

Your rating:
Average rating
product review for Rittal 2411851 Cable gland brass M40x1.5
( 4.6 / 5 ) 17 ratings
Rittal 2411851
This image may differ from the desired article.
Rittal 2411851Rittal 2411851Rittal 2411851
23,23 EUR
( 27,64 EUR incl. VAT )
≈ £19.44  |  ≈ $25.53
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2411851 Cable gland brass M40x1.5
Datasheet:file_download Download
Lieske Part No.:529080
Mfg Part No: 2411851
UPC/EAN: 4028177810044
Weight:0.692 kg
Type:SZ 2411851

Product information for Rittal 2411851:

The Rittal SZ 2411851 is a cable gland made of brass, designed for use in industrial installations and enclosures. It is used for secure and tight fixation of cables with a diameter range of 19 to 28 mm to enclosure walls. The gland features a nickel-plated surface, ensuring high corrosion resistance and good electrical conductivity. The integrated clamp lamellae provide even clamping and cable-friendly strain relief, reducing mechanical stress on the cable. The packaging unit contains four pieces, thus saving additional ordering effort and storage space.

Applications
The cable gland is suitable for use in environments with high requirements for mechanical and electrical safety. It is commonly used in industrial electrotechnics, automation technology, and enclosures where a tight and robust cable connection is required. The protection rating IP 68 (5 bar, 30 min) makes it suitable for outdoor use or in humid, dust-laden environments, as it is dust-tight and waterproof. The type rating according to UL 50E includes categories Type 1, Type 4, Type 4X, Type 12, and Type 13, confirming its suitability for various industrial and commercial applications.

Functions and Equipment in Detail
The gland features a thread M40 x 1.5 with a thread length of 9 mm. The wrench size is 43 mm, enabling installation with a suitable wrench. The required torque is 17 Nm to ensure a secure and tight connection. The seal is made of CR/NBR material, providing reliable sealing against dust and moisture. The operating temperature range extends from -40 °C to +100 °C, allowing use in extreme environmental conditions.

Technology Explained Simply
The integrated clamp lamellae ensure that the cable is clamped evenly and without overloading. This prevents the cable sheath from tearing and protects the conductors inside the cable. The IP 68 protection rating means the gland is completely dust-tight and can operate under water pressure of 5 bar for 30 minutes without moisture ingress. The nickel-plated surface increases corrosion resistance and ensures good electrical conductivity, which is particularly important in humid or aggressive environments.

Compatibility and Accessories
The cable gland is designed for cables with a diameter between 19 mm and 28 mm. It is specifically designed for use in enclosures and industrial housings. The gland is supplied together with the lock nut in a packaging unit, reducing ordering and storage effort.

Installation and Mounting
Installation is done by screwing the gland into the enclosure using a wrench. The wrench size of 43 mm allows for secure and precise installation. The specified torque of 17 Nm must be observed to ensure a tight and stable connection. The clamp lamellae ensure that the cable is not damaged during tightening.

Operational Advantages
The cable gland provides a reliable and tight connection that withstands harsh operating conditions. The integrated clamp lamellae protect the cable from mechanical stress, extending the service life of the installation. The high corrosion resistance due to the nickel-plated surface and the IP 68 protection rating make it suitable for use in demanding environments. The supply of gland and lock nut in a single packaging unit reduces ordering and storage effort.

General
MaterialBrass, seal: CR/NBR
Surface protectionnickel-plated
Degree of protection IP according to IEC 60 529IP 68 (5 bar, 30 min)
Height43 mm
ThreadM40 x 1.5
Thread length9 mm
Minimum cable diameter19 mm
Max. cable diameter28 mm
Operating temperature range-40 °C...100 °C
Torque17 Nm
Wrench width43 mm
Type rating according to UL 50EType 1, Type 4, Type 4X, Type 12, Type 13


Product data sheet
Datasheet for Rittal 2411851, EAN: 4028177810044

Questions & answers

What is the delivery time of Rittal 2411851 Cable gland brass M40x1.5?

The article Rittal 2411851 Cable gland brass M40x1.5 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2411851 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2411851 Cable gland brass M40x1.5 always at the best possible price. We can give you a discount of 2% on Rittal 2411851 Cable gland brass M40x1.5 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
