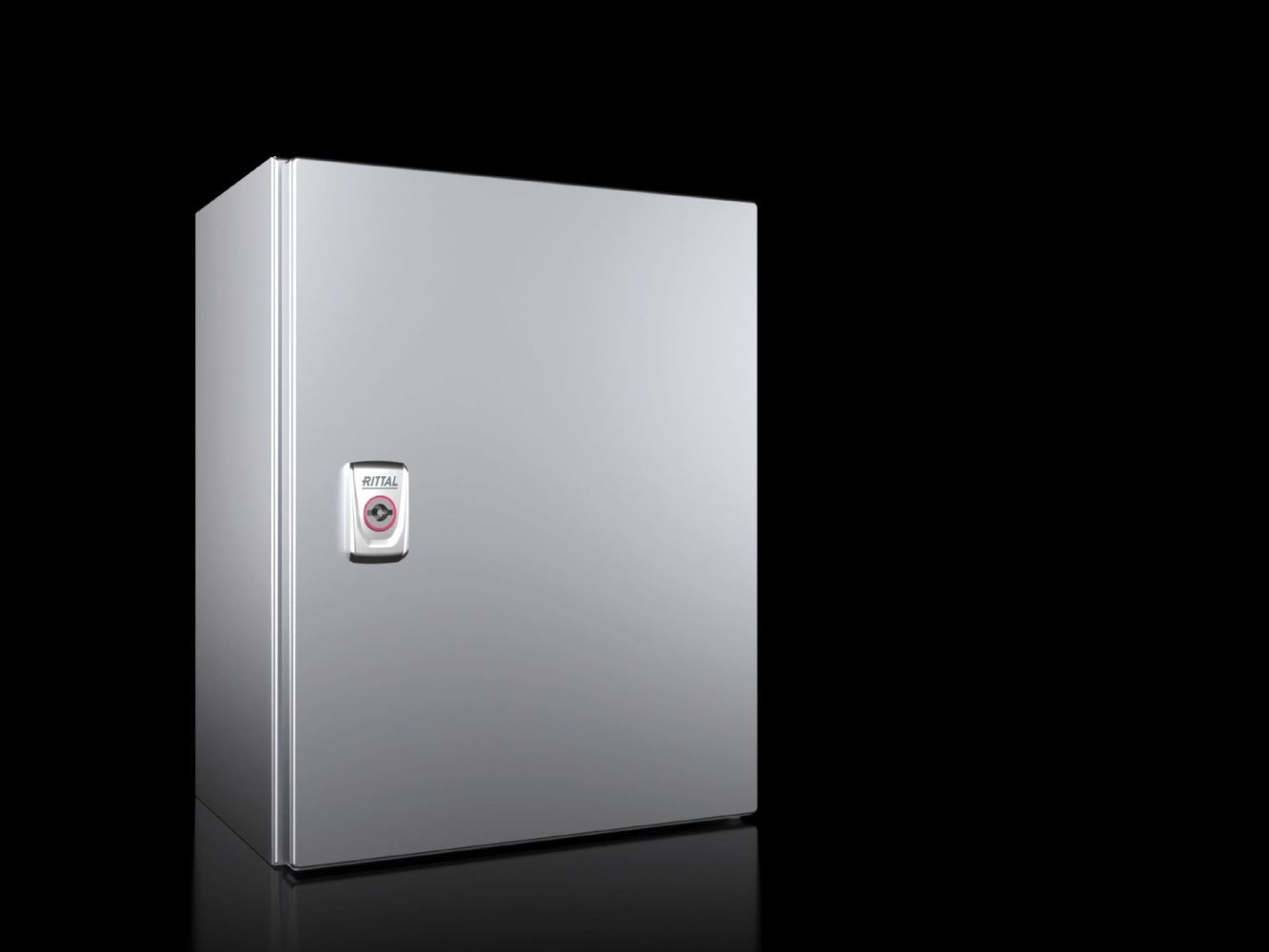

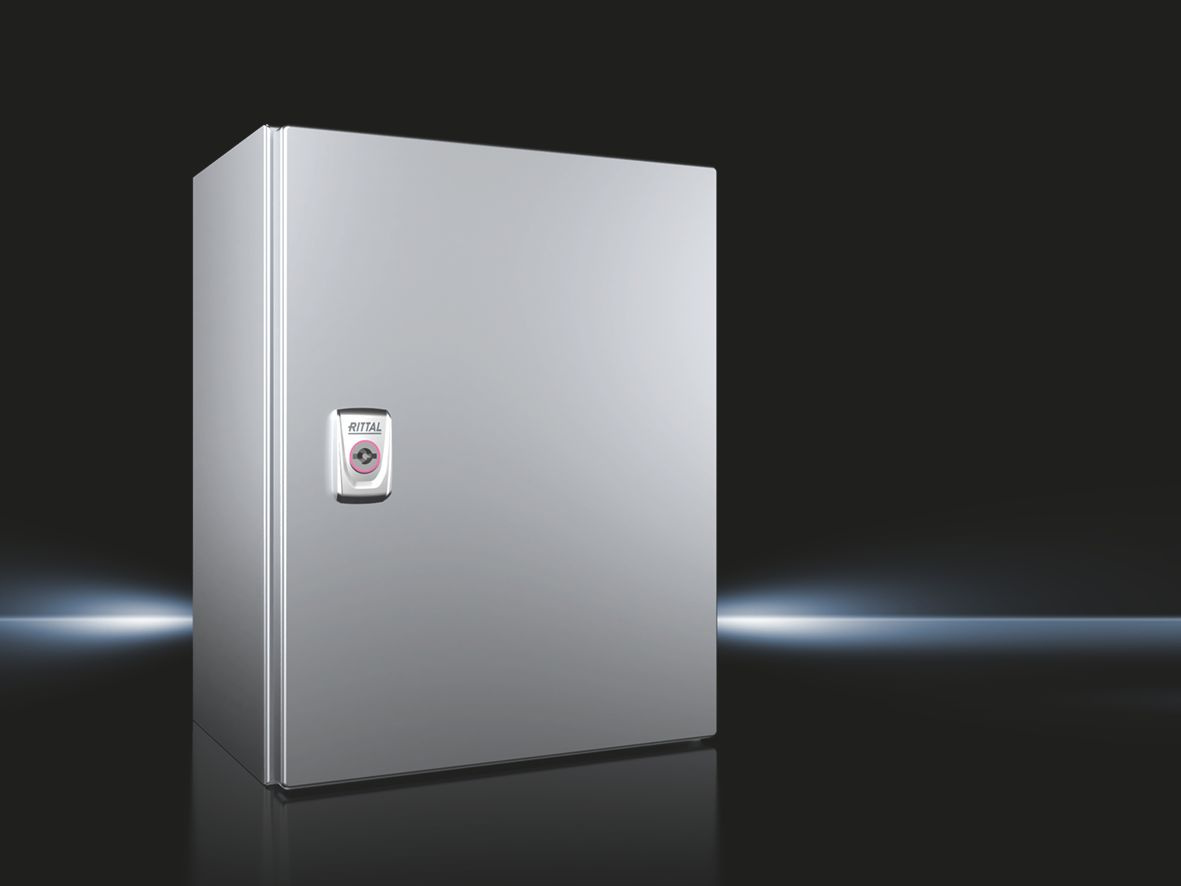

Rittal 1302000 Compact enclosure AX, 1-door, 300x380x210 mm
|
-10% 394,45 EUR 436,01 EUR |
|
|
( 469,40 EUR incl. VAT ) ≈ £330.15 | ≈ $433.50 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1980356 |
| Mfg Part No: | 1302000 |
| UPC/EAN: | 4028177815070 |
| Weight: | 8.4 kg |
| Type: | AX 1302000 |
Product information for Rittal 1302000:
Applications
This enclosure is suitable for use in industrial plants, machine building, process automation, and environments with high requirements for mechanical strength and environmental protection. The protection rating IP 66 according to EN 60 529 ensures complete protection against dust and heavy splashing water, even under direct spray mist. The protection rating NEMA 4X and Type 4X according to UL 50E makes it suitable for outdoor use and in damp, corrosive environments. The IK code IK10 indicates high mechanical strength against mechanical impacts such as shocks or vibrations.
Functions and Equipment in Detail

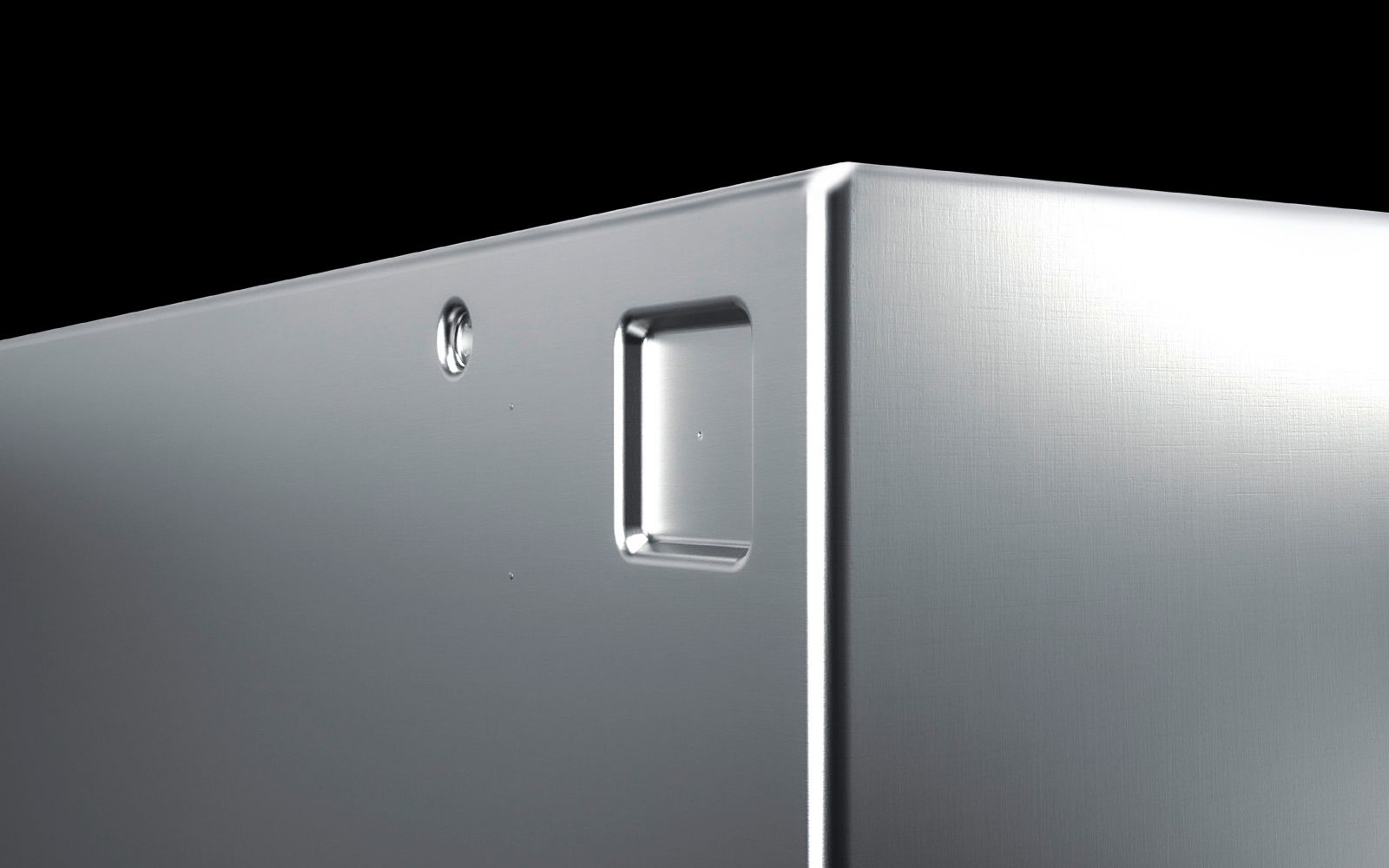

The enclosure is formed from a single piece, bent and welded, resulting in a stable, wear-resistant construction. The door features a continuous foamed PU seal, ensuring tight sealing and supporting the IP 66 protection rating. The rear panel is solid, and the mounting plate is equipped with keyhole slots for earthing. The mounting plate is fastened using Limbach nuts. An integrated cam system allows removal of internal units without drilling, simplifying installation and maintenance. The enclosure is equipped with a QR code on the body, door, and nameplate, enabling unique identification and easy access to product information as well as traceability.
Technical Explanation
The IP 66 protection rating means the enclosure is dust-tight and protected against heavy splashing water and water jets from any direction. This makes the enclosure suitable for outdoor use or in damp production environments. The NEMA 4X and Type 4X protection rating according to UL 50E corresponds to a high protection standard, also protecting against corrosion and chemical influences. The IK code IK10 guarantees that the enclosure is resistant to mechanical impacts such as shocks with an energy of up to 10 joules. The material thickness of 1.5 mm for the enclosure and door, and 2 mm for the mounting plate, ensures high strength and durability.
Compatibility and Accessories

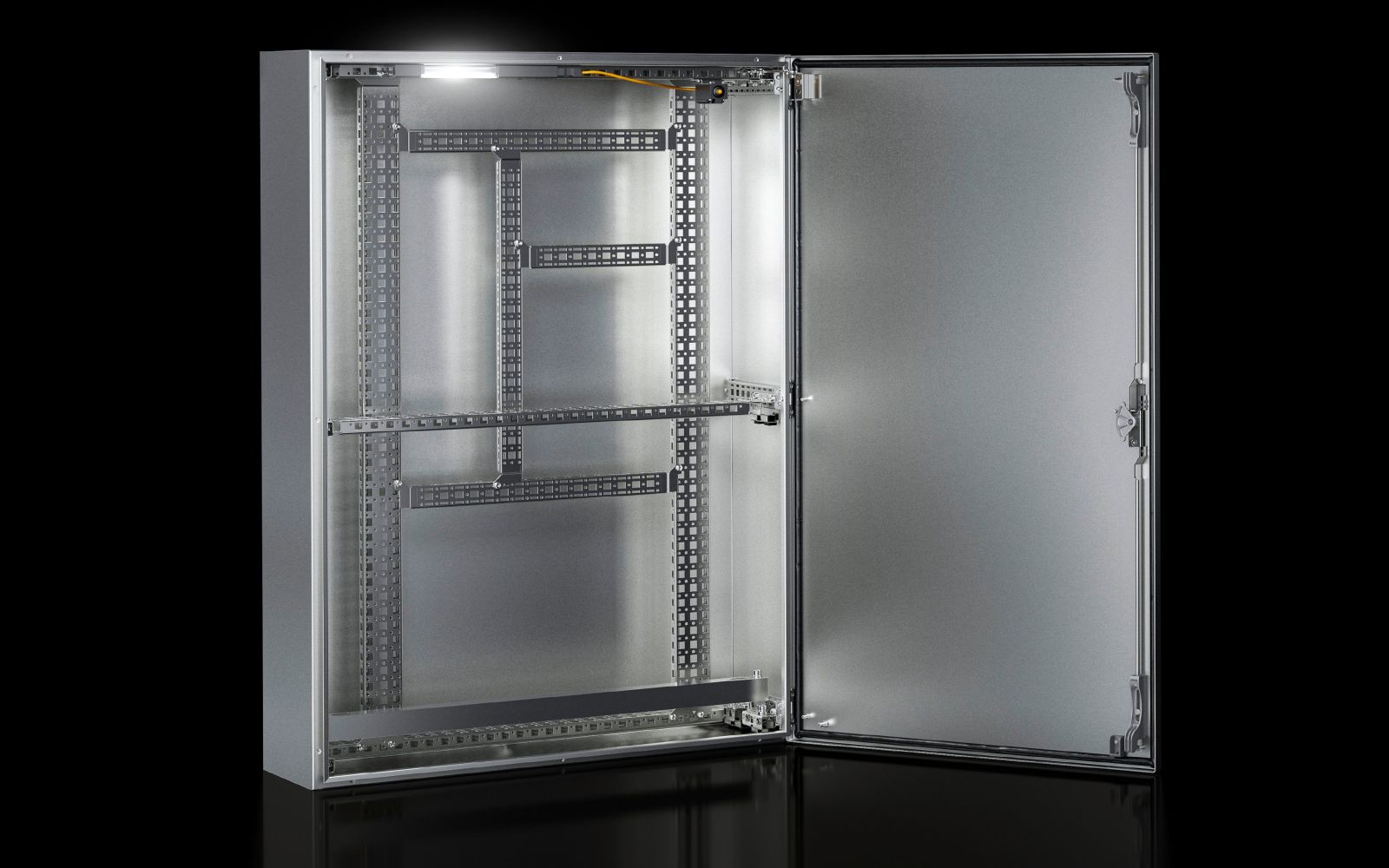

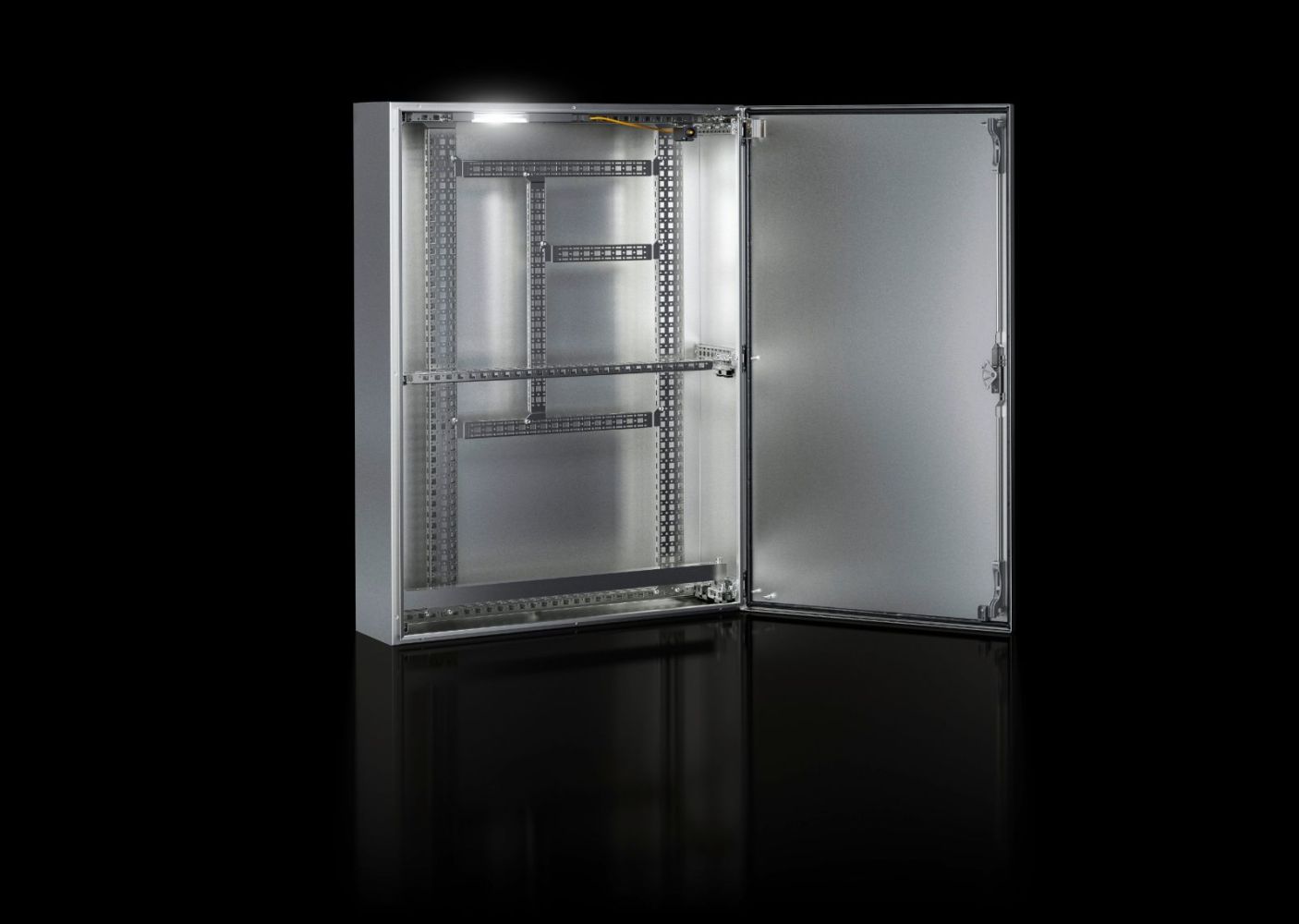

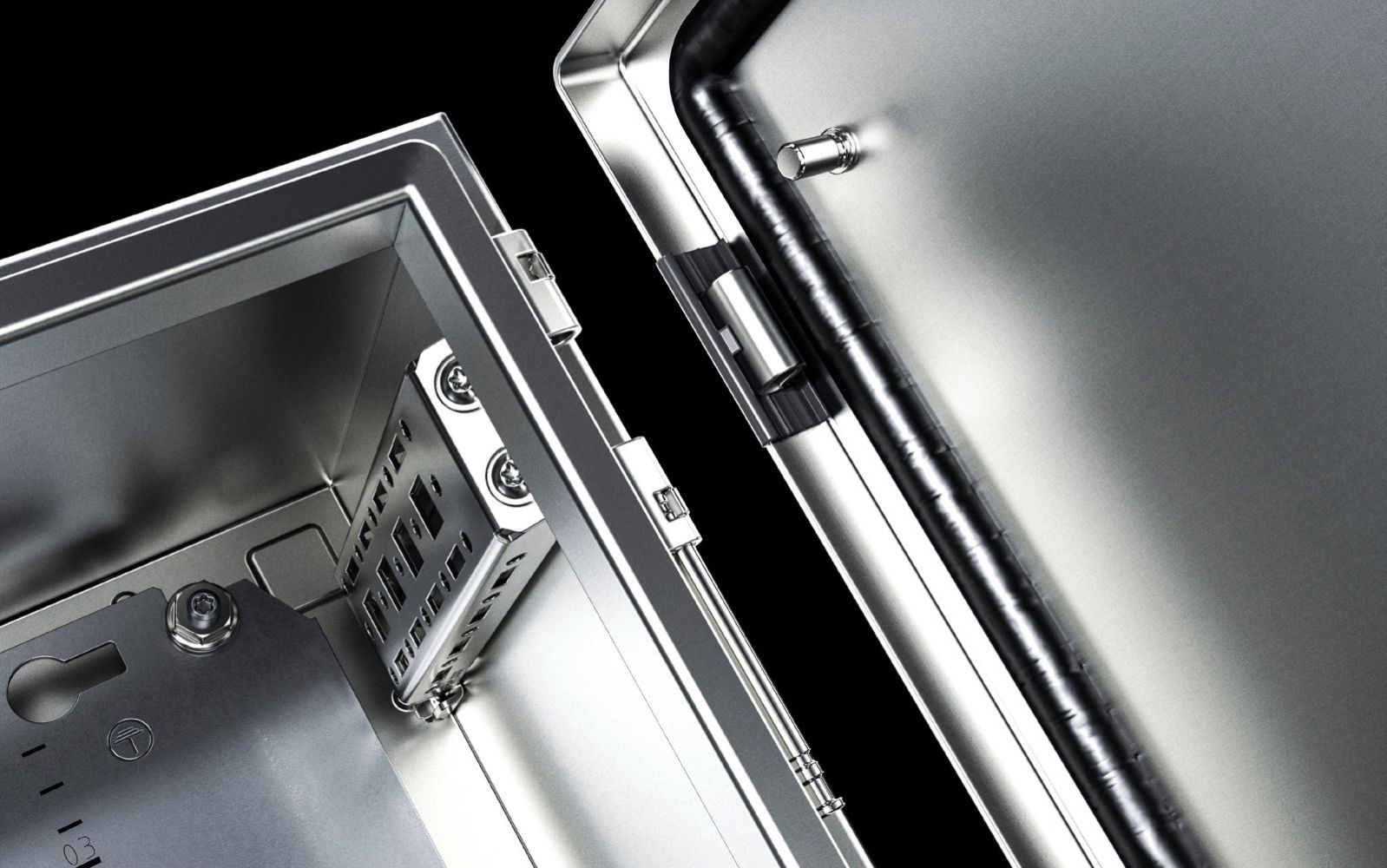

The enclosure is equipped with an integrated cam system, enabling easy and quick installation of internal units. Compatible accessories include various cable glands made of brass and polyamide in different diameters (e.g. M12x1.5, M25x1.5, M40x1.5), wall mounting brackets made of stainless steel 1.4301, baying sets for AX, KX, AE, KL, and lock box covers. These components allow flexible adaptation to specific installation requirements.
Mounting and Installation

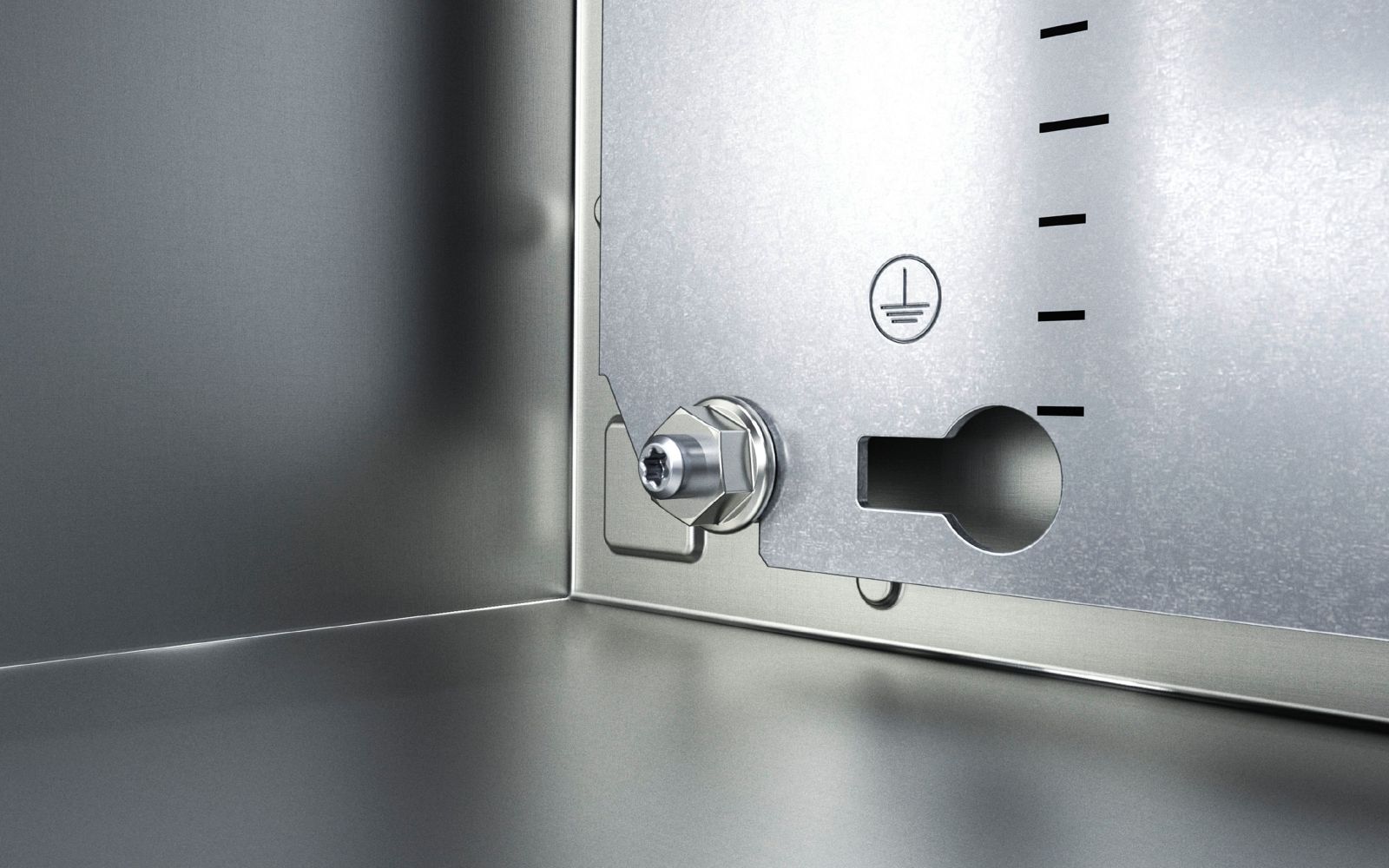

Mounting is done using the designated fastening elements on the rear panel. The mounting plate is marked with dimensions to enable precise positioning of components. Fastening is done with Limbach nuts, ensuring a secure and durable connection. The door can be mounted on the left side if required, allowing flexible adaptation to the installation site.
Operational Advantages
The enclosure offers high mechanical strength, reliable protection against environmental influences, and easy installation and maintenance. The use of stainless steel 1.4404 ensures long service life, even in corrosive environments. The integrated cams and mounting plate simplify component installation and reduce mounting time. The unique identification via QR code supports documentation and traceability during operation.
| General | |
| Material | Housing: stainless steel, door: stainless steel, continuous foamed PU seal, mounting plate: sheet steel, stainless steel 1.4404 (AISI 316L) |
| Surface protection | Casing and door: brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet with door(s), opening angle 130°, mounting plate, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 4X, Type 12 |
| IK code | IK10 |
| Width | 300 mm |
| Height | 380 mm |
| Depth | 210 mm |
| Door material thickness | 1,5 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2 mm |
| Mounting plate dimensions (W x H) | 250 mm x 355 mm |
| Number of doors | 1 |
| Lock | Closure type: Push-button, Number of closures: 1, Closure insert: 3 mm double barb, Closure material: Stainless steel 1.4404 (AISI 316L) |
| Base material | Stainless steel 1.4404 (AISI 316L) |
| PCF/VE (Cradle-to-Gate) | 33,71 |
