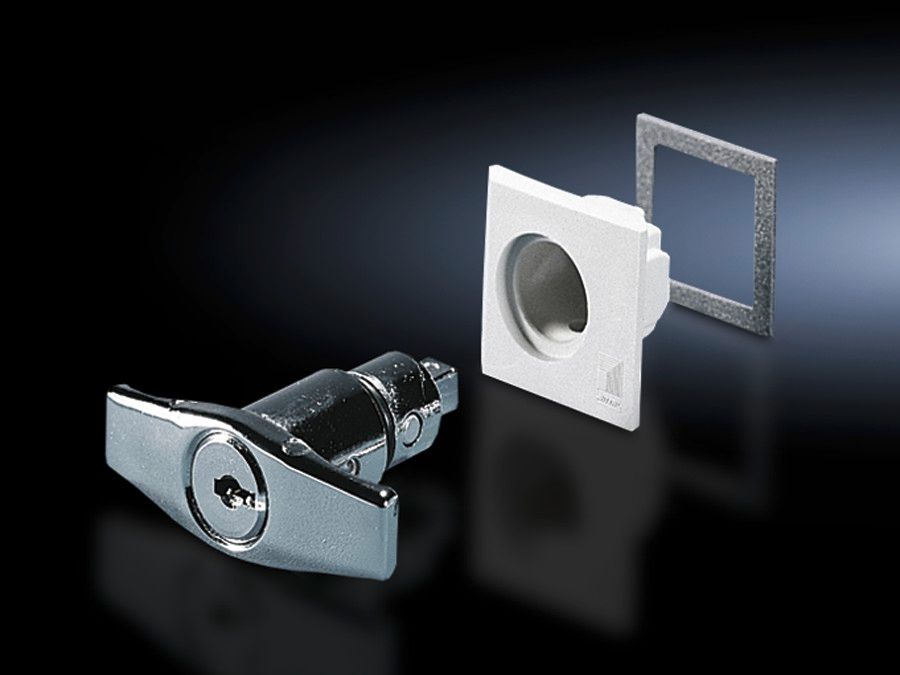

Rittal 2575010 SZ knob handle with safety cylinder insert for AX
|
29,01 EUR 30,28 EUR |
|
|
( 34,52 EUR incl. VAT ) ≈ £24.28 | ≈ $31.88 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1571616 |
| Mfg Part No: | 2575010 |
| UPC/EAN: | 4028177037359 |
| Weight: | 0.137 kg |
| Type: | SZ 2575010 |
Product information for Rittal 2575010:
Applications
The knob handle is intended for a wide range of enclosure types, including housings from the AX series with pull-out, E-Box KX, sheet metal housings, as well as console top sections, console middle sections, and floor-standing consoles from the CX series. This versatility makes it particularly suitable for industrial installations, control enclosures, and distribution enclosures, where secure and quick operation of the lock is required. Use in combination with pull-out systems enables secure locking, protecting against unintentional opening or unauthorized access.
Functions and Equipment in Detail
The handle features an integrated lock insert with security cylinder insert, lock code 3524 E. This cylinder enables controlled access control, allowing only authorized persons with the matching key to open the enclosure. The delivery includes a seal, ensuring a watertight and dust-tight cover of the lock area, thus supporting the protection rating of the entire enclosure. The seal is designed for long-term sealing and adapts to mounting conditions.
Technology Explained Simply
The knob handle is made of zinc die-cast, a material known for its high strength, corrosion resistance, and precise shaping. The type B refers to the specific design of the handle, intended for mounting on pull-out systems. The integrated security cylinder insert, lock code 3524 E, is a standardized locking system widely used in industry and offers high security. The seal ensures that no moisture or dust can enter the lock area, which is particularly important in humid or dusty environments.
Compatibility and Accessories
The knob handle is compatible with housing types AX with pull-out, E-Box KX, sheet metal housings, and console variants CX (top section, middle section, floor-standing console). This compatibility enables flexible use in various enclosure configurations. Use with pull-out systems is essential, as the handle was specifically developed for this mounting method.
Mounting and Installation
Mounting is carried out at the designated mounting points of the housings, with the knob handle being secured via the pull-out systems. The seal is installed simultaneously to ensure a tight connection. Installation requires no additional tools or components, as the handle is directly attached to the designated mounting points. Mounting is simple and does not require any additional adjustments.
Advantages in Operation
The use of the SZ 2575010 provides a reliable and secure locking solution for industrial enclosures. The combination of zinc die-cast and integrated security cylinder insert ensures high mechanical strength and access control. The included seal supports the enclosure’s protection rating and protects against environmental influences. Compatibility with various housing types increases flexibility in planning and installing enclosure systems.
| General | |
| Model | B |
| Material | zinc die-cast |
| Scope of delivery | Including seal |
| Lock | Lock insert: with security cylinder insert, lock number 3524 E |
| Suitable for housing type | AX with pioneer, E-Box KX, sheet steel, console top CX, console middle section CX, floor console CX |
