Rittal 1094000 AX compact enclosure 1-door W x H x D: 800 x 400 x 250 mm
|
-6% 277,38 EUR 294,02 EUR |
|
|
( 330,08 EUR incl. VAT ) ≈ £232.17 | ≈ $304.84 plus delivery charges: 235,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 611662 |
| Mfg Part No: | 1094000 |
| UPC/EAN: | 4028177995239 |
| Weight: | 23.267 kg |
| Type: | AX 1094000 |
Product information for Rittal 1094000:
Applications
This enclosure is designed for use in industrial environments where high mechanical stability and protection against dust and splashing water are required. It is suitable for installing controls, switchgear, distributors, and other electrical components in production plants, machine building, power supply, and automation technology. The integrated enclosure lugs in a 25 mm system grid enable flexible and modular interior fitting, which can be adapted to different requirements.
Functions and Equipment in Detail

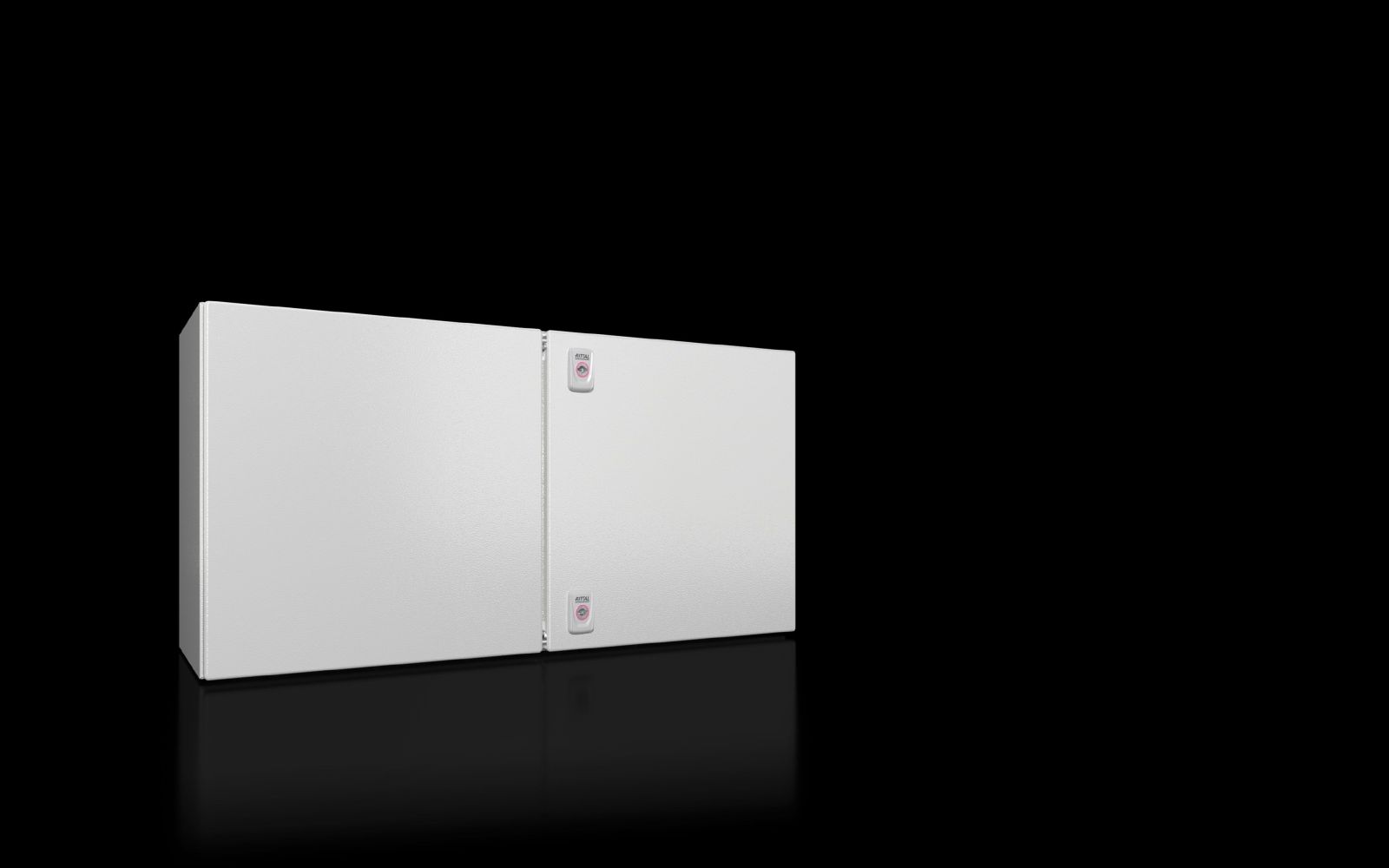

The enclosure features two doors, each fitted with a continuous foamed PU seal to ensure protection class IP 55. The doors open to an angle of 130° according to VDI, with an option for retrofitting to 180°. The locking mechanisms are designed as deadbolts with a 3 mm double-barrel lock insert according to DIN 43668, ensuring secure and robust locking. Two gland plates are integrated into the enclosure base, which can be used for securing cable entry plates or other components. Door hole strips on both sides of the doors allow for flexible mounting of accessories.
Technical Explanation
Protection class IP 55 means the enclosure is dust-tight and protected against splashing water from any direction, making it suitable for indoor use as well as in slightly damp outdoor areas. UL approval as Type 1 and Type 12 confirms suitability for dry indoor environments and areas with splashing water. The IK code IK10 guarantees high mechanical protection against impact, for example from tools or small objects. The integrated enclosure lugs in a 25 mm grid allow mounting of interior fitting rails without drilling, thus maintaining the protection class. The base fitting rail provides an additional mounting level and increases load capacity inside the enclosure.
Compatibility and Accessories
The enclosure is compatible with the Rittal configurator RiPanel, enabling easy planning and configuration. Suitable accessories include lock inserts made of zinc die-cast, lock box covers, wall mounting brackets, baying sets for AX, KX, AE, and KL, knob and plastic handles, metal gland plates, base fitting rail, and system lights. These components can be used to adapt to specific requirements such as additional mounting points, improved accessibility, or visual signaling.
Mounting and Installation
Mounting is done via the integrated gland plates in the enclosure base and the designated openings in the rear wall for wall mounting brackets. The mounting plate is secured with ring weld nuts and provides a stable base for installing components. Interior fitting is done via the 25 mm system grid lugs, allowing rails and other components to be mounted without drilling. QR codes on the enclosure body, door, and nameplate enable unique identification and easy access to product information and documentation.
Operational Advantages
The enclosure offers high mechanical stability and protective performance required for industrial use. The modular interior fitting allows flexible adaptation to different requirements without compromising the protection class. The integrated lugs and base fitting rail increase load capacity and offer additional mounting options. The surface coating ensures long service life and resistance to aggressive environmental conditions. The use of standard components and compatibility with the RiPanel configurator simplify planning and replacement of components.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| Degree of protection IP according to EN 60 529 | IP 55 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Width | 800 mm |
| Height | 400 mm |
| Depth | 250 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2 mm |
| Mounting plate dimensions (W x H) | 750 mm x 375 mm |
| Number of doors | 2 |
| Number of locks | 2 |
| Lock | Closure type: push-in, closure insert: 3 mm double barb |
| Flange plate | Size: 2, Quantity: 2 |
| Base material | steel sheet |
