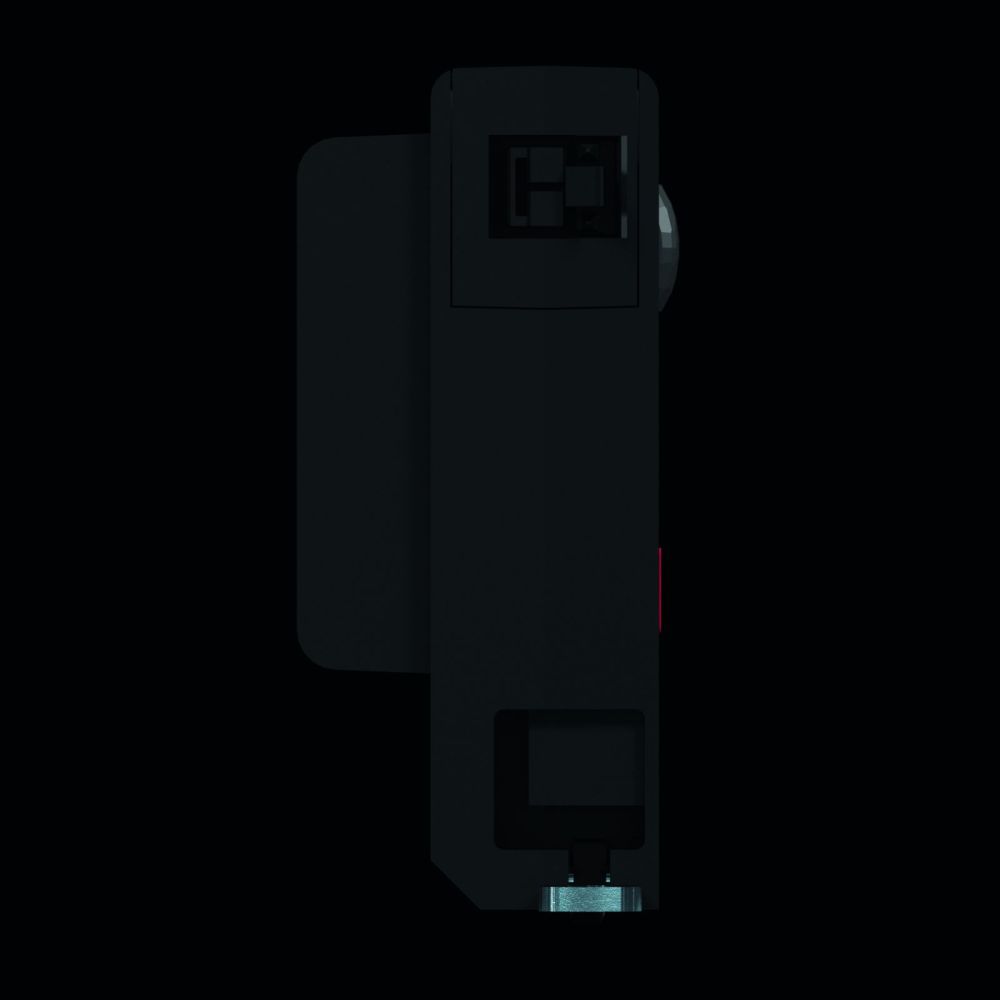

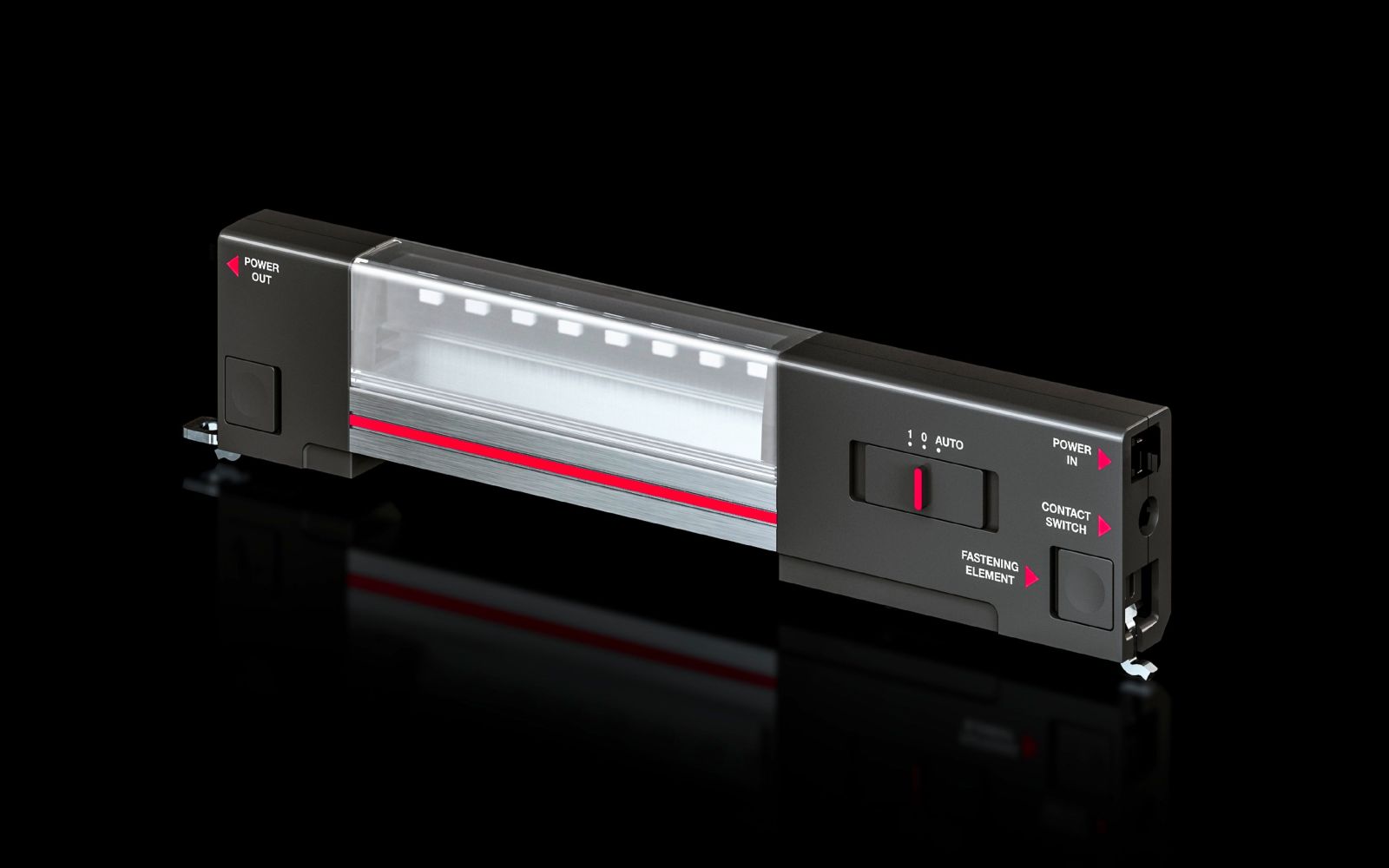

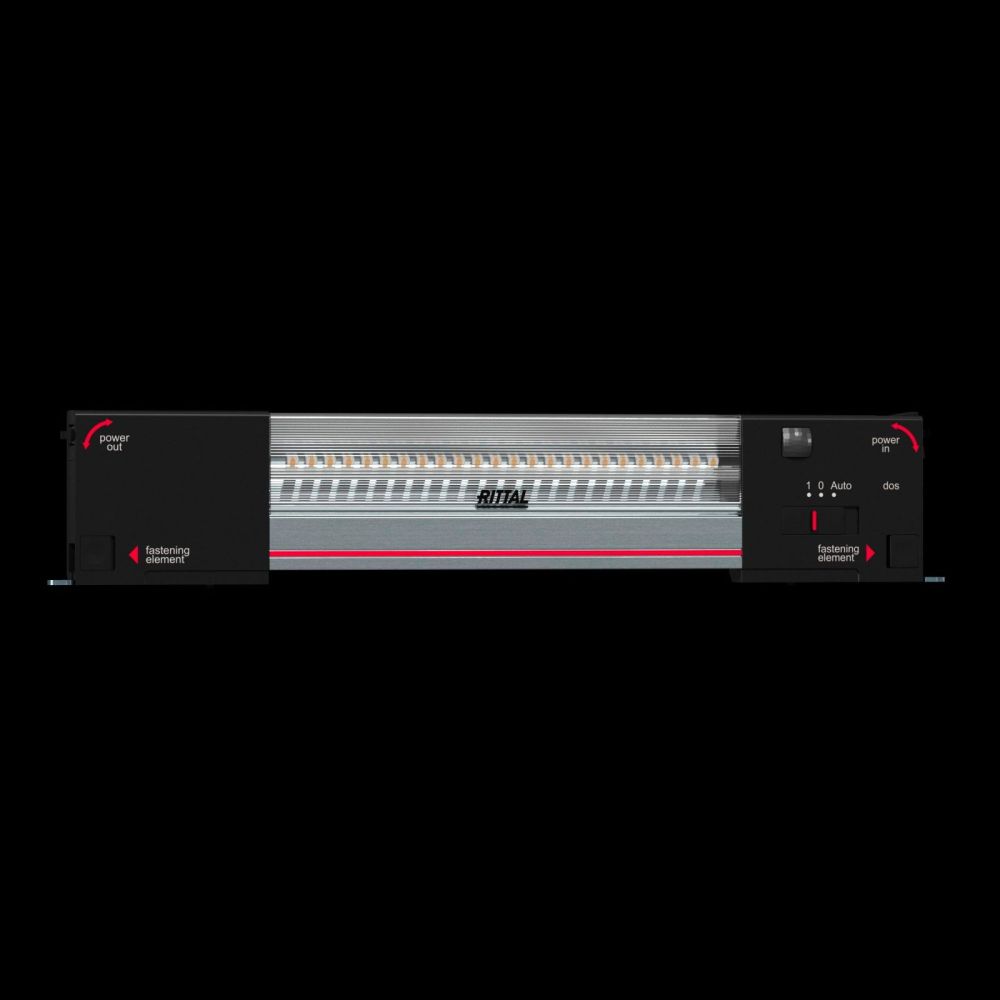

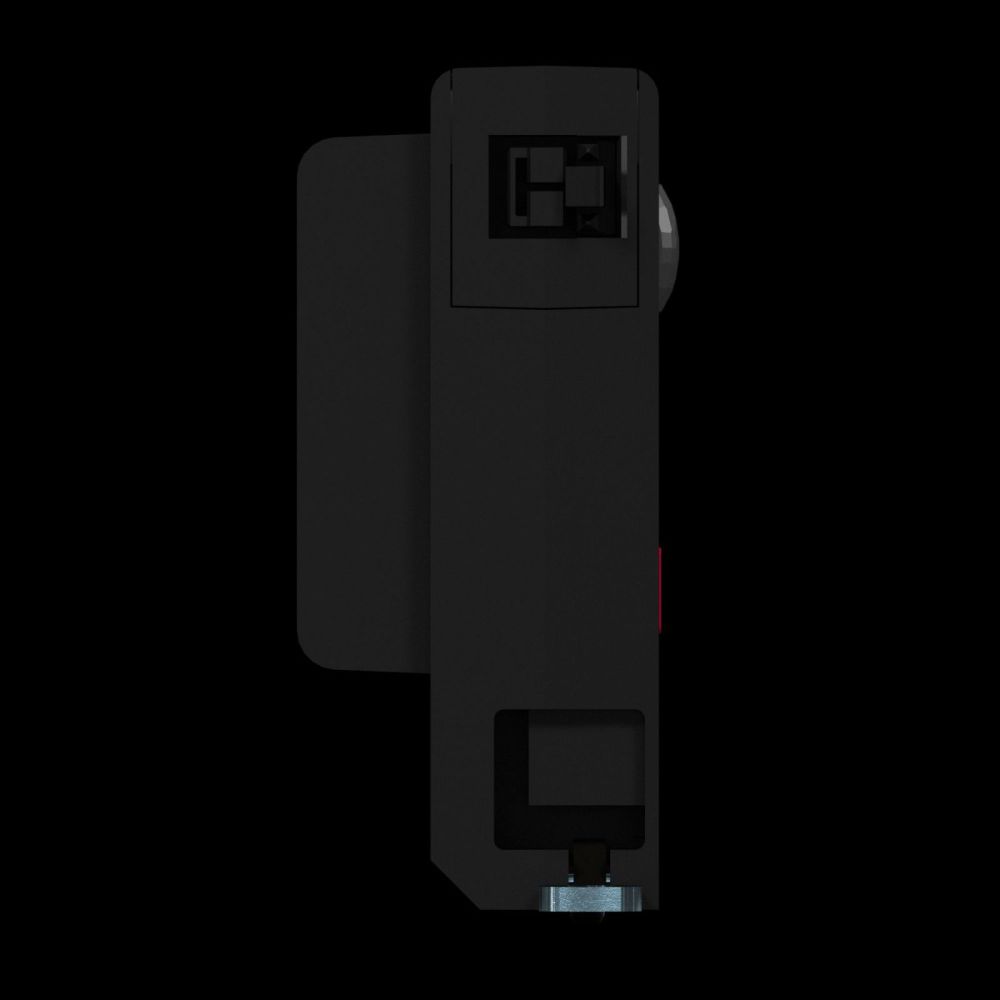

Rittal 2500100 System light LED 400, 100-240 V, L: 262 mm
|
57,80 EUR |
|
|
( 68,78 EUR incl. VAT ) ≈ £48.38 | ≈ $63.52 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1130322 |
| Mfg Part No: | 2500100 |
| UPC/EAN: | 4028177806931 |
| Weight: | 0.28 kg |
| Type: | SZ 2500100 |
Product information for Rittal 2500100:
Applications
The light is primarily intended for installation in enclosures, particularly in compact enclosures of the AX series. For this application, additional components such as the AX internal mounting rail and mounting bracket are required. The light is suitable for illuminating control and switching systems, where clear visibility of components and displays is necessary. Installation can be done by screwing, clip mounting, or using magnetic mounting (available as accessory), enabling flexible adaptation to different enclosure constructions.
Functions and Equipment in Detail
The SZ 2500100 offers multiple connection options: power input (2-pole), pass-through wiring (2-pole), and integration of a door position switch. This enables flexible wiring and control of the light via the enclosure door, so that the light turns on automatically when the door is opened. The protection class II (double insulated) means that the light can be operated without an additional protective earth conductor, as it is protected by double or reinforced insulation. The dimensions are 262 mm (width), 55 mm (height), and 23 mm (depth), resulting in a compact design that integrates well into standard enclosure constructions.
Technology Explained Simply
The light uses LED technology, known for high luminous efficacy and long service life. The light housing is made of extruded aluminium, ensuring good heat dissipation and increased mechanical stability. The cover is made of polycarbonate, a robust and transparent plastic that optimizes light distribution. The ends of the light are made of PC-ABS, a material that withstands mechanical stress well. The housing colour is RAL 7016, a dark grey tone that blends well visually in industrial environments.
Compatibility and Accessories
To extend mounting options, various accessories are available, including universal brackets, mounting brackets for internal installation, a door position switch, connection cables in different lengths (1000 mm and 3000 mm), a mounting kit with magnetic mounting, and sockets and plugs for 2-pole wiring. These components allow individual adaptation to the specific enclosure construction and wiring.
Mounting and Installation
Installation is done either by screwing, clip mounting, or using a magnetic mounting kit (accessory). For installation in compact enclosures AX, the AX internal mounting rail and mounting bracket are additionally required. The light is designed for easy installation, with the supplied mounting screws enabling direct installation. The connection options allow flexible integration into existing power supply structures.
Operational Advantages
The light provides reliable and uniform illumination within the enclosure, improving working conditions for maintenance and servicing. The energy-efficient LED technology reduces power consumption and minimizes heat generation. The protection rating IP 20 and the operating temperature range of -20 °C to 55 °C ensure stable performance under industrial conditions. The flexible mounting options and the possibility to integrate a door position switch enhance user-friendliness and safety when operating the enclosure.
| General | |
| Model | without socket |
| Material | Luminaire body: extruded aluminium, luminaire cover: polycarbonate, luminaire ends: PC-ABS |
| Colour | Housing: RAL 7016 |
| Scope of delivery | Including mounting screws |
| Nominal power | 5 W |
| Connection options | Power supply, 2-pole, through wiring, 2-pole, door position switch |
| Protection class | II (double insulated) |
| Luminaires mounting type | Screwing, clip mounting, magnetic mounting (accessory) |
| Mounting options | For installation in compact control cabinets AX, the internal mounting rail AX and mounting bracket are required |
| Luminous flux | 400 lm |
| Colour of light | 4000 K (neutral white) |
| Note | Connection accessories to be ordered separately |
| Width | 262 mm |
| Height | 55 mm |
| Depth | 23 mm |
| Operating temperature range | -20 °C...55 °C |
| Rated operating voltage | 100 V - 230 V, 1~, 50 Hz/60 Hz |
| Degree of protection IP according to IEC 60 529 | IP 20 |
| PCF/VE (Cradle-to-Gate) | 7,2 |
