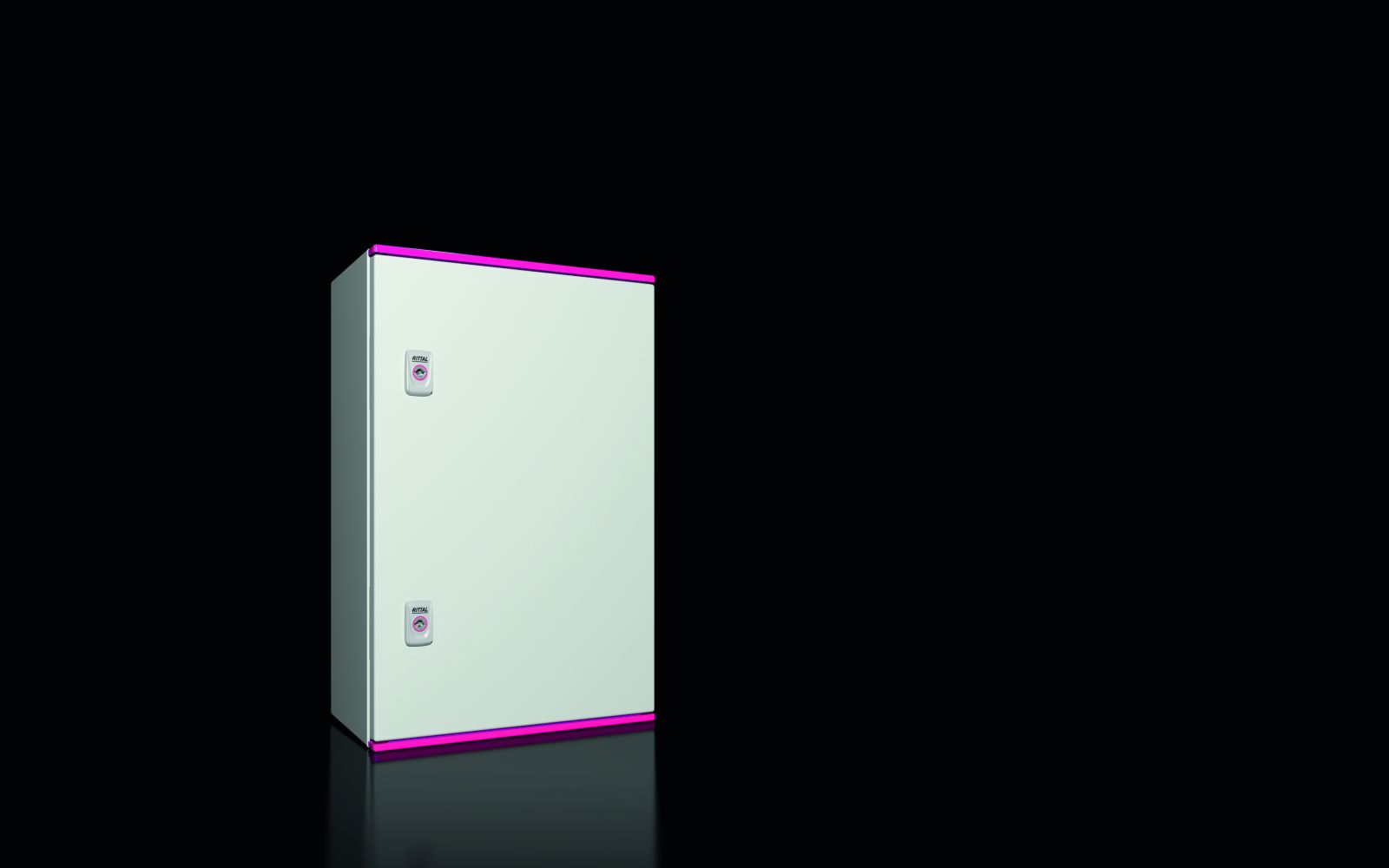

Rittal 1446000 AX plastic enclosure 400x600x200 mm without door

Your rating:
Average rating
product review for Rittal 1446000 AX plastic enclosure 400x600x200 mm without door
( 5 / 5 ) 1 ratings
Rittal 1446000
This image may differ from the desired article.
Rittal 1446000Rittal 1446000Rittal 1446000Rittal 1446000Rittal 1446000Rittal 1446000
182,68 EUR 182,69 EUR
( 217,39 EUR incl. VAT )
≈ £152.90  |  ≈ $200.77
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1446000 AX plastic enclosure 400x600x200 mm without door
Datasheet:file_download Download
Lieske Part No.:1910554
Mfg Part No: 1446000
UPC/EAN: 4028177006546
Weight:12.25 kg
Type:AX 1446000

Product information for Rittal 1446000:

The Rittal AX 1446000 is a plastic enclosure with dimensions 400 mm width, 600 mm height and 200 mm depth, designed without a viewing window. It serves as a protected housing for electrical and electronic components in demanding environments, particularly outdoors or in industrial facilities with high requirements for protection and weather resistance. The enclosure is made of a single piece of glass-fibre-reinforced, unsaturated polyester (GFK), which is self-extinguishing according to UL 94-V0 and manufactured halogen-free. The surface is untreated and pigmented, matching RAL 7035. The door is fitted with a continuous foamed PU seal, ensuring a tight seal. The mounting plate, made of galvanized steel sheet with a thickness of 3 mm, provides a stable mounting surface for internal components.

Applications
This enclosure is designed for use in environments subject to high mechanical stress, moisture, dust or rain. It is particularly suitable for outdoor installations, such as in energy supply, transport infrastructure or industrial automation. The protection rating IP 66 according to EN 60 529 ensures dust-tight and water-tight shielding, even under heavy spray. The protection ratings NEMA 4X and Type 4X according to UL 50E confirm suitability for outdoor use, including protection against spray, dust and corrosion. The IK09 rating ensures high protection against mechanical impacts, such as shocks or vibrations.

Functions and Equipment in Detail
The enclosure is fully enclosed and features a hinged door with a 3 mm double-barrel lock. The door can be opened to an angle of 130° and is standard right-hinged, with the hinge position changeable to left. Double sealing is integrated along the top and bottom edges of the door, serving simultaneously as a rain shield. The mounting plate is equipped with grounding keyhole slots and dimension markings, and is fastened with Limbach nuts. Numerous mounting domes inside allow for individual internal installation on a 25 mm grid, e.g. for system chassis or rails.

Technology Explained Simply
The enclosure is designed as a protection-insulated housing, protection class II according to VDE 100, part 410, meaning it can be operated safely without additional grounding measures, provided the operating voltage does not exceed 1000 V AC. The materials are temperature-resistant in the range of -30 °C to +75 °C, although the actual operating temperature may be limited by installed components. The F1 Outdoor rating according to UL 746C confirms suitability for outdoor use under long-term exposure to UV radiation and rain. For long-term UV exposure, it is recommended to coat the surface with a PUR paint to avoid visual degradation.

Compatibility and Accessories
Various accessories are available for extending and adapting the enclosure. These include lock inserts made of zinc die-cast, mounting brackets for internal installation, mounting plates in various sizes, TS mounting rails for door width 400 mm, and AX mini comfort handles. System chassis in various dimensions (e.g. 23 x 64 mm or 14 x 39 mm) enable integration of electronic modules. Installation is done on the 25 mm grid, requiring screws for internal mounting. A QR code is printed on the enclosure, door, mounting plate and type plate to enable unique identification and traceability of parts.

Mounting and Installation
Mounting is done via the designated mounting domes in the enclosure and on the mounting plate. Components are installed on the 25 mm grid, using universal brackets or special mounting rails. The door is fitted with a stainless steel hinge, allowing an opening angle of 130°. The integrated door stop at the bottom ensures secure positioning when closed. The mounting plate features grounding keyhole slots, enabling a secure electrical connection.

Operational Advantages
The enclosure offers high mechanical stability and weather resistance. The integrated rain shield and double sealing ensure reliable protection against precipitation. The materials are corrosion-resistant and withstand long-term demands in industrial and outdoor installations. The modular internal equipment allows flexible adaptation to different applications. Protection class II reduces the need for additional grounding measures, simplifying installation. The use of GFK as base material ensures high strength with low weight, facilitating handling and installation.

General
Modelwithout viewing window
MaterialHousing and door: glass-fibre-reinforced unsaturated polyester GFK, door: continuously foamed PU seal, mounting plate: sheet steel, flammability behaviour according to UL 94-V0, halogen-free
Surface protectionHousing and door: not post-treated, plastic pigmented, mounting plate: zinc-plated
ColourSimilar to RAL 7035
Scope of deliveryHousing with hinged door, fully enclosed, 3 mm double latch, door hinge on right, reversible to left, mounting plate, double sealing at top and bottom door edges as integrated rain protection strip
NoteWhen used under long-term exposure to UV radiation (sunlight) and rain, we recommend coating the surface with a PUR lacquer to avoid optical surface impairment. Price and delivery time on request.
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, NEMA 12
Degree of protection IP according to EN 60 529IP 66
Type rating according to UL 50EType 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12
Protection classII (at 1000 V AC)
IK codeIK09
Width400 mm
Height600 mm
Depth200 mm
Mounting plate material thickness3 mm
Mounting plate dimensions (W x H)305 mm x 525 mm
Door opening angle130°
Number of locks2
Base materialPlastic
StandardsComplies with F1 Outdoor Rating per UL 746C
Mounting noteFor mounting components inside the enclosure, screws for internal installation are required. Using the universal angle, components can be mounted on a 25 mm grid, e.g. system chassis.


Product data sheet
Datasheet for Rittal 1446000, EAN: 4028177006546
