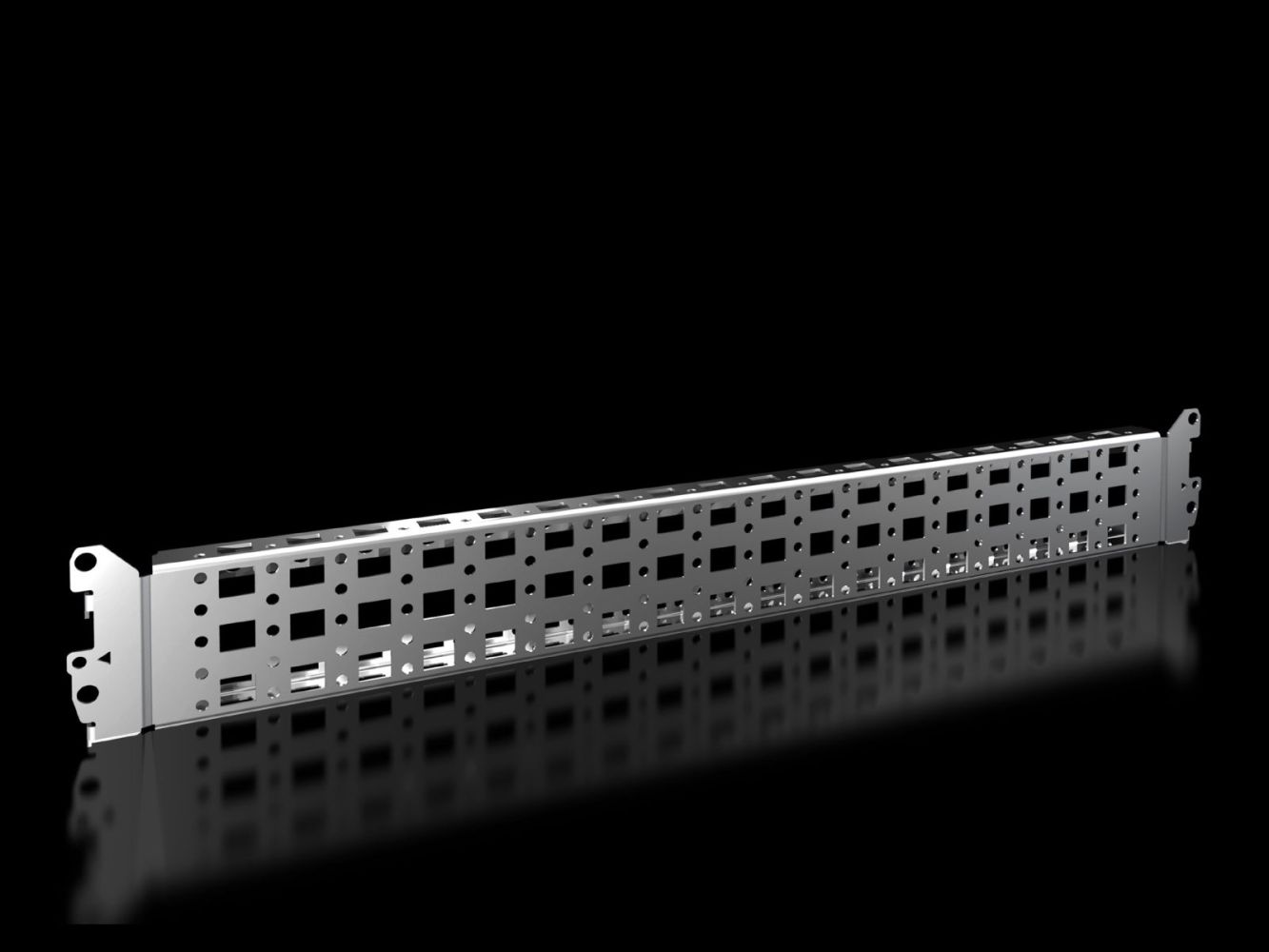

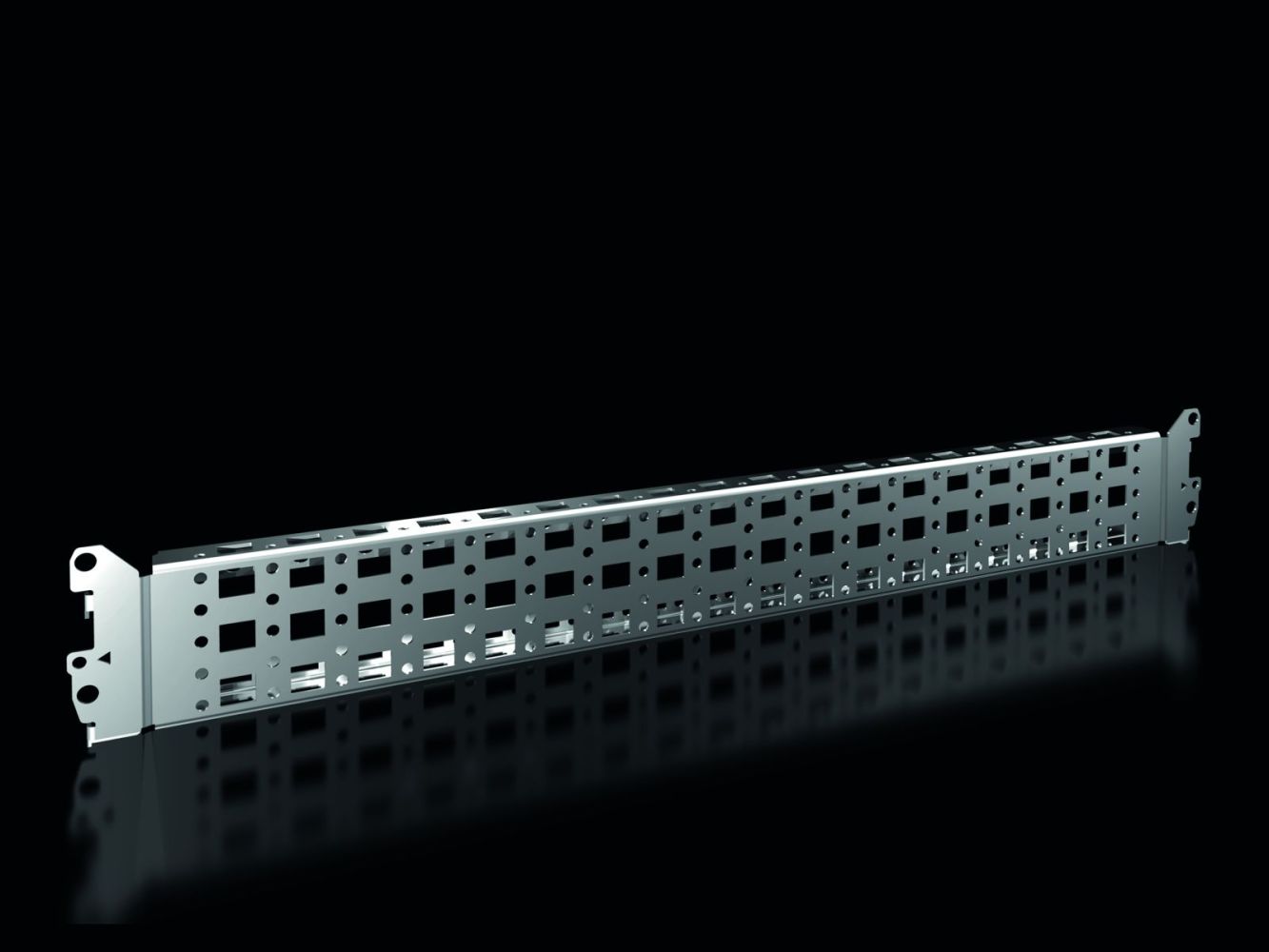

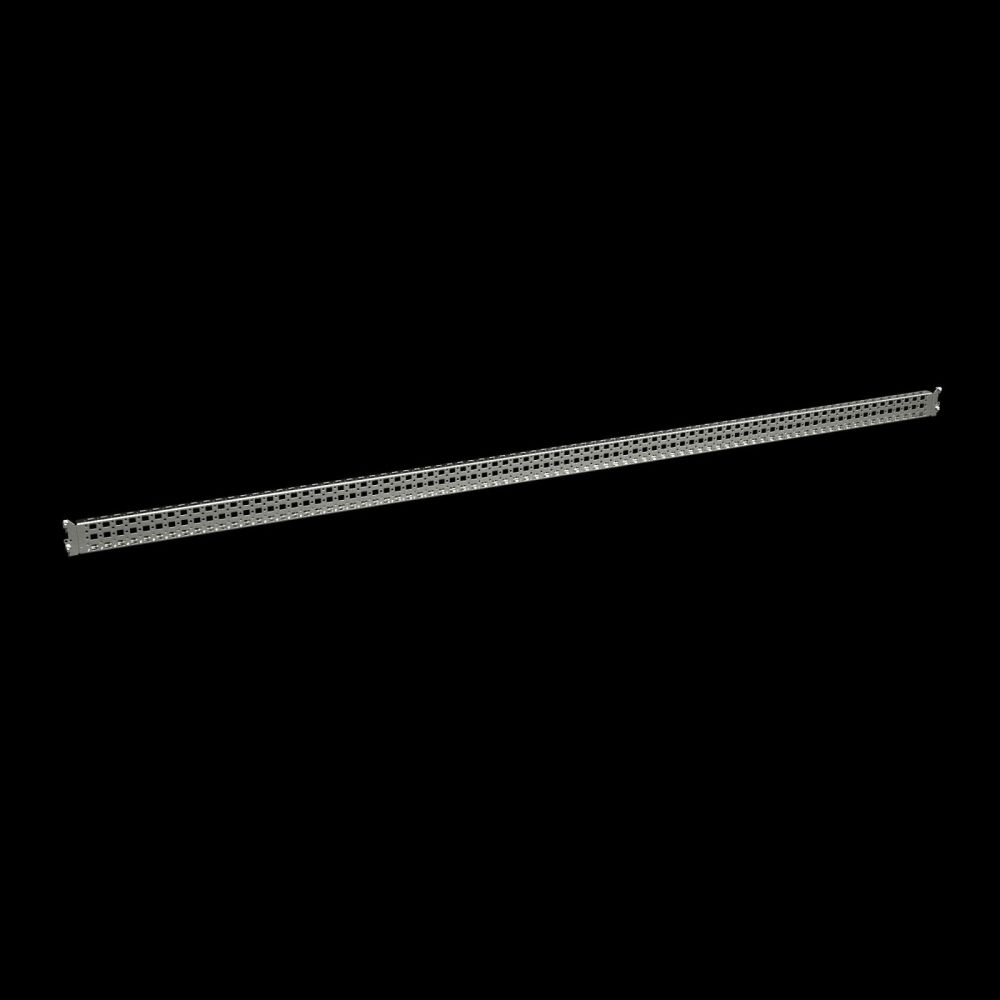

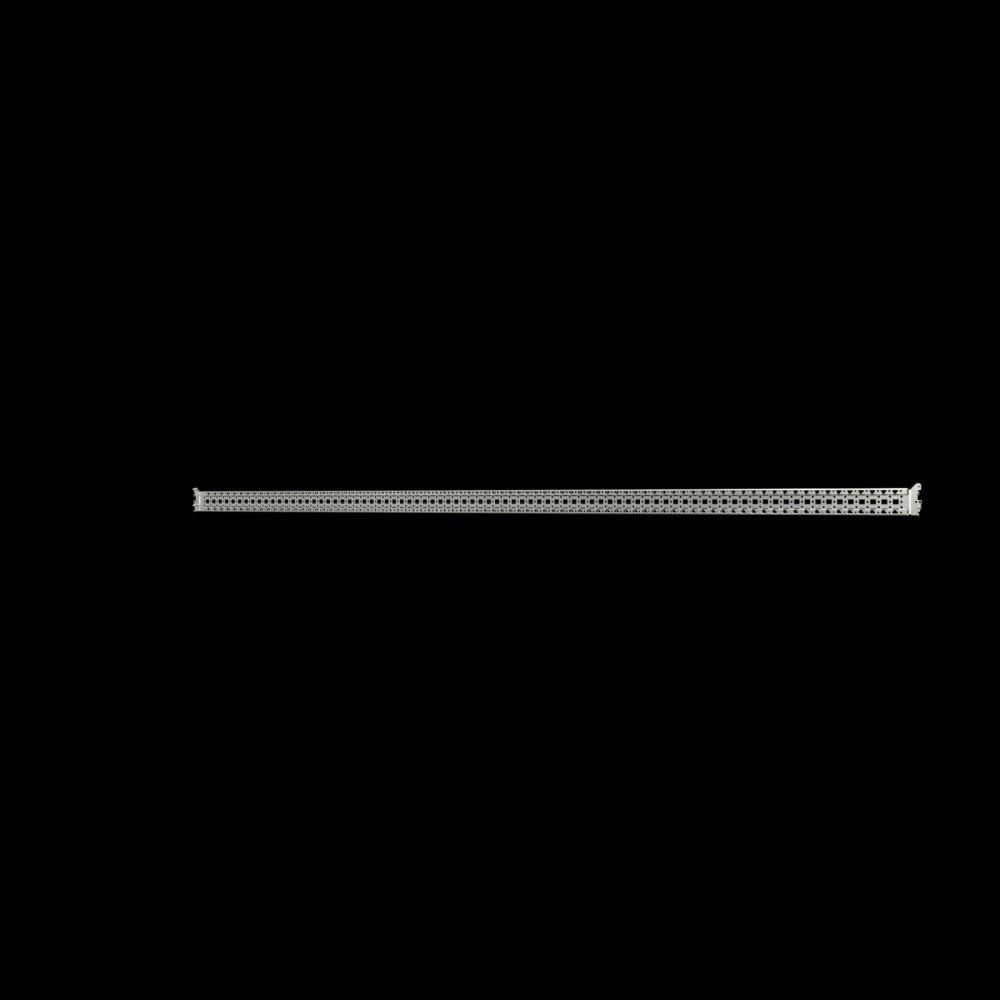

Rittal 8617130 VX System-Chassis 23 x 64 mm W x H x D: 600 mm
|
48,08 EUR |
|
|
( 57,22 EUR incl. VAT ) ≈ £40.24 | ≈ $52.84 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1349694 |
| Mfg Part No: | 8617130 |
| UPC/EAN: | 4028177829138 |
| Weight: | 2.43 kg |
| Type: | VX 8617.130 |
Product information for Rittal 8617130:
Applications
The system chassis is suitable for a variety of enclosure types, including housing variants VX, VX IT, VX SE, PC, IW, AX, AX stainless steel, and AX plastic. It is particularly used in compact enclosures where flexible and individual internal installation is required. Installation options depend on the specific housing type: In VX and VX SE enclosures, it is directly hung into the system perforation and screwed in place. For AX housings, installation requires the use of the AX internal installation rail and the AX base installation rail. For AX plastic housings, the universal bracket is required, while for PC and IW enclosures, the adapter rail for VX compatibility is provided. For VX plinth housings, the chassis is mounted to the plinth trim panels, using the plinth installation angle.
Functions and Equipment in Detail
The chassis features system perforation on all four sides, enabling flexible mounting and fastening. Additional holes for cage nuts are integrated at the top and bottom, allowing for mounting of custom components using metric screws. This construction provides a stable and secure mounting for various electronic components. The use of cage nuts ensures a reliable connection, even under vibration or mechanical stress.
Technology Explained Simply
The chassis is made of sheet steel and galvanized, providing high mechanical stability and corrosion protection. The galvanized surface protects the material from oxidation, especially in environments with increased humidity or aggressive atmospheres. Mounting is done by hanging the chassis into the system perforation of the enclosure frame and then screwing it in place. The integrated perforation allows for precise and quick fastening without additional tools or adapters, provided the respective prerequisites (such as adapter or rail components) are met.
Compatibility and Accessories
The chassis is compatible with various enclosure types, as described above. Cable ties with a length of 150 mm can be used to secure cables and wiring, ensuring orderly cabling.
Installation and Mounting

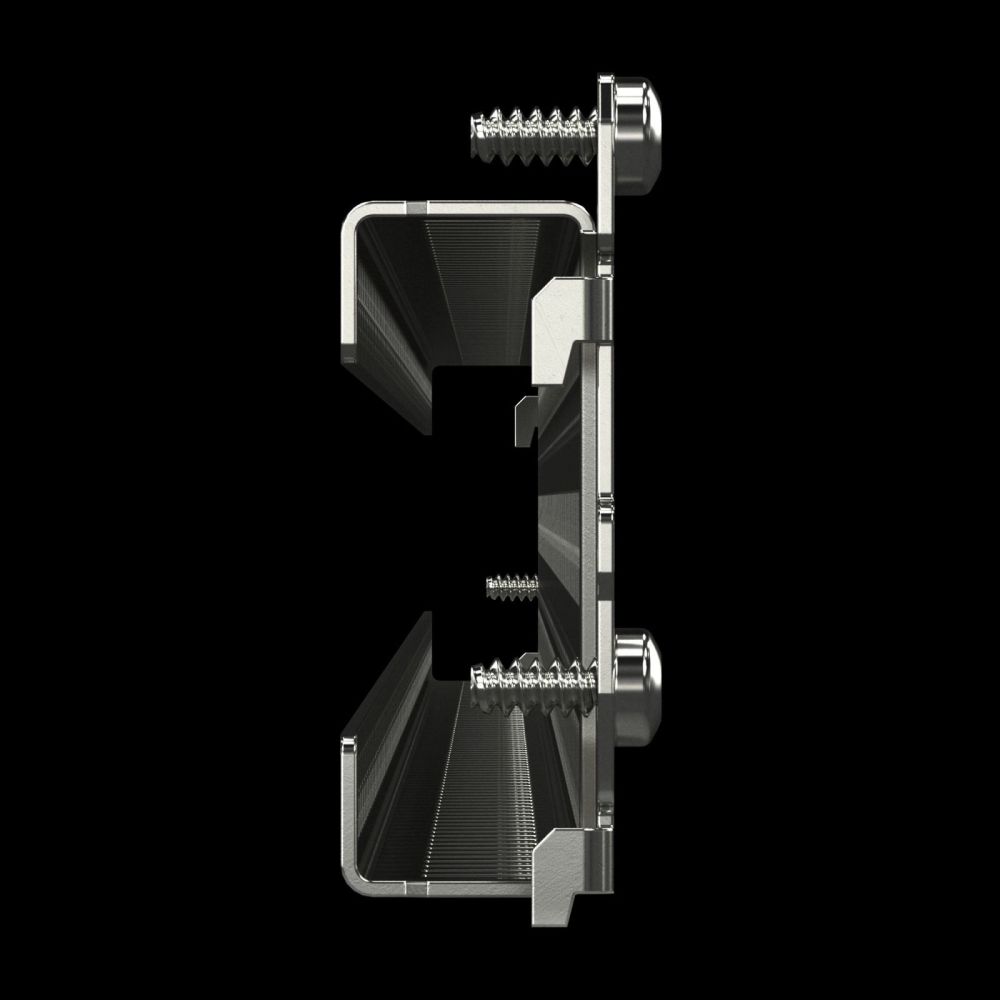

Installation is performed by hanging the chassis into the system perforation of the enclosure frame. Fastening is done using the included screws and cage nuts. For most housing types, no additional mounting aids are required, except for specific variants such as AX, AX plastic, PC, IW, or VX plinth, where special adapter or rail components are needed. Mounting is simple and does not require special tools, except for a screwdriver or an appropriate wrench for the cage nuts.
Advantages in Operation
The system chassis provides a stable and flexible mounting base for electronic components. The integrated perforation and use of cage nuts enable quick and secure fastening. The galvanization protects the material from corrosion, extending the service life of the chassis. Compatibility with various enclosure types increases flexibility in planning and implementing enclosure solutions. The packaging unit with 4 pieces allows for efficient equipping of larger enclosures or multiple units.
| General | |
| Material | steel sheet |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Mounting options VX | In cabinet width/depth 600 mm, on inner mounting plane |
| Mounting options VX SE | in cabinet width/depth 600 mm, on inner mounting plane, in combination with adapter rail for VX compatibility |
| Mounting options AX | In enclosure width/height 600 mm, in combination with the rail for indoor installation AX and floor installation rail for AX |
| Mounting options AX stainless steel | In housing width/height 600 mm, in combination with the floor mounting rail |
| Mounting options AX plastic | In housing width 600 mm, in combination with universal angle |
| PC mounting options | In cabinet width 600 mm, in combination with the adapter rail for VX compatibility |
| Installation options IW | In cabinet width/depth 600 mm, in combination with the adapter rail for VX compatibility |
| Mounting options VX socket | In base width/depth 600 mm at base panels, in combination with base installation angle |
| Suitable for | Enclosure type: VX, VX IT, VX SE, PC, IW, AX, AX plastic, suitable for width or height or depth: 600 mm |
| PCF/VE (Cradle-to-Gate) | 12,9 |
Questions & answers
What is the delivery time of Rittal 8617130 VX System-Chassis 23 x 64 mm W x H x D: 600 mm?
The article Rittal 8617130 VX System-Chassis 23 x 64 mm W x H x D: 600 mm is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617130 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8617130 VX System-Chassis 23 x 64 mm W x H x D: 600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617130 VX System-Chassis 23 x 64 mm W x H x D: 600 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
