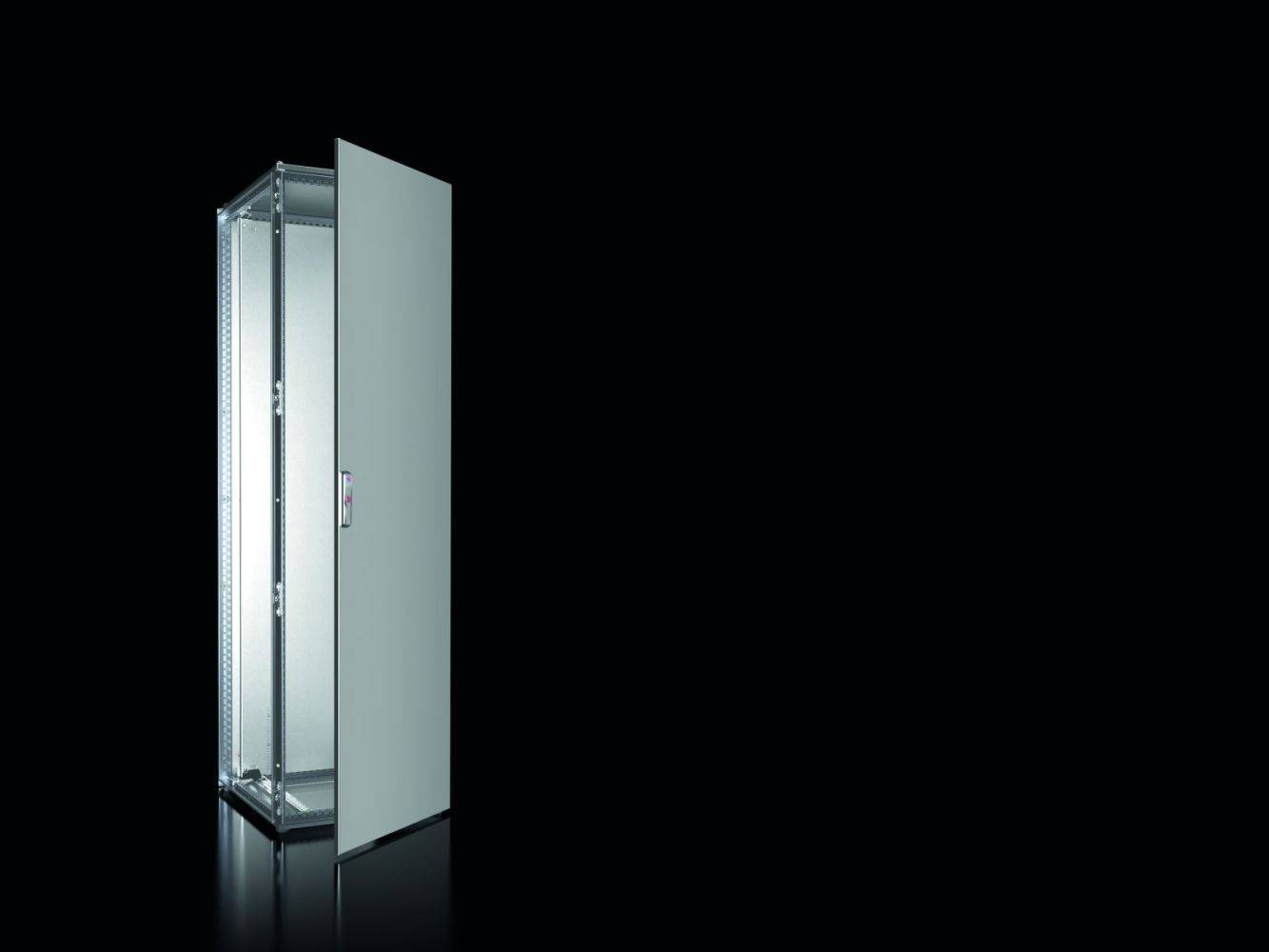

Rittal 8452000 VX bayed enclosure system, 1-door, W x H x D: 600x2000x600 mm
|
2.483,77 EUR |
|
|
( 2.955,69 EUR incl. VAT ) ≈ £2,078.92 | ≈ $2,729.66 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440872 |
| Mfg Part No: | 8452000 |
| UPC/EAN: | 4028177920217 |
| Weight: | 100.8 kg |
| Type: | VX 8452.000 |
Product information for Rittal 8452000:
Applications
This enclosure system is suitable for use in indoor environments as well as in areas with increased contamination risk, where high mechanical and chemical resistance is required. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for areas with humid or dusty atmospheres. Certification according to NEMA 1 and NEMA 12, as well as Type 1 and Type 12 according to UL 50E, confirms suitability for use in industrial facilities, particularly in environments with light contamination. The IK code IK10 indicates high mechanical resistance against impacts such as shocks or vibrations.
Functions and Equipment in Detail
The enclosure system consists of a frame made of stainless steel 1.4301 with a wall thickness of 1.5 mm, constructed with a symmetrical profile frame. The front door, also made of stainless steel 1.4301 with a wall thickness of 2.0 mm, is fitted with a PU foam seal and offers a door opening of 130°, which can be extended to 180° without tools. The door is equipped with a 3 mm double-barrel lock, providing a four-point locking mechanism. The hinges are standardly positioned on the right, but can be reconfigured to the left. The rear panel, roof plate, and base plates are also made of stainless steel 1.4301 (1.5 mm) and are removable, enabling easy maintenance and cleaning. The base plates are divided into three sections and are removable, facilitating replacement or cleaning.
Technology Explained Simply
The surface of the frame and base plates is plain, while the door, roof, and rear panel feature an externally brushed surface with grit 400, providing a uniform, easy-to-clean surface finish. The mounting plate made of steel sheet (3.0 mm) is C-bent on the sides and is depth-adjustable in 25 mm increments via integrated plastic glides and reusable mounting rails. This allows flexible positioning of components within the enclosure. The mounting plate features a mounting grid to facilitate precise alignment of components. The entire construction is designed for a load capacity of up to 15,000 N, ensuring high mechanical stability.
Compatibility and Accessories
The enclosure system is bayable on all sides and can be expanded with various accessories. These include, for example, stainless steel 1.4301 lifting eyes, mounting plate spacers, C-profile rails, mounting brackets, circuit diagram pockets, VX plinth corner pieces with trim, VX plinth trim panels, VX system chassis in various dimensions, VX levelling feet, baying connectors, baying brackets, baying blocks, and comfort handles for half cylinders. These accessories allow individual adaptation of the enclosure to specific requirements and system configurations.
Mounting and Installation
Mounting is performed using integrated blind rivet nuts M6 on the profile, enabling protection-rated fastening of fittings. The entire construction features a square hole pattern with a 25 mm grid, allowing the use of cage nuts and metric screws up to M8. The base plates are fastened to the base frame, which includes an integrated base reinforcement to ensure secure fastening to the floor. The hinges are fitted with non-removable hinge pins, ensuring secure mounting and maintenance.
Operational Advantages
The enclosure system offers high mechanical and chemical resistance due to the use of stainless steel 1.4301, enabling long service life and low maintenance frequency. The brushed surface of the door, roof, and rear panel is easy to clean and provides a uniform visual finish. The depth-adjustable mounting plate and integrated mounting rails simplify the installation of assemblies and reduce installation time. The removable flat parts (door, roof, rear panel, base plates) enable easy maintenance and cleaning. Electrical conductivity between the flat parts and the frame ensures automatic equipotential bonding according to DIN 62 208, which is important for operational safety. Due to the material hardness, it is recommended to use the internal hexagon sheet metal screw 2486.400 for internal assembly to ensure secure and damage-free mounting. Batteries are not included in the delivery scope.
| General | |
| Material | Cabinet frame: stainless steel 1.4301 (AISI 304), 1.5 mm, roof: stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed finish, door: stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed finish, rear panel: stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed finish, floor plates: stainless steel 1.4301 (AISI 304), 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame and base plates: plain, door, roof and rear panel: exterior brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet frame, door(s), door hinge right, reversible to left, roof sheet, floor sheets, rear panel, mounting plate, lock: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 600 mm |
| Height | 2.000 mm |
| Depth | 600 mm |
| Mounting plate dimensions (W x H) | 499 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Note | Due to the material hardness, we recommend using the internal hexagon sheet metal screw 2486.400 for internal installation |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 310,68 |
Questions & answers
What is the delivery time of Rittal 8452000 VX bayed enclosure system, 1-door, W x H x D: 600x2000x600 mm?
The article Rittal 8452000 VX bayed enclosure system, 1-door, W x H x D: 600x2000x600 mm is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8452000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8452000 VX bayed enclosure system, 1-door, W x H x D: 600x2000x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8452000 VX bayed enclosure system, 1-door, W x H x D: 600x2000x600 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
