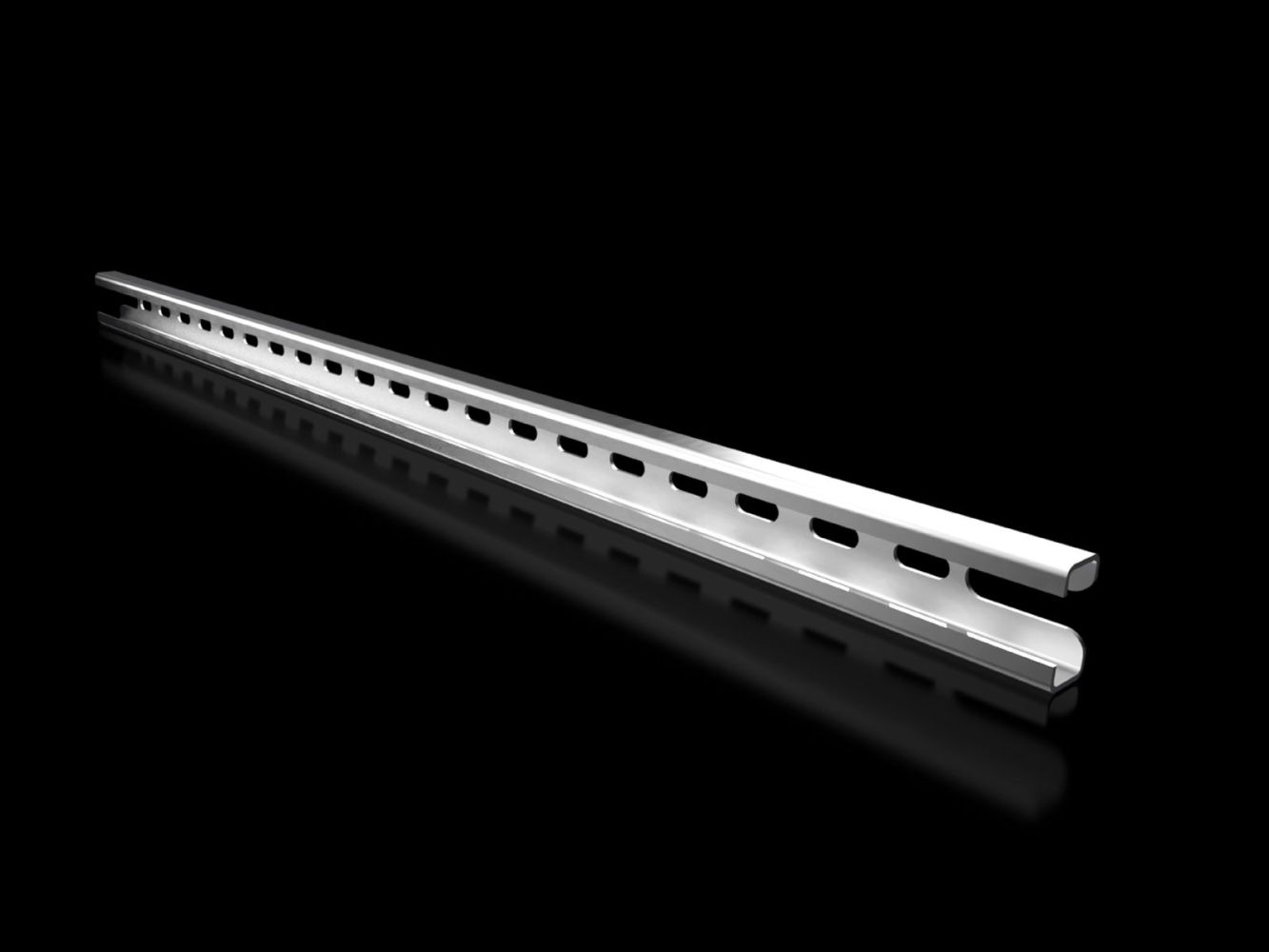

Rittal 4944000 C-profile rails 30/15 EN 60 715 TS L555 mm 6 pcs
|
48,88 EUR 50,46 EUR |
|
|
( 58,17 EUR incl. VAT ) ≈ £40.91 | ≈ $53.72 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 726044 |
| Mfg Part No: | 4944000 |
| UPC/EAN: | 4028177114593 |
| Weight: | 2.4 kg |
| Type: | SZ 4944000 |
Product information for Rittal 4944000:
Applications
The rail is intended for use in various enclosure types, including housing types VX, TS, wall-mounted enclosures AX, and 3-piece systems. It is specifically designed for enclosures with a width or depth of 600 mm. Mounting takes place on various profiles within the enclosure, and depending on the installation situation, shortening of the rail may be required. The rail can be mounted on the inner mounting plane of the VX enclosure profile. On vertical TS or VX SE enclosure profiles, it is secured using lifting nuts (type TS 8800.808) or adapter rails for VX compatibility. On horizontal VX SE enclosure profiles, it can be mounted in width at the top and bottom, and in depth at the bottom (without mounting plate) and at the top (via lifting nut 8800.808). Mounting is also possible on horizontal TS enclosure profiles and in width or depth of the AX 3-piece system.
Functions and Equipment in Detail
The rail enables secure mounting of components, such as switching devices, relays, controls, or network devices, within the enclosure. The zinc-coated surface ensures high resistance to environmental influences, particularly in damp or slightly corrosive environments. The construction in accordance with EN 60 715 ensures standardized mounting compatibility with a wide range of devices and components. The rail is designed for direct mounting on horizontal or vertical enclosure profiles, where additional fastening elements such as lifting nuts or adapters may be required.
Technology Explained Simply

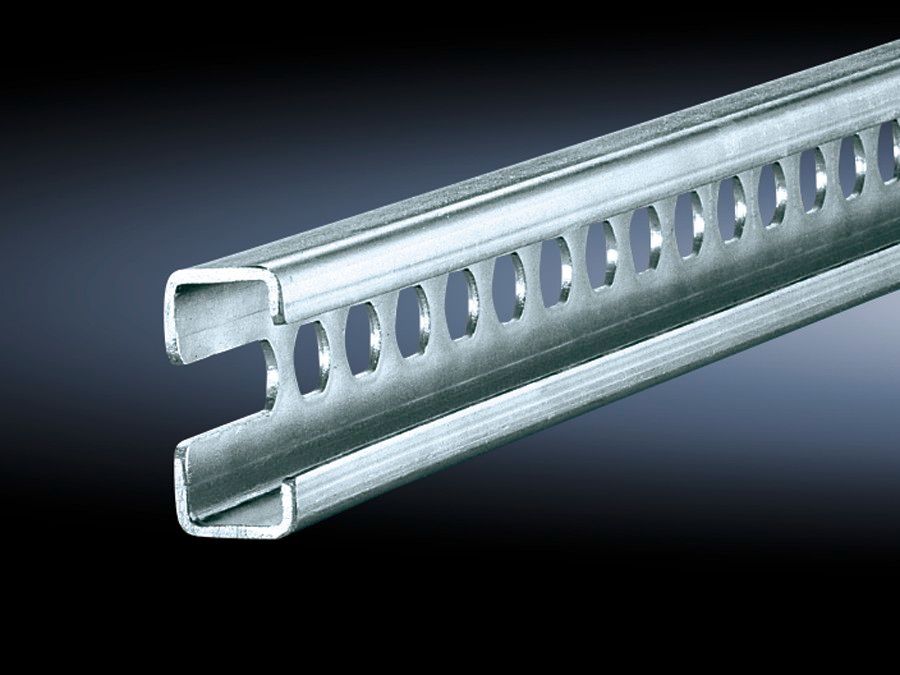

The designation C-profile rail 30/15 describes the cross-sectional profile of the rail: 30 mm in width and 15 mm in height. These dimensions correspond to the international standard EN 60 715, which applies to the mounting of electrical components in enclosures. The zinc-coated sheet steel surface provides effective protection against oxidation and extends the service life of the rail. The length of 555 mm is tailored to enclosures with a width or depth of 600 mm, and the rail can be shortened according to the mounting position. Mounting is done via designated fastening points on the enclosure profile, with the use of lifting nuts or adapters required depending on the enclosure type.
Compatibility and Accessories
The rail is compatible with enclosure types VX, TS, wall-mounted enclosures AX, and 3-piece systems. For mounting on VX plinths with a width of 600 mm, retaining and spacing pieces are required. For AX plinths, fastening is done using internal hexagon sheet metal screws. Suitable accessories include retaining and spacing pieces (6 pieces) and quick-mounting blocks, enabling flexible and rapid installation. These accessories support mounting on various profiles and increase installation flexibility.
Mounting and Installation
Mounting takes place on the designated profiles within the enclosure. On vertical profiles (TS, VX SE), the rail is secured using lifting nuts (TS 8800.808) or adapter rails. On horizontal profiles (VX SE, TS), it can be mounted in width or depth, with no mounting plate required when mounted in depth at the bottom. Mounting on AX 3-piece systems is done in width or depth. The rail must be shortened to the desired size depending on the installation situation. For plinth mounting on VX plinths, retaining and spacing pieces are required, while for AX plinths, internal hexagon sheet metal screws are used.
Advantages in Operation
The rail provides a standardized and reliable mounting base for electrical components. The zinc-coated surface ensures high corrosion resistance, increasing service life in industrial applications. Compatibility with various enclosure types and the ability to shorten the rail to suit the specific installation situation increase installation flexibility. The use of lifting nuts and adapters enables quick and secure mounting without additional tools. Compliance with the EN 60 715 standard ensures universal applicability in industrial electrical engineering.
| General | |
| Material | steel sheet |
| Surface protection | Zinc-plated |
| Length | 555 mm |
| Mounting options | On the inner mounting plane of the VX cabinet profile; on vertical TS, VX SE cabinet profile via TS 8800.808 mounting nut or adapter rail for VX compatibility; on horizontal VX SE cabinet profile in width at bottom and top; on horizontal VX SE cabinet profile in depth at bottom (without mounting plate) and top via mounting nut 8800.808; on horizontal TS cabinet profile; in width or depth of AX 3-piece. Depending on installation situation, the rail must be cut to the desired length. |
| Mounting options VX socket | In base width 600 mm on base panels, in combination with mounting/spacer piece |
| Installation options AX socket | in socket width 600 mm, in combination with hex socket head sheet metal screws |
| Suitable for | Housing type: VX, TS, wall-mounted housing AX, 3-piece, width/depth: 600 mm |
| PCF/VE (Cradle-to-Gate) | 11.12 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 4944000 C-profile rails 30/15 EN 60 715 TS L555 mm 6 pcs?
The article Rittal 4944000 C-profile rails 30/15 EN 60 715 TS L555 mm 6 pcs is currently in stock
According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 4944000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 4944000 C-profile rails 30/15 EN 60 715 TS L555 mm 6 pcs always at the best possible price. We can give you a discount of 2% on Rittal 4944000 C-profile rails 30/15 EN 60 715 TS L555 mm 6 pcs if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
