Rittal 4133000 Quick-mounting block for a variety of expansion options
|
46,12 EUR |
|
|
( 54,88 EUR incl. VAT ) ≈ £38.60 | ≈ $50.69 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 693645 |
| Mfg Part No: | 4133000 |
| UPC/EAN: | 4028177092129 |
| Weight: | 1.52 kg |
| Type: | TS 4133000 |
Product information for Rittal 4133000:
Material: Die-cast zinc
Supply includes: Quick-assembly block
Assembly parts
Packs of: 12 pc(s).
EAN: 4028177092129
Customs tariff number: 79070000
eCl@ss 5.1: 27189234
eCl@ss 7.0: 27189234
ETIM 6.0: EC002625

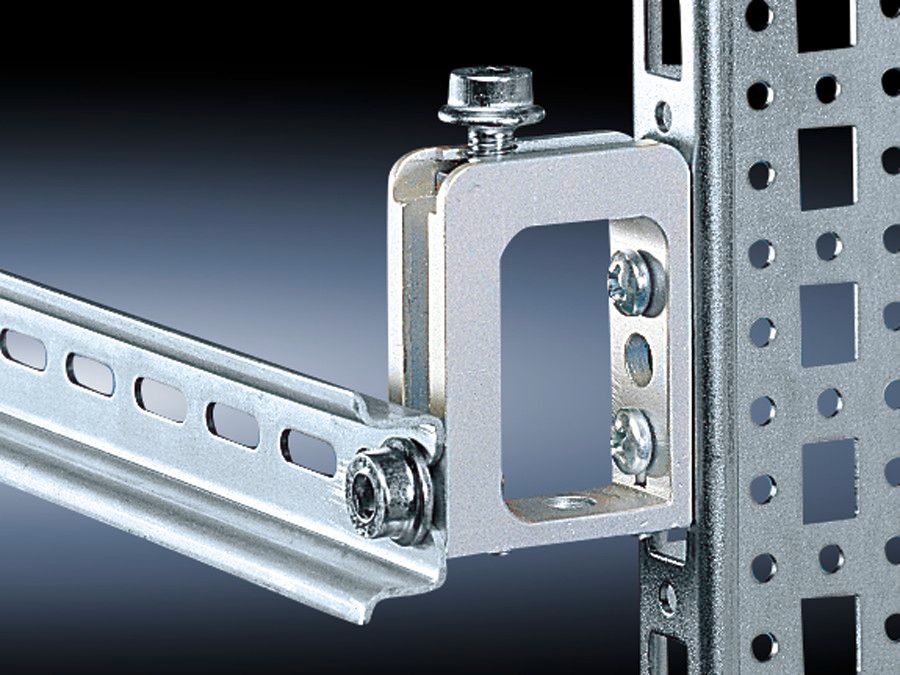

Installation options: On the vertical TS, SE enclosure section via snap-on nuts TS 8800.808 or adaptor rails for PS compatibility.
On the horizontal TS enclosure section
On the horizontal SE enclosure section, bottom
On the horizontal SE enclosure section, top in the depth
On enclosures and rails with rectangular system punching 12.5 x 10.5 mm.
Weight/pack: 1.54 kg
| General | |
| Material | zinc die-cast |

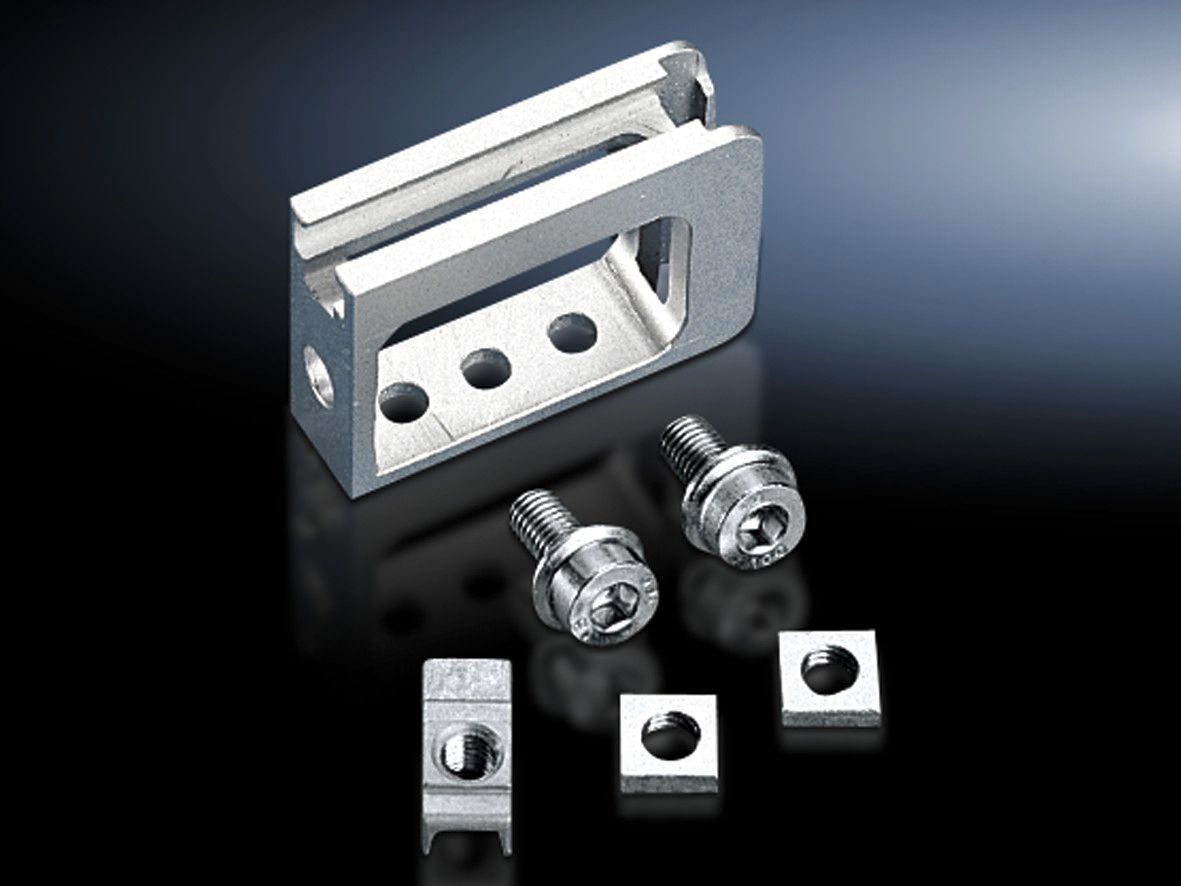

| Scope of delivery | 12 quick-mounting blocks, 12 insert nuts M8, 24 square nuts M8, 24 screws M8 x 16 mm |
| Mounting options | On horizontal and vertical VX cabinet profile, on system chassis for internal mounting plane, on vertical TS, VX SE cabinet profile using TS 8800.808 mounting nut or adapter rail for VX compatibility, on horizontal TS cabinet profile, on horizontal VX SE cabinet profile bottom, on horizontal VX SE cabinet profile top, in depth, on cabinets and rails with rectangular system hole pattern 12.5 x 11 mm |
| Suitable for housing type | VX, TS, VX SE |
Questions & answers
What is the delivery time of Rittal 4133000 Quick-mounting block for a variety of expansion options?
The article Rittal 4133000 Quick-mounting block for a variety of expansion options is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 4133000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 4133000 Quick-mounting block for a variety of expansion options always at the best possible price. We can give you a discount of 2% on Rittal 4133000 Quick-mounting block for a variety of expansion options if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
