Rittal 2388850 SZ rail for EMC W=800 mm
|
40,69 EUR |
|
|
( 48,42 EUR incl. VAT ) ≈ £34.38 | ≈ $45.49 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 412722 |
| Mfg Part No: | 2388850 |
| UPC/EAN: | 4028177698925 |
| Weight: | 0.68 kg |
| Type: | SZ 2388850 |
Further Switchboard-Systems from RittalFurther products in category Switchboard-Systems
All products of Rittal
Product information for Rittal 2388850:
Combined rail for strain relief and EMC contacting of inserted cables.
Benefits: Additional contacting on the left or right of the rail via existing holes (9 mm diameter)
Prepared for tool-free mounting of EMC shielding brackets
Material: Extruded aluminium section
Surface finish: Chromium-free passivated

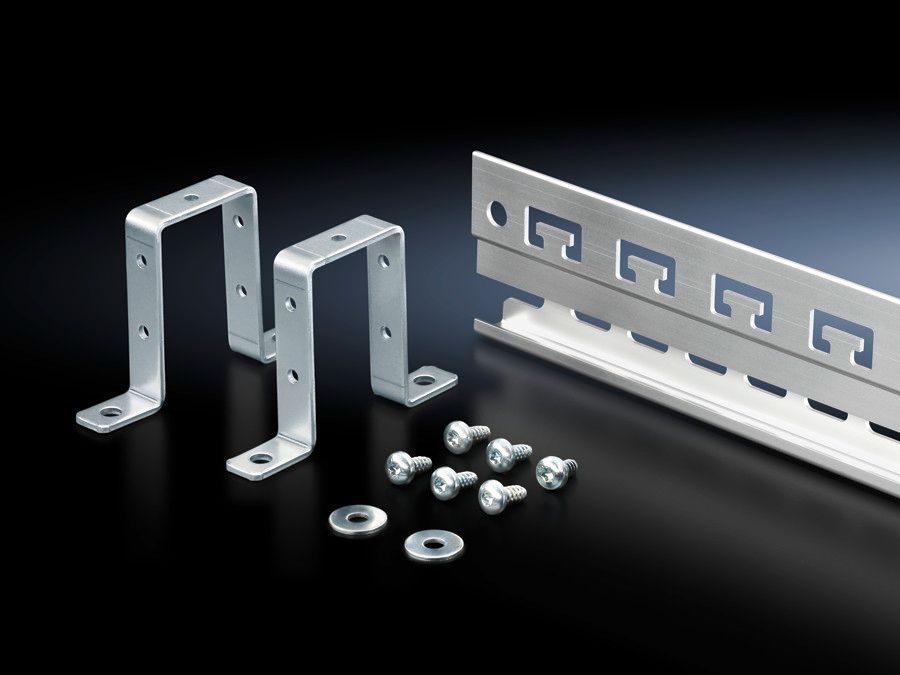

Supply includes: 1 rail
2 retaining brackets
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177698925
Customs tariff number: 73269098
eCl@ss 5.1: 27189214
eCl@ss 7.0: 27189214
ETIM 6.0: EC002625
Design: C rail to accommodate cable clamps
T-head cut-outs on a 40 mm pitch pattern for cable clamping using cable ties
To fit: Width: = 800 mm
Dimensions: Length: 753 mm

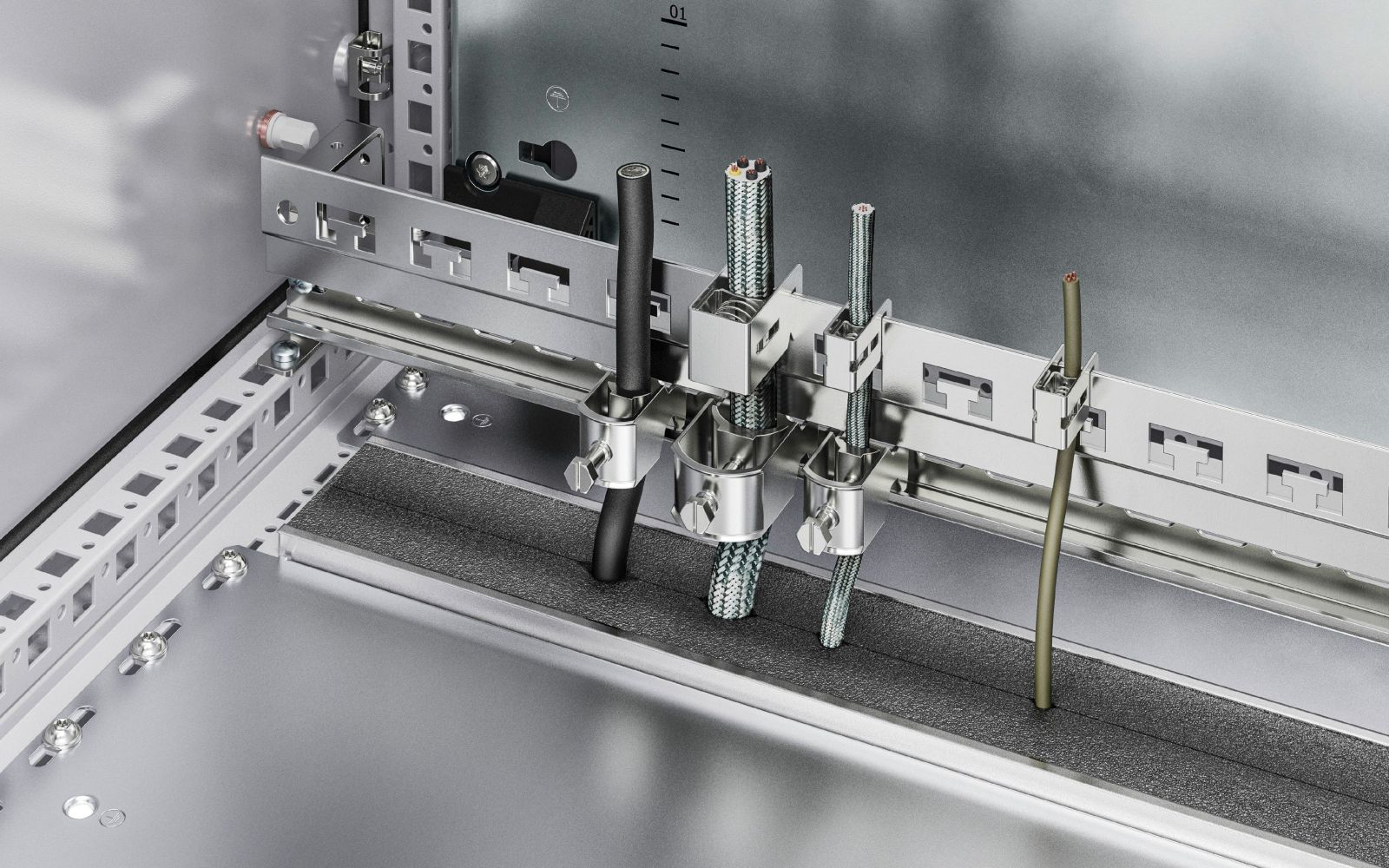

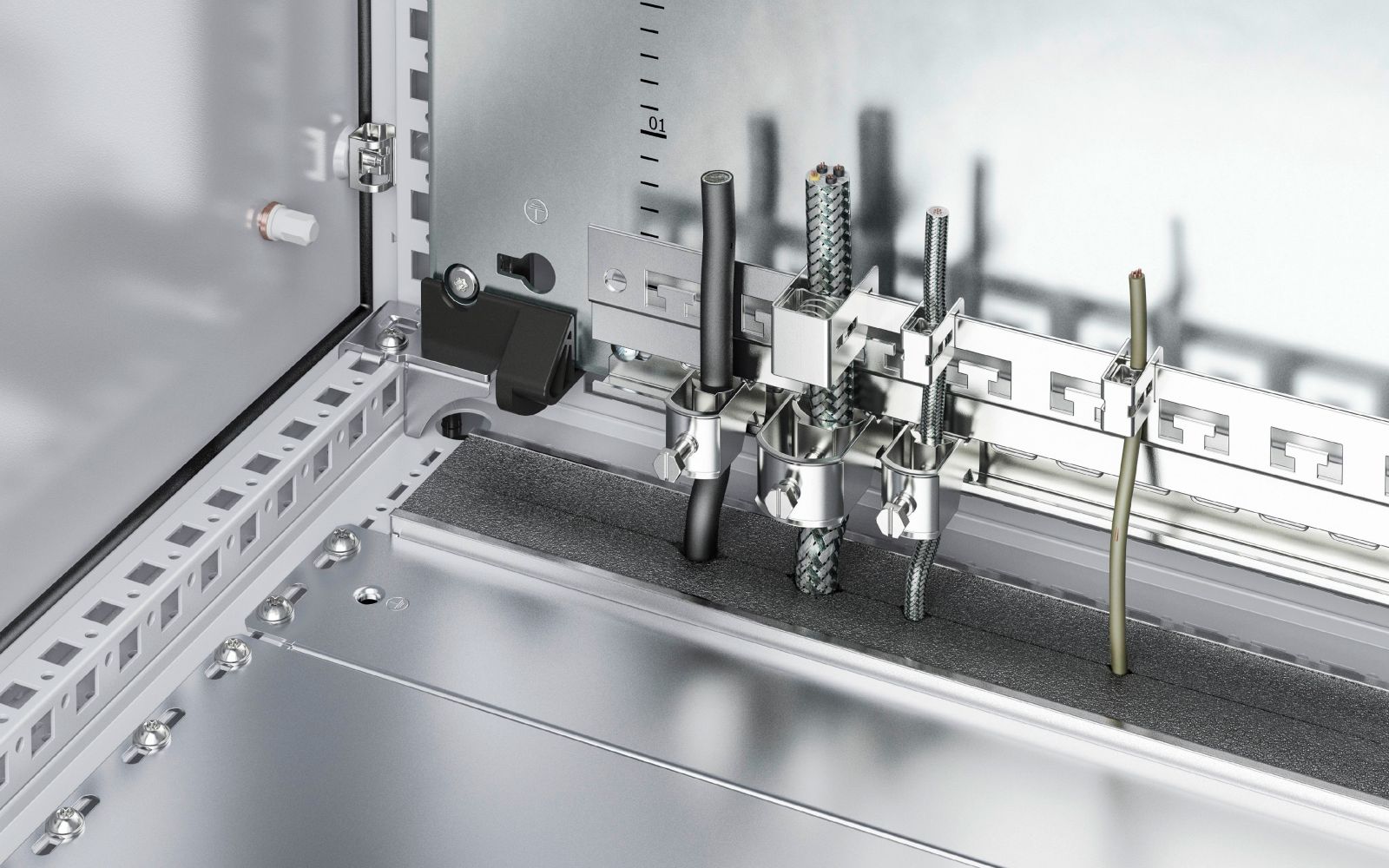

Installation options: on the horizontal/vertical TS, SE, PC enclosure section
may also be fitted without a retaining bracket on a mounting plate
Weight/pack: 0.73 kg
Benefits: Additional contacting on the left or right of the rail via existing holes (9 mm diameter)
Prepared for tool-free mounting of EMC shielding brackets
Material: Extruded aluminium section
Surface finish: Chromium-free passivated
Supply includes: 1 rail
2 retaining brackets
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177698925
Customs tariff number: 73269098
eCl@ss 5.1: 27189214
eCl@ss 7.0: 27189214
ETIM 6.0: EC002625
Design: C rail to accommodate cable clamps
T-head cut-outs on a 40 mm pitch pattern for cable clamping using cable ties
To fit: Width: = 800 mm
Dimensions: Length: 753 mm
Installation options: on the horizontal/vertical TS, SE, PC enclosure section
may also be fitted without a retaining bracket on a mounting plate
Weight/pack: 0.73 kg
Questions & answers
What is the delivery time of Rittal 2388850 SZ rail for EMC W=800 mm?
The article Rittal 2388850 SZ rail for EMC W=800 mm is currently in stock
According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2388850 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 2388850 SZ rail for EMC W=800 mm always at the best possible price. We can give you a discount of 2% on Rittal 2388850 SZ rail for EMC W=800 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
