Electrical Isolation in Medical Technology – Patient Protection by Standard
|
Electrical isolators for medical technology are components and systems that deliberately interrupt galvanic connections between circuits – without blocking the functional signal or energy transfer. In clinical environments, they prevent leakage currents, potential transfer and device-internal interference from entering the human body via patient-connected electrodes, probes or catheters. Even AC currents in the microampere range can trigger ventricular fibrillation when applied via direct cardiac catheters – electrical isolation is therefore not optional but a mandatory regulatory requirement. The governing standard is IEC 60601-1(EN 60601-1): Medical Electrical Equipment – General Requirements for Basic Safety and Essential Performance. It defines two protection paths: MOPP(Means of Protection from Patient) protects the patient from hazardous voltages generated by the device; MOOP(Means of Protection from Operator) protects operating personnel. Application class (Group 1 or 2) and insulation type (basic, double or reinforced) determine the required creepage distances, air clearances and insulation ratings. Technical sales: +49 (0)7666 / 88499-0 | sales@industry-electronics.com |
Regulatory Standards
|
| ▼ Read full category description |
Top sellers in Electrical Insulation
Baaske Medical 2005674 NetworkIsolator MED MI 1005 Retail
99,09 EUR
Baaske Medical 2006633 MI 1005E galvanic isolation to the
network installation
90,02 EUR
Baaske Medical 2005674 NetworkIsolator MED MI 1005 Retail -
10 pcs pack
856,32 EUR
USB Isolator STD FO 1.5 FullSpeed with
Power Adapter
215,66 EUR
ZPA ISO connection cable 6 mm² / 3m
56,63 EUR
ZPA 3-socket 6mm ² 1m76,87 EUR
ZPA mounting box completely M625mm
16,21 EUR
CPA connection line STD 6mm ²/ 4m
62,21 EUR
ZPA 8-socket 6mm ² 1m175,09 EUR
ZPA 8-socket 6mm ² 3m201,52 EUR
USB Isolator STD 3 FO209,22 EUR
USB Isolator 1.0 STD FO219,19 EUR
Electrical Insulation from Baaske Medical
 |
 Baaske Medical 2005422 RS232 9Pin fiber optic isolator STD RL - VE 2 pcs / pack
RS232 9Pin RL fiber insulator STD Connection: 1 x 9pin SubD socket. EQUIVALENT and cable assembly required. Combined with item number 2005421 & 2005422baud rate: 110 - 115200 Signal lines: RxD ... Lieske Part No.: 378179 Mfg Part No: 2005422 |
189,46 EUR
 ≈ £163.50 | ≈ $218.64 plus delivery charges
Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline
|
 |
Baaske Medical 2005532 RS232 isolator STD fiber optic cable
RS232 Isolator STD Fiber Optic Cable The pre-assembled fiber optic cable for RS232 isolators is ideal for interference-free data transmission in environments where electrical isolation is necessary. Lieske Part No.: 152594 Mfg Part No: 2005532 |
5,81 EUR
≈ £5.01 | ≈ $6.70 plus delivery charges
Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline
|
 |
Baaske Medical 2005674 Network Isolator MED MI 1005 Retail
Network Isolator MED MI 1005 Retail - Speed ​​10/100/1000 Mbit / s - Full compatibility with IEEE 802.3 - Standard certificate from the notified body in accordance with EN ... Lieske Part No.: 683508 Mfg Part No: 2005674 |
99,09 EUR
≈ £85.51 | ≈ $114.35 plus delivery charges
Delivery time on requestinfo_outline
|
 |
Baaske Medical 2005674 Network Isolator MED MI 1005 Retail - 10 pcs pack
Network Isolator MED MI 1005 Retail - Speed ​​10/100/1000 Mbit / s - Full compatibility with IEEE 802.3 - Standard certificate from the notified body in accordance with EN ... Lieske Part No.: 968634 Mfg Part No: 2005674 |
856,32 EUR
≈ £739.00 | ≈ $988.19 plus delivery charges
Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline
|
 |
Baaske Medical 2006633 MI 1005 E galvanic isolation to the network installation
The technology is based on the MI 1005E 10,000-proven technology of the world Brought to use MI 1005. In contrast to the MI 1005 Medical insulator MI 1005E is suitable for installation in housing. Lieske Part No.: 529561 Mfg Part No: 2006633 |
90,02 EUR
≈ £77.69 | ≈ $103.88 plus delivery charges
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
Electrical Insulation from BlackBox
 |
 BlackBox SP426A 10/100 and 10/100/1000 Ethernet Data Isolator
These compact devices maintain the Ethernet/FastEthernet or up to Gigabit Ethernet (SP427A) communication across an electrical isolation barrier. They protect the equipment on one segment from being ...Lieske Part No.: 269108 Mfg Part No: SP426A |
117,12 EUR
≈ £101.07 | ≈ $135.16 plus delivery charges
Delivery time on requestinfo_outline
|
Diverse Electrical Insulation
 |
USB Isolator STD 10 FO
USB Isolator STD 10 fiber optic data rate Maximum Full Speed ​​USB (compatible with USB 2) with 12 Mbit / s USB 1.1 standard cable length 10 meters, connector A (computer) on ... Lieske Part No.: 745819 Mfg Part No: 2005420 |
209,22 EUR
≈ £180.56 | ≈ $241.44 plus delivery charges
Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline
|
 |

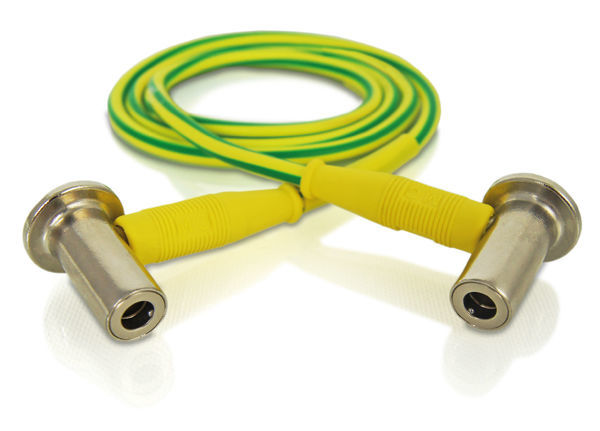

CPA connection line STD 4mm ² / 1m
Connecting cable for potential equalization in accordance with DIN 42,801th Length: 1m, cable cross-section: 4 mm ², insulation green-yellow, mounted at both ends 90 ° angled connector with spring ... Lieske Part No.: 795217 Mfg Part No: 2005710 |
34,69 EUR
≈ £29.94 | ≈ $40.03 plus delivery charges
Delivery time from supplier's stock (ca.) 20 workdaysinfo_outline
|
 |
CPA connection line STD 6mm ² / 1m
Connecting cable for potential equalization in accordance with DIN 42,801th Length: 1m, cable cross-section: 6 mm ², insulation green-yellow, mounted at both ends 90 ° angled connector with spring ... Lieske Part No.: 173703 Mfg Part No: 2005712 |
34,85 EUR
≈ £30.08 | ≈ $40.22 plus delivery charges
Delivery time from supplier's stock (ca.) 20 workdaysinfo_outline
|
 |
ZPA ISO connection cable 4mm ² / 1m
Connecting cable for potential equalization in accordance with DIN 42,801th Length: 1m, cable cross-section: 4 mm ², insulation green-yellow, mounted at both ends 90 ° angled connector with ... Lieske Part No.: 220100 Mfg Part No: 2005716 |
32,29 EUR
≈ £27.87 | ≈ $37.26 plus delivery charges
Delivery time from supplier's stock (ca.) 20 workdaysinfo_outline
|
 |
ZPA ISO connection cable 4mm ² / 3m
Connecting cable for potential equalization in accordance with DIN 42,801th Length: 3m, cable cross-section: 4 mm ², insulation green-yellow, mounted at both ends 90 ° angled connector with ... Lieske Part No.: 235197 Mfg Part No: 2005717 |
42,55 EUR
≈ £36.72 | ≈ $49.10 plus delivery charges
in stockinfo_outline
|
 |
ZPA ISO connection cable 6 mm ² / 1m
Connecting cable for potential equalization in accordance with DIN 42,801th Length: 1m, cable cross-section: 4 mm ², insulation green-yellow, mounted at both ends 90 ° angled connector with ... Lieske Part No.: 760803 Mfg Part No: 2005718 |
31,01 EUR
≈ £26.76 | ≈ $35.79 plus delivery charges
Delivery time from supplier's stock (ca.) 20 workdaysinfo_outline
|
 |
ZPA ISO connection cable 6 mm ² / 3m
Connecting cable for potential equalization in accordance with DIN 42,801th Length: 3m, cable cross-section: 4 mm ², insulation green-yellow, mounted at both ends 90 ° angled connector with ... Lieske Part No.: 155851 Mfg Part No: 2005719 |
56,63 EUR
≈ £48.87 | ≈ $65.35 plus delivery charges
Delivery time from supplier's stock (ca.) 20 workdaysinfo_outline
|
 |
ZPA mounting box completely M6 25mm
ZPA mounting box completely M6 25mm mounting box, black with green-yellow color ring and built-in DIN 42801 connector M6 25mm thread length, nickel plated, suitable for installation in flush. Lieske Part No.: 430692 Mfg Part No: 2005733 |
16,21 EUR
≈ £13.99 | ≈ $18.71 plus delivery charges
Delivery time from supplier's stock (ca.) 20 workdaysinfo_outline
|
 |
ZPA 3-socket 6mm ² 1m
Highly flexible, green-yellow 6mm ² Extension Cord with 3-way socket for potential equalization. A side-mounted, 90 ° angled connector with spring-loaded, otherside 3 mounting boxes. Contact parts ... Lieske Part No.: 290995 Mfg Part No: 2005735 |
76,87 EUR
≈ £66.34 | ≈ $88.71 plus delivery charges
Delivery time on requestinfo_outline
|
 |
USB Isolator STD FO 1.5 Full Speed with Power Adapter
USB 1.5 STD fiber optic isolator full speed at 12 Mbit / s max. USB 1.1 (compatible with USB 2), cable length 1.5 m, total length: 1,74 m. Connector A (computer) to socket A (device) standard power ... Lieske Part No.: 585801 Mfg Part No: 2005756 |
215,66 EUR
≈ £186.11 | ≈ $248.87 plus delivery charges
Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline
|
 |
USB Isolator STD 3 FO
. 3 USB Isolator STD FO full speed at 12 Mbit / s max USB 1.1 (USB 2 compatible), cable length 1.5 m, total length: 3m. Connector A (computer) to socket A (device) 5V power supply included. Lieske Part No.: 714256 Mfg Part No: 2005855 |
209,22 EUR
≈ £180.56 | ≈ $241.44 plus delivery charges
Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline
|
 |
USB Isolator STD 40 FO
USB Isolator STD 40 fiber optic data rate Maximum Full Speed ​​USB (compatible with USB 2) with 12 Mbit / s USB 1.1 standard cable length 40 meters, connector A (computer) on ... Lieske Part No.: 997384 Mfg Part No: 2005878 |
349,00 EUR
≈ £301.19 | ≈ $402.75 plus delivery charges
Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline
|
 |
USB Isolator STD 20 FO
USB Isolator STD 20 fiber optic data throughput maximum full speed at 12 Mbit / s USB 1.1 (USB 2 compatible), standard cable length 20 meters, connector A (computer) on Socket A (unit), power supply 5 ... Lieske Part No.: 371359 Mfg Part No: 2005882 |
261,82 EUR
≈ £225.95 | ≈ $302.14 plus delivery charges
Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline
|
 |
USB Isolator STD 1.0 LWL AB
USB Isolator STD 1.0 LWL AB data throughput Maximum USB full speed with 12 MBit/S USB 1.1 (USB 2 compatible), cable length standard 1 meter, plug A (computer) to plug B (device), for optical isolation. Lieske Part No.: 101694 Mfg Part No: 2005935 |
206,00 EUR
≈ £177.78 | ≈ $237.72 plus delivery charges
Delivery time from supplier's stock (ca.) 30 workdaysinfo_outline
|
 |
USB Isolator 1.0 STD FO
USB 1.0 STD fiber optic isolator full speed at 12 Mbit / s max.USB 1.1 (USB 2 compatible), cable length 1.0 m, total length: 1.24 m. Connector A (computer) to socket A (device) EU Plug 5V power supply ... Lieske Part No.: 705485 Mfg Part No: 2006137 |
219,19 EUR
≈ £189.16 | ≈ $252.95 plus delivery charges
Delivery time on requestinfo_outline
|
 |
CPA connection line STD 6mm ² / 2m
CPA connection line STD 6mm ² / 2m connection cable for potential equalization in accordance with DIN 42,801th Length: 2m, cable cross-section: 6 mm ², Conductor diameter: 3.8mm, green-yellow ... Lieske Part No.: 443863 Mfg Part No: 2006145 |
41,42 EUR
≈ £35.75 | ≈ $47.80 plus delivery charges
Delivery time from supplier's stock (ca.) 20 workdaysinfo_outline
|
 |
CPA connection line STD 6mm ² / 4m
CPA connection line STD 6mm ² / 4m connection cable for potential equalization in accordance with DIN 42,801th Length: 4m, cable cross-section: 6 mm ², Conductor diameter: 3.8mm, green-yellow ... Lieske Part No.: 465527 Mfg Part No: 2006161 |
62,21 EUR
≈ £53.69 | ≈ $71.79 plus delivery charges
Delivery time from supplier's stock (ca.) 20 workdaysinfo_outline
|
 |
CPA connection line STD 4mm ² / 2m
Connecting cable for potential equalization in accordance with DIN 42,801th Length: 2m, cable cross-section: 4 mm ², insulation green-yellow, mounted at both ends 90 ° angled connector with spring ... Lieske Part No.: 933670 Mfg Part No: 2006185 |
45,48 EUR
≈ £39.25 | ≈ $52.48 plus delivery charges
Delivery time from supplier's stock (ca.) 20 workdaysinfo_outline
|
1 2
⚡ CPE – Central Potential Equalisation in Medical Locations
|
Mandatory per IEC 60364-7-710 / DIN VDE 0100-710: In Group 1 and Group 2 medical locations, a Central Protective Equipotential Bonding (CPE) system is mandatory. All conductive parts – enclosures, beds, infusion stands, pipework – are connected to a common bonding conductor (max. 0.1 Ωresistance) and protective earth. Purpose: fault currents cannot flow through the patient.
Group 1(X-ray, physiotherapy): leakage < 500 µA · Group 2(OR, ICU, cardiac cath lab): leakage < 10 µA · Inspection intervals: STKannually by qualified electrician, MTKevery 2 years by authorised inspector. |
⚡ Application Areas for Electrical Isolation Components
|
OR & Intensive Care
Group-2 locations: IT networks with monitoring, 2-MOPP power supplies, CPE with < 10 µA leakage. |
Imaging & Diagnostics
X-ray, CT, MRI: Group-1 requirements, leakage current limitation, insulation testing per IEC 60601. |
GP Practice & Outpatient
Minor procedures, ECG, ultrasound: isolation between mains and patient monitoring systems. |
|
Laboratory & IVD
Analysers, PCR systems: galvanic isolation prevents measurement interference from earth loops. |
OEM Medical Device Mfg.
Isolation components as device sub-assembly: certification evidence per EU MDR and IEC 60601-1. |
Related Categories
|
Medical Power Supplies
IEC-60601-1 PSUs (2 MOPP/1 MOPP) – complement isolation components in the complete system. |
Insulation Testers
Test equipment for STK/MTK inspections: leakage current, insulation resistance, protective earth per IEC 62353. |
Medical PC Components
IEC-60601-compatible industrial hardware for clinical systems and embedded medical devices. |
|
Medical Technology – Overview
All product areas for medical use at a glance. |
|
MOPP Reference
< 300 µA: MOOP (operator) · < 100 µA: 1 MOPP · < 10 µA: 2 MOPP (direct patient contact). PSUs and isolation must match the required protection level. |
OEM & Project Orders
Framework agreements, component reservation, and certification documentation on request for device manufacturers. |
