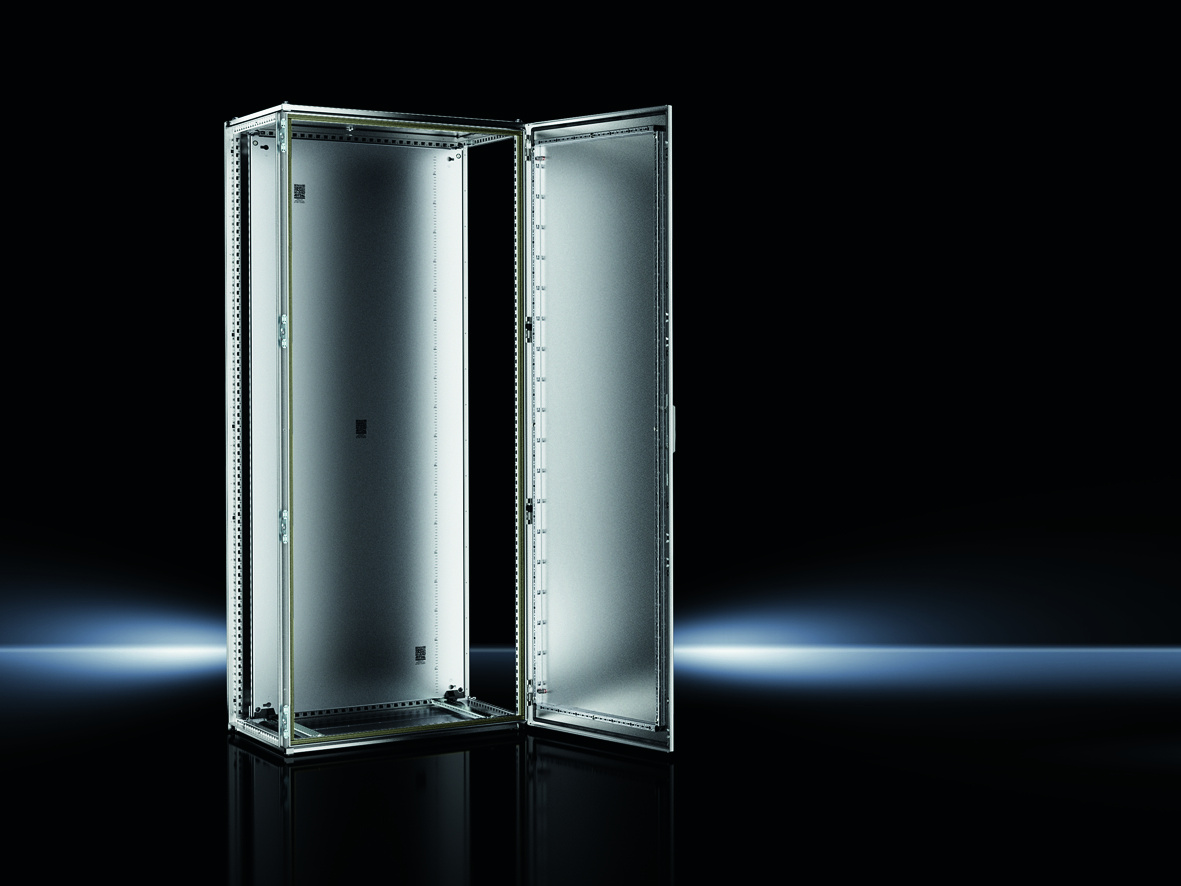

Rittal 8807010 VX bayed enclosure system EMV 1-door, 800x2000x600 mm (freight shipping)
|
1.148,85 EUR |
|
|
( 1.367,13 EUR incl. VAT ) ≈ £961.59 | ≈ $1,262.59 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1908940 |
| Mfg Part No: | 8807010 |
| UPC/EAN: | 4028177924574 |
| Weight: | 129.6 kg |
| Type: | VX 8807010 |
Product information for Rittal 8807010:
Applications
This enclosure system is suitable for use in production facilities, automation technology, power supply systems, and other industrial environments where high EMC shielding is necessary. The EMC version ensures effective HF attenuation, supporting the functionality of sensitive electronic devices inside the enclosure. The protection rating IP 55 according to EN 60 529 makes the enclosure dust- and splash-proof, making it suitable for use in environments with increased contamination risk or humidity. The NEMA classification includes NEMA 1 and NEMA 12, confirming suitability for indoor use and environments with light contamination. The type rating according to UL 50E includes Type 1 and Type 12, confirming compliance with North American safety standards for enclosures.
Functions and Equipment in Detail
The enclosure system consists of an enclosure frame, a door, a rear panel, a roof plate, base plates, and a mounting plate. The door is standard right-hinged, but can be converted to left-hinged. The door has a thickness of 2.0 mm, while the enclosure frame, roof, rear panel, and base plates each consist of 1.5 mm sheet steel with zinc-magnesium coating. The mounting plate is made of 3.0 mm sheet steel. The surface of the enclosure frame is bare, while the door, rear panel, and roof are painted on the outside and unpainted on the inside. The base plates and mounting plate are galvanized. The enclosure colour is RAL 7035. The delivery scope also includes a lock with 3 mm double bar and two mounting rails with dimensions 18 x 39 mm.
Technology Explained Simply
The EMC version of the enclosure system provides high electromagnetic shielding, reducing interference in the frequency range. This is particularly important when sensitive electronic components such as controls, frequency converters, or network units are installed in the enclosure. The zinc-magnesium coating of the sheet steel provides high corrosion protection, extending the enclosure’s service life in industrial environments. The IP 55 protection rating protects against dust and splashing water, making the enclosure suitable for use in production halls or outdoor areas. The NEMA and UL approvals confirm suitability for use in various international markets.
Compatibility and Accessories
The enclosure system is compatible with various accessories that extend its functionality. These include circuit diagram pockets for various sub-assemblies, SZ rails for EMC applications, VX EMC partition seals, C-profile rails, transport eyes, mounting plate spacers, dust protection strips, TFT/monitor mounts with VESA connection, comfort handles, system chassis in various dimensions, partial mounting plates, and mounting brackets. These accessories allow individual adaptation of the enclosure to specific requirements, such as mounting control panels, installing monitors, or expanding the mounting area.
Mounting and Installation
Mounting of the enclosure system is done via the integrated mounting rails and the mounting plate. The door is standard right-hinged, but can be converted to left-hinged, allowing flexible arrangement. When arranging multiple enclosures side by side, an EMC shielding seal is required to ensure electromagnetic shielding between units. The base plates and mounting plate facilitate securing the enclosure to the floor or wall.
Advantages in Operation
The enclosure system offers high mechanical stability through the use of sheet steel with zinc-magnesium coating. The EMC version ensures reliable operation of sensitive electronic devices. The IP 55 protection rating and NEMA approvals enable use in various industrial environments. The modular construction and compatibility with various accessories allow flexible adaptation to specific requirements. The integrated mounting rails and mounting plate facilitate installation and maintenance of components mounted in the enclosure.
| General | |
| Model | EMC version |
| Material | Cabinet frame: steel sheet with zinc-magnesium coating, 1.5 mm, roof: steel sheet with zinc-magnesium coating, 1.5 mm, door: steel sheet with zinc-magnesium coating, 2.0 mm, rear panel: steel sheet with zinc-magnesium coating, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: bare, door, rear panel and roof: externally painted and internally unpainted, base plates: galvanised, mounting plate: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | Cabinet frame, door(s), door hinge right, reversible to left, rear panel, roof sheet, base sheets, mounting plate, lock: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 600 mm |
| Number of doors | 1 |
| Note | EMC shielding gasket required for adjacent cabinets |
| PCF/VE (Cradle-to-Gate) | 320.3 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 8807010 VX bayed enclosure system EMV 1-door, 800x2000x600 mm (freight shipping)?
The article Rittal 8807010 VX bayed enclosure system EMV 1-door, 800x2000x600 mm (freight shipping) is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8807010 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8807010 VX bayed enclosure system EMV 1-door, 800x2000x600 mm (freight shipping) always at the best possible price. We can give you a discount of 2% on Rittal 8807010 VX bayed enclosure system EMV 1-door, 800x2000x600 mm (freight shipping) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
