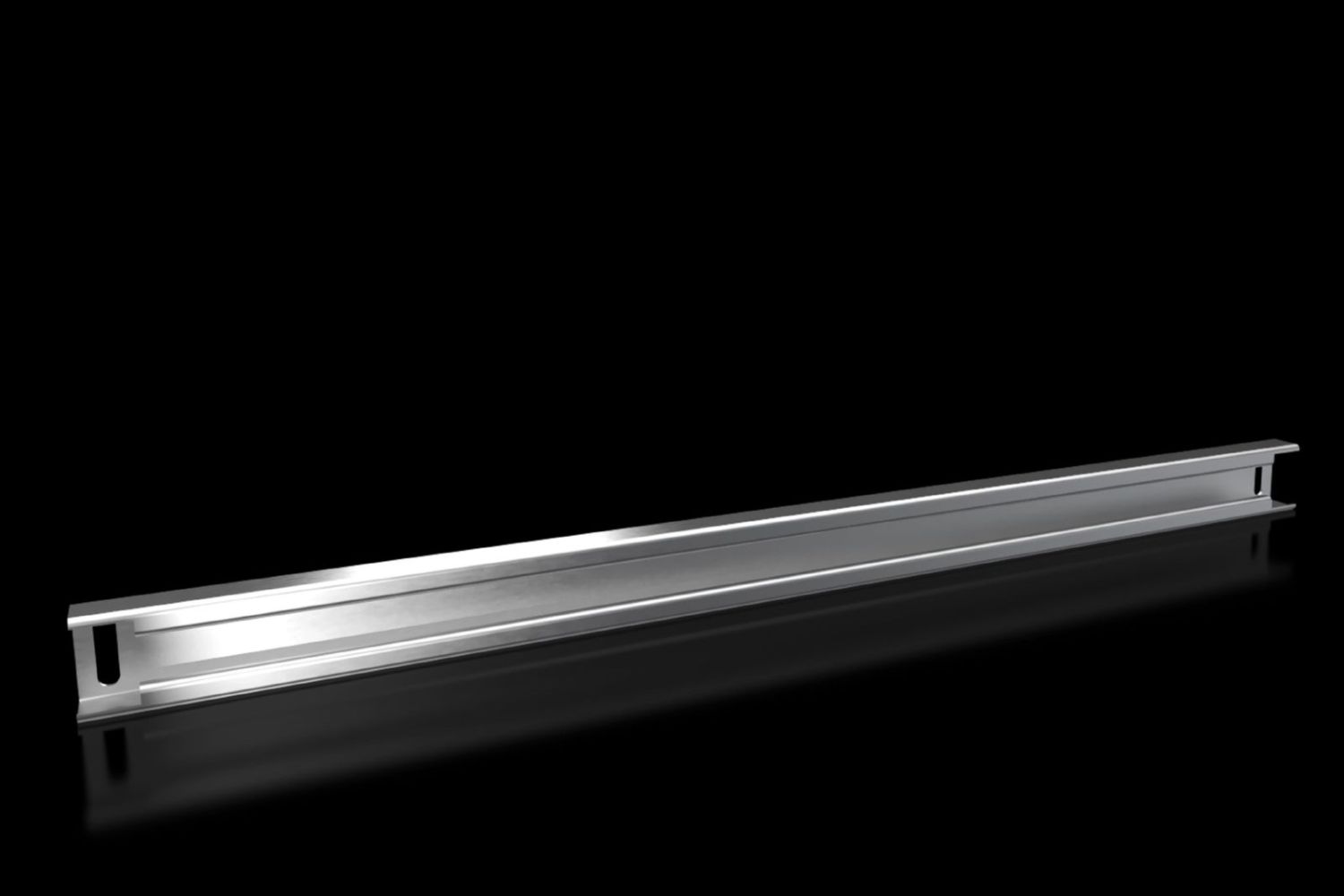

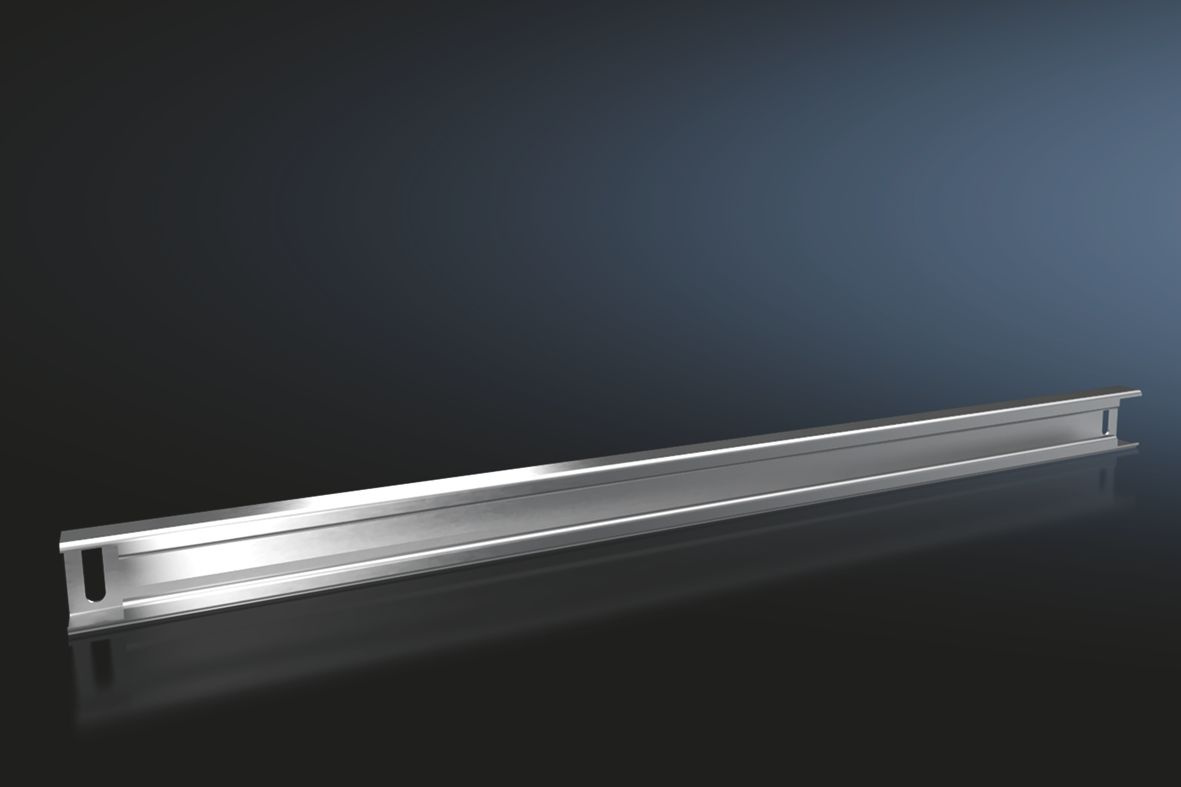

Rittal 8617810 VX support rail 48 x 26 mm, W: 800 mm
|
55,20 EUR |
|
|
( 65,69 EUR incl. VAT ) ≈ £46.20 | ≈ $60.66 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440919 |
| Mfg Part No: | 8617810 |
| UPC/EAN: | 4028177919525 |
| Weight: | 4.1 kg |
| Type: | VX 8617.810 |
Product information for Rittal 8617810:
Applications
The support rail is suitable for various enclosure types, including VX, VX SE, PC, IW, AX, stand console CX, and console base CX, each with a width of 800 mm. It can be installed in the internal mounting plane of enclosures as well as in the base area. For enclosure types VX SE, PC, IW, and AX, mounting in the internal mounting plane requires the use of an adapter rail for VX compatibility. For AX enclosures, additional specialized rails for internal installation and base installation are required to properly secure the support rail.
Functions and Equipment in Detail

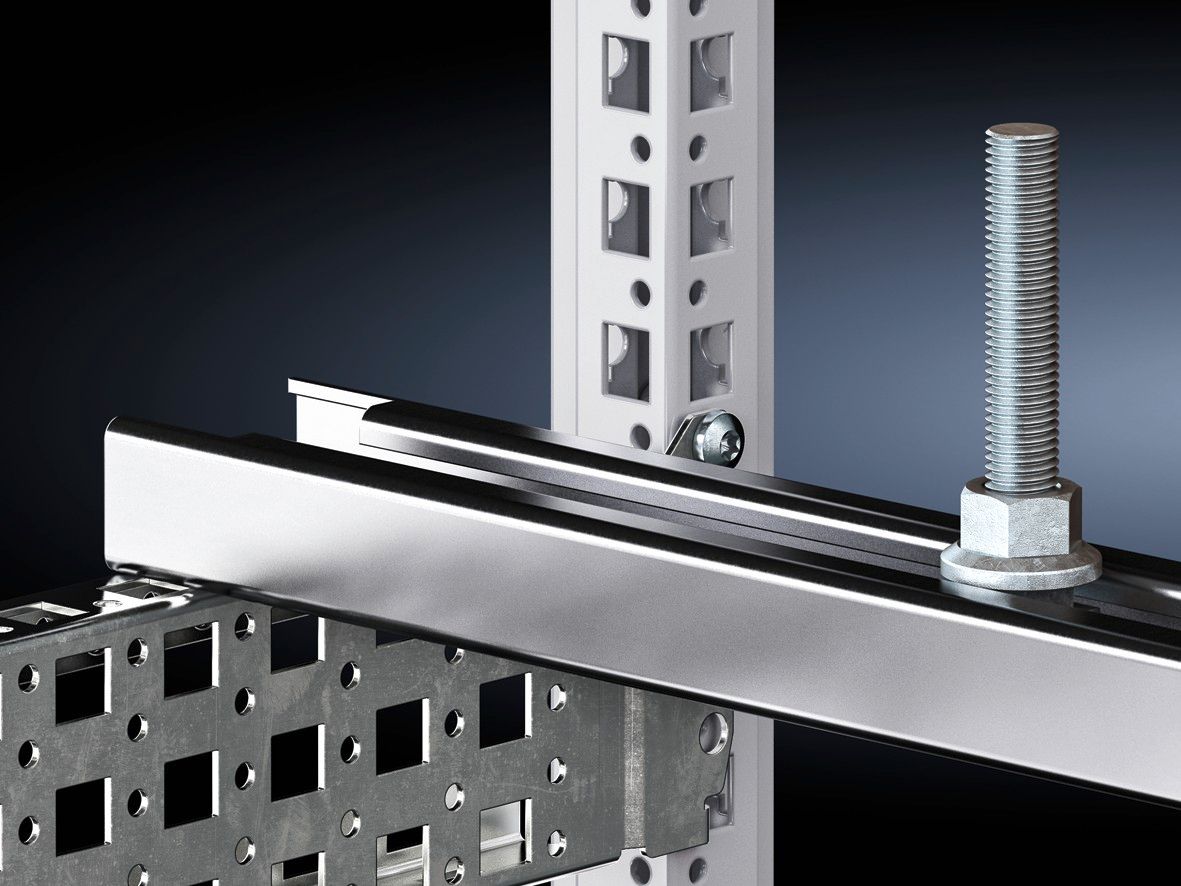

The rail features elongated holes, which, together with the hook-head screw, enable flexible mounting. This allows the rail to be mounted at different positions, regardless of the exact spacing of mounting points. This design ensures universal adaptability to various devices and mounting requirements. The use of sheet steel ensures high load capacity, which is necessary for heavy installations.
Technology Explained Simply
The support rail is made of sheet steel, protected against corrosion by galvanization. The dimensions of 48 x 26 mm are designed for stable mounting of heavy components. The elongated holes in the rail allow for variable positioning of mounting screws, facilitating installation on different devices. The hook-head screw ensures a secure connection that remains stable even under dynamic loads. The packaging unit includes two rails, each supplied with mounting hardware.
Compatibility and Accessories
The support rail is compatible with enclosure types VX, VX SE, PC, IW, AX, stand console CX, and console base CX, each with a width of 800 mm. For mounting in VX SE, PC, IW, and AX enclosures, the use of an adapter rail for VX compatibility is required. For AX enclosures, additional rails for internal installation and base installation are necessary. As suitable accessories, the VX system partition 600 mm is offered, which can be used to divide the interior of the enclosure.
Mounting and Installation

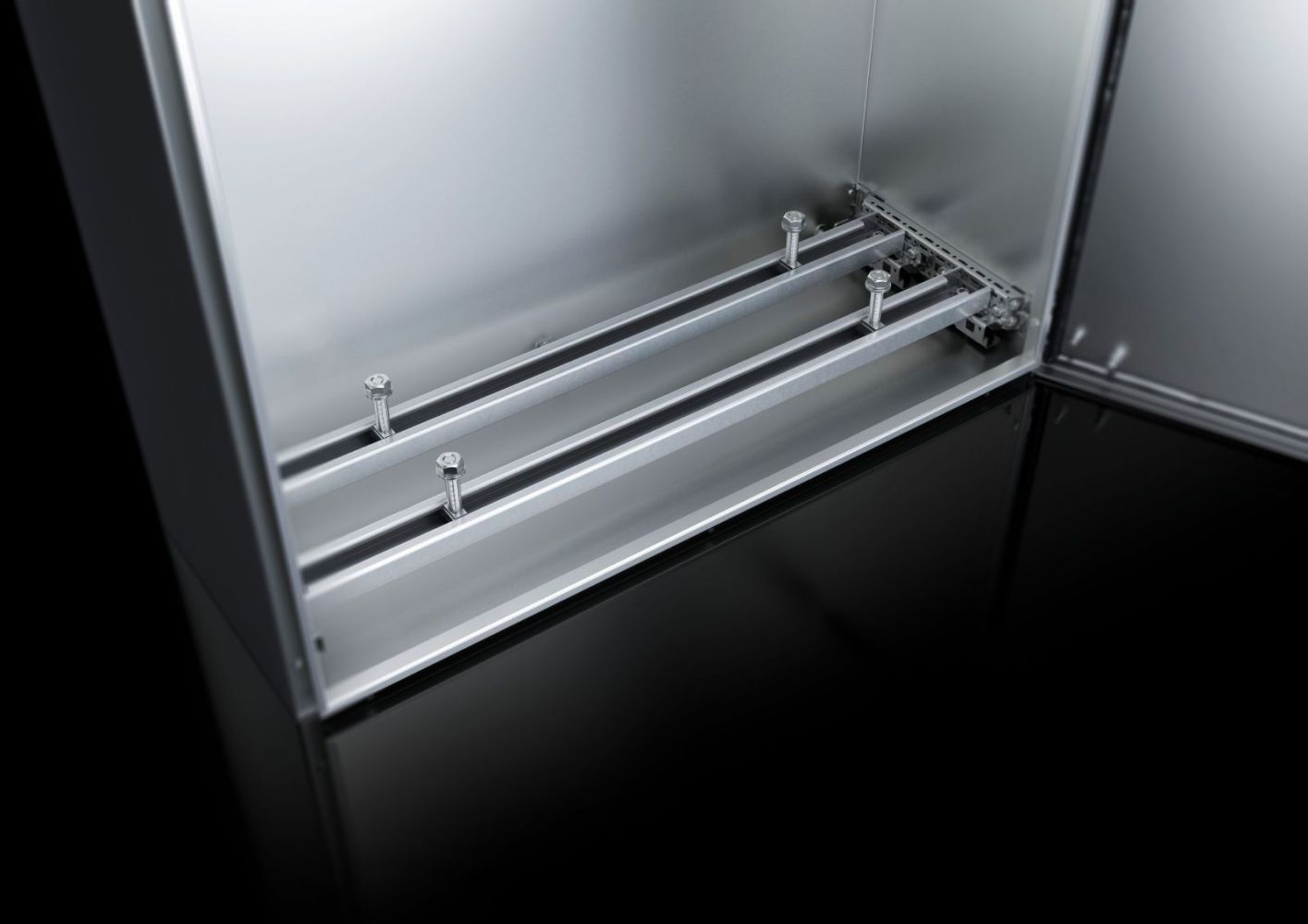

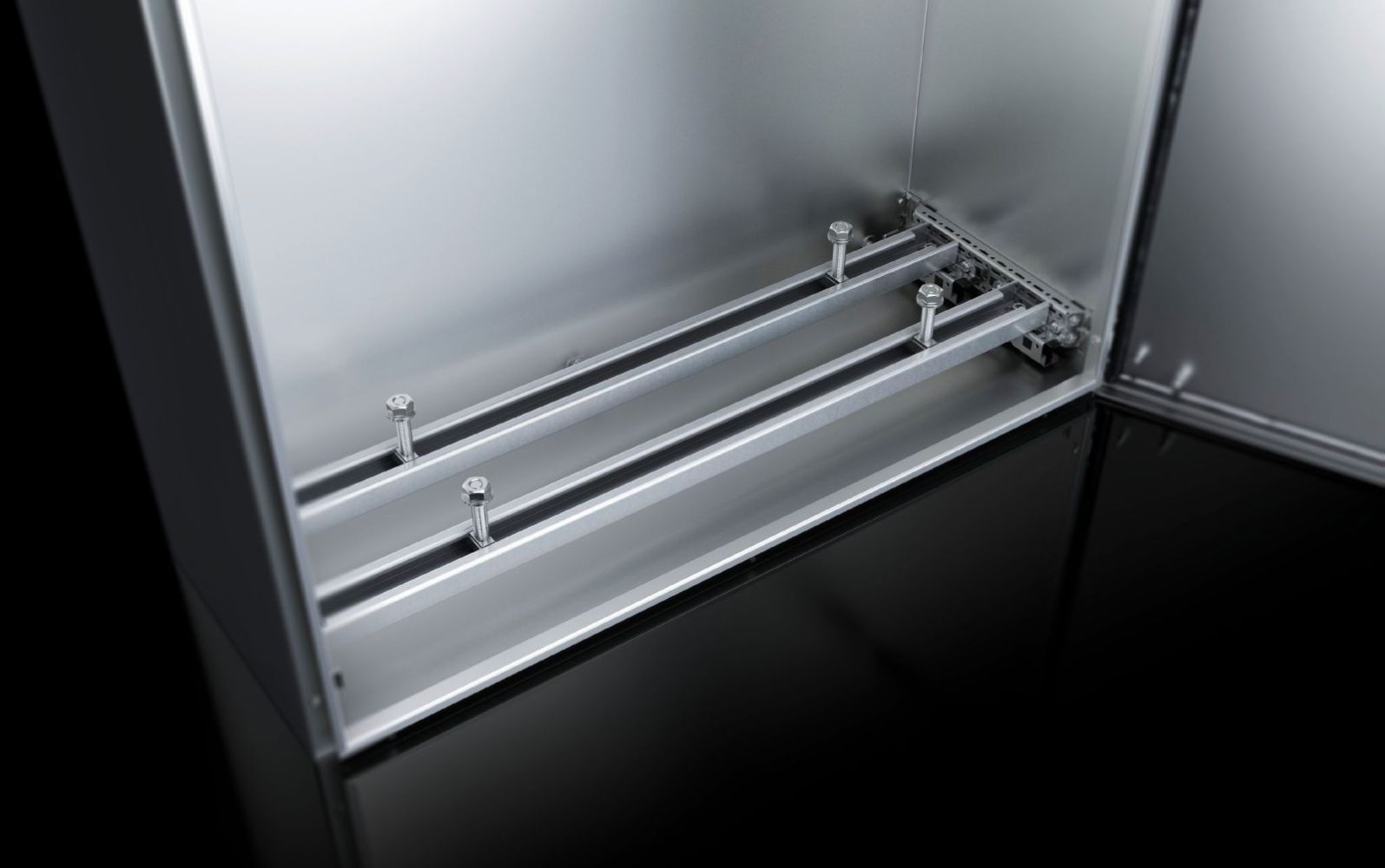

Mounting is performed in the internal mounting plane or in the base area of enclosures. The rail is secured using the included mounting hardware, particularly the hook-head screw. The elongated holes allow for flexible positioning, enabling the rail to be mounted at various points. For enclosure types VX SE, PC, IW, and AX, the use of an adapter rail is required to ensure compatibility. For AX enclosures, additional specialized rails for internal and base installation are necessary.
Advantages in Operation
The support rail provides a stable and flexible mounting base for heavy components. The galvanization protects the material from corrosion, increasing service life in industrial use. The elongated holes and hook-head screw enable universal adaptation to various mounting requirements. The packaging unit with two rails and mounting hardware simplifies installation and reduces mounting effort. Compatibility with various enclosure types and the possibility of mounting in the internal mounting plane as well as in the base area increase flexibility in use.
| General | |
| Material | steel sheet |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Mounting options VX | In cabinet width 800 mm, on the inner mounting plane and in the base |
| Mounting options VX SE | In cabinet width 800 mm, on inner mounting plane, in combination with adapter rail for VX compatibility and on floor |
| Mounting options AX | In housing width 800 mm, in combination with the rail for indoor installation AX and floor installation rail for AX |
| PC mounting options | In cabinet width 800 mm, on inner mounting plane, in combination with adapter rail for VX compatibility and on floor |
| Installation options IW | In cabinet width 800 mm, on inner mounting plane, in combination with adapter rail for VX compatibility and on floor |
| Suitable for | Housing type: VX, VX SE, PC, IW, AX, stand cabinet CX, cabinet base CX, width: = 800 mm |
| PCF/VE (Cradle-to-Gate) | 16,63 |
