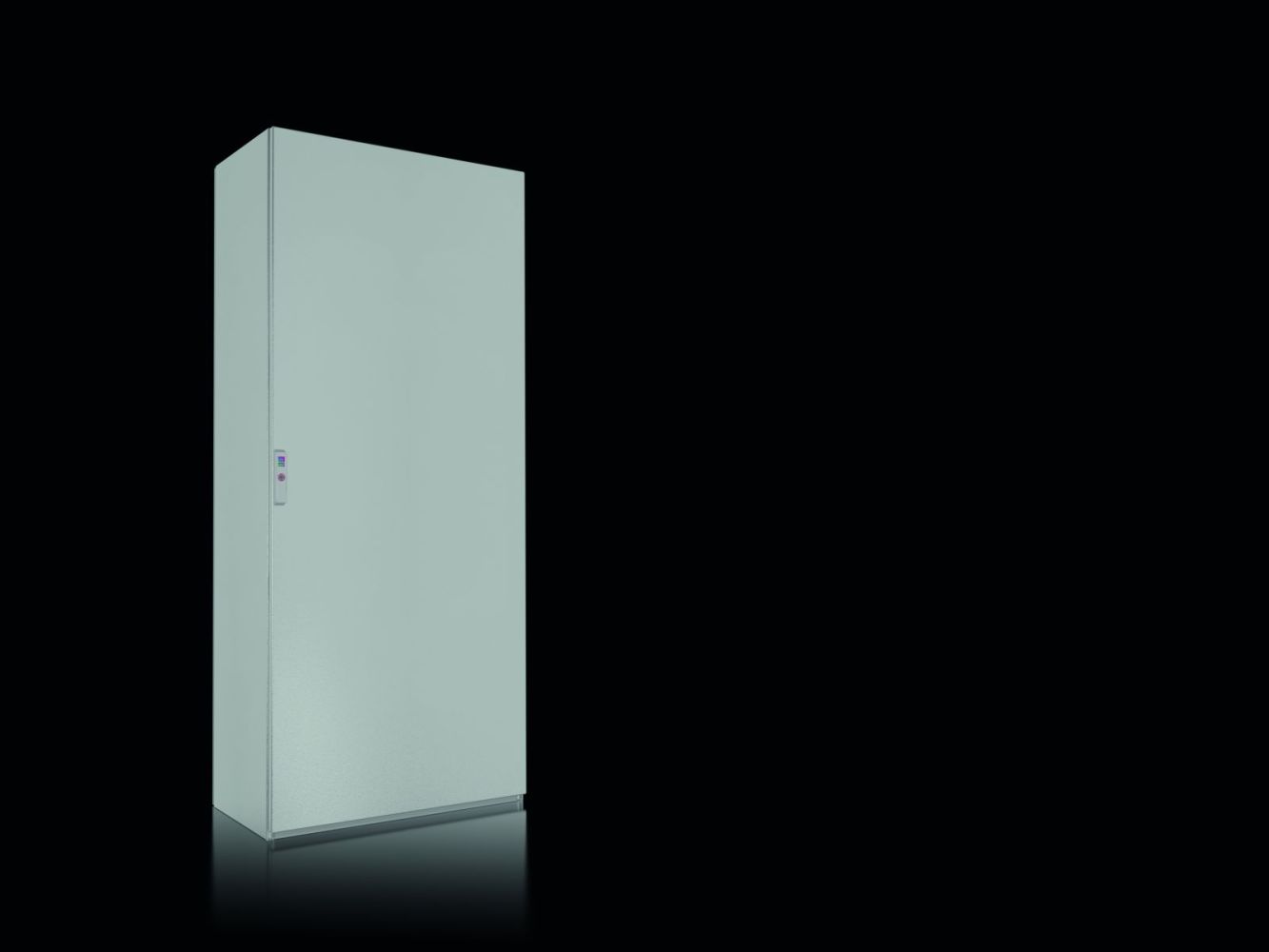

Rittal 5831600 VX SE system single enclosure, 800x1800x400 mm, steel
|
642,87 EUR |
|
|
( 765,02 EUR incl. VAT ) ≈ £538.08 | ≈ $706.51 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1055461 |
| Mfg Part No: | 5831600 |
| UPC/EAN: | 4028177959125 |
| Weight: | 117 kg |
| Type: | SE 5831600 |
Product information for Rittal 5831600:
Applications include industrial control systems, automation technology, power distribution, and enclosures in production environments. The construction allows for efficient assembly, as no additional side panels need to be mounted. Large enclosure widths replace smaller baying combinations, reducing space requirements and accelerating assembly. System compatibility with VX25 accessories enables flexible expansion and integration into existing systems.
Functions and equipment in detail include a mounting plate made of 3.0 mm sheet steel, side C-flanged, and mounted depth-adjustable in 25 mm increments using integrated plastic glides and mounting rails. The mounting plate features a mounting grid to simplify component positioning. The rear panel is screwed and single-piece, with a foamed seal and automatic equipotential bonding. The base plates are made of 1.5 mm sheet steel, three-part, removable and replaceable, and also equipped with equipotential bonding. The enclosure, door, and rear panel are made of 1.5 mm and 2.0 mm sheet steel, respectively, and feature a triple surface treatment: nanoceramic coating, electrophoretic dip primer, and externally powder-coated in RAL 7035 textured lacquer. Mounting plates and base plates are galvanized.
Technology explained simply shows the protection rating IP 55 according to EN 60 529, which is dust-tight and splash-proof, making it suitable for outdoor or humid environments. The NEMA protection rating includes NEMA 3R and NEMA 12, indicating protection against falling water and dust-tight environments. The type rating according to UL 50E includes Type 1, 2, 3, 3R, and 12, confirming suitability for various industrial environments. The IK code IK10 guarantees high mechanical protection against impact and shock. The enclosure profiles feature system perforation in 25 mm DIN grid spacing, enabling flexible component mounting. Vertical profiles and front and rear roof frame profiles offer two integrated mounting levels for space-saving system expansion.
Compatibility and accessories include compatible products such as VX plinth corner pieces, system chassis, levelling feet, lock inserts, mounting brackets, comfort handles, C-profile rails, support rollers, transport eyes, and door latches. These components allow individual adaptation of the enclosure to specific requirements, such as mounting control panels, stabilizing during transport, or integrating into larger systems. System compatibility with VX25 accessories enables modular expansion.
Mounting and installation is facilitated by the pre-fabricated integral design, reducing assembly time. Depth-adjustable mounting plates and integrated mounting levels simplify component installation. The base plates are removable, enabling easy cleaning and maintenance. The rear panel is removable, facilitating access to rear components. The door is equipped with non-removable hinge pins, ensuring secure mounting.
Operational advantages include high mechanical stability, easy assembly, modular expandability, and high protection rating. The surface treatment provides high corrosion resistance and is resistant to mineral oils, lubricants, machining emulsions, and solvents. Integrated mounting levels and DIN grid spacing simplify installation and maintenance. Protection rating IP 55 and NEMA 3R/12, along with IK code IK10, ensure reliable operation in demanding environments. System compatibility with VX25 accessories allows flexible adaptation to future requirements.
| General | |
| Material | Housing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Housing, door and rear panel: dip primed, externally powder coated, textured lacquer; mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | enclosure top and sides closed, door(s), for single-door cabinets door hinge on right, reversible to left, mounting plate, base plates, rear panel, removable, locking: 3 mm double latch, 2 mounting rails 18 x 39 mm, rear panel, single-piece |
| Width | 800 mm |
| Height | 1.800 mm |
| Depth | 400 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 339.02 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
