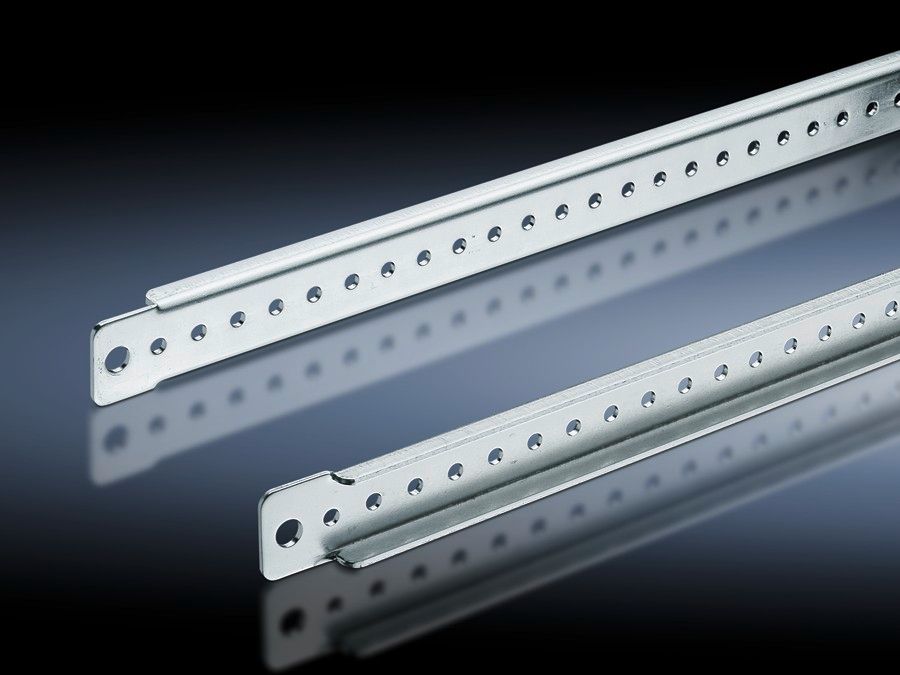

Rittal 4694000 TS mounting brackets for external mounting plane W x D: 400 mm

Your rating:
Average rating
product review for Rittal 4694000 TS mounting brackets for external mounting plane W x D: 400 mm
( 4.5 / 5 ) 90 ratings
Rittal 4694000
This image may differ from the desired article.
Rittal 4694000Rittal 4694000Rittal 4694000Rittal 4694000Rittal 4694000Rittal 4694000
56,12 EUR
( 66,78 EUR incl. VAT )
≈ £46.97  |  ≈ $61.68
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 4694000 TS mounting brackets for external mounting plane W x D: 400 mm
Datasheet:file_download Download
Lieske Part No.:375014
Mfg Part No: 4694000
UPC/EAN: 4028177108110
Weight:3.52 kg
Type:TS 4694000

Product information for Rittal 4694000:

Applications: For attachment of
Cable ducts
Cable conduit holder
Contact hazard protection covers

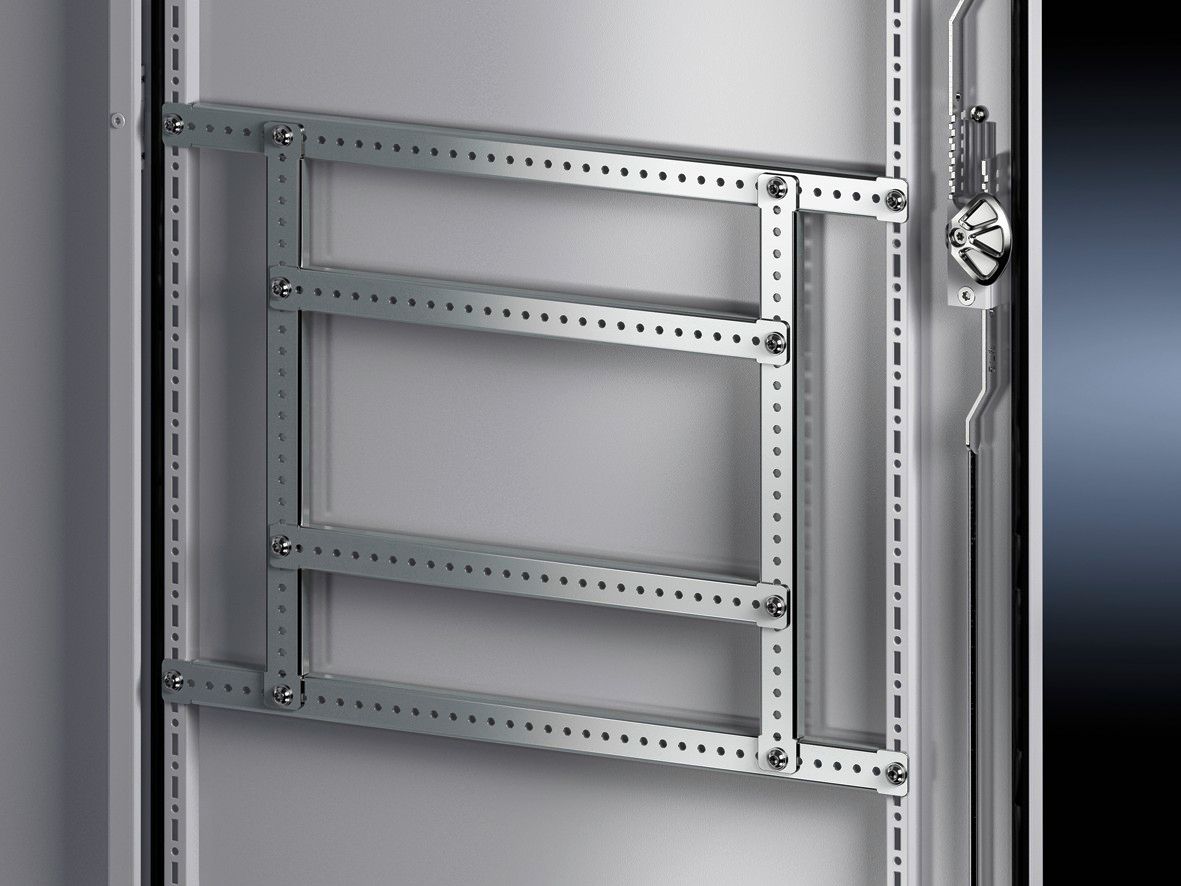

Equipment installed on the door
Cable clamping and attachment
Material: Sheet steel
Surface finish: Zinc-plated
Supply includes: Assembly parts
Packs of: 20 pc(s).
EAN: 4028177108110
Customs tariff number: 73269098
eCl@ss 5.1: 27189233
eCl@ss 7.0: 27189261
ETIM 6.0: EC002620

Design: For the outer mounting level
To fit: Width/depth: 400 mm
Dimensions: Length: 340 mm

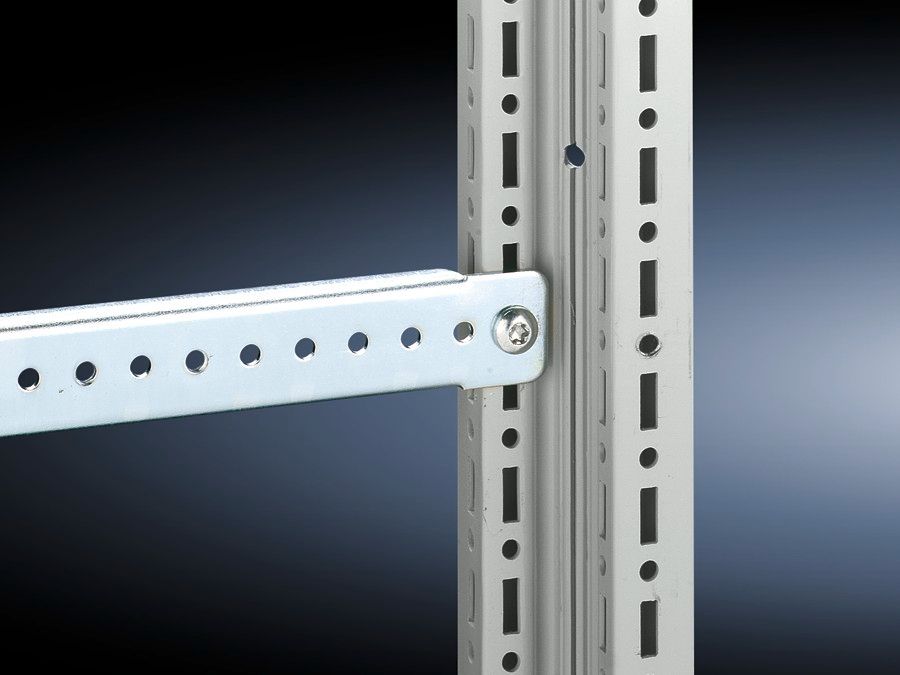

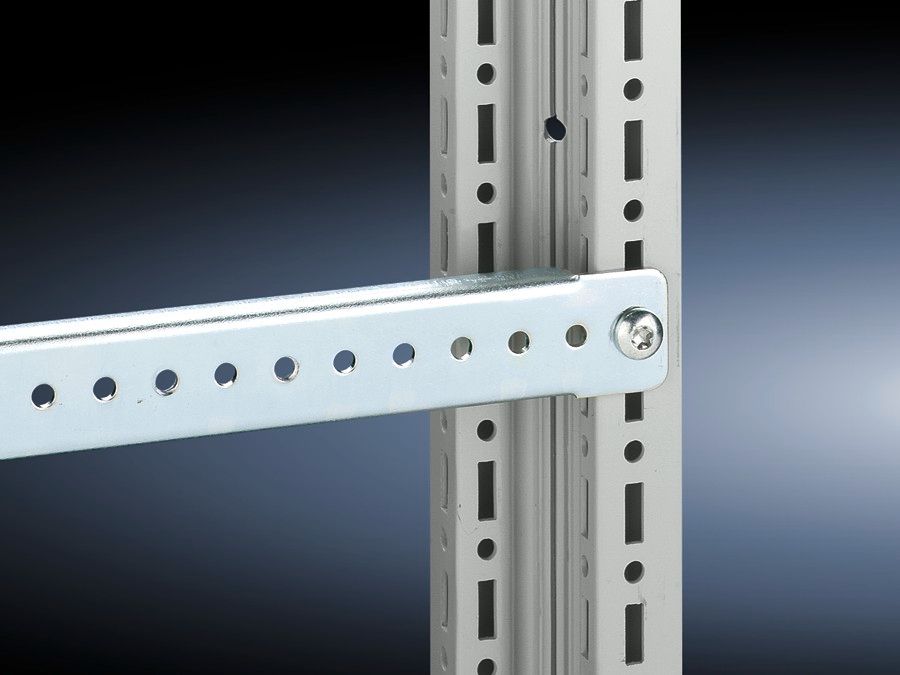

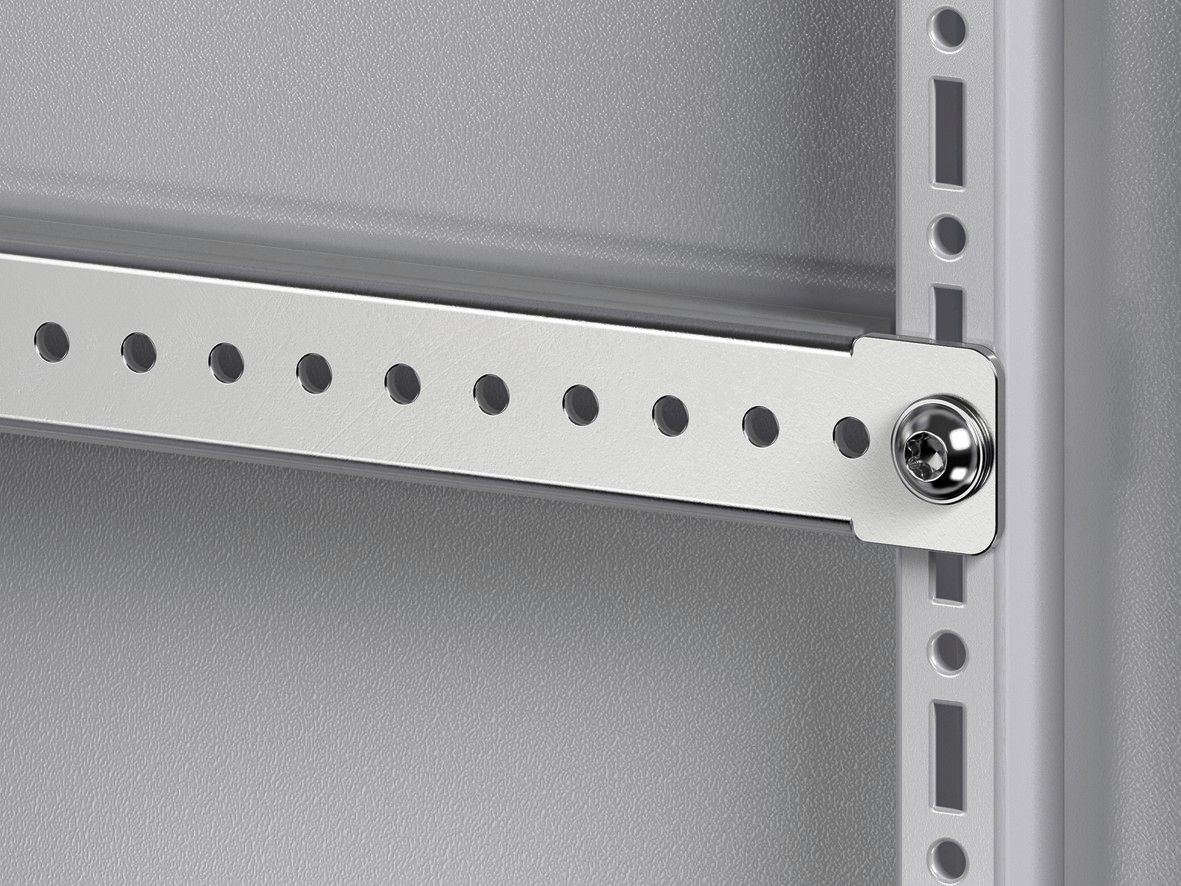

Installation options: On the vertical and horizontal TS enclosure section on the outer mounting level, all-round, at the same height
Weight/pack: 3.54 kg

General
Technical dataDrilling Ø 4.5 mm on 25 mm grid
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Length340 mm
Mounting options VXIn cabinet width/depth 400 mm, on the outer mounting plane
Mounting options VX SEIn cabinet width/depth 400 mm, on the outer mounting plane
Mounting options AXIn door width 400 mm, with pre-drilled holes
Mounting options TSIn cabinet width/depth 400 mm, on the outer mounting plane
Mounting options TPIn TP console base and stand console base, in housing depth 400 mm, in combination with the rail for internal installation for TP, compact control cabinet HD
Mounting options VX socketIn base width/depth 400 mm on base panels, in combination with base mounting angles
Suitable forHousing type: VX, TS, VX SE, TP, AX, width/depth: 400 mm
PCF/VE (Cradle-to-Gate)16.36 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 4694000, EAN: 4028177108110
