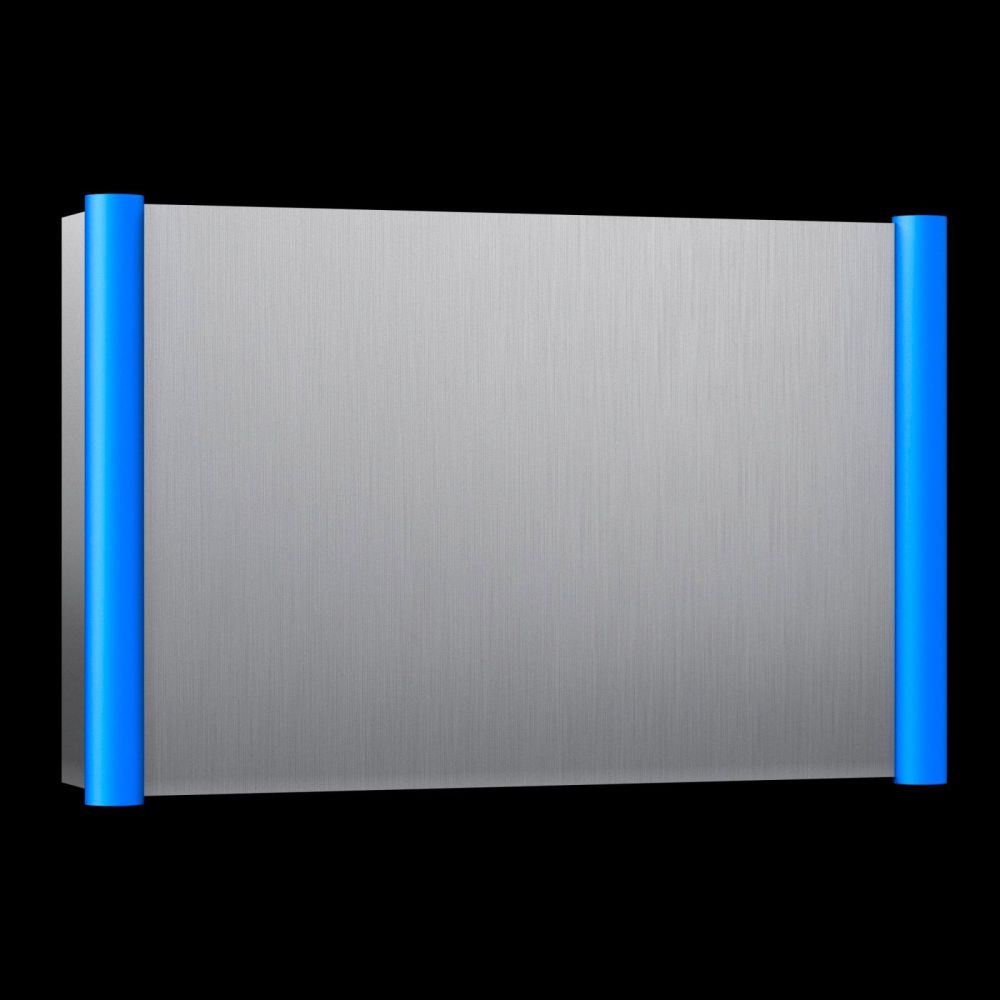

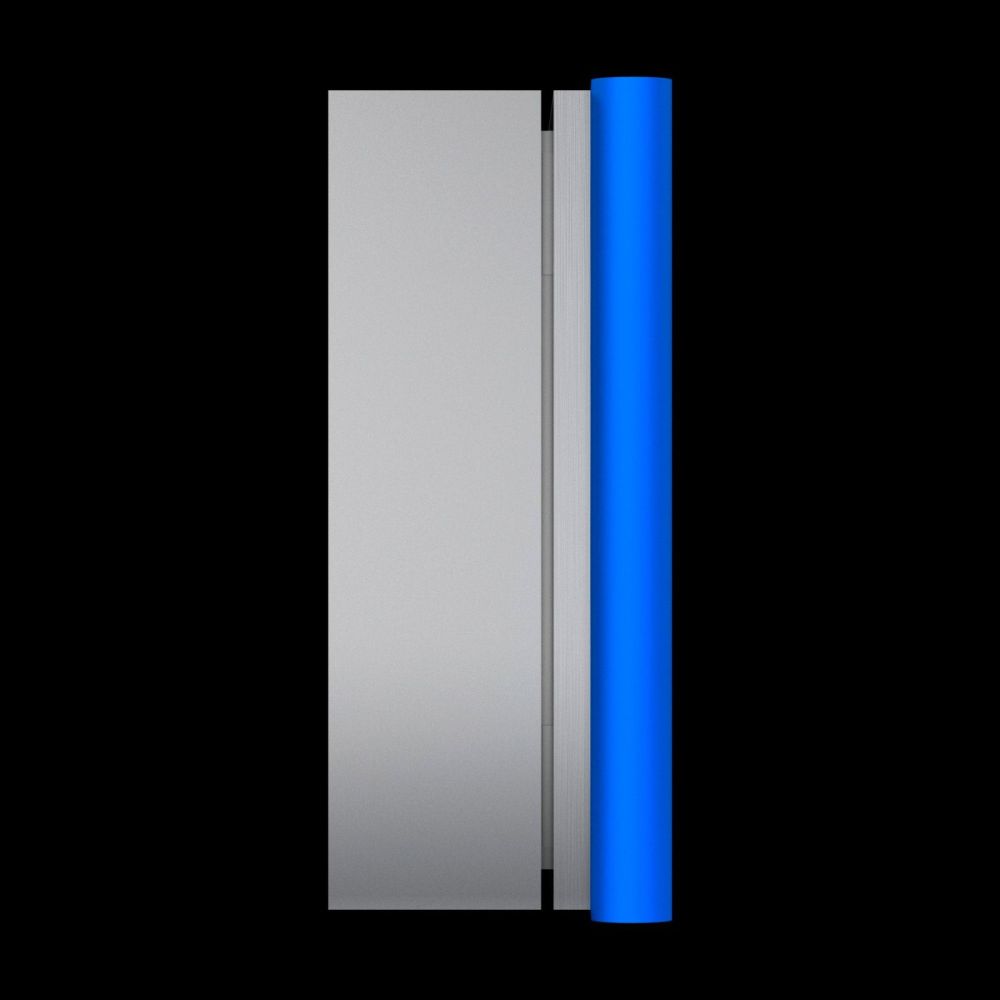

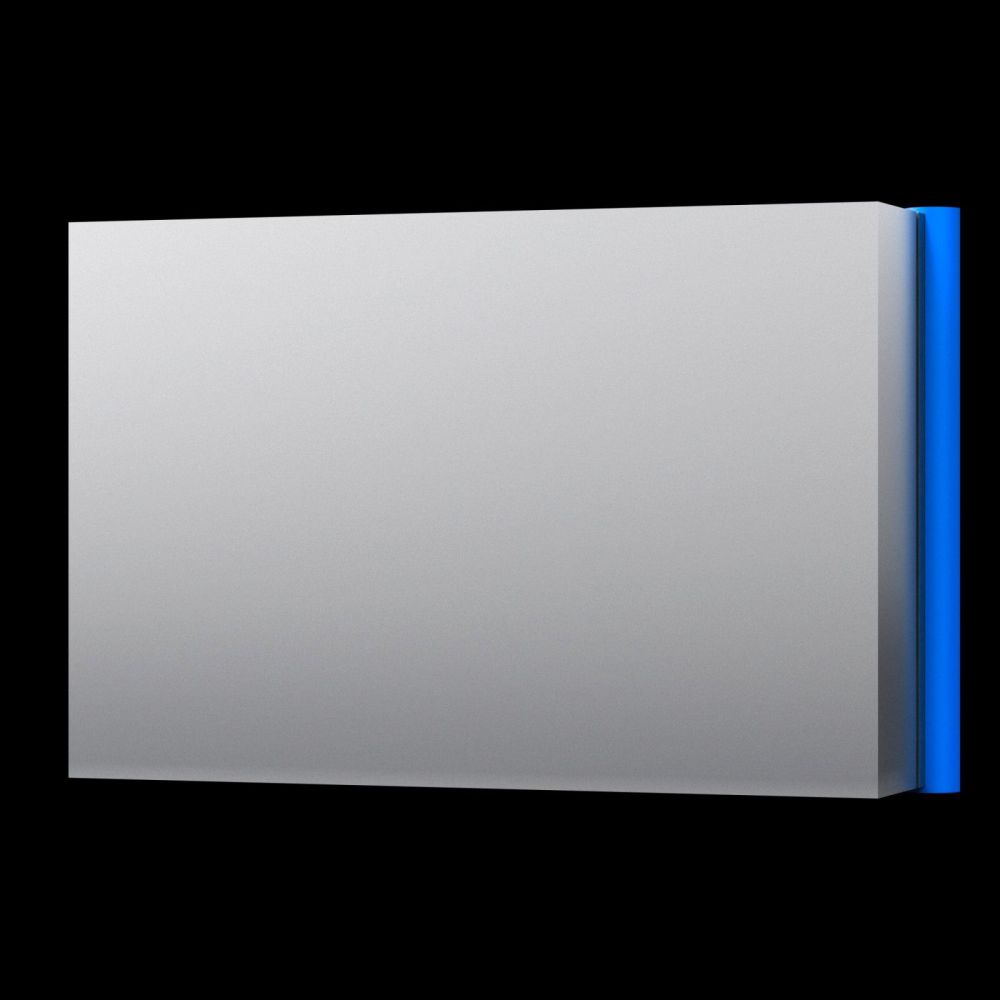

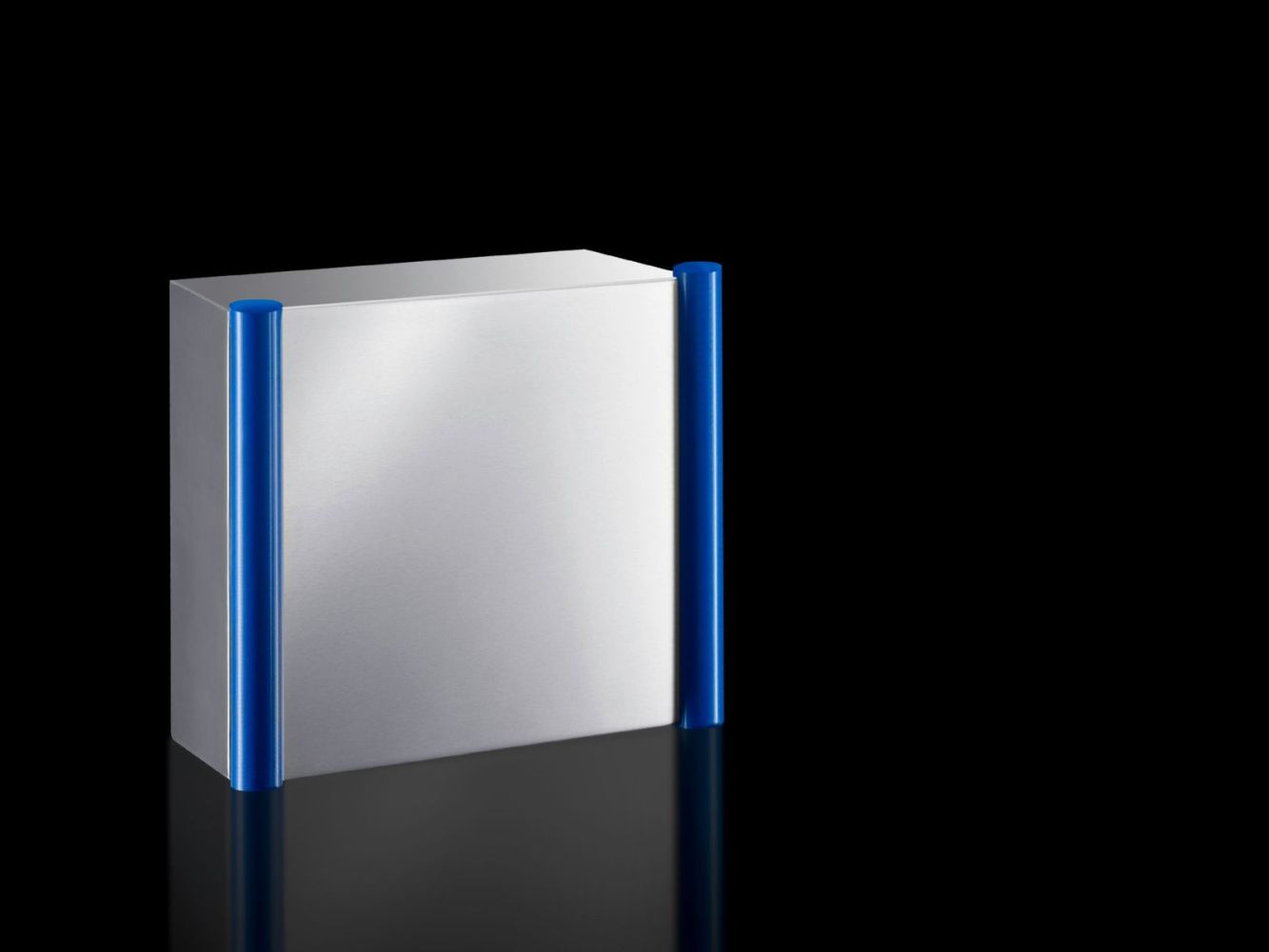

Rittal 6538010 command panel housing, stainless steel 1.4301, 400x400x150 mm

Your rating:
Average rating
product review for Rittal 6538010 command panel housing, stainless steel 1.4301, 400x400x150 mm
( 4.5 / 5 ) 68 ratings
Rittal 6538010
This image may differ from the desired article.
Rittal 6538010Rittal 6538010Rittal 6538010Rittal 6538010Rittal 6538010Rittal 6538010Rittal 6538010
433,44 EUR
( 515,79 EUR incl. VAT )
≈ £362.79  |  ≈ $476.35
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 6538010 command panel housing, stainless steel 1.4301, 400x400x150 mm
Datasheet:file_download Download
Lieske Part No.:908252
Mfg Part No: 6538010
UPC/EAN: 4028177220386
Weight:8.85 kg
Type:CP 6538010

Product information for Rittal 6538010:

Material: Enclosure and door: Stainless steel 1.4301 (AISI 304)
Handle strips: Plastic approved for use with foodstuffs, dyed blue
Surface finish: Brushed, grain 240
Colour: Handle strips: similar to RAL 5002
Protection category IP to IEC 60 529: IP 66
Protection category NEMA: NEMA 12
Supply includes: Enclosure of all-round solid construction
Cut-out and reinforcement for support arm system CP 40 stainless steel
Fastener with guide plate

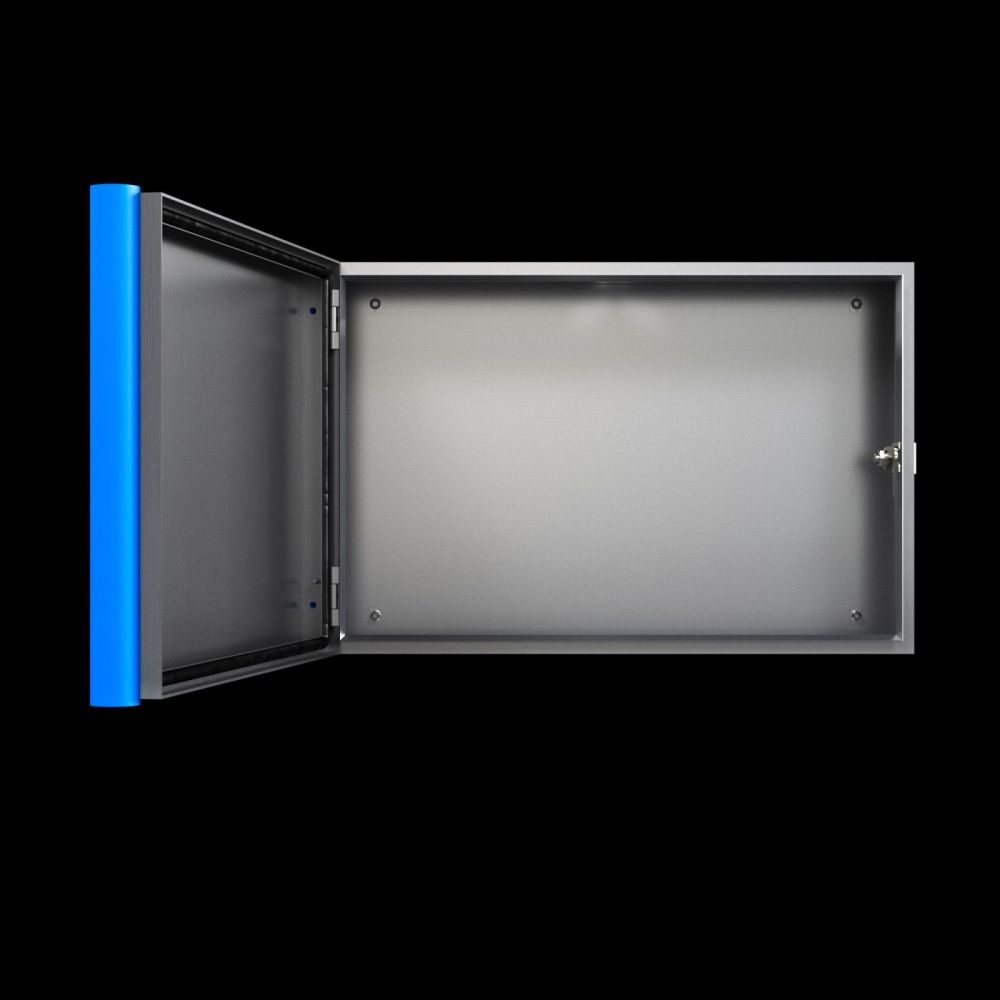

Door with sealing frame and side handle strips
Lock: 3 mm double-bit
Note: The support arm connection and door hinge may be swapped over by rotating the enclosure
Matching mounting plates from compact enclosures AE may be used
3 mm double-bit lock insert may be exchanged for 41 mm lock inserts, plastic handles and T handles, type C
Note on Model No.: Matching mounting panel 5050.453
Packs of: 1 pc(s).
EAN: 4028177220386
Customs tariff number: 94032080
eCl@ss 5.1: 27180505
eCl@ss 7.0: 27180505
ETIM 6.0: EC002504

Dimensions: Width: 400 mm
Height: 400 mm
Depth: 150 mm
Weight/pack: 8.8 kg

General
ModelWith mounting arm connection CP 40, stainless steel
MaterialHousing and door: stainless steel 1.4301 (AISI 304), handle strips: food-safe plastic, blue tinted
Surface protectionLinear grind, grit 400
Basic colourStainless steel
Colourhandle strips: similar to RAL 5002
Scope of deliveryHousing fully enclosed, breakout and reinforcement for CP 40 support system, stainless steel, closure with guide plate, door with sealing frame and side grip strips, closure: 3 mm double bar
Width400 mm
Height400 mm
Depth150 mm
Degree of protection IP according to IEC 60 529IP 66
NEMA degree of protectionNEMA 12
NoteSwapping of mounting arm connection and door hinge by rotating the housing possible, 3 mm double bar lock insert, interchangeable with 41 mm lock inserts, plastic handles and toggle handles, type C
Base materialStainless steel 1.4301 (AISI 304)
Note on part numberCompatible mounting plate 5050.453 with shipping bag 5050.507
PCF/VE (Cradle-to-Gate)43,29


Product data sheet
Datasheet for Rittal 6538010, EAN: 4028177220386
