Rittal 2483000 Lock inserts, zinc die-cast, length 41 mm, version

Your rating:
Average rating
product review for Rittal 2483000 Lock inserts, zinc die-cast, length 41 mm, version
( 4.6 / 5 ) 52 ratings

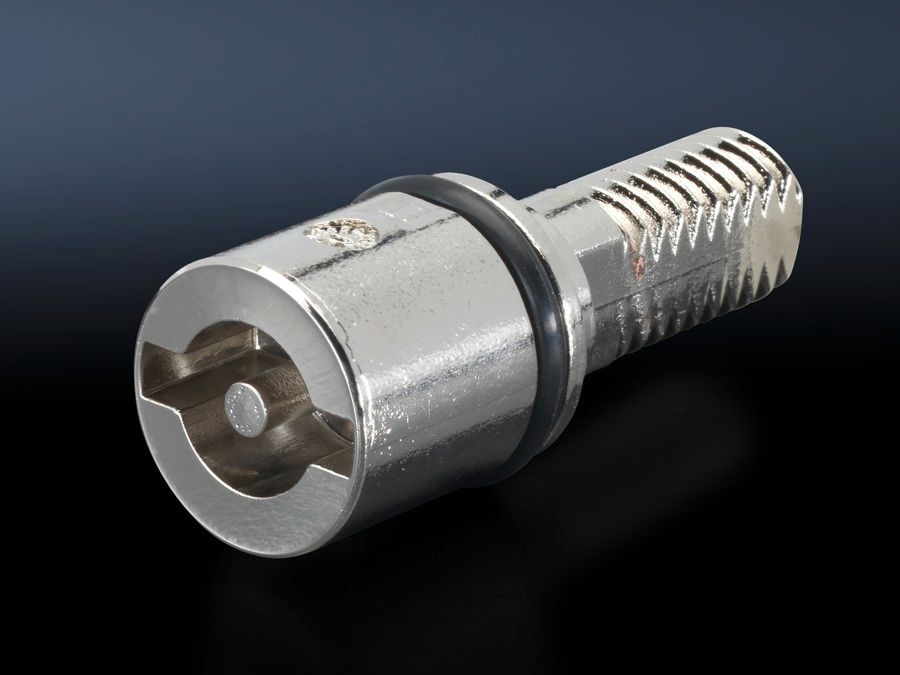

Rittal 2483000
This image may differ from the desired article.
Rittal 2483000Rittal 2483000
3,20 EUR
( 3,81 EUR incl. VAT )
≈ £2.68  |  ≈ $3.52
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2483000 Lock inserts, zinc die-cast, length 41 mm, version
Datasheet:file_download Download
Lieske Part No.:195279
Mfg Part No: 2483000
UPC/EAN: 4028177024731
Weight:0.03 kg
Type:SZ 2483000

Product information for Rittal 2483000:

The Rittal SZ 2483000 is a lock insert of type C, specifically designed for use in industrial enclosures and housings. It is made of zinc die-cast and features a 3 mm double barb as the locking profile. With a length of 41 mm, it is intended for mounting in upper and middle sections of enclosure housings, particularly in combination with stainless steel latches. The insert serves as a mechanical closure to ensure the safety and integrity of enclosure covers.

Applications

The lock insert is used in industrial plants where secure and durable latching of enclosure lids is required. It is specifically designed for housing types equipped with stainless steel latches, such as the AE series with stainless steel latch, the base AE with stainless steel latch, and consoles with console lid made of stainless steel. These housing types are used in environments with increased requirements for corrosion resistance and mechanical durability, for example in manufacturing, automation technology, or machine building.

Functions and Equipment in Detail

The insert is designed as a double barb lock, where the 3 mm wide double barb shape ensures a precise fit in the corresponding locking mechanisms. Type C defines the specific geometry and mounting method, which is optimized for the mentioned housing types. The material zinc die-cast provides sufficient strength and resistance to mechanical stress, with a surface suitable for use in industrial environments. The length of 41 mm enables secure anchoring in the locking mechanism and ensures stable latching.

Technology Explained Simply

The lock insert functions as a mechanical key, inserted into a matching locking mechanism in the enclosure housing. The double barb shape ensures that only a matching key or tool can operate the lock, thus securing the integrity of the enclosure cover. The use of zinc die-cast offers a good combination of strength and shape stability, ensuring the insert maintains its function even with frequent use. The exact length of 41 mm is matched to the construction height of the locking mechanisms in the specified housing types, enabling secure and smooth mounting.

Compatibility and Accessories

The lock insert is specifically designed for housing types AE with stainless steel latch, base AE with stainless steel latch, and consoles with console lid made of stainless steel. It is not intended for other housing types or locking mechanisms requiring different profiles or dimensions. Alternative lock inserts are available, for example in triangular, square, or screwdriver shape; however, the SZ 2483000 is exclusively designed for the double barb geometry.

Mounting and Installation

Mounting is done by inserting the lock insert into the designated locking mechanism in the enclosure housing. The fit is matched to the stainless steel latches of the specified housing types, ensuring a secure and durable latching. No additional tools or mounting aids are required, as the insert is directly inserted into the locking profile. Installation typically takes place during the assembly or maintenance of the enclosure.

Advantages in Operation

The insert provides a reliable and mechanically stable latching, ensuring the safety of the enclosure cover. The use of zinc die-cast ensures long service life and resistance to mechanical stress. The specific type C and dimension of 41 mm ensure a precise fit in the designated housing types, guaranteeing secure and smooth operation of the lock. Compatibility with stainless steel latches makes the insert particularly suitable for demanding industrial environments.

General
ModelC
Materialzinc die-cast
Length41 mm
LockLock insert: 3 mm double barb
Suitable for housing typeAE with stainless steel pilot, base AE with stainless steel pilot, stand console console cover stainless steel


Product data sheet
Datasheet for Rittal 2483000, EAN: 4028177024731
