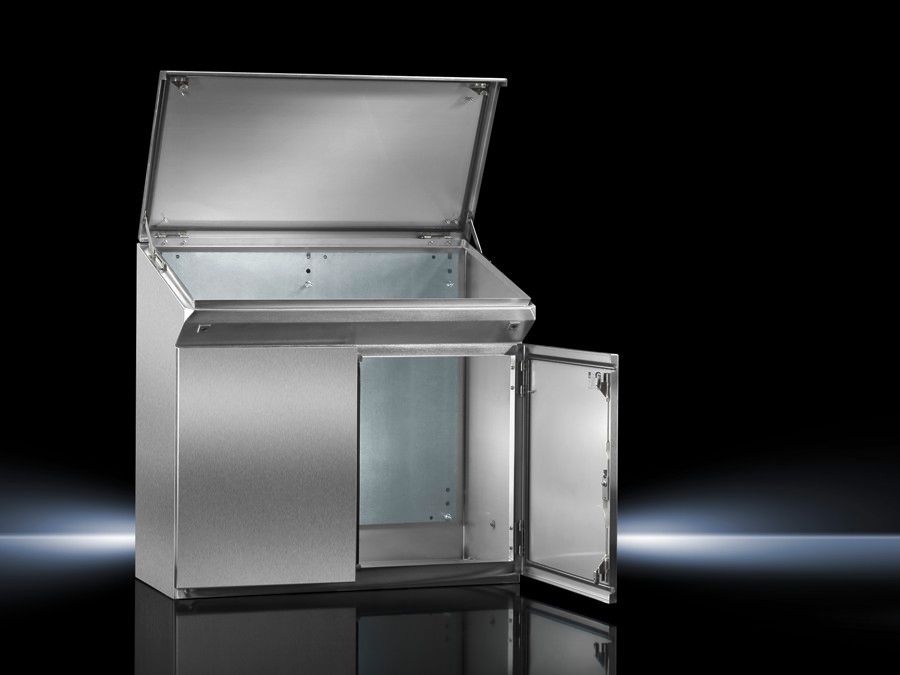

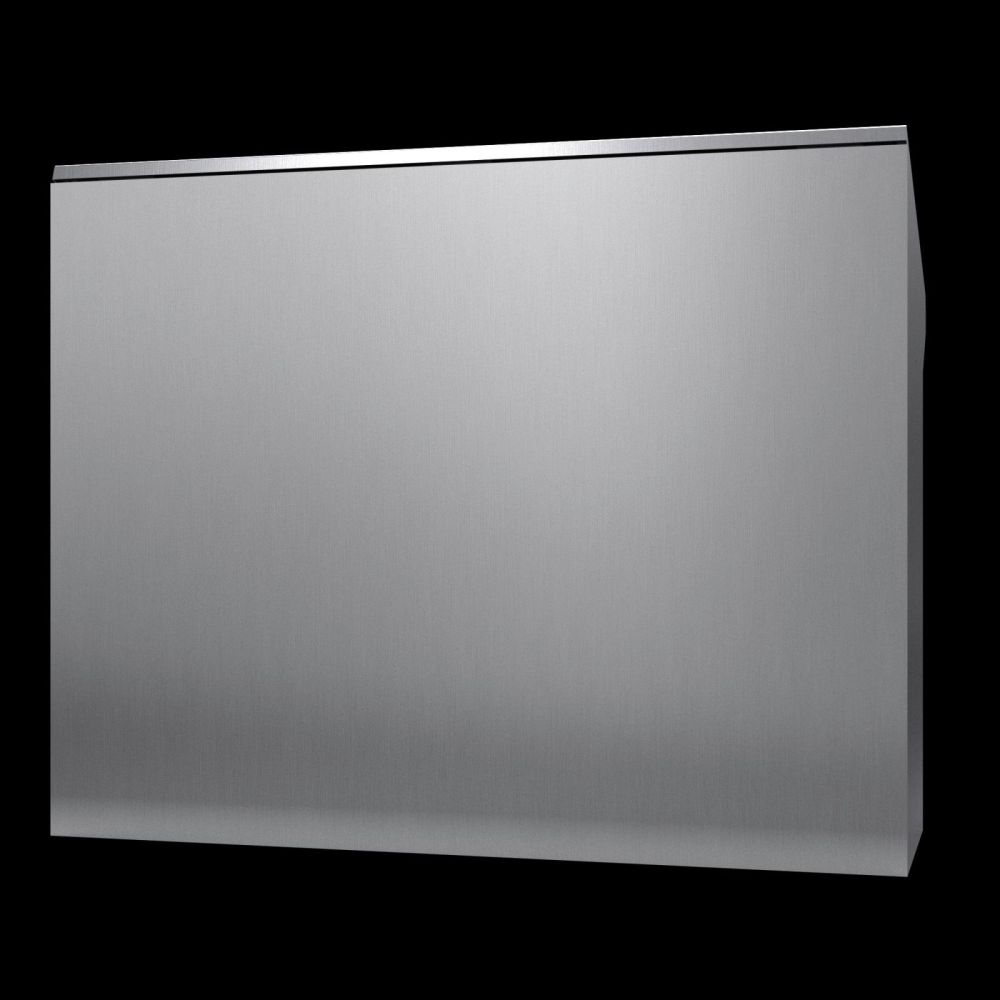

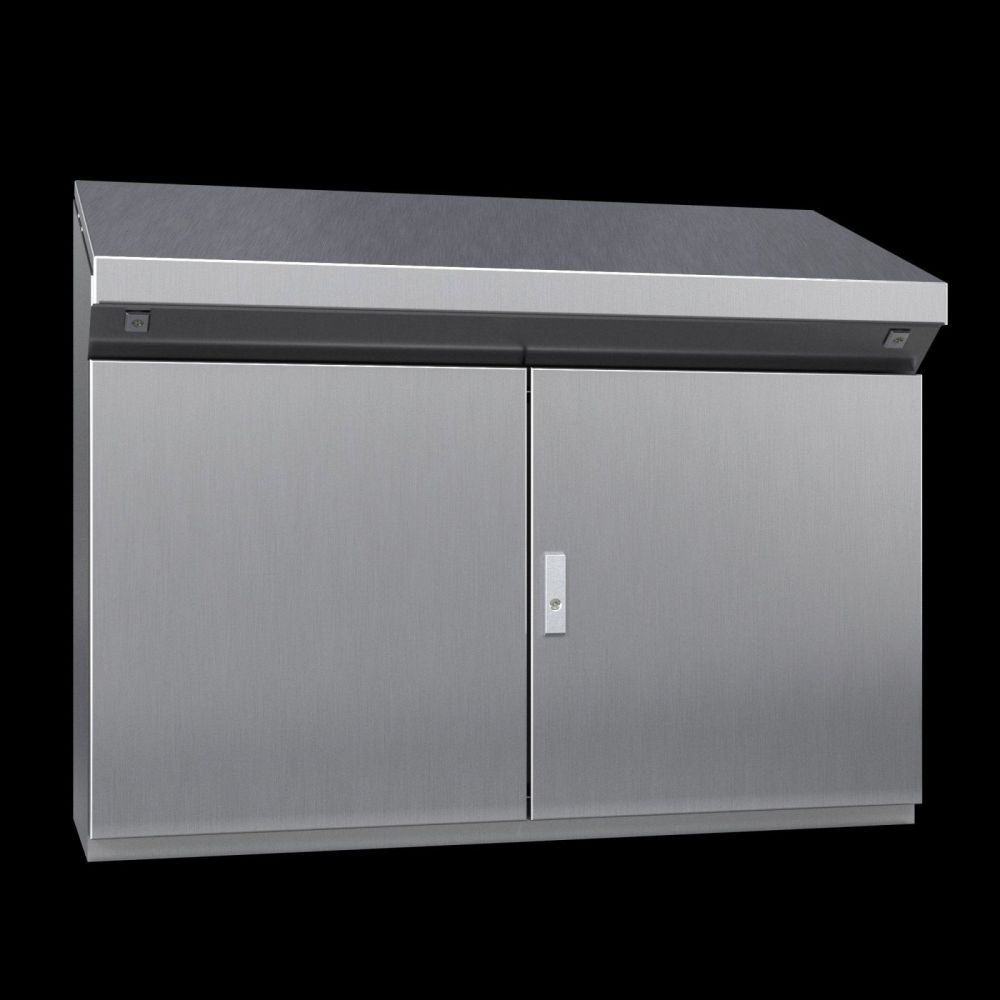

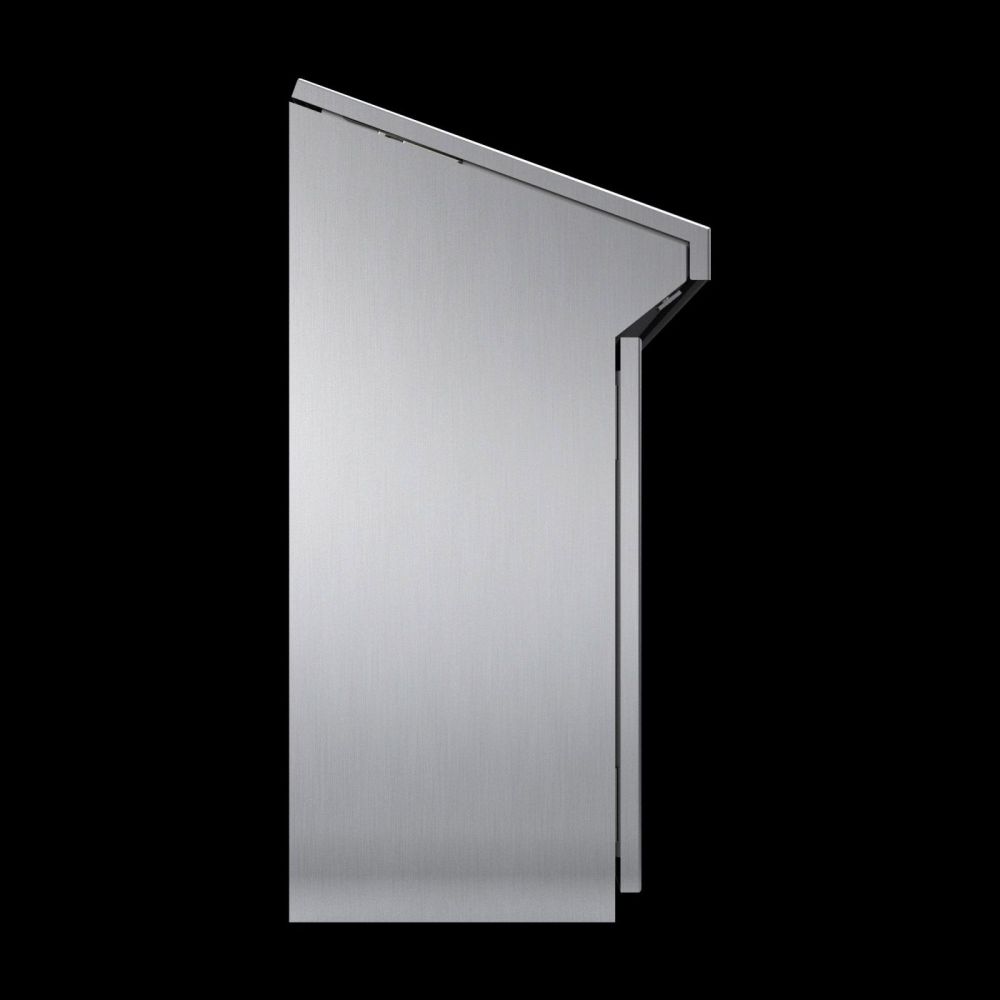

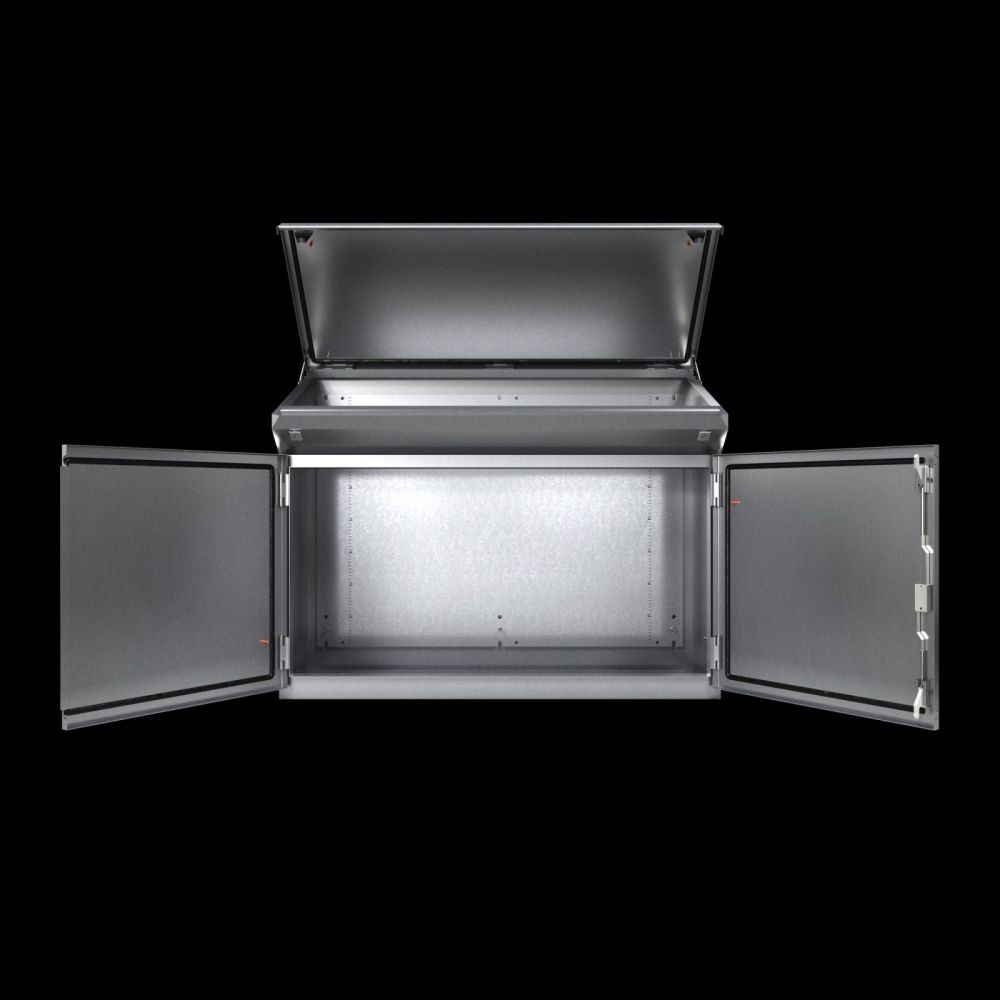

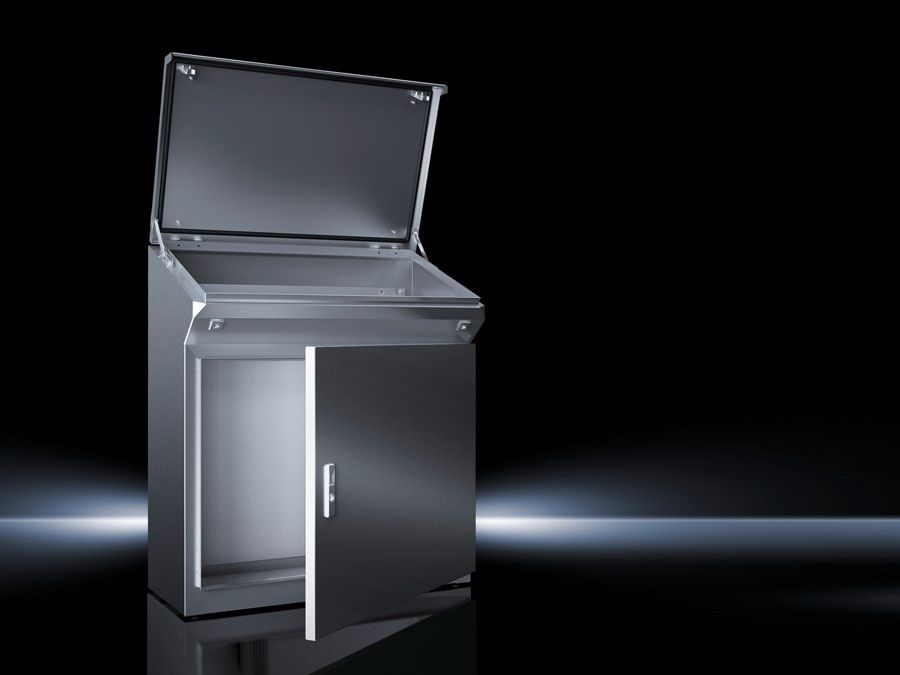

Rittal 2685600 Standpult, stainless steel 1.4301, 2-door, W x H: 1000x960 mm
|
2.133,25 EUR |
|
|
( 2.538,57 EUR incl. VAT ) ≈ £1,802.60 | ≈ $2,384.97 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 355846 |
| Mfg Part No: | 2685600 |
| UPC/EAN: | 4028177031395 |
| Weight: | 79.5 kg |
| Type: | TP 2685600 |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 2685600:
Material: Enclosure: Stainless steel 1.4301 (AISI 304), 1.5 mm
Door or double door and console lid: Stainless steel 1.4301 (AISI 304), 2.0 mm
Mounting plate: Sheet steel 3.0 mm
Surface finish: Enclosure, door, console lid and gland plates: Brushed, grain 120
Mounting plate: Zinc-plated
Protection category IP to IEC 60 529: IP 55
Protection category NEMA: NEMA 12
Supply includes: Enclosure, solid back and sides
Door or double door at front, with locking rod
Console lid with lid stay and cam lock latched in the enclosure
Locks with double-bit insert
Gland plates, divided
Mounting plate
Product modification: As of the production date 01/03/15, the mounting plates in the stainless steel one-piece consoles are no longer delivered pre-assembled, but supplied loose on the outer rear wall of the enclosure. The benefit to you: This eliminates the need to dismantle the mounting plate for machining.
Packs of: 1 pc(s).
EAN: 4028177031395
Customs tariff number: 94032080
eCl@ss 5.1: 27180503
eCl@ss 7.0: 27180504
ETIM 6.0: EC000784
Dimensions: Width: 1000 mm
Height: 960 mm
Depth (top): 480 mm
Depth (bottom): 400 mm
Mounting plate: Width: 930 mm
Height: 780 mm
Number of doors: 2
Weight/pack: 79.5 kg
Door or double door and console lid: Stainless steel 1.4301 (AISI 304), 2.0 mm
Mounting plate: Sheet steel 3.0 mm
Surface finish: Enclosure, door, console lid and gland plates: Brushed, grain 120
Mounting plate: Zinc-plated
Protection category IP to IEC 60 529: IP 55
Protection category NEMA: NEMA 12
Supply includes: Enclosure, solid back and sides
Door or double door at front, with locking rod
Console lid with lid stay and cam lock latched in the enclosure
Locks with double-bit insert
Gland plates, divided
Mounting plate
Product modification: As of the production date 01/03/15, the mounting plates in the stainless steel one-piece consoles are no longer delivered pre-assembled, but supplied loose on the outer rear wall of the enclosure. The benefit to you: This eliminates the need to dismantle the mounting plate for machining.
Packs of: 1 pc(s).
EAN: 4028177031395
Customs tariff number: 94032080
eCl@ss 5.1: 27180503
eCl@ss 7.0: 27180504
ETIM 6.0: EC000784
Dimensions: Width: 1000 mm
Height: 960 mm
Depth (top): 480 mm
Depth (bottom): 400 mm
Mounting plate: Width: 930 mm
Height: 780 mm
Number of doors: 2
Weight/pack: 79.5 kg
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
