Rittal 2435300 AX comfort handle, for lock insert and profile holder

Your rating:
Average rating
product review for Rittal 2435300 AX comfort handle, for lock insert and profile holder
( 0 / 5 ) 0 ratings

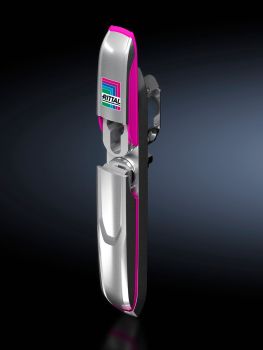

Rittal 2435300
This image may differ from the desired article.
135,36 EUR
( 161,08 EUR incl. VAT )
≈ £113.30  |  ≈ $148.76
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2435300 AX comfort handle, for lock insert and profile holder
Datasheet:file_download Download
Lieske Part No.:1598264
Mfg Part No: 2435300
UPC/EAN: 4028177938182
Weight:0.689 kg
Type:AX 2435300

Product information for Rittal 2435300:

The Rittal AX 2435300 is a comfort handle made of stainless steel die-cast, specifically developed for use on enclosures and housings of the AX system. It serves as an ergonomic handle for operating locking mechanisms and is prepared for the installation of lock inserts as well as half cylinders. The handle is suitable for enclosures with bar locking, 3-point locking system, stand console CX, and console base CX. Its construction enables intuitive operation: the unlocked handle flips forward and is rotated to open the lock.

Applications

The comfort handle is used in industrial and technical installations where secure and convenient operation of enclosure locks is required. It is particularly suitable for applications in automation technology, machine building, and electrical engineering, where frequent access to the enclosure door is necessary. The use in combination with lock inserts or half cylinders allows flexible adaptation to different security requirements.

Functions and Equipment in Detail

The handle is designed for the installation of lock inserts of type A. It supports the installation of half cylinders with a total length of 40 mm or 45 mm according to DIN 18 252. Alternatively, safety and push-button inserts with a length of 40 mm can also be mounted. This versatility allows adaptation to various access systems without requiring replacement of the handle itself. The stainless steel die-cast construction ensures high mechanical stability and corrosion resistance, making it suitable for demanding environments.

Technology Explained Simply

The handle is manufactured as a die-cast from stainless steel, enabling precise shaping and uniform material distribution. This results in high strength and durability, even under mechanical stress. The preparation for lock inserts and half cylinders is achieved through integrated drill holes and guiding elements, ensuring secure mounting. The flipping and swivelling function of the handle is enabled by an integrated hinge, which allows the handle to flip forward when unlocked to open the lock.

Compatibility and Accessories

The comfort handle is compatible with various enclosure types of the AX system, including variants with bar locking and 3-point locking system. It can be combined with various lock inserts, including zinc die-cast inserts with a length of 27 mm, as well as half cylinders for handle systems. Additionally, safety and push-button inserts are available, providing additional security functions. The combination with these accessories enables individual adaptation to specific security and access requirements.

Mounting and Installation

Mounting is carried out at the designated attachment points on the enclosure door. The handle is fastened at the designated drill holes, with precise positioning ensured by the design of the enclosure and the handle itself. Installation does not require special tools, although correct alignment of the handle is important for the secure function of the lock. Mounting is typically part of the enclosure assembly and performed simultaneously with the installation of the locking mechanism.

Advantages in Operation

The use of the comfort handle improves the operability of enclosure locks, especially with frequent access. The ergonomic shape and clear movement sequence during opening reduce physical strain and increase efficiency. The use of stainless steel die-cast ensures long service life and resistance to corrosion, which is particularly advantageous in humid or aggressive environments. Compatibility with various lock inserts enables flexible use in different application scenarios.

General
ModelFor lock inserts and profile half-cylinders
MaterialStainless steel die-cast
LockLocking execution: Prepared for locking inserts, type A, for installation of profile half-cylinders 40 or 45 mm total length (according to DIN 18 252) or safety and push-button inserts with a length of 40 mm
Suitable for housing typeAX with 3-point locking system, AX with rod lock, CX console, CX console base


Product data sheet
Datasheet for Rittal 2435300, EAN: 4028177938182

Questions & answers

What is the delivery time of Rittal 2435300 AX comfort handle, for lock insert and profile holder?

The article Rittal 2435300 AX comfort handle, for lock insert and profile holder is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2435300 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2435300 AX comfort handle, for lock insert and profile holder always at the best possible price. We can give you a discount of 2% on Rittal 2435300 AX comfort handle, for lock insert and profile holder if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
