Rittal 2469100 half cylinder for handles, push-button and safety switch disconnectors

Your rating:
Average rating
product review for Rittal 2469100 half cylinder for handles, push-button and safety switch disconnectors
( 5 / 5 ) 1 ratings

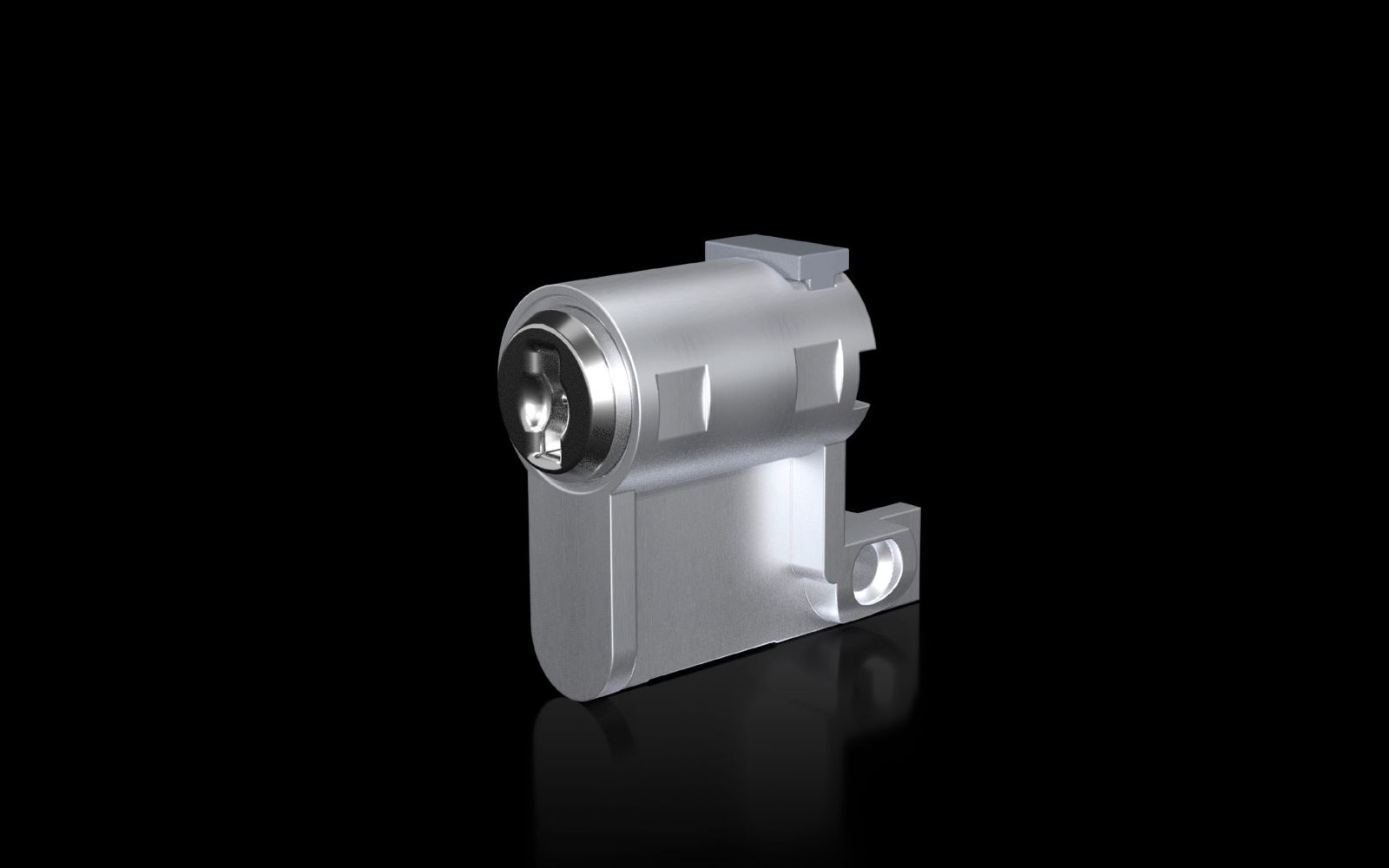

Rittal 2469100
This image may differ from the desired article.
14,26 EUR
( 16,97 EUR incl. VAT )
≈ £11.94  |  ≈ $15.67
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 2469100 half cylinder for handles, push-button and safety switch disconnectors
Datasheet:file_download Download
Lieske Part No.:1062796
Mfg Part No: 2469100
UPC/EAN: 4028177972339
Weight:0.056 kg
Type:SZ 2469100

Product information for Rittal 2469100:

The article SZ 2469100 from Rittal is a profile half cylinder for use in various handle systems for enclosures and industrial housings. It serves as a locking component that is integrated into existing handle systems to enable secure and convenient access to electrical or electronic devices. The half cylinder is specifically designed for use with Rittal handle systems and provides a mechanical locking function with an integrated push-button and safety lock insert.

Applications

The profile half cylinder is intended for use in industrial environments, particularly in enclosures, control cabinets, and other closed housings that require controlled access. It is suitable for applications where mechanical securing is necessary to prevent unauthorized access. The use is exclusively in combination with the specific Rittal handle systems designed for this half cylinder.

Functions and Equipment in Detail

The half cylinder has a length of 40 mm and is equipped with a push-button and safety lock insert. This insert enables a secure locking mechanism operated by a key. The locking system is designated by number 12321, and according to the manufacturer, no other locking system is possible. The delivery includes 2 keys, which are required to operate the lock. The construction is designed to fit only into the specified Rittal handle systems.

Technology Explained Simply

The profile half cylinder is a mechanical lock installed into the handle system of an enclosure. It operates via a key mechanism controlled by the push-button and safety lock insert. Locking system No. 12321 is a specific key type that only functions with the matching keys. The length of 40 mm corresponds to the standard size for such half cylinders in industrial applications. Use is restricted to the specified Rittal handle systems, ensuring high compatibility within the Rittal product family.

Compatibility and Accessories

The half cylinder is exclusively intended for installation in the following Rittal handle systems: Comfort handle VX for profile half cylinder, Comfort handle TS for profile half cylinder, Comfort handle AX, Mini comfort handle AX, Mini comfort handle for EL 3-piece for profile half cylinder, Mini comfort handle AE for profile half cylinder, and the Ergoform S-handle standard. Use in other handle systems is not possible.

Installation and Mounting

Installation is carried out by inserting the half cylinder into the designated handle system. No additional tools or components are required, as the half cylinder is specifically designed for the mentioned handle systems. The mounting position is determined by the shape and dimensions of the half cylinder and the design of the handle systems. Mounting is part of the standard installation process for the respective handle systems.

Operational Advantages

The use of the profile half cylinder provides a reliable mechanical securing system for controlled access to enclosures. The use of two keys allows for simple access management. Compatibility with the specified Rittal handle systems ensures a uniform and standardized solution within the Rittal product line. Locking system No. 12321 ensures clear assignment and prevents incorrect connections with other locking systems.

General
Scope of deliveryWith 2 keys
Length40 mm
Installation in handle systemComfort grip VX for profile half-cylinder, Comfort grip TS for profile half-cylinder, Comfort grip AX, Mini comfort grip AX, Mini comfort grip for EL 3-piece for profile half-cylinder, Mini comfort grip AE for profile half-cylinder, Ergoform S-handle standard
NoteExclusively prepared for the corresponding Rittal handle systems
LockLock insert: push-button and security insert, lock number 12321, other lock not possible.


Product data sheet
Datasheet for Rittal 2469100, EAN: 4028177972339
