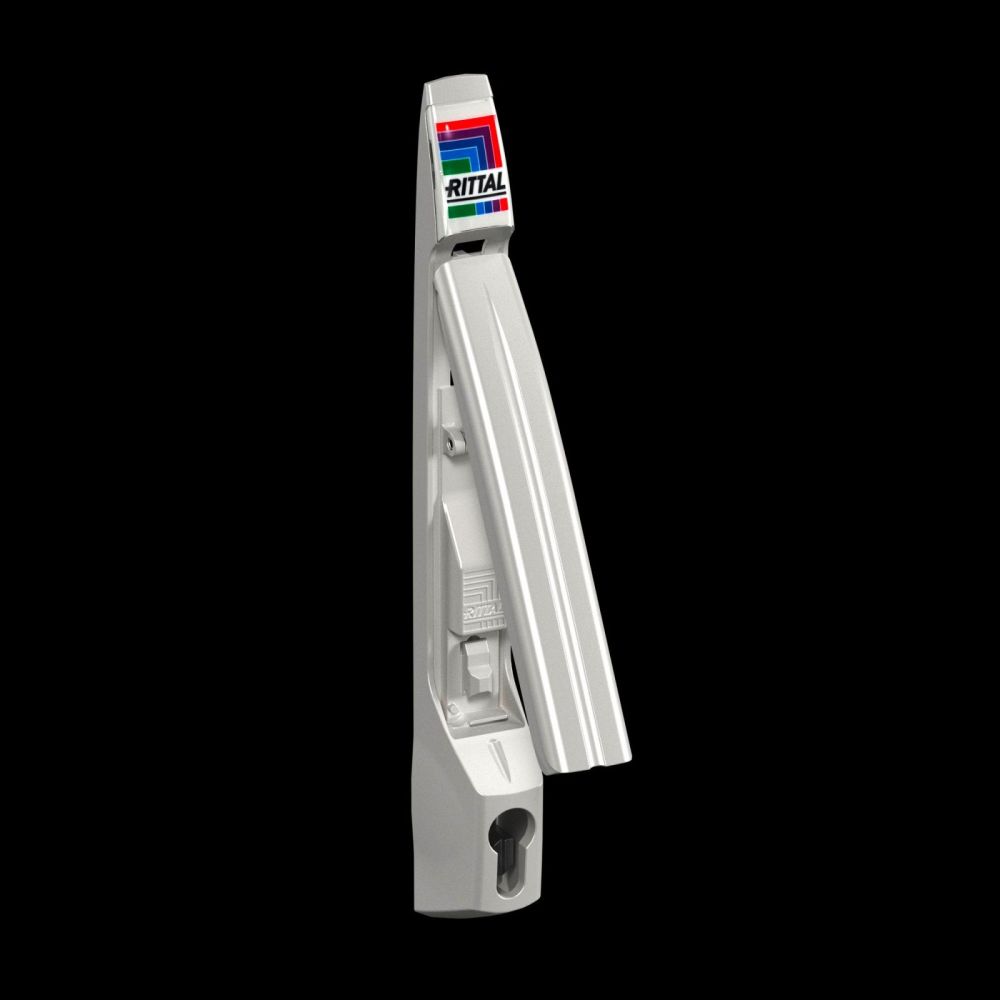

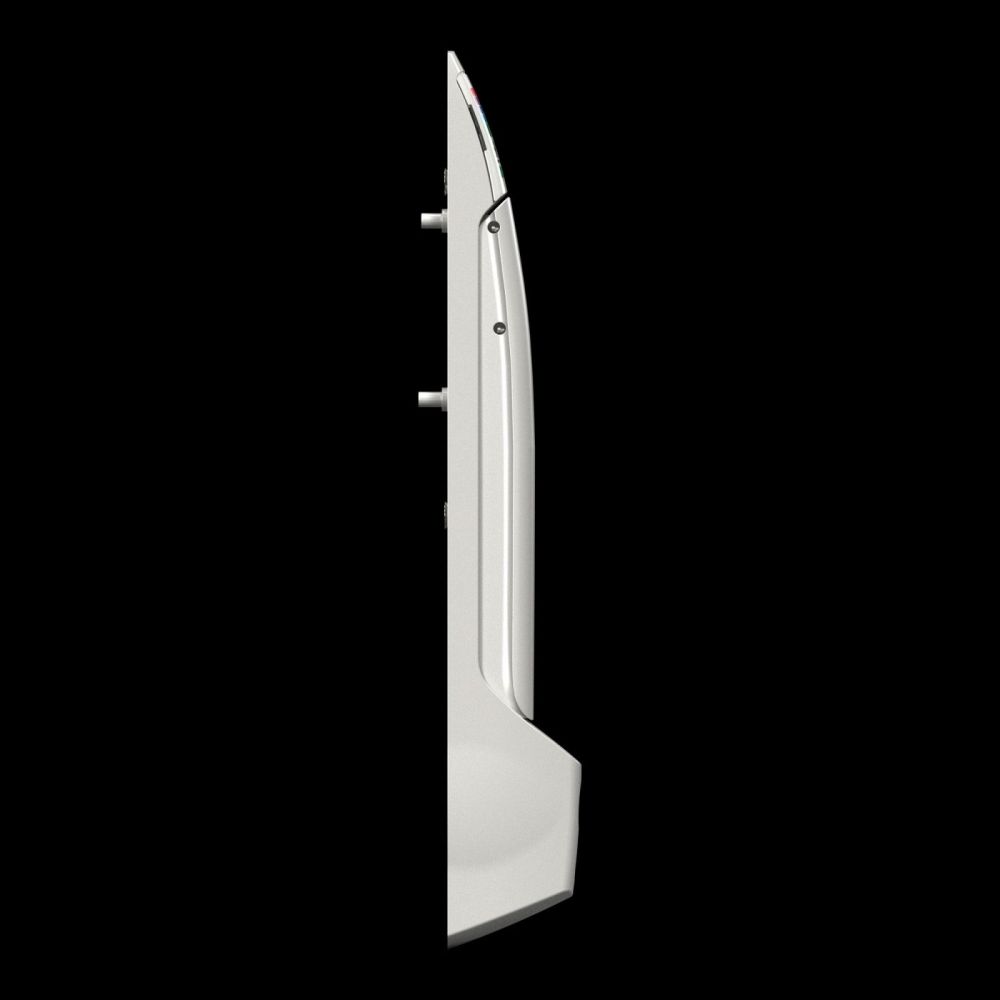

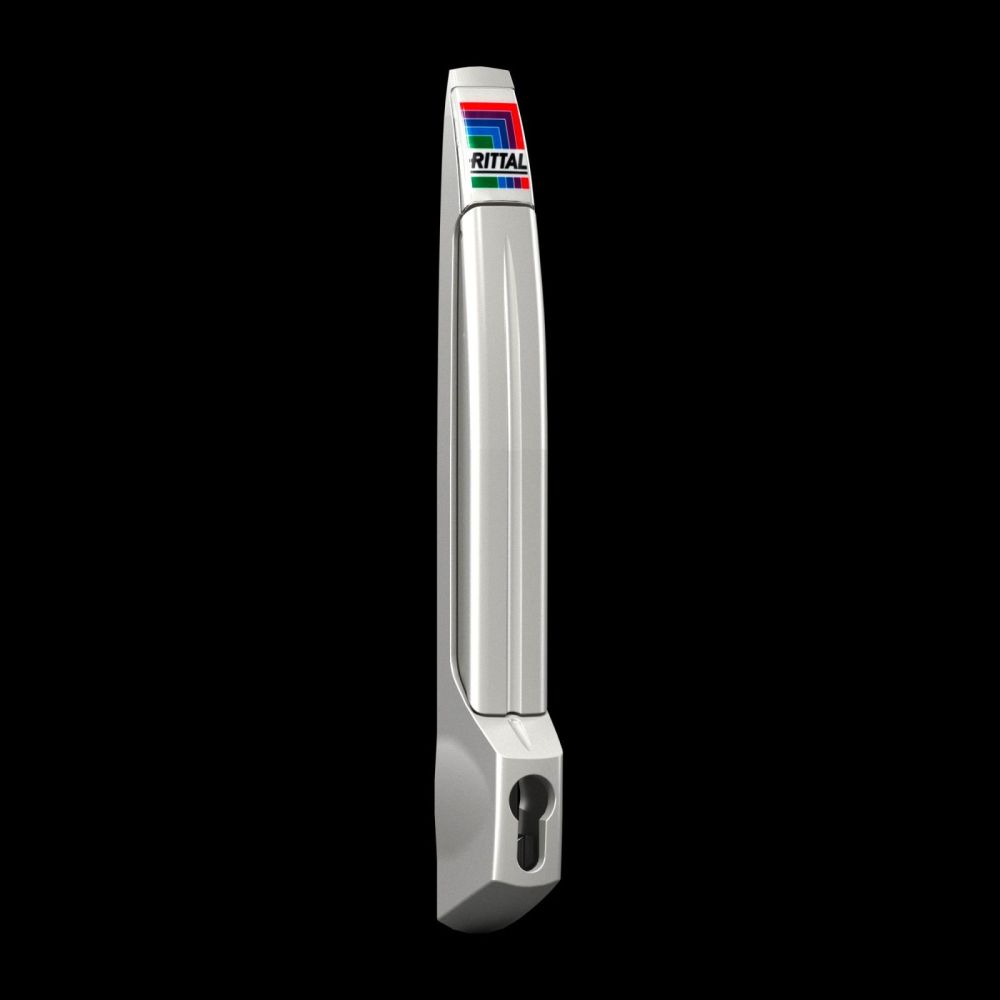

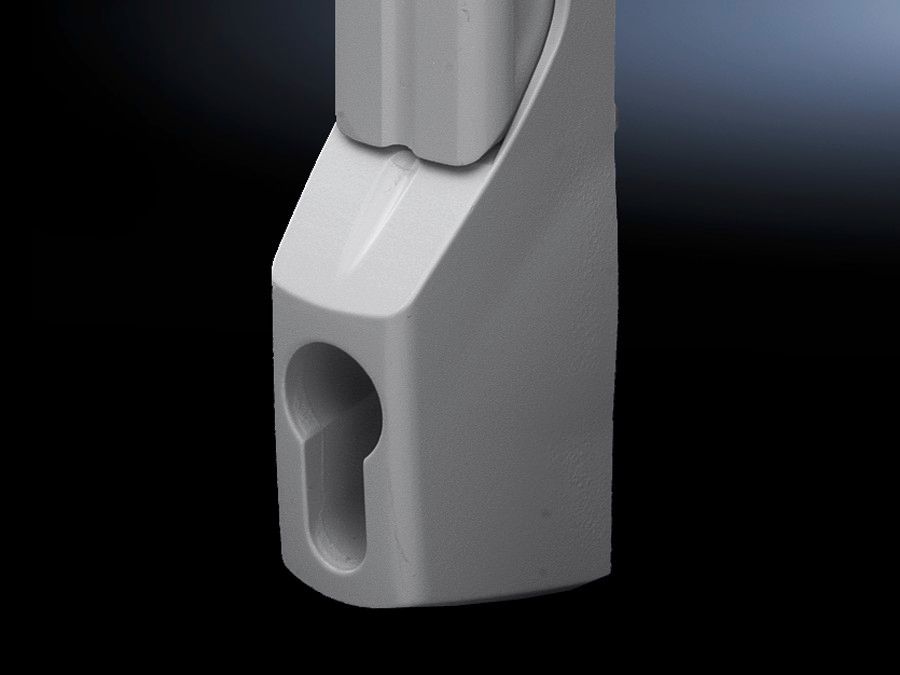

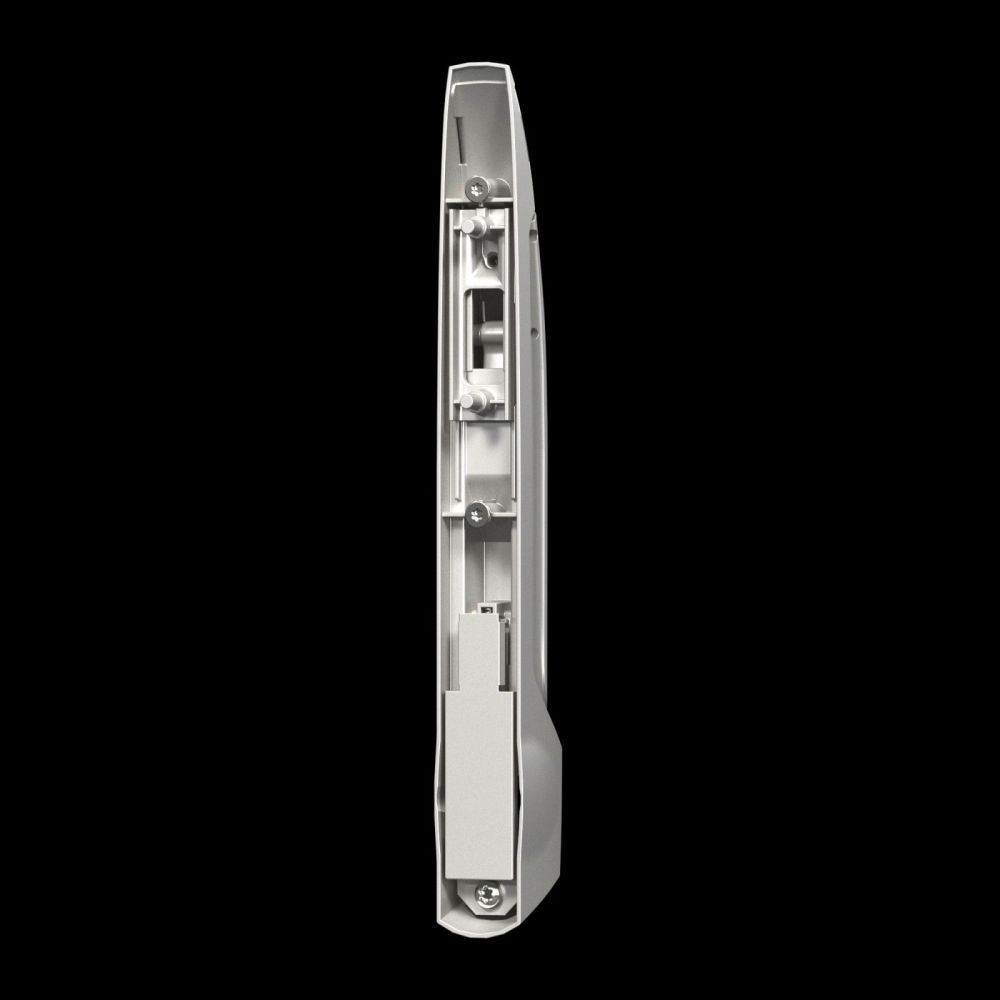

Rittal 8611340 Comfort handle for half cylinder
|
52,33 EUR |
|
|
( 62,27 EUR incl. VAT ) ≈ £43.80 | ≈ $57.51 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 858194 |
| Mfg Part No: | 8611340 |
| UPC/EAN: | 4028177243033 |
| Weight: | 0.597 kg |
| Type: | TS 8611340 |
Product information for Rittal 8611340:
Material: Die-cast zinc
Surface finish: Powder-coated
Colour: Matt nickel-plated
Assembly instruction: The handle adaptor is required for mounting on glazed door TS, lower door PC, designer door IW
Packs of: 1 pc(s).
EAN: 4028177243033
Customs tariff number: 83024110
eCl@ss 5.1: 27189220
eCl@ss 7.0: 27409217
ETIM 6.0: EC000327
Design: For semi-cylinder
Note: Prepared for the installation of semi-cylinders with a total length of 40 or 45 mm (to DIN 18 252)
To fit: Enclosure type: EL 3-part, 18 – 21 U
Enclosure type: TS
Enclosure type: TS IT
Enclosure type: SE
Enclosure type: PC enclosure door
Enclosure type: IW
Enclosure type: TS 8 bayed enclosure suites with comfort handle
Enclosure type: SE 8 stainless steel
Weight/pack: 0.76 kg
| General | |
| Model | For profile half-cylinder |
| Material | zinc die-cast |
| Surface protection | Powder-coated |
| Colour | Matt, chrome-plated |
| Mounting note | Required for mounting on TS, VX SE, PC bottom door, IW design door |
| Lock | Locking mechanism: Prepared for installation of profile half-cylinders 40 or 45 mm total length (according to DIN 18 252) or security and push-button inserts with a length of 40 mm |
| Suitable for housing type | TS, TS IT, VX SE, PC cabinet door, IW, TS 8 stainless steel, SE stainless steel, EL 3-part 18 - 21 HE, wall enclosure AX, 3-part |
