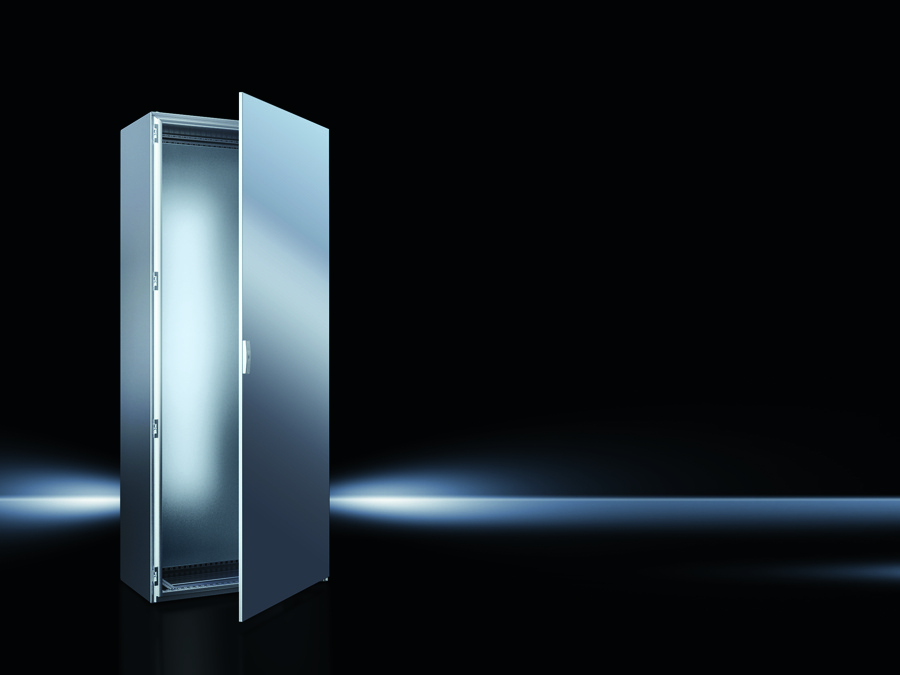

Rittal 5853680 SE system single enclosure 800x2000x600 mm stainless steel
|
-8% 3.788,10 EUR 4.102,61 EUR |
|
|
( 4.507,84 EUR incl. VAT ) ≈ £3,170.64 | ≈ $4,163.12 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1055491 |
| Mfg Part No: | 5853680 |
| UPC/EAN: | 4028177959392 |
| Weight: | 153 kg |
| Type: | SE 5853680 |
Product information for Rittal 5853680:
Applications
This enclosure is suitable for use in process industries, power generation, automation technology and manufacturing, where high requirements for environmental resistance and mechanical stability apply. The IP 66 protection rating makes it particularly suitable for outdoor installations, wet environments or areas with high dust content. The NEMA 4X certification extends the application range to environments with corrosion risk, such as in the food industry or chemical industry. The type rating according to UL 50E includes multiple protection classes, enabling use in various industrial and commercial applications.
Functions and Equipment in Detail
The enclosure consists of a single, profiled frame made of stainless steel 1.4301 (AISI 304) with a wall thickness of 1.5 mm, with door and rear panel also made of the same material, but with thicknesses of 2.0 mm and 1.5 mm respectively. The surface is finished with a brushed finish (grit 400), providing a robust, uniform and easy-to-clean surface. The mounting plate made of steel sheet (3.0 mm) is galvanized and provides a stable base for installing components. The base is also made of stainless steel 1.4301 (AISI 304), 1.5 mm thick, and is plain, without additional coating. The door is equipped with a 3 mm double-barrel lock, ensuring secure locking. Two mounting rails (18 x 39 mm) are included in the delivery scope to facilitate component installation.
Technical Explanation
The IP 66 protection rating means the enclosure is completely dust-tight and protected against water jets from any direction, making it suitable for outdoor use or damp indoor environments. The NEMA 4X certification additionally guarantees protection against corrosion, which is particularly important in environments with salt spray or chemical influences. The IK10 rating indicates that the enclosure is protected against mechanical impacts such as shocks or vibrations with an energy of up to 10 joules. The mounting plate features a C-shaped edge and can be mounted in 25 mm depth increments, allowing flexible adaptation to different components. The integrated mounting levels in the enclosure body facilitate component installation and reduce mounting effort.
Compatibility and Accessories
The enclosure is fully compatible with the baying system VX25, enabling flexible expansion with additional modules. Suitable accessories include, for example, stainless steel 1.4301 transport eyes, circuit diagram pockets, comfort handles for locks, door latches, as well as VX plinth corner pieces and trim panels in various heights, enabling an optically uniform and secure installation. The use of internal hexagon sheet metal screws 2486.400 is recommended to account for the material hardness of stainless steel during internal assembly.
Mounting and Installation
Mounting is performed via the integrated mounting levels and mounting rails. The mounting plate is adjustable in depth in 25 mm increments, allowing flexible adaptation to different components. The door is standard right-hand mounted, but can be converted to left-hand. The rear panel is removable, facilitating access to the interior. The gland plates are included in the delivery scope and enable secure fastening of the enclosure to the floor or wall.
Operational Advantages
The enclosure offers high mechanical and chemical resistance due to the use of stainless steel 1.4301 (AISI 304). The IP 66 and NEMA 4X certification ensures reliable operation in demanding environments. The integrated mounting levels and the depth-adjustable mounting plate reduce mounting effort and allow flexible adaptation to different requirements. Compatibility with the VX25 system allows flexible expansion of the installation. The recommended use of internal hexagon sheet metal screws 2486.400 ensures secure and durable fastening inside the enclosure.
| General | |
| Material | Housing: stainless steel 1.4301 (AISI 304), 1.5 mm, outside brushed finish, door: stainless steel 1.4301 (AISI 304), 2.0 mm, outside brushed finish, rear wall: stainless steel 1.4301 (AISI 304), 1.5 mm, outside brushed finish, mounting plate: sheet steel, 3.0 mm, base: stainless steel 1.4301 (AISI 304), 1.5 mm |
| Surface protection | Housing, rear panel and door: satin finish, grit 400, mounting plate: zinc-plated, base: bare |
| Scope of delivery | Enclosure top and side closed, door(s), door hinge right, reversible to left, rear panel, removable, mounting plate, base, flange plate(s), closure: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 600 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 4X |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3X, Type 3R, Type 3RX, Type 4, Type 4X, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Note | Due to the material hardness, we recommend using the internal hexagon sheet metal screw 2486.400 for internal installation |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 462,09 |
