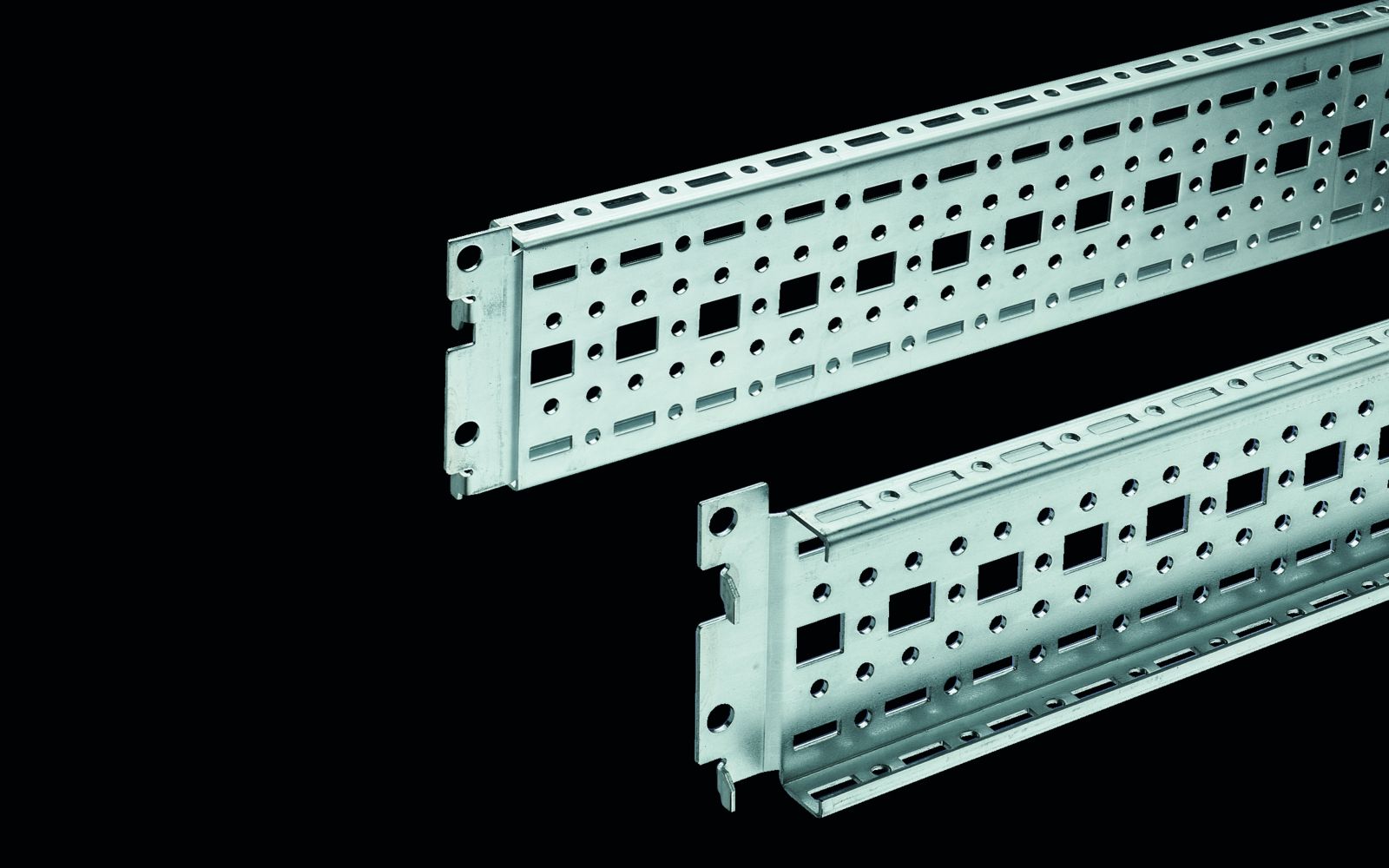

Rittal 8612060 System chassis TS 17 x 73 mm (freight shipping)

Your rating:
Average rating
product review for Rittal 8612060 System chassis TS 17 x 73 mm (freight shipping)
( 4.5 / 5 ) 60 ratings
Rittal 8612060
This image may differ from the desired article.
Rittal 8612060Rittal 8612060Rittal 8612060Rittal 8612060Rittal 8612060Rittal 8612060
52,10 EUR
( 62,00 EUR incl. VAT )
≈ £43.61  |  ≈ $57.26
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8612060 System chassis TS 17 x 73 mm (freight shipping)
Datasheet:file_download Download
Lieske Part No.:918770
Mfg Part No: 8612060
UPC/EAN: 4028177212091
Weight:2.64 kg
Type:TS 8612060

Product information for Rittal 8612060:

Variable, with 5 rows of holes for universal skeleton structures or partial assembly. Simply locate into the 482.6 mm (48,3 cm ( 19 inch )) system punchings and secure.
Material: Sheet steel
Surface finish: Zinc-plated
Assembly instruction: The rail for internal mounting is required when installing in CM, TP
Supply includes: Assembly screws
Packs of: 4 pc(s).
EAN: 4028177212091
Customs tariff number: 73269098
eCl@ss 5.1: 27189250
eCl@ss 7.0: 23159101
ETIM 6.0: EC002625

Design: For the inner mounting level
To fit: Width/depth: 600 mm
Dimensions: Length: 590 mm
Installation options: On the vertical TS enclosure section: On the inner mounting level, height-offset all-round
For SE, may additionally be mounted on the top horizontal section in the depth
In CM and TP via rail for interior installation: In the width, for inner mounting level
As a mounting kit for component shelves, simply locate and secure. One pack is sufficient for 2 component shelves. 100 kg surface load, static
Weight/pack: 2.65 kg

General
Modelfor internal mounting plane
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting screws
Length590 mm
Mounting optionsOn vertical TS, VX SE cabinet profile at inner mounting plane, circumferential height-adjustable; On horizontal VX SE cabinet profile at top, in depth; In TP via rail for internal installation: in width, for inner mounting plane; As mounting kit for device floors in TS, VX SE, simply hang and secure
Mounting noteWhen installed in TP, the internal mounting rail is required
Suitable forCabinet type: VX SE, TP, PC, IW, width/depth: 600 mm
PCF/VE (Cradle-to-Gate)10.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8612060, EAN: 4028177212091

Questions & answers

What is the delivery time of Rittal 8612060 System chassis TS 17 x 73 mm (freight shipping)?

The article Rittal 8612060 System chassis TS 17 x 73 mm (freight shipping) is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8612060 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8612060 System chassis TS 17 x 73 mm (freight shipping) always at the best possible price. We can give you a discount of 2% on Rittal 8612060 System chassis TS 17 x 73 mm (freight shipping) if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
