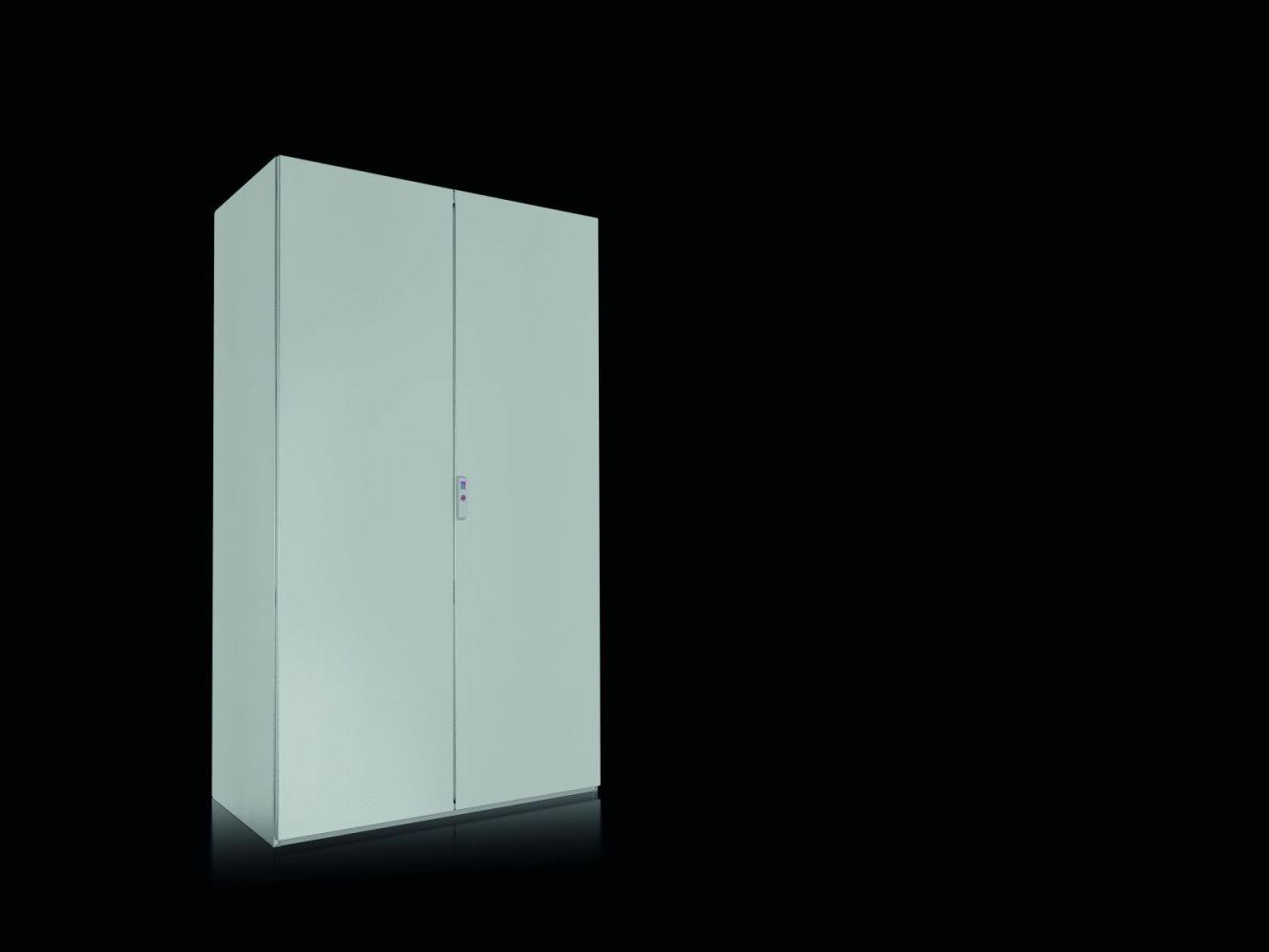

Rittal 5845600 VX SE system single enclosure 1200x2000x600 mm steel
|
1.012,92 EUR |
|
|
( 1.205,37 EUR incl. VAT ) ≈ £847.81 | ≈ $1,113.20 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1055467 |
| Mfg Part No: | 5845600 |
| UPC/EAN: | 4028177959231 |
| Weight: | 205.7 kg |
| Type: | SE 5845600 |
Product information for Rittal 5845600:
Applications
The enclosure is suitable for use in industrial environments where high mechanical and environmental resistance is required. It is particularly suitable for installations in the manufacturing industry, energy supply, automation technology, and other areas where protection against dust, splashing water, and mechanical impacts is necessary. System compatibility with accessories of the VX25 system enables flexible expansion and adaptation to specific requirements.
Functions and Equipment in Detail
The enclosure features a mounting plate with integrated plastic gliding pieces and mounting rails, enabling depth-adjustable mounting. The doors are equipped with a 3 mm double-bar lock, manufactured according to DIN 43668, and additionally with a swing lever for the secondary door, achieving a double locking mechanism. The hinges are fitted with screwed-on stops and feature non-removable hinge pins. The door opening is standardly 130° and can be toollessly extended to 180°. An automatic equipotential bonding between door and enclosure body ensures a secure electrical connection.
Technology Explained Simply
The surface of the enclosure, doors, and rear panel is treated in three stages: dip primed, electrophoretically coated, and externally powder-coated with textured paint in RAL 7035. This treatment provides high corrosion protection and is resistant to mineral oils, lubricants, machining emulsions, and solvents. The mounting plate and base plates are galvanized to provide additional corrosion protection. The protection class IP 55 according to EN 60 529 protects against dust and splashing water, making it suitable for outdoor use. The protection classes NEMA 3R and NEMA 12, as well as type ratings according to UL 50E (Type 1, 2, 3, 3R, 12), confirm suitability for various environmental conditions. The IK code IK10 guarantees high mechanical protection against impact and shock.
Compatibility and Accessories
The enclosure is system-compatible with accessories of the VX25 system. Suitable accessories include, among others, levelling feet, TS lock inserts, C-profile rails, comfort handles, support rollers, transport eyes, door latches, cable entry ferrules, and circuit diagram pockets. These components enable individual adaptation to specific requirements such as transport, mounting, safety, or cable management.
Mounting and Installation
Mounting is performed via the integrated mounting rails and the depth-adjustable mounting plate. The base plates are pre-installed and can be replaced if necessary. The rear panel is removable, enabling easy installation and maintenance. The doors are toollessly changeable to the left, allowing flexible installation at different locations.
Advantages in Operation
The enclosure offers high efficiency through its integral construction, where no additional side panels need to be mounted. Large enclosure widths allow replacing smaller baying combinations, reducing space requirements. The integrated mounting levels and depth-adjustable mounting plate simplify component installation. The high protection class and IK code ensure long service life and low maintenance costs. System compatibility with VX25 accessories enables flexible expansion and adaptation to future requirements.
| General | |
| Material | Housing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Housing, door and rear panel: dip primed, externally powder coated, textured lacquer; mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | enclosure top and sides closed, door(s), for single-door cabinets door hinge on right, reversible to left, mounting plate, base plates, rear panel, removable, locking: 3 mm double latch, 2 mounting rails 18 x 39 mm, rear panel, single-piece |
| Width | 1.200 mm |
| Height | 2.000 mm |
| Depth | 600 mm |
| Mounting plate dimensions (W x H) | 1.099 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 555.93 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
