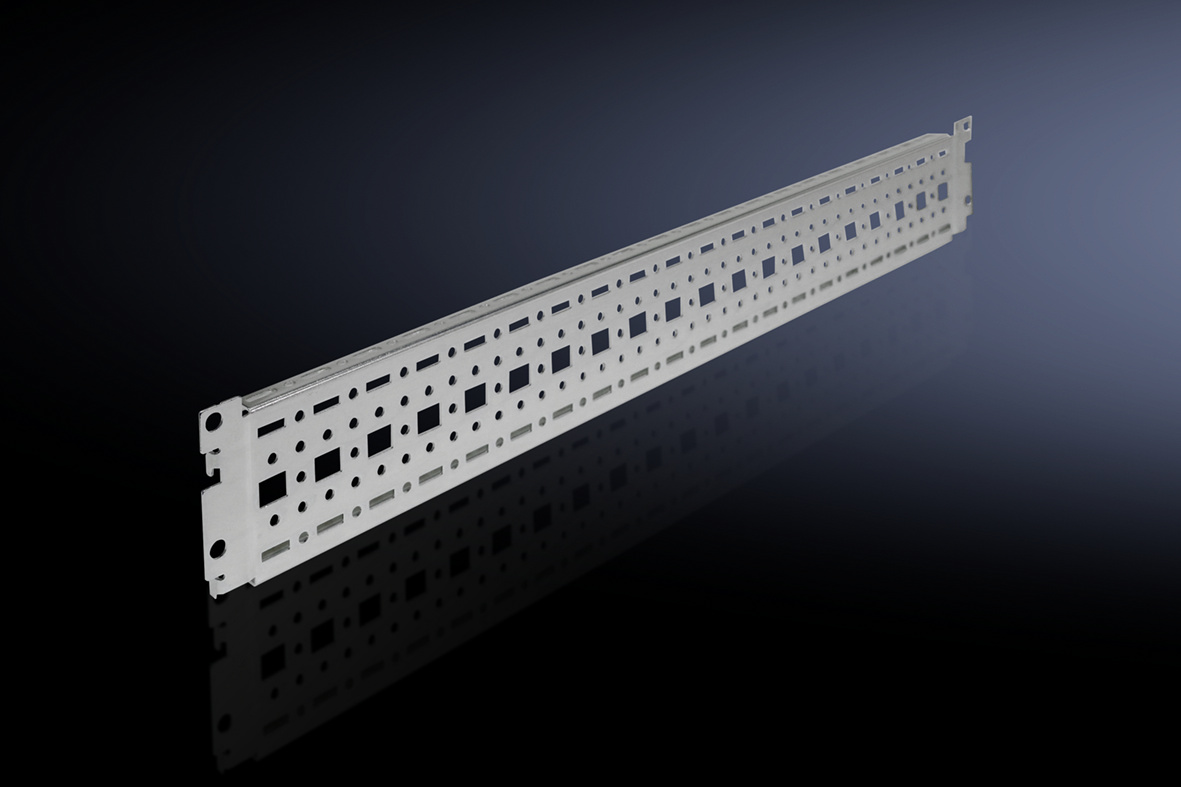

Rittal 8612160 TS system chassis 17x73 mm for outer level W x D: 600 mm 4 pcs

Your rating:
Average rating
product review for Rittal 8612160 TS system chassis 17x73 mm for outer level W x D: 600 mm 4 pcs
( 4.5 / 5 ) 74 ratings
Rittal 8612160
This image may differ from the desired article.
Rittal 8612160Rittal 8612160Rittal 8612160Rittal 8612160Rittal 8612160Rittal 8612160Rittal 8612160
51,52 EUR
( 61,31 EUR incl. VAT )
≈ £43.12  |  ≈ $56.62
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 8612160 TS system chassis 17x73 mm for outer level W x D: 600 mm 4 pcs
Datasheet:file_download Download
Lieske Part No.:903913
Mfg Part No: 8612160
UPC/EAN: 4028177212152
Weight:2.44 kg
Type:TS 8612160

Product information for Rittal 8612160:

Variable, with 5 rows of holes for universal skeleton structures or partial assembly. Simply locate into the 482.6 mm (48,3 cm ( 19 inch )) system punchings and secure.
Material: Sheet steel
Surface finish: Zinc-plated
Assembly instruction: The rail for internal mounting is required when installing in CM, TP
Supply includes: Assembly screws
Packs of: 4 pc(s).
EAN: 4028177212152
Customs tariff number: 73269098
eCl@ss 5.1: 27189250
eCl@ss 7.0: 23159101
ETIM 6.0: EC002625

Design: For the outer mounting level
To fit: Width/depth: 600 mm
Dimensions: Length: 540 mm
Installation options: On the vertical TS enclosure section: On the outer mounting level, all-round, at the same height
For SE, may additionally be mounted on the top horizontal section in the depth
In CM and TP via rail for interior installation: In the depth, for outer mounting level
Weight/pack: 2.45 kg

General
ModelFor external mounting surface
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting screws
Length540 mm
Mounting optionsOn vertical TS, VX SE cabinet profile at inner mounting plane, circumferential height-adjustable; On horizontal VX SE cabinet profile at top, in depth; In TP via rail for internal installation: in width, for inner mounting plane; As mounting kit for device floors in TS, VX SE, simply hang and secure
Mounting noteWhen installed in TP, the internal mounting rail is required
Suitable forCabinet type: VX SE, TP, PC, IW, width/depth: 600 mm
PCF/VE (Cradle-to-Gate)9.3 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8612160, EAN: 4028177212152
