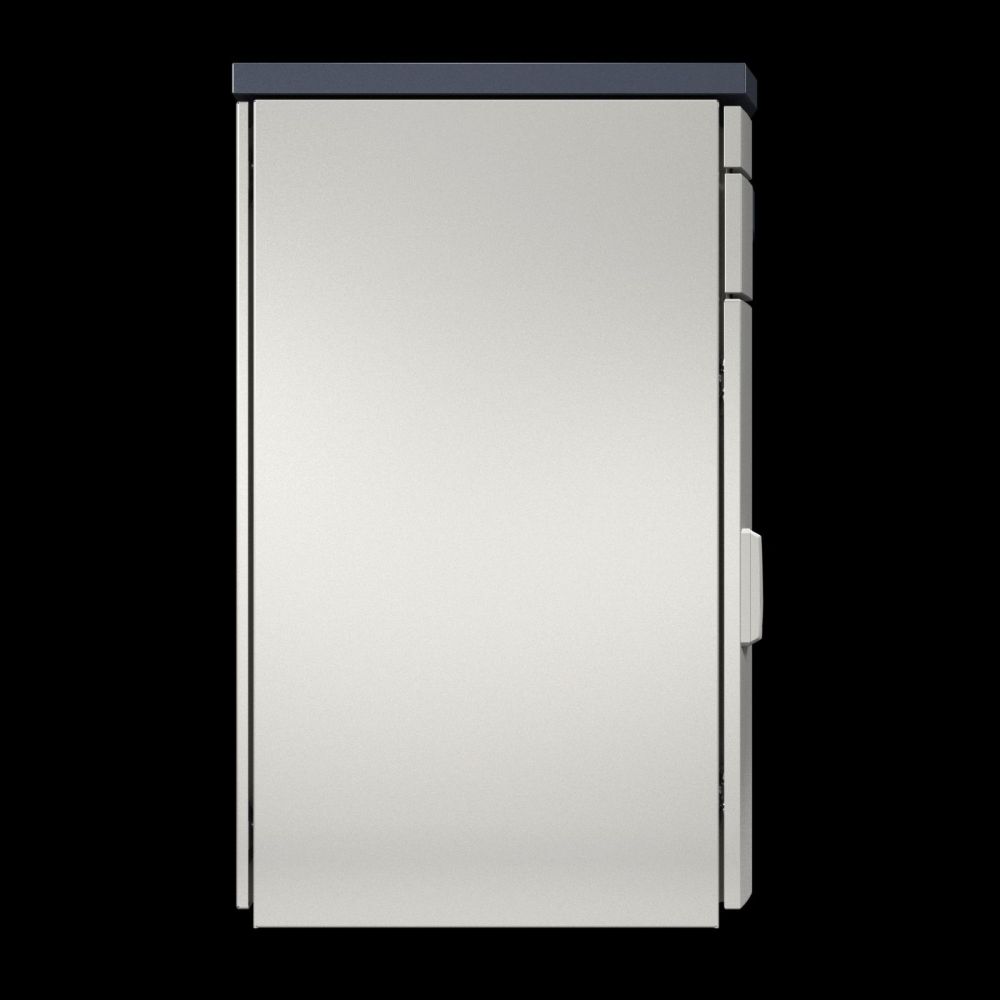

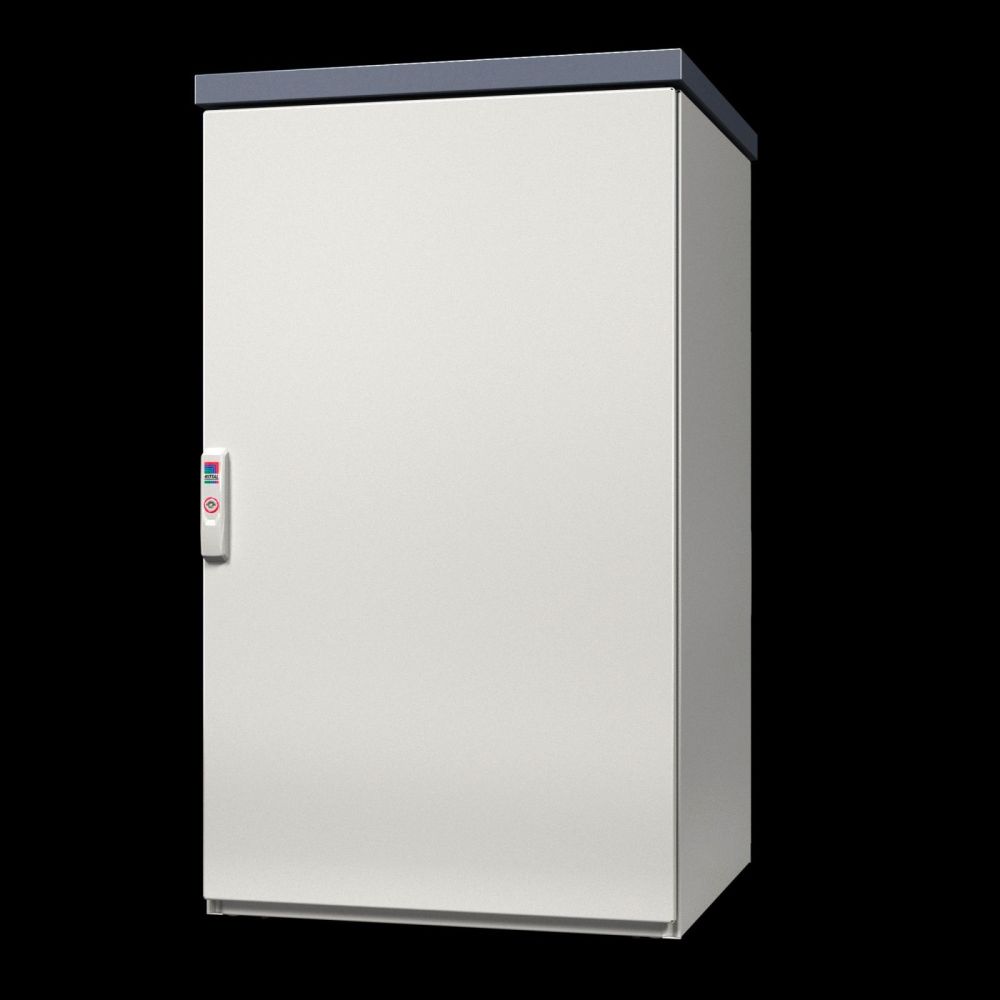

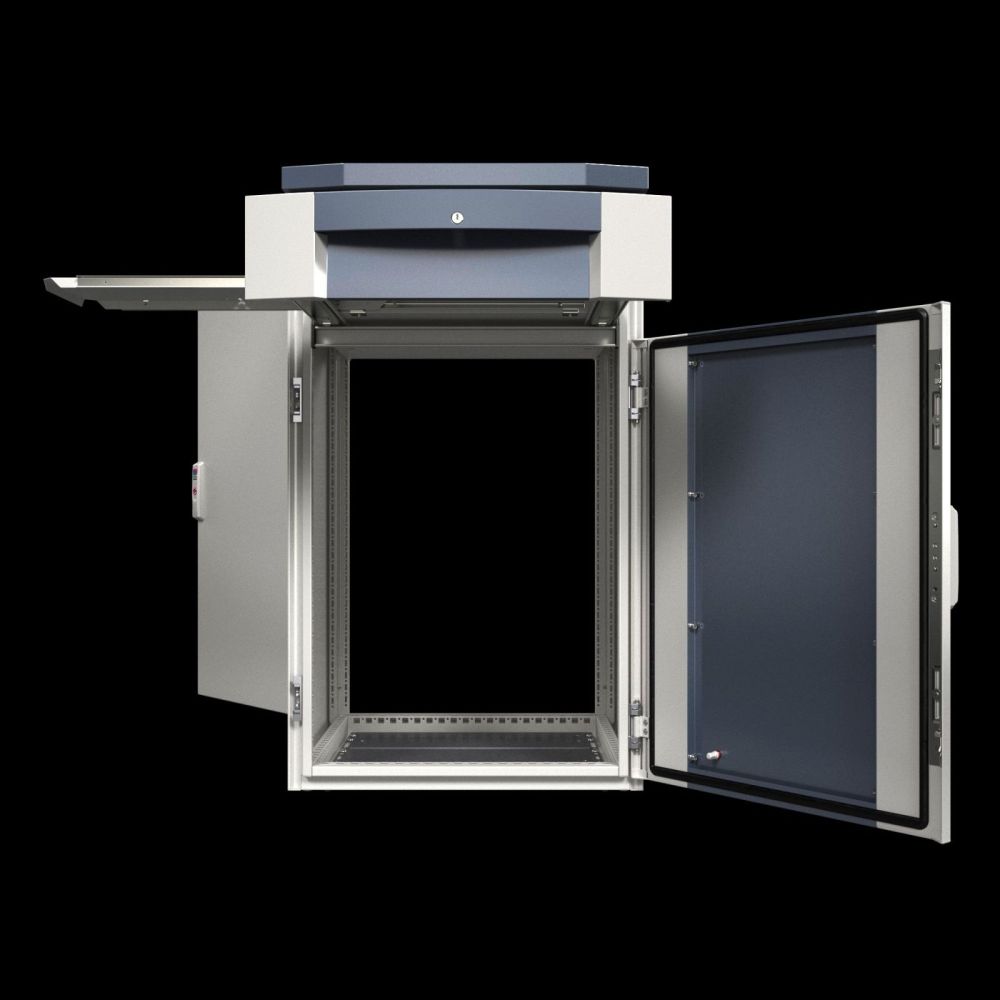

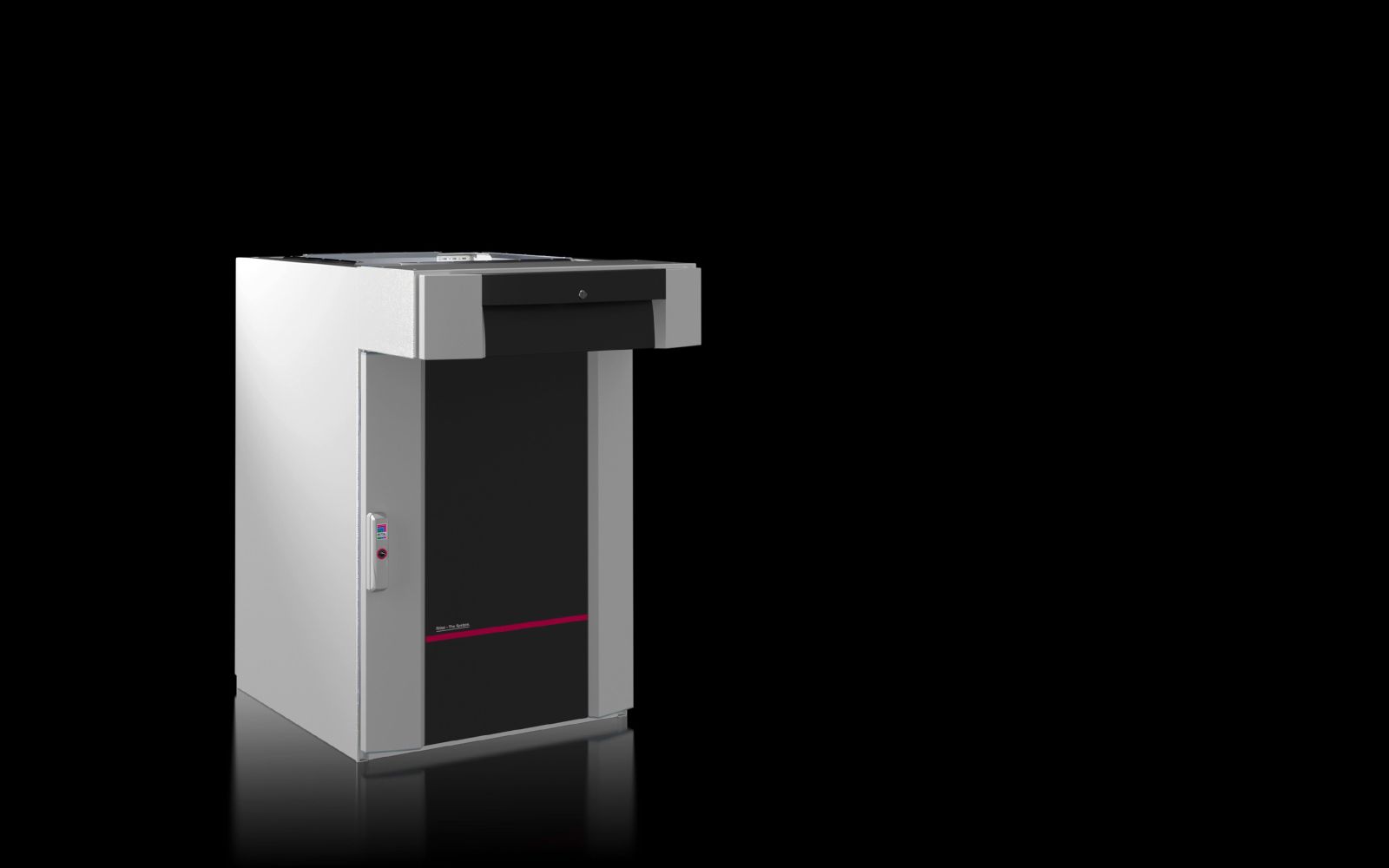

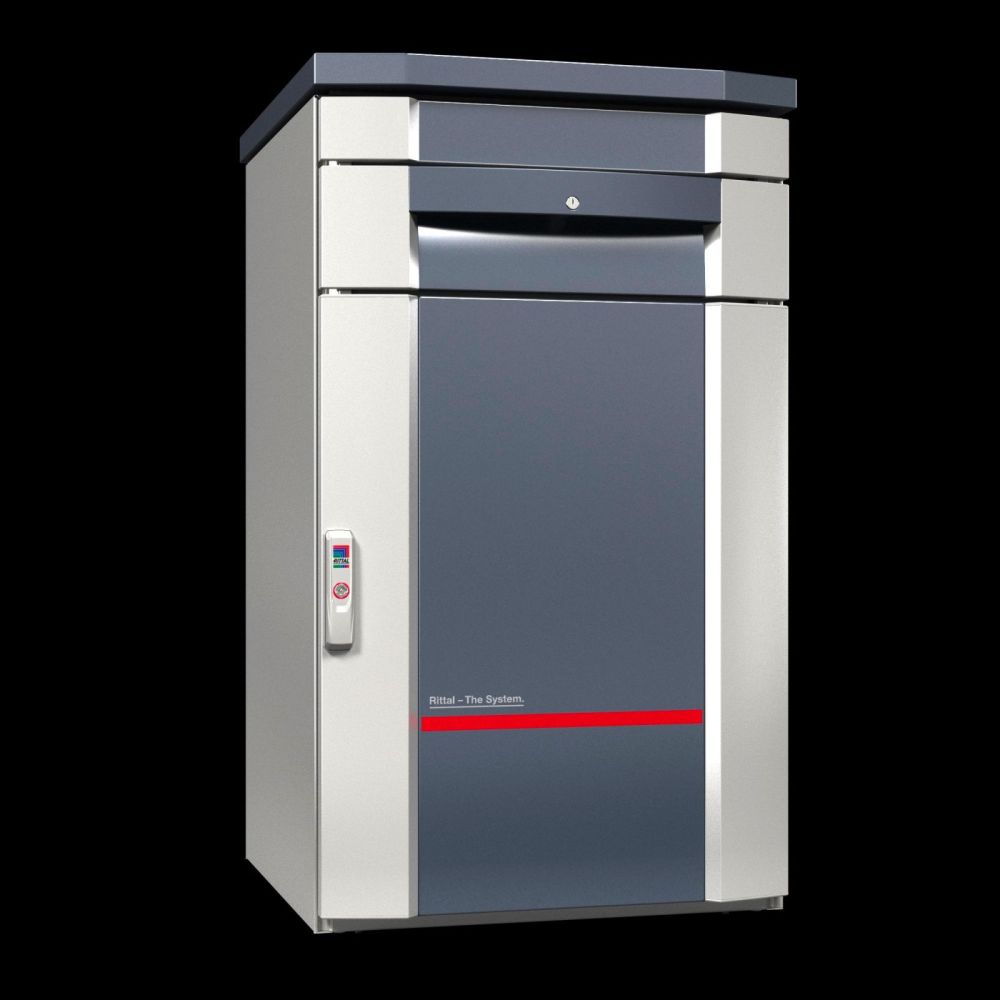

Rittal 6900720 Industrial Workstations IW, 600x900x600 mm, drawer
|
1.374,02 EUR |
|
|
( 1.635,08 EUR incl. VAT ) ≈ £1,150.05 | ≈ $1,510.05 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 595465 |
| Mfg Part No: | 6900720 |
| UPC/EAN: | 4028177968523 |
| Weight: | 62 kg |
| Type: | IW 6900720 |
Product information for Rittal 6900720:
Applications
The IW 6900720 is suitable for use in production environments, workshops, assembly areas, or as a workstation in technical control centres. The protection rating IP 54 according to IEC 60 529 ensures protection against dust and splashing water, enabling use in slightly soiled or damp areas. The design door and the rear door provide a closed, neat appearance and protect installed components from mechanical impacts and contamination.
Functions and Equipment in Detail
The enclosure is made of sheet steel and is internally dip-primed, externally powder-coated with structured lacquer. The colour of the decor panels is RAL 7015, corresponding to a dark grey, neutral tone. The depth with drawer front extension is 890 mm, providing additional space for integrated drawers or devices. The delivery includes the enclosure with side panels closed, three-piece base plates, levelling feet, the drawer front extension, the design door, and the rear door. These components allow direct assembly and installation without additional parts.
Technology Explained Simply
The protection rating IP 54 means the enclosure is protected against dust and splashing water, sufficient for use in industrial or semi-external environments. The powder-coated surface offers high corrosion resistance and a uniform, durable coating. The structured lacquer finish gives the enclosure a decorative, crack-free surface that is also scratch-resistant. The levelling feet allow for level positioning on uneven surfaces, which is important for the stability of the device.
Compatibility and Accessories
The enclosure is designed for integration of component shelves, drawer trays, mounting rails, and comfort handles. Suitable accessories include, among others, cable entry plates for worktops, component shelves for fixed installation (e.g. 600x600 mm), extendable drawer trays, mounting rails (e.g. 23x23 mm), comfort handles (e.g. matt nickel-plated, for lock insert), and support rails for VX and TS systems. These components can be ordered separately to adapt the workstation’s functionality to specific requirements.
Assembly and Installation
Assembly is carried out using the provided levelling feet and three-piece base plates, which provide a stable foundation. The drawer tray and the design door are included in the delivery and can be installed directly. The rear door seals the rear area and provides additional protection. Installation requires no special tools, as all parts are pre-assembled or easy to install.
Advantages in Operation
The IW 6900720 offers a robust construction made of sheet steel with high mechanical stability. The IP 54 protection rating ensures reliable operation in soiled or damp environments. The design door and the rear door ensure a neat appearance and protect installed devices. The depth of 890 mm with drawer front extension provides sufficient space for integrated components. The powder-coated surface is durable and easy to maintain. The levelling feet allow secure and level positioning on various floor surfaces.
The product description is based on information provided by the manufacturer Rittal and technical data sheets. The PCF values (Cradle-to-Gate) are declared as Category B and are based on product weight, with values being approximate.
| General | |
| Model | Drawer front, design door, rear door |
| Material | housing, drawer tray, design door, rear door: sheet steel |
| Surface protection | Housing: dip primed, externally powder coated, textured lacquer |
| Colour | Decorative bezels: RAL 7015 |
| Scope of delivery | Housing laterally closed, base plates, three-part, levelling feet, drawer extension, design door, rear door |
| Depth with drawer extension | 890 mm |
| Width | 600 mm |
| Height | 900 mm |
| Depth | 600 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 |
| PCF/VE (Cradle-to-Gate) | 236.2 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
