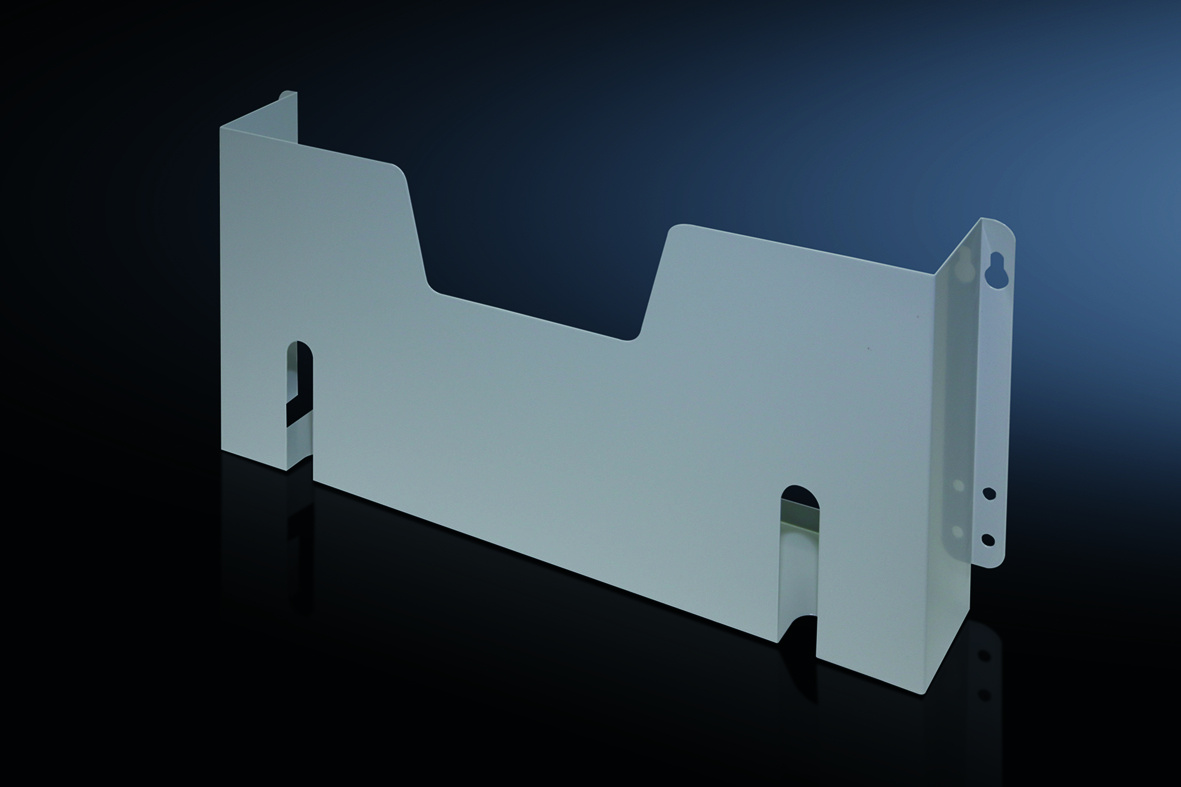

Rittal 4116000 circuit diagram pocket TS sheet steel T90 mm RAL 7035
|
24,35 EUR |
|
|
( 28,98 EUR incl. VAT ) ≈ £20.38 | ≈ $26.76 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 920473 |
| Mfg Part No: | 4116000 |
| UPC/EAN: | 4028177091818 |
| Weight: | 1.24 kg |
| Type: | 4116000 |
Product information for Rittal 4116000:
Applications
The circuit diagram pocket is used in industrial electrical and automation applications where structured and quick access to technical documents or small tools is required. It is particularly suitable for enclosures with integrated door tube frames, commonly used in electrical installations and machine building. Mounting is done directly to the frame, ensuring the pocket is securely and stably positioned.
Functions and Equipment in Detail
The pocket has a clear height of 210 mm and a clear width of 455 mm, providing sufficient space for standard A4-sized circuit diagrams or documents. The depth is 90 mm, ensuring the pocket is deep enough to securely hold documents without them falling out. The colour is RAL 7035, a grey-beige standard shade that blends well visually in industrial environments. The delivery includes the mounting hardware required for installation on the door tube frame.
Technology Explained Simply
The circuit diagram pocket is made of sheet steel, ensuring high mechanical stability and durability. It is mounted on a door tube frame, which is integrated into most Rittal enclosure models. The pocket can be installed at any height, allowing individual adaptation to the workflow. The clear dimensions (210 mm height, 455 mm width) are designed to accommodate standard technical documents without risk of damage or loss.
Compatibility and Accessories
The circuit diagram pocket is specifically designed for enclosures from the VX, TS, VX SE, PC and TP series that feature a door tube frame. It is designed for a door width of 600 mm, which represents a standard size in industrial electrical installations. Compatibility with these enclosure types ensures secure and stable mounting without additional modifications.
Mounting and Installation
Installation is carried out by securing the pocket to the door tube frame using the mounting hardware included in the delivery. The pocket can be mounted at any height, allowing optimal positioning for the specific application.
Operational Advantages
The circuit diagram pocket provides structured and secure storage for documents and tools directly on the enclosure. The flexible mounting height allows individual adaptation to the workflow. The use of sheet steel ensures high mechanical load capacity and durability, even in industrial environments with high stress. The RAL 7035 colour matches the standard colour palette of Rittal enclosures, ensuring a uniform appearance.
| General | |
| Colour | RAL 7035 |
| Scope of delivery | Including mounting hardware |
| Clear height | 210 mm |
| Light width | 455 mm |
| Suitable for door width | 600 mm |
| Depth | 90 mm |
Questions & answers
What is the delivery time of Rittal 4116000 circuit diagram pocket TS sheet steel T90 mm RAL 7035?
The article Rittal 4116000 circuit diagram pocket TS sheet steel T90 mm RAL 7035 is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 4116000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 4116000 circuit diagram pocket TS sheet steel T90 mm RAL 7035 always at the best possible price. We can give you a discount of 2% on Rittal 4116000 circuit diagram pocket TS sheet steel T90 mm RAL 7035 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
