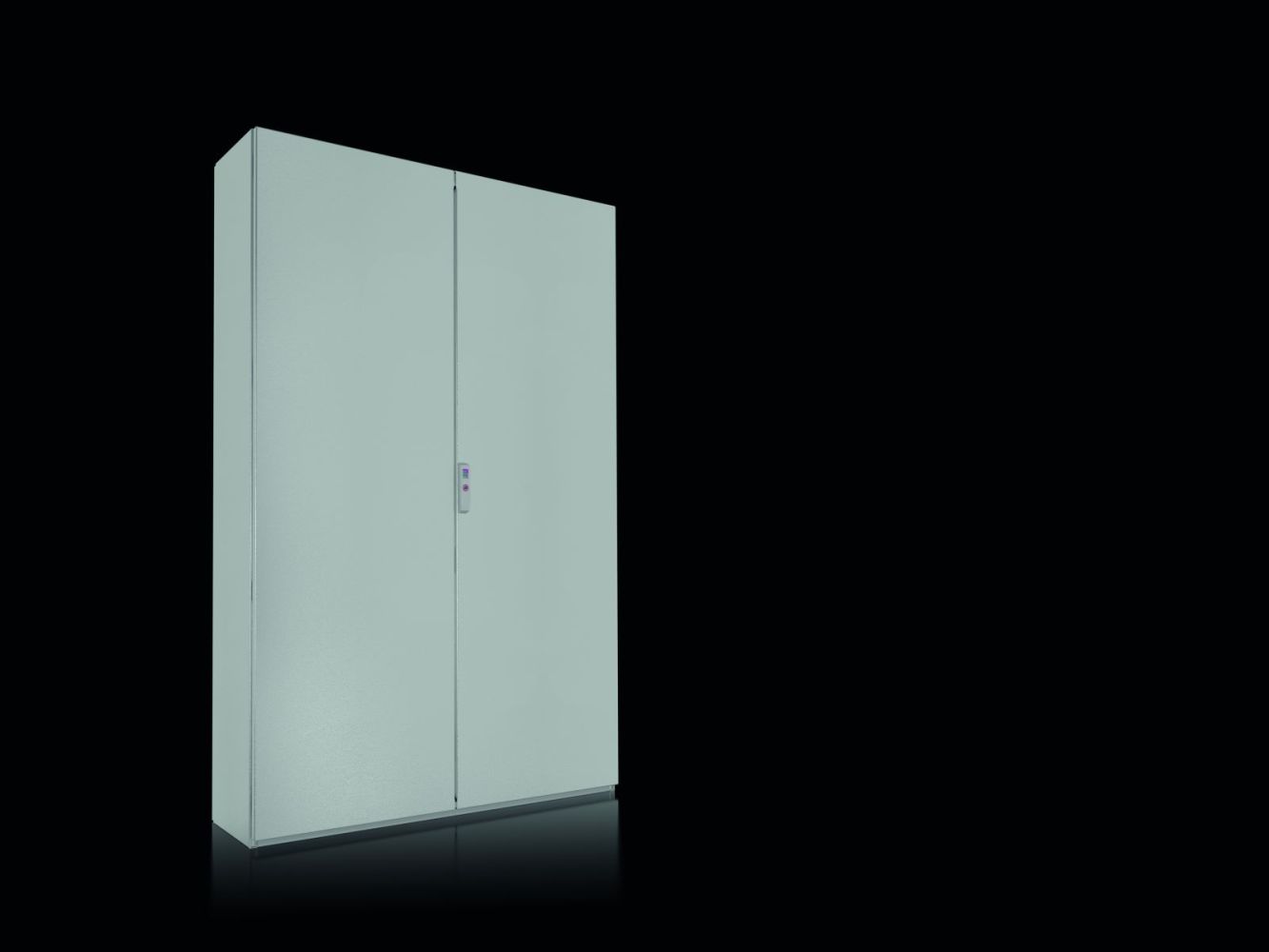

Rittal 5824600 VX SE system single enclosure 1200x1800x300 mm steel
|
805,35 EUR |
|
|
( 958,37 EUR incl. VAT ) ≈ £674.08 | ≈ $885.08 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1055458 |
| Mfg Part No: | 5824600 |
| UPC/EAN: | 4028177959286 |
| Weight: | 168.6 kg |
| Type: | SE 5824600 |
Product information for Rittal 5824600:
Applications
This enclosure is designed for use in industrial environments where high mechanical loads and environmental influences occur. The protection rating IP 55 according to EN 60 529 protects against dust and splashing water, making it suitable for indoor and outdoor use. The NEMA classification includes NEMA 3R and NEMA 12, indicating suitability for use in damp or dusty environments. The type rating according to UL 50E includes Type 1, Type 2, Type 3, Type 3R, and Type 12, confirming suitability for various industrial requirements. The IK code IK10 guarantees high mechanical protection against impact and shock.
Functions and Equipment in Detail
The enclosure is made of 1.5 mm thick sheet steel, the doors of 2.0 mm sheet steel, and the rear panel and base sheets also of 1.5 mm sheet steel. The doors are arranged with overlap and feature a foamed PU foam seal, ensuring a tight seal. The lock door is positioned on the right and equipped with a 3 mm double-bar lock, manufactured according to DIN 43668. The secondary door is additionally secured with a swing lever, providing double locking. The hinges are fitted with screwed stops, allowing the door hinge to be changed from right to left without tools. The door opening is standard 130° and can be extended to 180°, also without tools. An automatic equipotential bonding between door and enclosure body is integrated.
Technology Explained Simply
The mounting plate is equipped with integrated plastic gliding pieces and mounting rails, enabling depth-adjustable mounting in 25 mm increments. The rear panel is screwed and can be removed, facilitating access to internal components. The base sheets are divided into three parts, removable and replaceable, allowing flexible adaptation to different floor conditions. The surface treatment includes a triple protective layer: nanoceramic coating, electrophoretic dip priming, and an external powder coating, providing resistance against mineral oils, lubricants, machining emulsions, and solvents.
Compatibility and Accessories
The enclosure is system-compatible with accessories from the VX25 system, enabling flexible expansion. Suitable accessories include, among others, levelling feet M12 with an adjustment height of 18–43 mm, TS lock inserts made of zinc die-cast, TS chassis for external mounting levels, C-profile rails 30/15 according to EN 60715, comfort handles in RAL 7035, TS run-on rollers, TS system chassis 17x73 mm for internal mounting levels, transport eyes, door latches for escape routes, VX plinth trim panels in various heights, and lock inserts in version F. These components allow individual adaptation to specific mounting and safety requirements.
Mounting and Installation
Mounting is performed using the integrated mounting levels and system perforation in 25 mm DIN grid increments. The base sheets are welded in and consist of a base frame and multiple divided, movable sheets. The rear panel is screwed and can be removed. The doors are fitted with non-removable hinge pins, simplifying assembly. The mounting plate is depth-adjustable, allowing flexible adaptation to different installation situations.
Operational Advantages
The enclosure offers high mechanical stability and a high protection level against environmental influences. The integral construction reduces assembly time, as no additional side panels need to be mounted. The double-door design enables efficient access to internal components. The depth-adjustable mounting plate and modular equipment with accessories allow flexible adaptation to different requirements. The surface treatment ensures high resistance against corrosion and chemical influences, extending the enclosure’s service life.
| General | |
| Material | Housing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Housing, door and rear panel: dip primed, externally powder coated, textured lacquer; mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | enclosure top and sides closed, door(s), for single-door cabinets door hinge on right, reversible to left, mounting plate, base plates, rear panel, removable, locking: 3 mm double latch, 2 mounting rails 18 x 39 mm, rear panel, single-piece |
| Width | 1.200 mm |
| Height | 1.800 mm |
| Depth | 300 mm |
| Mounting plate dimensions (W x H) | 1.099 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Lock | Number of locks: 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 450.79 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
