Rittal 8660030 VX plinth trim panels, side, H: 100 mm, for D: 300 mm

Your rating:
Average rating
product review for Rittal 8660030 VX plinth trim panels, side, H: 100 mm, for D: 300 mm
( 5 / 5 ) 1 ratings
Rittal 8660030
This image may differ from the desired article.
Rittal 8660030Rittal 8660030Rittal 8660030Rittal 8660030Rittal 8660030Rittal 8660030
18,39 EUR
( 21,88 EUR incl. VAT )
≈ £15.39  |  ≈ $20.21
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 8660030 VX plinth trim panels, side, H: 100 mm, for D: 300 mm
Datasheet:file_download Download
Lieske Part No.:682741
Mfg Part No: 8660030
UPC/EAN: 4028177978201
Weight:0.7 kg
Type:VX 8660030

Product information for Rittal 8660030:

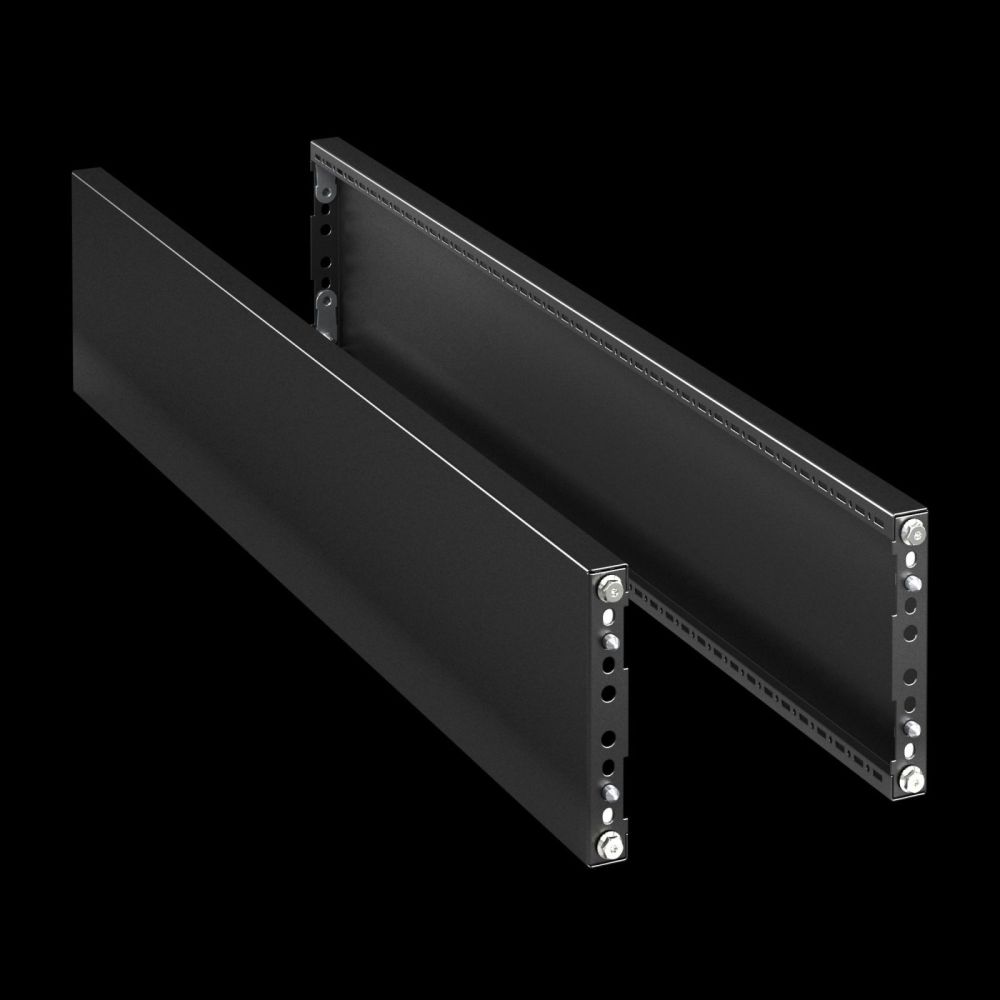

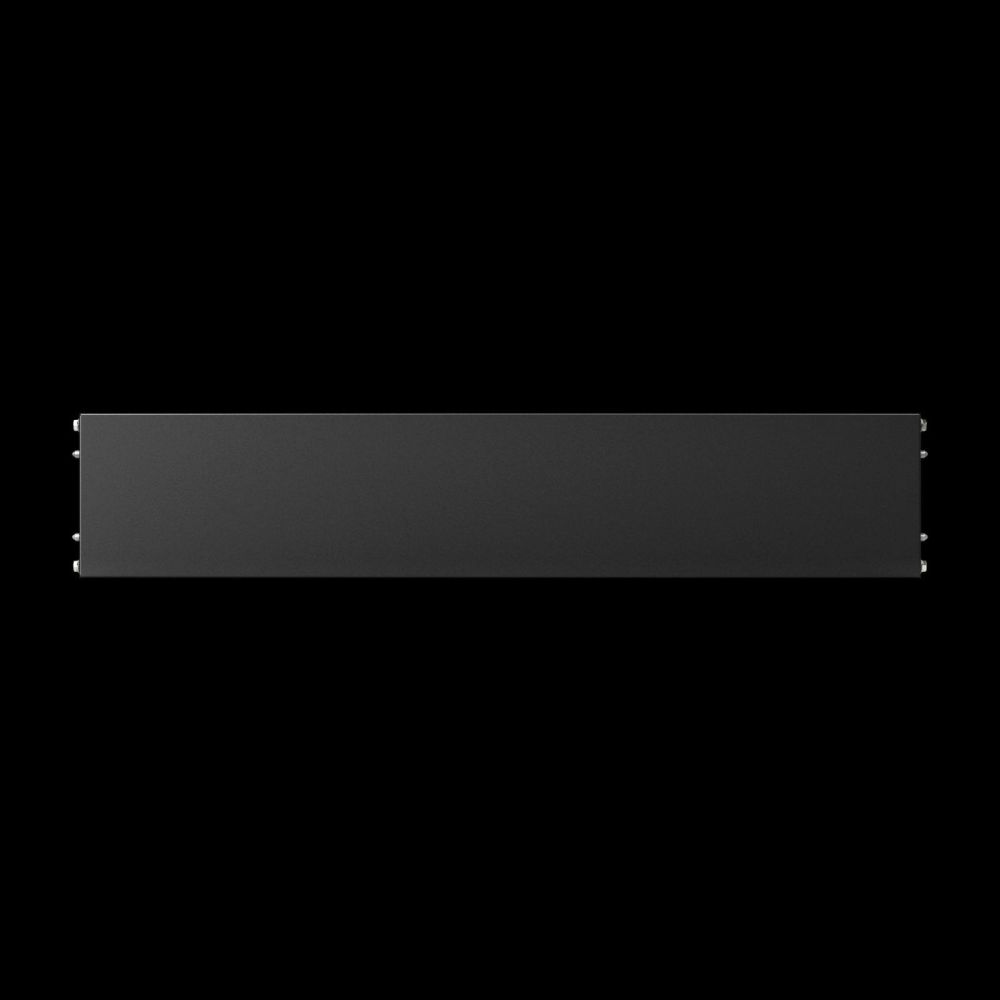

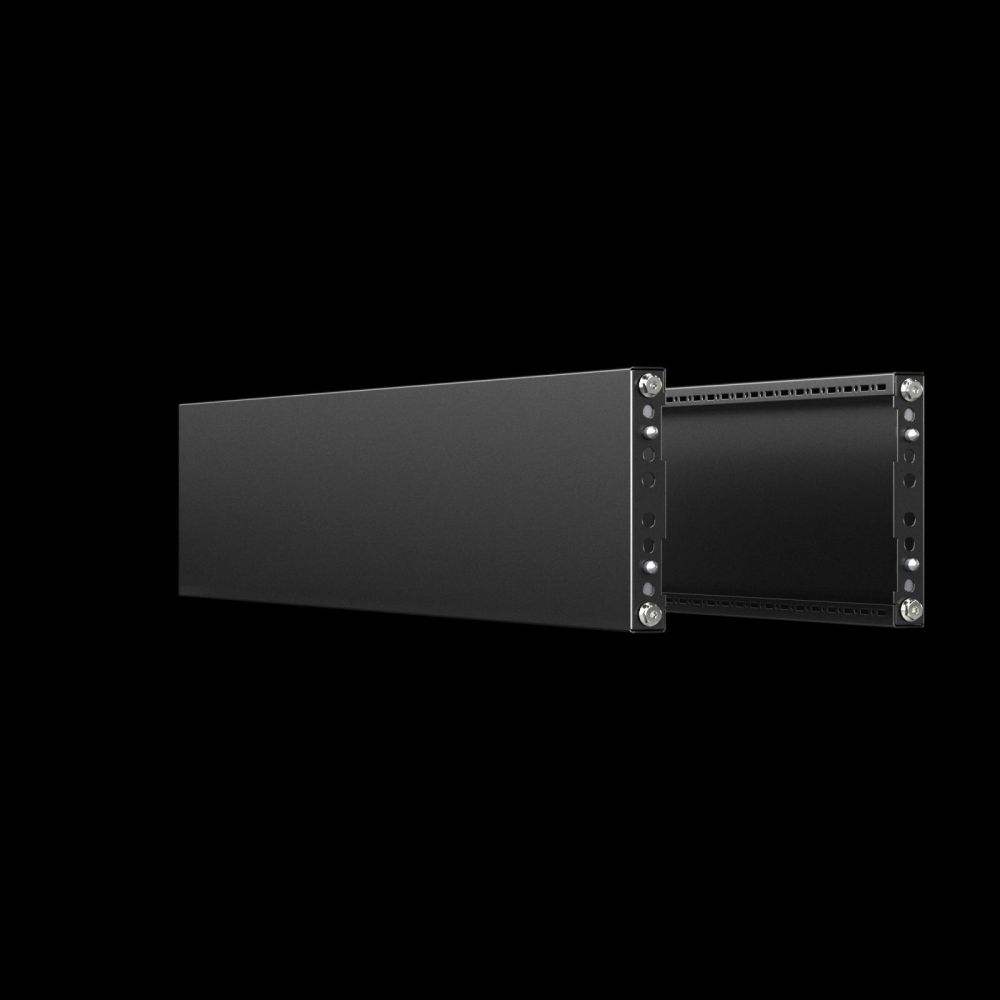

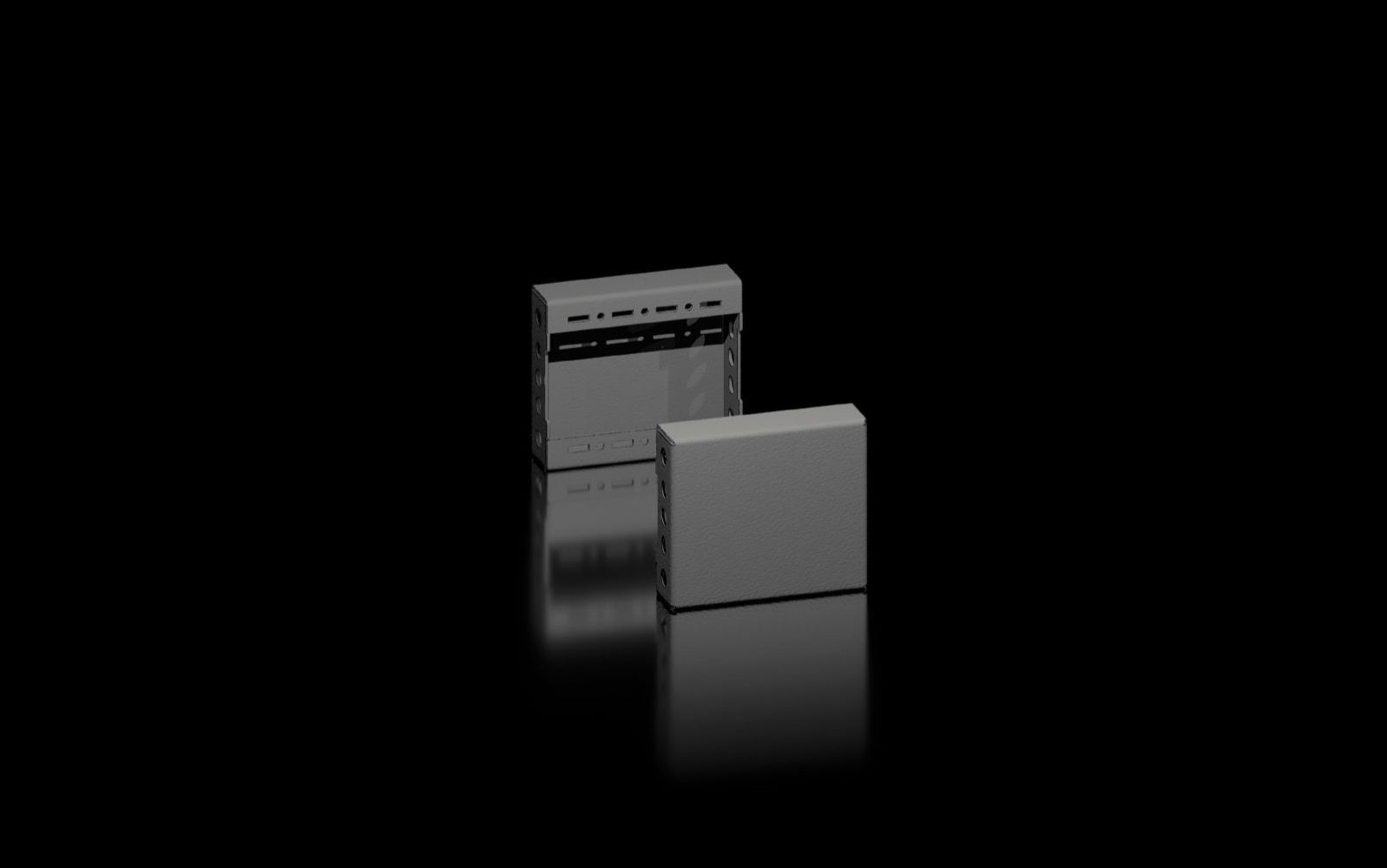

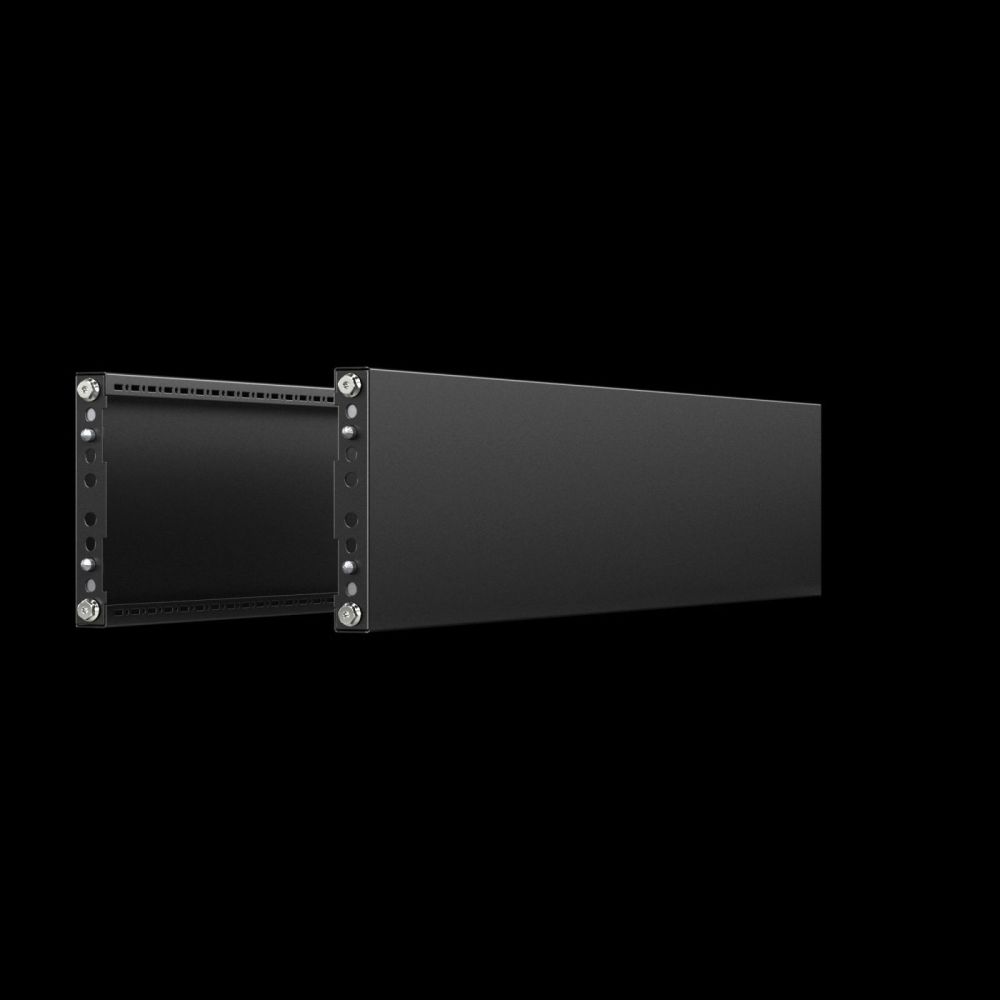

The VX plinth trim panel, side, type 8660030, from Rittal is a system accessory for the finishing enclosure of plinth units in industrial and enclosure construction. It serves for the optical and mechanical closure of the side surfaces of plinths in the VX plinth system and supports the stabilization of bayed units as well as internal assembly. The panel is made of sheet steel and is finished in RAL 9005, a dark gray-black color. The design is closed, ensuring a clean and seamless front surface. The height is 100 mm, and it is specifically designed for plinths with a depth of 300 mm.

Applications
The plinth trim panel is used in industrial enclosure construction, particularly in systems based on the VX system. It is compatible with various enclosure types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. The panel is frequently used when mounting multiple plinths side by side to create a uniform and stable front. For plinths with a height of 200 mm, either a single 200 mm high panel or two 100 mm high panels can be installed, allowing for flexible design options.

Functions and Equipment in Detail
The panel is designed for the lateral closure of plinth units. It ensures a clean optical appearance and prevents dust or foreign objects from entering the plinth area. Installation is carried out using included mounting hardware, which is part of the delivery scope. The packaging unit contains two pieces per pack. The panel is made of sheet steel, ensuring high mechanical stability and durability. The RAL 9005 color enables visual harmonization with other components in the enclosure.

Technology Explained Simply
The panel is designed as a closed construction, meaning it has no openings or grilles. This is particularly advantageous when high mechanical strength and a clean optical appearance are required. The sheet steel material provides sufficient strength to protect the plinth unit from external influences. The height of 100 mm is matched to the standard dimensions of VX plinths to enable precise fitting. Compatibility with a depth of 300 mm ensures use in common enclosure configurations.

Compatibility and Accessories
The panel is suitable for a wide range of enclosure types in the Rittal VX system, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. It is specifically designed for plinths with a depth of 300 mm. Suitable accessories include plinth baying brackets, VX plinth expansion angles (for 100 mm and 100/200 mm), optional panel mounting fixtures, and VX system chassis 23 x 64 mm W x H x D: 300 mm. These components support the installation and internal assembly of plinth systems.

Installation and Mounting
The plinth trim panel is mounted on the side surfaces of the plinth unit. The included mounting hardware enables easy and secure fastening. The panel is inserted into the designated mounting openings and secured with the included screws or brackets. Installation is tool-assisted and does not require special tools. Using two panels for 200 mm high plinths enables a symmetrical and stable configuration.

Operational Advantages
The plinth trim panel provides a clean and professional appearance for enclosures and plinth systems. It enhances the mechanical stability of plinth units, especially in bayed configurations. The closed design protects against dust and foreign objects. Compatibility with various enclosure types and the use of standard mounting hardware facilitate integration into existing systems. The delivery in a pack of two enables simultaneous installation on both sides of a plinth.

Type rating according to UL 50E
The panel meets the requirements of Type rating according to UL 50E in categories Type 1 and Type 12. Type 1 refers to protection against external influences in indoor environments, while Type 12 additionally protects against splashing water and dust. These certifications make the panel suitable for use indoors, particularly in industrial environments with increased requirements for mechanical strength and protection against environmental influences.

PCF value (Cradle-to-Gate)
The product life cycle footprint (PCF) is 4.13 kg CO2 equivalents per packaging unit (Cradle-to-Gate). This value is classified in category B and is based on the product weight, with the calculation being approximate and self-declared. The information serves to provide transparency regarding the environmental impact of production up to the packaging stage.

Weight and Packaging
The gross weight of the packaging unit is 0.7 kg, and the net weight is 0.6 kg. The packaging unit contains two pieces of the plinth trim panel. The weight and packaging information are relevant for logistics and storage, but not for the function of the panel itself.

General
Materialsteel sheet
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Height100 mm
Suitable forEnclosure type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, Depth: = 300 mm
Type rating according to UL 50EType 1, Type 12
Weight/PU0,7 kg
PCF/VE (Cradle-to-Gate)4.13 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8660030, EAN: 4028177978201

Questions & answers

What is the delivery time of Rittal 8660030 VX plinth trim panels, side, H: 100 mm, for D: 300 mm?

The article Rittal 8660030 VX plinth trim panels, side, H: 100 mm, for D: 300 mm is currently in stock

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660030 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8660030 VX plinth trim panels, side, H: 100 mm, for D: 300 mm always at the best possible price. We can give you a discount of 2% on Rittal 8660030 VX plinth trim panels, side, H: 100 mm, for D: 300 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
