Rittal 5825600 VX SE system single enclosure W x H x D 1200x2000x300 mm double

Your rating:
Average rating
product review for Rittal 5825600 VX SE system single enclosure W x H x D 1200x2000x300 mm double
( 4 / 5 ) 1 ratings

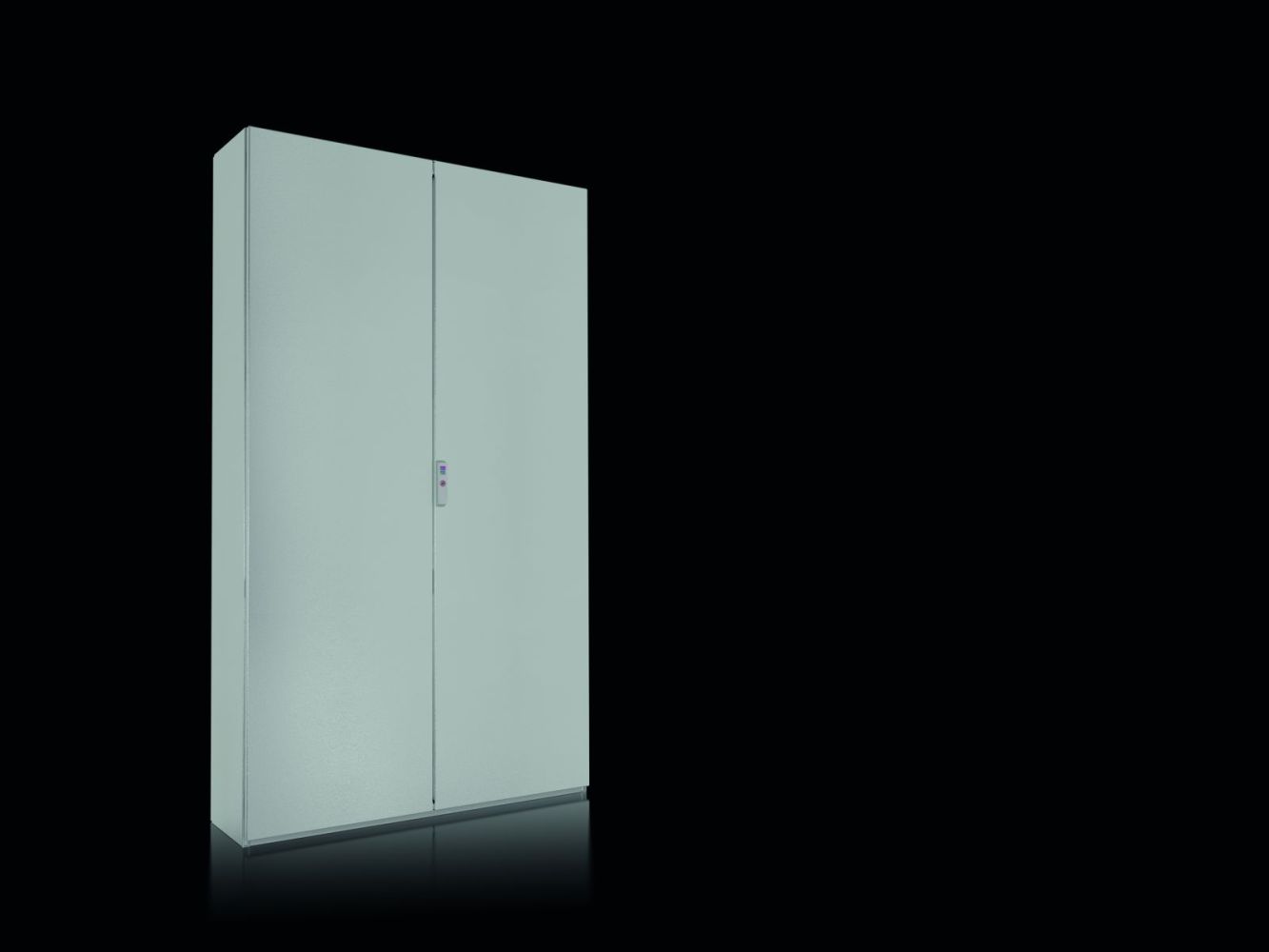

Rittal 5825600
This image may differ from the desired article.
Rittal 5825600Rittal 5825600Rittal 5825600Rittal 5825600Rittal 5825600Rittal 5825600Rittal 5825600
929,20 EUR
( 1.105,75 EUR incl. VAT )
≈ £777.74  |  ≈ $1,021.19
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 5825600 VX SE system single enclosure W x H x D 1200x2000x300 mm double
Datasheet:file_download Download
Lieske Part No.:1055459
Mfg Part No: 5825600
UPC/EAN: 4028177959293
Weight:184.8 kg
Type:SE 5825600

Product information for Rittal 5825600:

The Rittal SE 5825600 is a system single enclosure made of sheet steel, designed for individual installation in industrial facilities. With dimensions W x H x D 1200 x 2000 x 300 mm, it provides sufficient space for electrical and electronic components. The enclosure features a stable integral construction with closed side and roof walls, manufactured as a single piece and equipped with a profiled frame. The front side is double-door, with hinges standardly positioned on the right, but can be toollessly switched to the left. The doors are fitted with a foamed PU seal to ensure a tight seal, and feature a double-bar lock according to DIN 43668 with quadruple locking. The secondary door is additionally secured with a swing lever for double locking. The door opening angle is 130° and can be toollessly extended to 180°. An automatic equipotential bonding between door and enclosure body is integrated.

Applications include the installation of enclosures in production plants, automation systems, machine building, and industrial control systems. The design enables efficient installation, as no additional side panels need to be mounted. Large enclosure widths replace smaller baying combinations, simplifying planning and installation. The enclosure construction is system-compatible with accessories of the VX25 system, enabling flexible expansion.

Functions and equipment in detail include a mounting plate made of 3.0 mm sheet steel, side C-bent, and mounted depth-adjustable in 25 mm increments using integrated plastic glides and mounting rails. The mounting plate features a mounting grid to simplify component positioning. The rear wall is made of 1.5 mm sheet steel, screwed in place, and also equipped with automatic equipotential bonding to the enclosure body. The base plates are made of 1.5 mm sheet steel, three-part, removable, replaceable, and also feature equipotential bonding. The base plates are welded in and consist of a base frame and multiple divided, movable sheets.

Technology explained simply shows that the enclosure, doors, and rear wall are made of 1.5 mm or 2.0 mm sheet steel and feature a triple surface treatment: nanoceramic coating, electrophoretic dip priming, and an exterior coating in RAL 7035 textured lacquer. The mounting plate and base plates are galvanized. The protection rating IP 55 according to EN 60 529 protects against dust and splashing water, enabling use in outdoor or damp environments. The protection ratings NEMA 3R and NEMA 12, as well as the type rating according to UL 50E (Type 1, 2, 3, 3R, 12), confirm suitability for industrial applications. The IK code IK10 ensures high mechanical protection against impact and shock. The enclosure profiles feature system perforation in 25 mm DIN grid increments, enabling flexible component mounting.

Compatibility and accessories include matching products such as levelling feet M12, TS lock inserts, TS chassis for external mounting plane, C-profile rails 30/15, comfort handles, TS support rollers, TS system chassis 17x73 mm, transport eyes, door latches, VX plinth trim panels, and lock inserts made of zinc die-cast. These elements enable individual adaptation of the enclosure to specific requirements.

Mounting and installation are facilitated by integrated mounting planes and the mounting grid. The depth-adjustable mounting plate and screwed rear wall simplify installation. The doors are fitted with non-removable hinge pins, simplifying mounting and maintenance. The base plates are removable, enabling easy cleaning and maintenance.

Operational advantages include high mechanical stability, easy mounting and maintenance, and high protection class. The integral construction reduces mounting time, and system compatibility with VX25 accessories enables flexible expansion. The surface treatment provides high corrosion resistance and resistance against mineral oils, lubricants, machining emulsions, and solvents. The enclosure construction is designed for use in demanding industrial environments.

General
MaterialHousing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm
Surface protectionHousing, door and rear panel: dip primed, externally powder coated, textured lacquer; mounting plate and base sheets: galvanised
ColourRAL 7035
Scope of deliveryenclosure top and sides closed, door(s), for single-door cabinets door hinge on right, reversible to left, mounting plate, base plates, rear panel, removable, locking: 3 mm double latch, 2 mounting rails 18 x 39 mm, rear panel, single-piece
Width1.200 mm
Height2.000 mm
Depth300 mm
Mounting plate dimensions (W x H)1.099 mm x 1.896 mm
Degree of protection IP according to EN 60 529IP 55
NEMA degree of protectionNEMA 3R, NEMA 12
Type rating according to UL 50EType 1, Type 2, Type 3, Type 3R, Type 12
IK codeIK10
Number of doors2
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)491.19 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 5825600, EAN: 4028177959293

Questions & answers

What is the delivery time of Rittal 5825600 VX SE system single enclosure W x H x D 1200x2000x300 mm double?

The article Rittal 5825600 VX SE system single enclosure W x H x D 1200x2000x300 mm double is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5825600 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5825600 VX SE system single enclosure W x H x D 1200x2000x300 mm double always at the best possible price. We can give you a discount of 2% on Rittal 5825600 VX SE system single enclosure W x H x D 1200x2000x300 mm double if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
