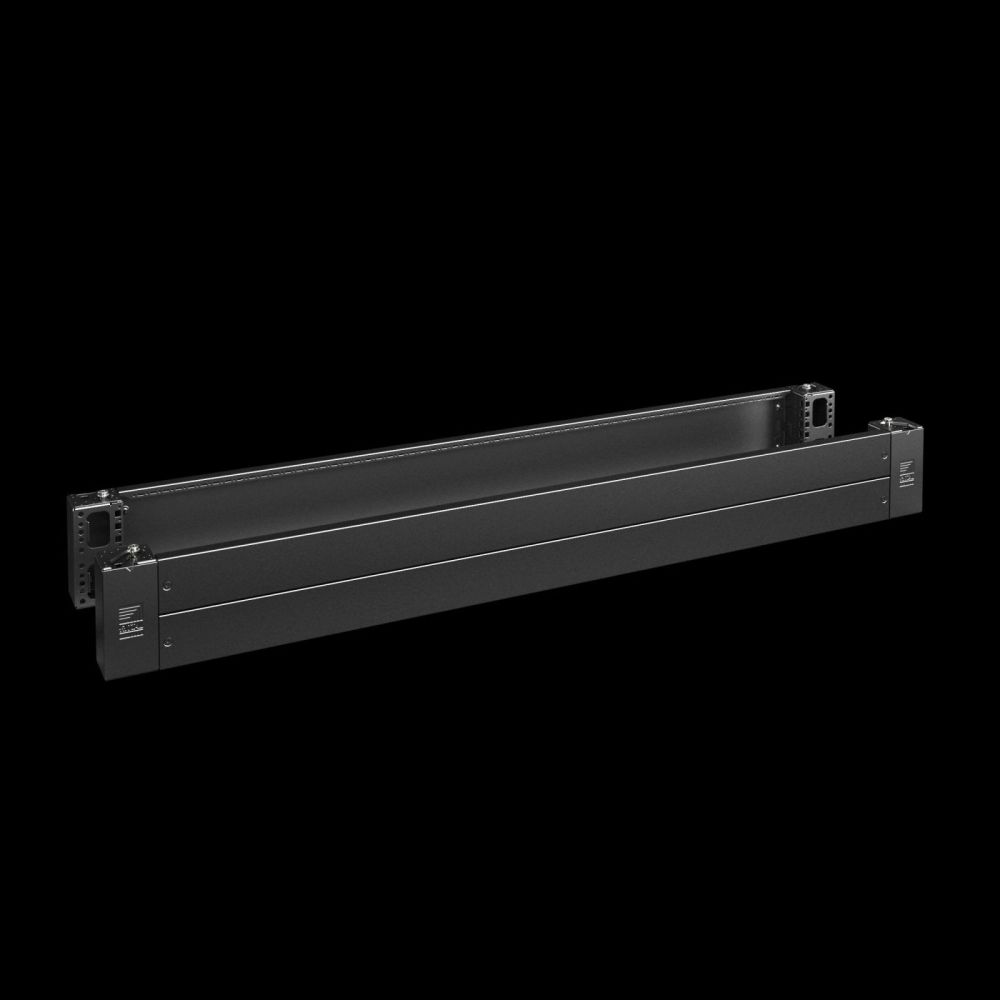

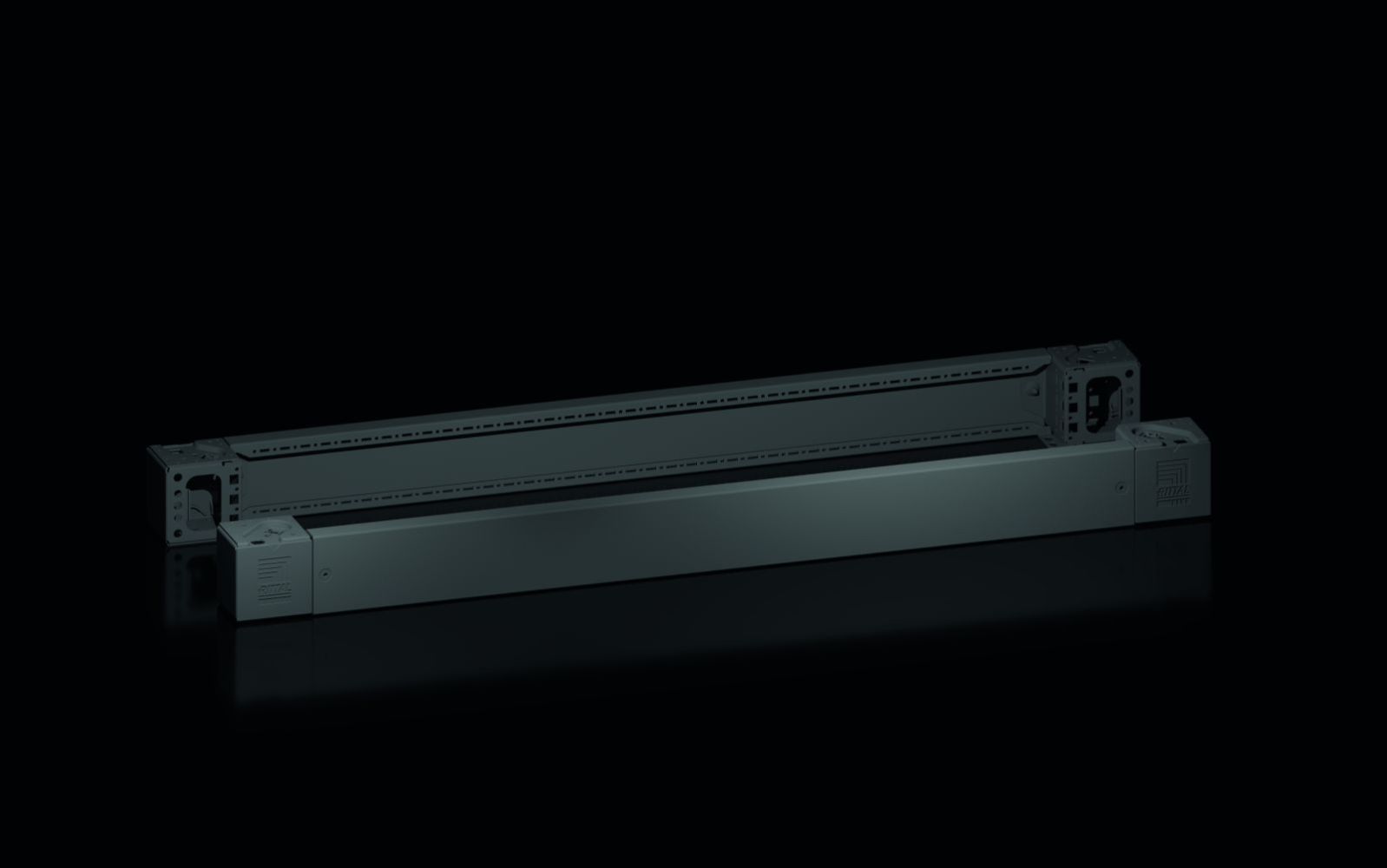

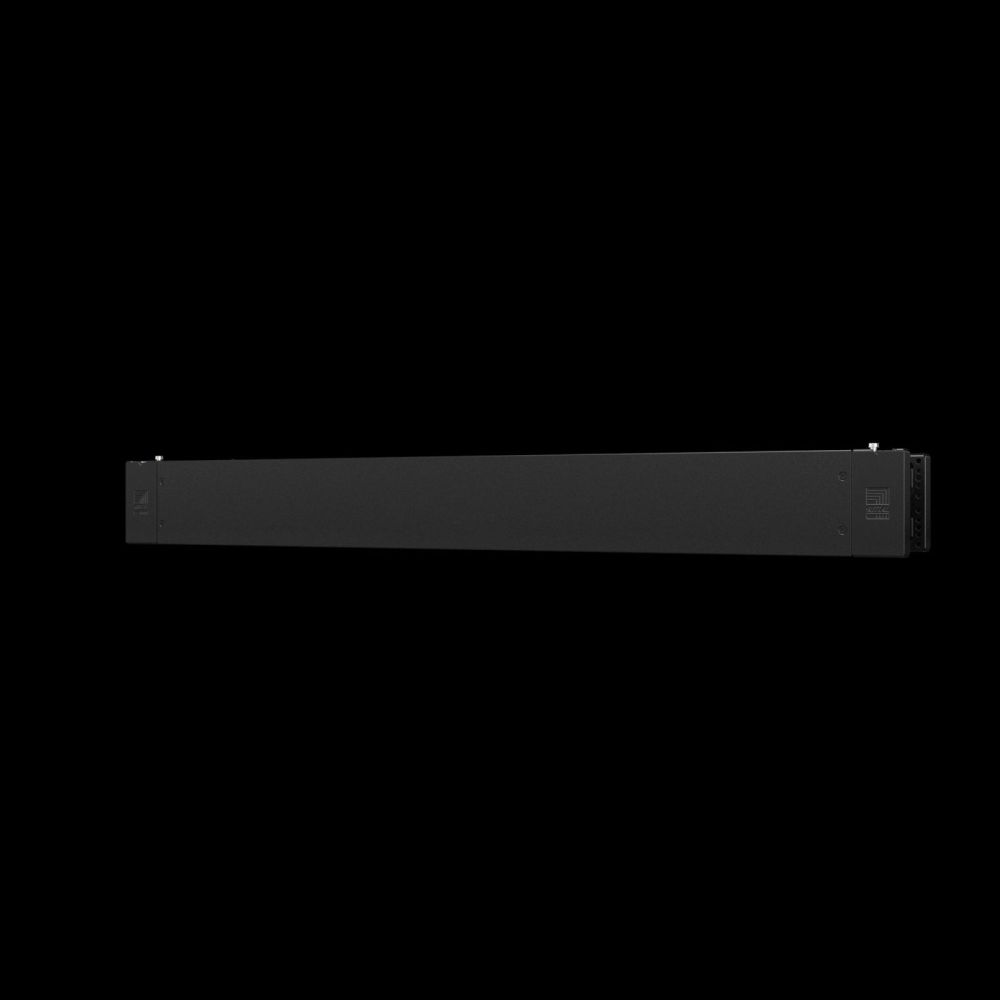

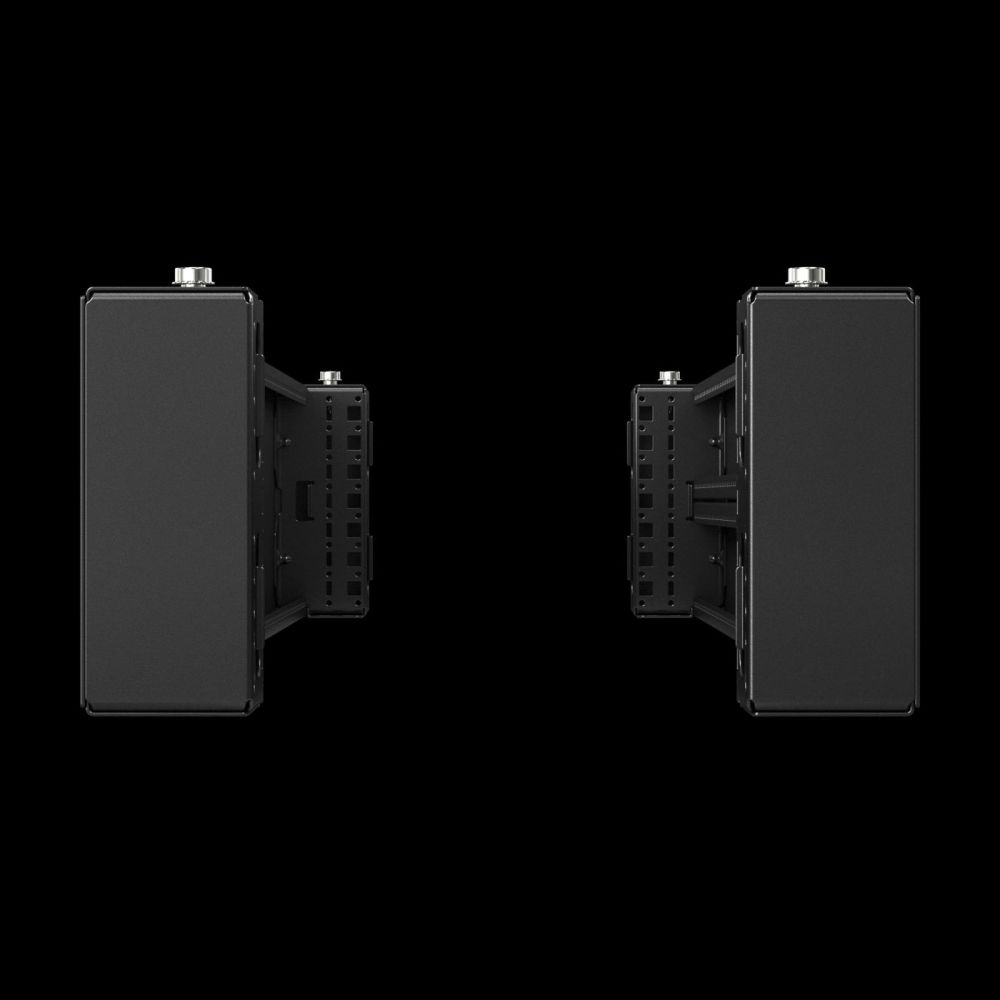

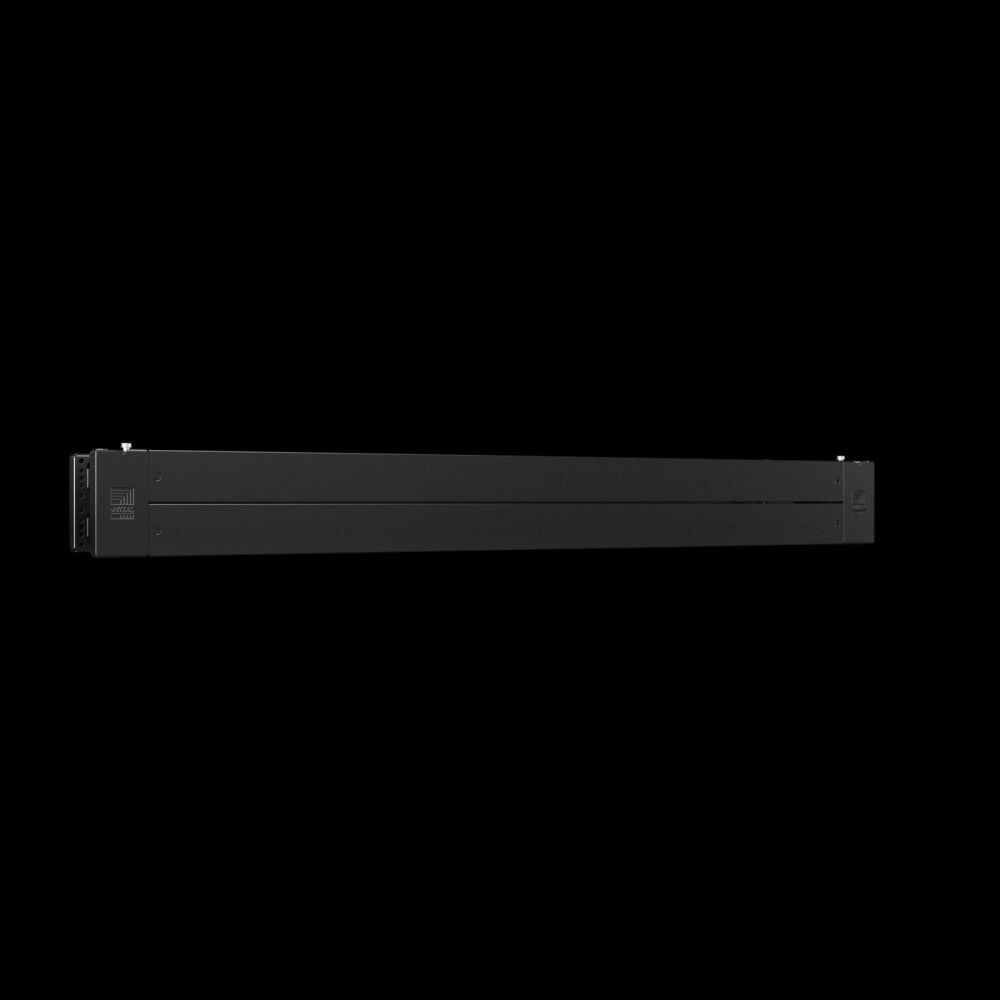

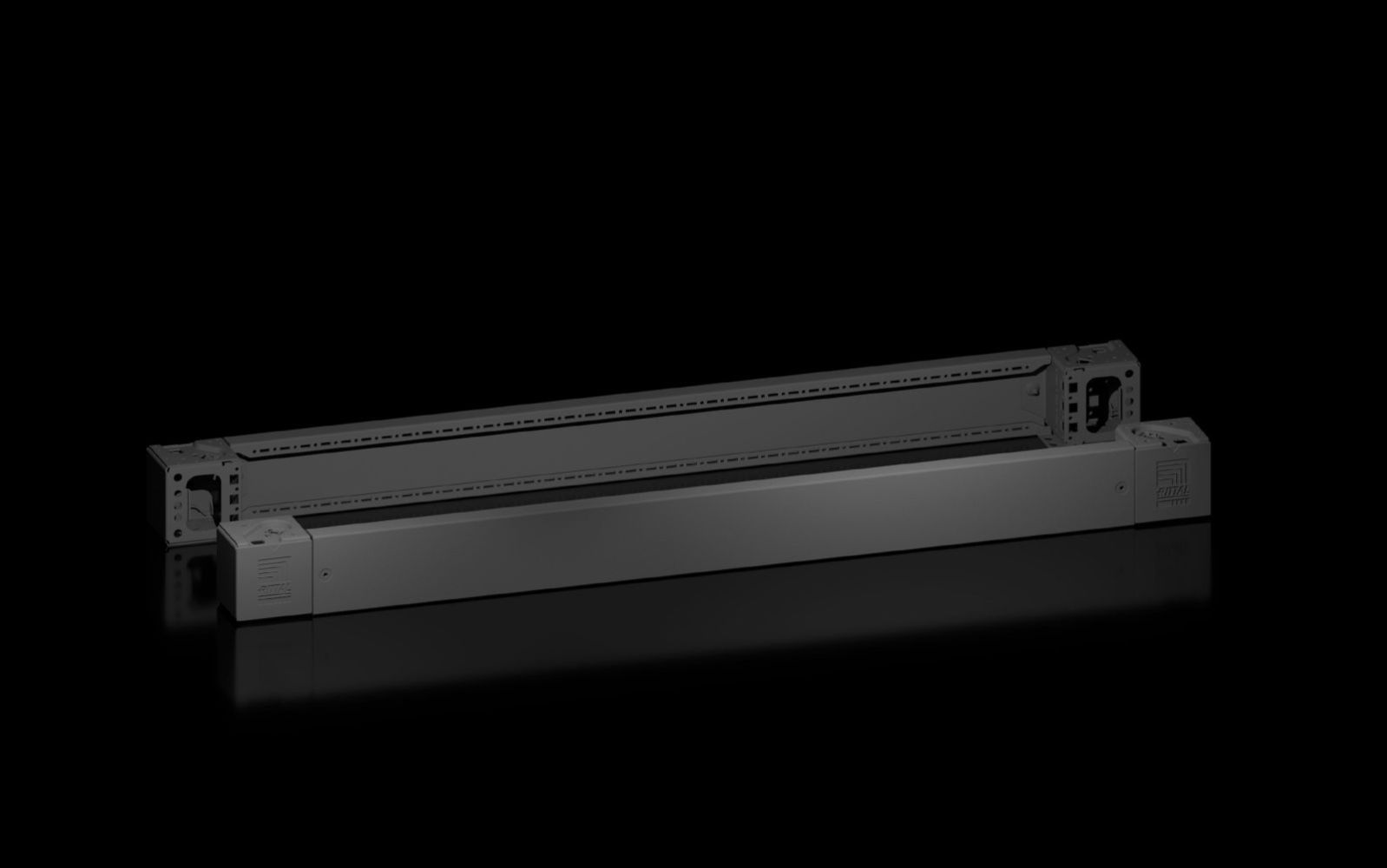

Rittal 8660007 VX plinth corner piece with trim panel, front/back, H: 100

Your rating:
Average rating
product review for Rittal 8660007 VX plinth corner piece with trim panel, front/back, H: 100
( 4.8 / 5 ) 4 ratings
Rittal 8660007
This image may differ from the desired article.
Rittal 8660007Rittal 8660007Rittal 8660007Rittal 8660007Rittal 8660007Rittal 8660007
51,04 EUR
( 60,74 EUR incl. VAT )
≈ £42.72  |  ≈ $56.09
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 8660007 VX plinth corner piece with trim panel, front/back, H: 100
Datasheet:file_download Download
Lieske Part No.:1062785
Mfg Part No: 8660007
UPC/EAN: 4028177978096
Weight:7.008 kg
Type:VX 8660007

Product information for Rittal 8660007:

The Rittal VX 8660007 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically designed for use in the VX plinth system. It serves as a stable termination for plinth units and enables a clean, flush connection between multiple baying positions. The component is made of sheet steel and finished in RAL 9005, ensuring a uniform visual appearance for enclosures and housings. The height is 100 mm, making it suitable for enclosures with a width of exactly 1,200 mm. The plinth trim panels serve not only as an aesthetic finish but also contribute to additional stabilization of the plinths, especially when multiple units are arranged in a row. The corner and baying covers are made of plastic and ensure a clean, closed finish at the corners.

Applications
The plinth corner piece is suitable for a wide range of housing types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. It is primarily used in industrial environments where high mechanical stability and a clean, professional finish of enclosure plinths are required. Its use in combination with other VX accessories enables flexible interior expansion options, particularly for cable entry and mounting of mounting plates or other components in the plinth area.

Functions and Equipment in Detail
The delivery includes 4 plinth corner pieces, each 100 mm high, 2 plinth trim panels at the front and rear, also 100 mm high, and 4 plastic corner covers. The plinth trim panels are positioned laterally and serve both as a visual finish and for stabilizing the plinth units against each other. The use of sheet steel for the corner pieces and trim panels ensures high mechanical strength and durability.

Technology Explained Simply
The design of the plinth corner piece enables very high stability of the entire plinth system, which is particularly advantageous for heavy or mobile enclosures. The integrated trim panels provide a closed finish that protects against dust and mechanical impacts. The material combination of sheet steel and plastic ensures a balanced mix of strength and easy installation. The height of 100 mm is matched to the standard width of 1,200 mm, enabling universal use in many standard enclosure configurations.

Compatibility and Accessories
The plinth corner piece is compatible with a wide range of Rittal enclosure types, including VX, TS, TP, PC, and CX. It can be combined with additional VX accessories such as levelling feet, C-profile rails, plinth baying brackets, or cable strain relief rails to expand the plinth system according to individual requirements. The use of VX system components ensures uniform installation and optimal integration into existing enclosure constructions.

Installation and Mounting
Installation is carried out by securing the plinth corner pieces to the corners of the plinth, using the included mounting materials. The plinth trim panels are attached to the front and rear sides of the plinth to ensure a closed finish. The corner covers provide a clean visual finish at the corners.

Operational Advantages
The use of the Rittal VX 8660007 provides high mechanical stability, increasing the safety and longevity of the enclosure plinth. The flush connection between baying positions ensures a professional appearance. The integrated trim panels allow for flexible cable entry and offer protection against dust and mechanical impacts. Compatibility with a wide range of housing types and accessories simplifies integration into existing systems and reduces installation time. The materials are designed for industrial use and ensure a long service life under normal operating conditions. The type rating according to UL 50E (Type 1, Type 12) confirms suitability for indoor use with limited protection against dust and splashing water.

General
MaterialSocket corner piece: sheet steel, socket front/rear cover: sheet steel, corner and gang cover: plastic
ColourRAL 9005
Scope of delivery4 corner covers, incl. fastening material, 4 socket corner pieces, 100 mm high, 2 socket front/rear panels, 100 mm
NoteSocket inserts, side-mounted, serve to terminate a socket unit or for additional stabilization between sockets or for internal fitting of sockets
Height100 mm
Suitable forHousing type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, width: = 1,200 mm
Type rating according to UL 50EType 1, Type 12
Weight/PU7,01 kg
PCF/VE (Cradle-to-Gate)24.24 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8660007, EAN: 4028177978096
