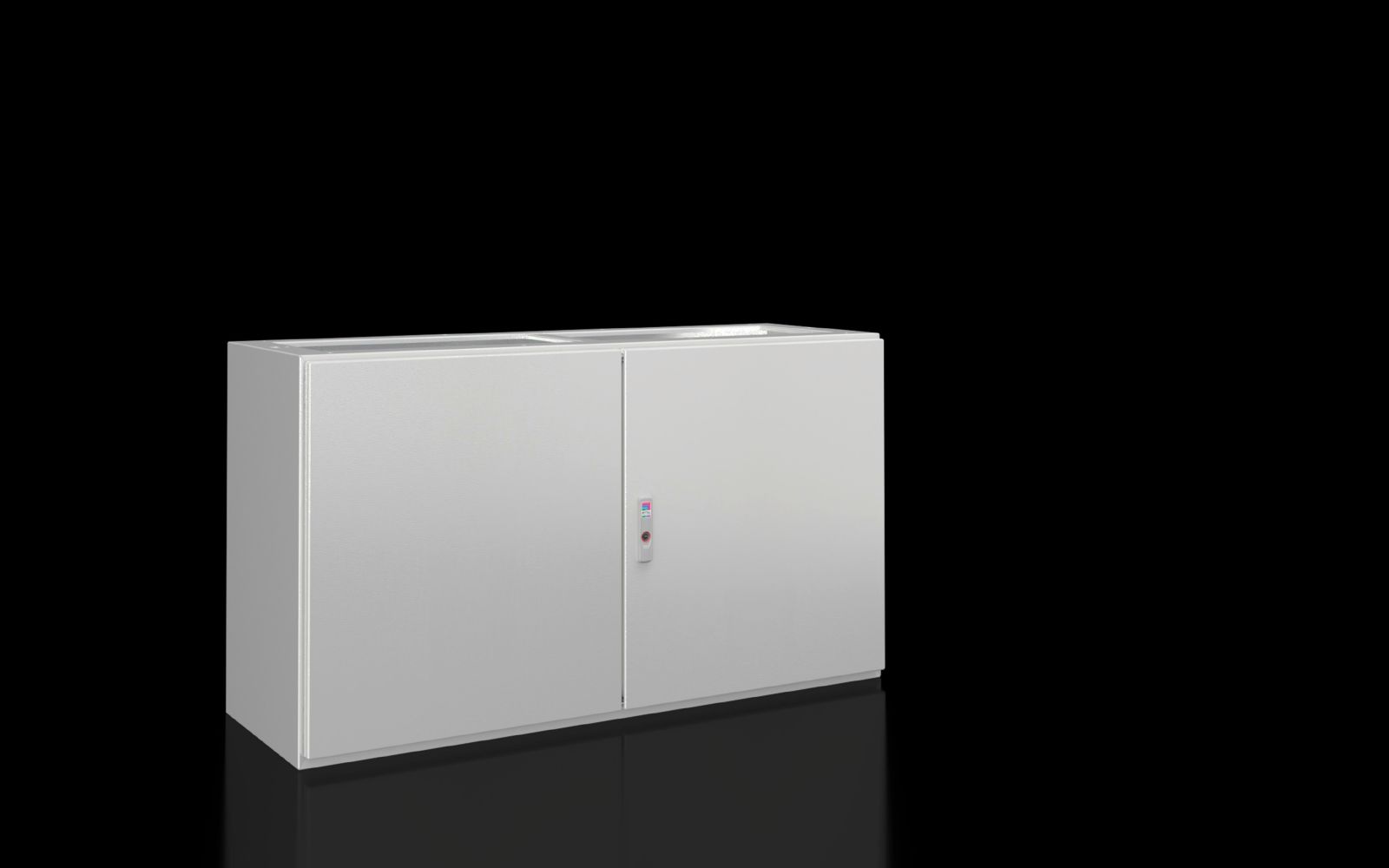

Rittal 6702000 CX console base unit W x H x D: 1200 x 675 x 400 mm

Your rating:
Average rating
product review for Rittal 6702000 CX console base unit W x H x D: 1200 x 675 x 400 mm
( 4 / 5 ) 1 ratings
Rittal 6702000
This image may differ from the desired article.
Rittal 6702000Rittal 6702000Rittal 6702000Rittal 6702000Rittal 6702000Rittal 6702000Rittal 6702000Rittal 6702000
533,60 EUR 554,94 EUR
( 634,98 EUR incl. VAT )
≈ £446.62  |  ≈ $586.43
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 1 pieces
1x Rittal 6702000 CX console base unit W x H x D: 1200 x 675 x 400 mm
Datasheet:file_download Download
Lieske Part No.:2145731
Mfg Part No: 6702000
UPC/EAN: 4028177983786
Weight:57.125 kg
Type:CX 6702000

Product information for Rittal 6702000:

The Rittal CX 6702000 is a console base unit from the CX console system, designed as a base unit with dimensions width 1,200 mm, height 675 mm, and depth 400 mm. It serves as a foundation for modular console solutions in industrial and technical applications, particularly in environments requiring robust and flexible mounting structures. The enclosure is made of sheet steel with a wall thickness of 1.5 mm, the doors are made of 2.0 mm thick sheet steel and are equipped with a continuous foamed PU seal to ensure effective sealing. The mounting plate is made of 2.5 mm thick sheet steel and is galvanized, providing high corrosion resistance. The surface of the enclosure and doors is dip-primed and externally powder-coated with a textured lacquer in the color RAL 7035, creating a uniform, robust, and visually consistent appearance.

Applications
This console base unit is designed for use in industrial environments where high mechanical stability and protection against dust and splashing water are required. It is suitable, for example, as a base for control consoles in production plants, machine controls, or automation technology. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water from all directions, enabling use outdoors or in damp indoor areas. Additionally, the device meets protection ratings NEMA 1 and NEMA 12, confirming suitability for dry indoor environments as well as environments with light splashing water or dirt. The IK10 rating ensures high mechanical protection against impact and shock, which is important for installations with high operational loads.

Functions and Equipment in Detail

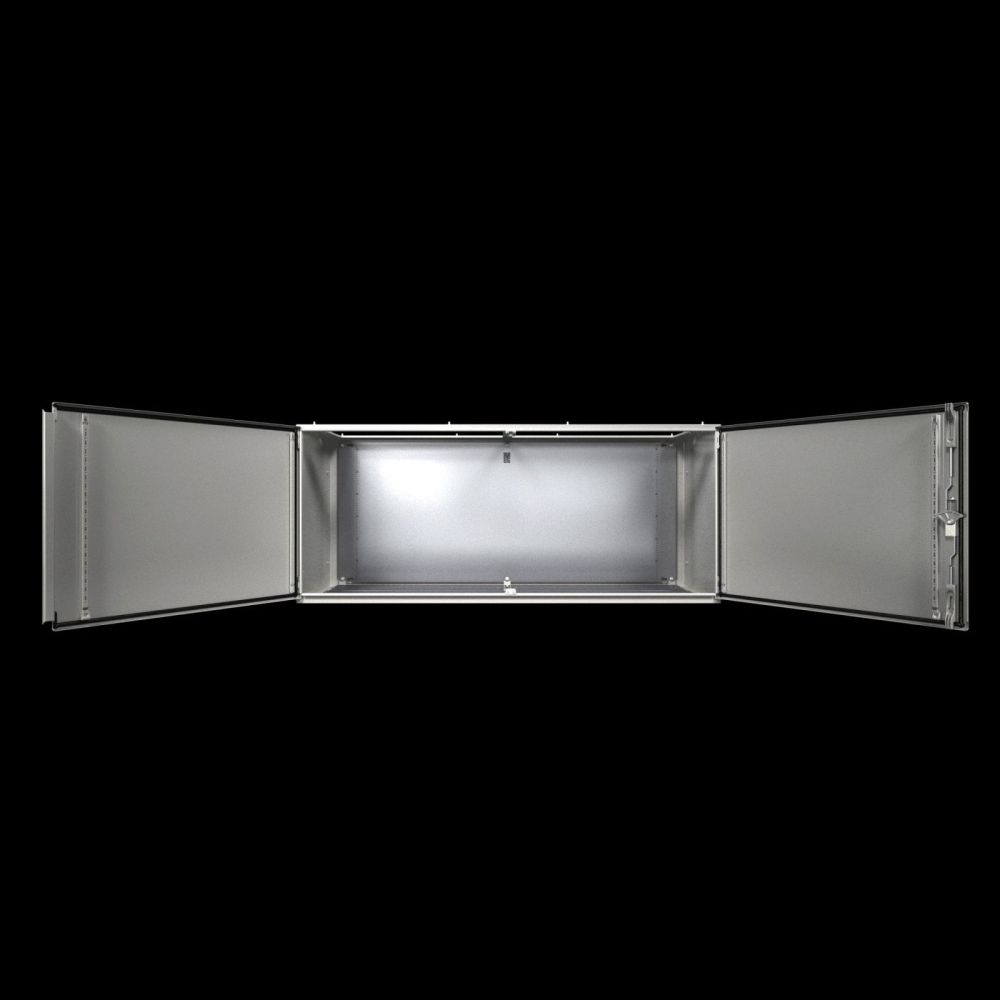

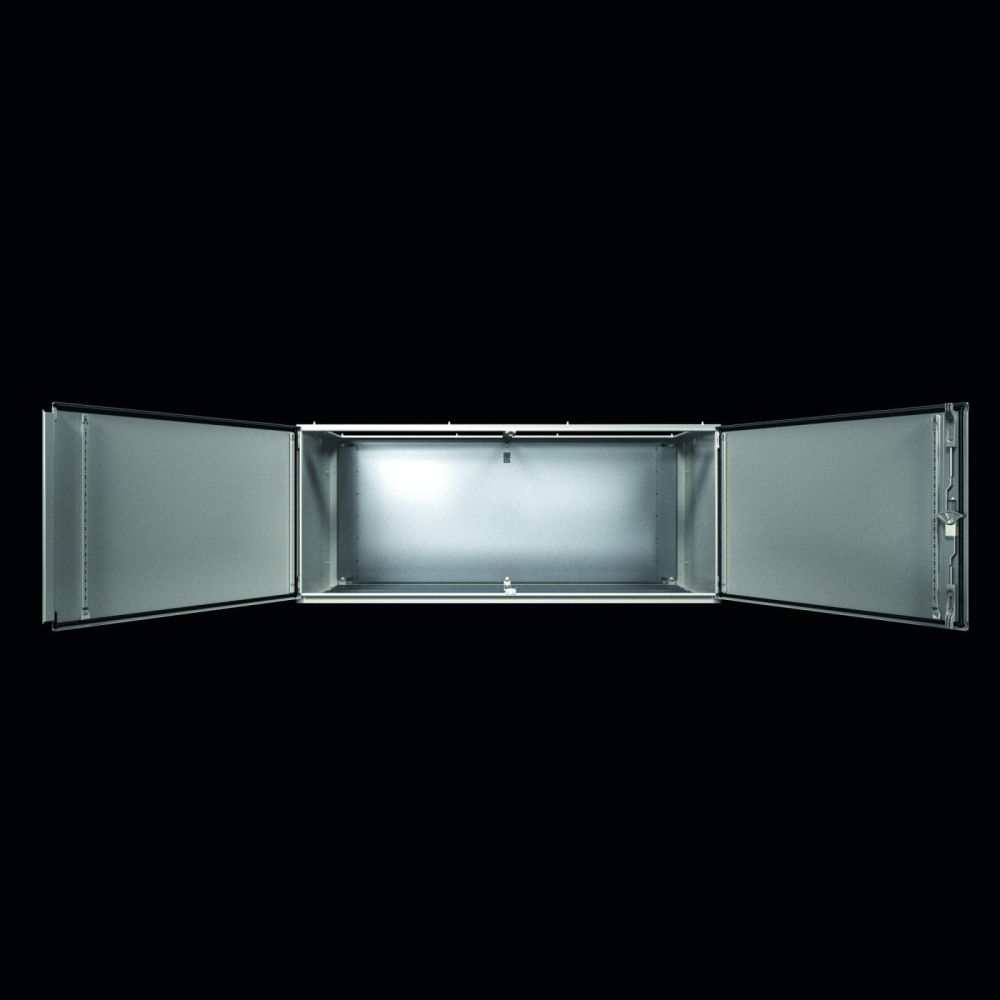

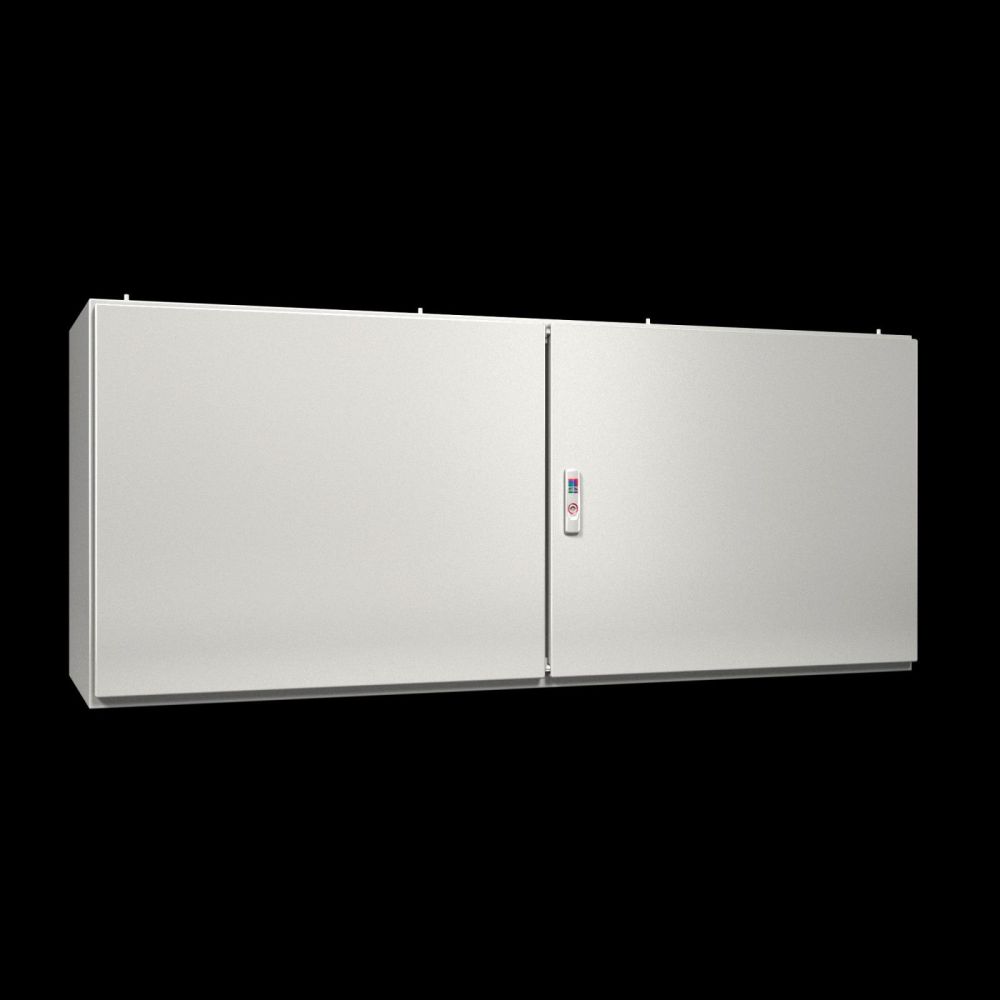

The unit features a double door at the front, equipped with a 3-point locking system. This system ensures secure and even closure of the doors and prevents unintended opening. The lock insert is a 3 mm double bar, providing secure latching. The door opening angle is 130°, allowing sufficient accessibility for installation and maintenance. The delivery includes the enclosure (open at the top), the double door with locking mechanism, the mounting plate, and two-part base plates. The base plates facilitate cable routing and ensure structured cabling. The mounting plate has dimensions 1,120 mm (width) × 625 mm (height) and provides a stable base for mounting components.

Technology Explained Simply
The use of sheet steel in various wall thicknesses ensures high mechanical strength and durability. The PU seal on the doors ensures tight sealing, supporting the IP 55 protection rating. The powder-coated surface in RAL 7035 not only provides an attractive visual appearance but also offers high corrosion protection. The galvanized sheet steel mounting plate is particularly resistant to oxidation. The 3-point locking system distributes the closing force evenly across the door, enabling secure and tight closure. The two-part base plates facilitate installation and maintenance by allowing flexible cable routing.

Compatibility and Accessories
The console base unit is part of the modular CX console system and can be combined with other elements such as console center sections, console top sections, and end plates to create 2- or 3-piece console solutions. An end plate is required to seal the console base unit. Suitable accessories include, for example, lock inserts made of zinc die-cast, baying sets for AX, KX, AE, KL, earthing straps, mounting brackets, plinth corner pieces with trim panels, plinth trim panels, support rails, cable entry plates, system chassis, and cable strain relief rails. These components allow individual adaptation to specific installation requirements.

Mounting and Installation
Mounting is done via the provided mounting plate, which enables stable fastening. The two-part base plates facilitate cable routing and ensure orderly cabling. The doors are equipped with a 3-point locking system, ensuring secure closure. The open-top design of the enclosure requires the use of an end plate to fully seal the console base unit. Installation is typically performed in conjunction with other modules of the CX system to create a modular and scalable console solution.

Operational Advantages
The console base unit offers high mechanical stability and reliable protection against dust and splashing water. The modular construction allows flexible expansion and adaptation to different requirements. The integrated base plates and mounting plate facilitate installation and maintenance. The use of high-quality materials such as sheet steel and PU seal ensures long service life and low maintenance costs. The IP 55 and IK10 protection ratings make the unit suitable for demanding industrial environments.

General
ModelBase unit
MaterialHousing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, continuous foamed PU seal, mounting plate: steel sheet, 2.5 mm
Surface protectionCasing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized
ColourRAL 7035
Scope of deliveryHousing open at top, door or double door at front, with 3-point locking system, mounting plate, base plates, lock: 3 mm double bar
Width1.200 mm
Height675 mm
Depth400 mm
Mounting plate dimensions (W x H)1.120 mm x 625 mm
Number of doors2
Door opening angle130°
IK codeIK10
NoteTo close the console base, an end plate is required. For a 2-part console assembly, a console center section and an end plate for the console center section are required. For a 3-part console assembly, a console center section and a console top section are required.
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 1, NEMA 12
Base materialsteel sheet
Number of locks1
Closure type3-point locking system
Closure insert3 mm double barb
LockClosure type: 3-point locking system, number of closures: 1, closure insert: 3 mm double barb


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 6702000, EAN: 4028177983786

Questions & answers

What is the delivery time of Rittal 6702000 CX console base unit W x H x D: 1200 x 675 x 400 mm?

The article Rittal 6702000 CX console base unit W x H x D: 1200 x 675 x 400 mm is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 6702000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 6702000 CX console base unit W x H x D: 1200 x 675 x 400 mm always at the best possible price. We can give you a discount of 2% on Rittal 6702000 CX console base unit W x H x D: 1200 x 675 x 400 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 6702000 CX console base unit W x H x D: 1200 x 675 x 400 mm

Rittal 2307000 Lock inserts, zinc die-cast, length 27 mm, outer dimension 27 mm Rittal LogoRittal 2307000 Lock inserts, zinc die-cast, length 27 mm, outer dimension 27 mm Material: Die-cast zinc
Packs of: 1 pc(s).
EAN: 4028177020849
Customs tariff number: 83015000
eCl@ss 5.1: 27189256
eCl@ss 7.0: 27409218
ETIM 6.0: EC000743

Design: A
To fit: Enclosure type: EB ...

Lieske Part No.: 236156
Mfg Part No: 2307000
Type: SZ 2307000
2,98 EUR
Rittal 2307000 plus VAT
≈ £2.49  |  ≈ $3.28
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2465000 Lock inserts, zinc die-cast, length 27 mm, version Rittal LogoRittal 2465000 Lock inserts, zinc die-cast, length 27 mm, version Material: Die-cast zinc
Packs of: 1 pc(s).
EAN: 4028177023864
Customs tariff number: 83015000
eCl@ss 5.1: 27189256
eCl@ss 7.0: 27409218
ETIM 6.0: EC000743

Design: A
To fit: Enclosure type: EB ...

Lieske Part No.: 251997
Mfg Part No: 2465000
Type: SZ 2465000
-11% 2,62 EUR 2,93 EUR
Rittal 2465000 plus VAT
≈ £2.19  |  ≈ $2.88
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2460000 Lock inserts, zinc die-cast, length 27 mm, version Rittal LogoRittal 2460000 Lock inserts, zinc die-cast, length 27 mm, version Material: Die-cast zinc
Packs of: 1 pc(s).
EAN: 4028177023765
Customs tariff number: 83015000
eCl@ss 5.1: 27189256
eCl@ss 7.0: 27409218
ETIM 6.0: EC000743

Design: A
To fit: Enclosure type: EB ...

Lieske Part No.: 400490
Mfg Part No: 2460000
Type: SZ 2460000
2,63 EUR
Rittal 2460000 plus VAT
≈ £2.20  |  ≈ $2.89
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2460650 Lock inserts, zinc die-cast, length 27 mm, version Rittal LogoRittal 2460650 Lock inserts, zinc die-cast, length 27 mm, version Material: Die-cast zinc
Packs of: 1 pc(s).
EAN: 4028177220331
Customs tariff number: 83024900
eCl@ss 5.1: 27189256
eCl@ss 7.0: 27409218
ETIM 6.0: EC000743

Design: A
To fit: Enclosure type: EB ...

Lieske Part No.: 499708
Mfg Part No: 2460650
Type: SZ 2460650
2,63 EUR
Rittal 2460650 plus VAT
≈ £2.20  |  ≈ $2.89
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 1199100 Baying set for AX, KX, AE, KL Rittal LogoRittal 1199100 Baying set for AX, KX, AE, KL Supports baying and sealing between KL/KL and AE/AE.
Benefits: Special screws and nuts limit compression of the seal to a predefined level, to ensure a long-lasting, permanent seal between enclosures ...

Lieske Part No.: 583514
Mfg Part No: 1199100
Type: SZ 1199100
32,32 EUR 33,69 EUR
Rittal 1199100 plus VAT
≈ £27.05  |  ≈ $35.52
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 2568500 SZ earthing straps M8-M8 cross-section 16 mm² L 600 mm, pack of 5 Rittal LogoRittal 2568500 SZ earthing straps M8-M8 cross-section 16 mm² L 600 mm, pack of 5 The Rittal SZ 2568500 is an earthing strap for use in enclosures and housings, ensuring a safe and reliable earthing connection. It is specifically designed for use in industrial electrical ...

Lieske Part No.: 643857
Mfg Part No: 2568500
Type: SZ 2568500
-6% 31,74 EUR 33,93 EUR
Rittal 2568500 plus VAT
≈ £26.57  |  ≈ $34.88
Made to order · Delivery time approx. 5 workdaysinfo_outline
Rittal 2461000 Lock inserts, zinc die-cast, length 27 mm, version Rittal LogoRittal 2461000 Lock inserts, zinc die-cast, length 27 mm, version Material: Die-cast zinc
Packs of: 1 pc(s).
EAN: 4028177023789
Customs tariff number: 83015000
eCl@ss 5.1: 27189256
eCl@ss 7.0: 27409218
ETIM 6.0: EC000743

Design: A
To fit: Enclosure type: EB ...

Lieske Part No.: 661058
Mfg Part No: 2461000
Type: SZ 2461000
2,63 EUR
Rittal 2461000 plus VAT
≈ £2.20  |  ≈ $2.89
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 4594000 TS mounting brackets for door width 400 mm Rittal LogoRittal 4594000 TS mounting brackets for door width 400 mm Applications: For attachment of
Cable ducts
Cable conduit holder
Contact hazard protection covers
Equipment installed on the door
Cable clamping and attachment
Material: Sheet steel
Surface finish: ...

Lieske Part No.: 770295
Mfg Part No: 4594000
Type: TS 4594000
-10% 50,60 EUR 56,44 EUR
Rittal 4594000 plus VAT
≈ £42.35  |  ≈ $55.61
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2466000 lock inserts, zinc die-cast, length 27 mm, version Rittal LogoRittal 2466000 lock inserts, zinc die-cast, length 27 mm, version Material: Die-cast zinc
Packs of: 1 pc(s).
EAN: 4028177023888
Customs tariff number: 83015000
eCl@ss 5.1: 27189256
eCl@ss 7.0: 27409218
ETIM 6.0: EC000743

Design: A
To fit: Enclosure type: EB ...

Lieske Part No.: 975920
Mfg Part No: 2466000
Type: SZ 2466000
2,67 EUR
Rittal 2466000 plus VAT
≈ £2.23  |  ≈ $2.93
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 8660007 VX plinth corner piece with trim panel, front/back, H: 100 Rittal LogoRittal 8660007 VX plinth corner piece with trim panel, front/back, H: 100 The Rittal VX 8660007 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically designed for use in the VX plinth system. It serves as a stable termination for ...

Lieske Part No.: 1062785
Mfg Part No: 8660007
Type: VX 8660007
51,04 EUR
Rittal 8660007 plus VAT
≈ £42.72  |  ≈ $56.09
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 8660031 VX plinth trim panels, side, H: 100 mm, for D: 400 mm, Rittal LogoRittal 8660031 VX plinth trim panels, side, H: 100 mm, for D: 400 mm, The VX plinth trim panel, side, type 8660031, from Rittal is a system accessory for finishing and stabilisation tasks on plinth units in industrial and enclosure construction. The product serves as a ...

Lieske Part No.: 1062787
Mfg Part No: 8660031
Type: VX 8660031
19,85 EUR
Rittal 8660031 plus VAT
≈ £16.61  |  ≈ $21.82
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 8660025 VX plinth corner piece with trim panel, front/rear, H: 200, Rittal LogoRittal 8660025 VX plinth corner piece with trim panel, front/rear, H: 200, The Rittal VX 8660025 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically developed for enclosures and housings of the VX system. It serves as a stable ...

Lieske Part No.: 1103905
Mfg Part No: 8660025
Type: VX 8660025
104,22 EUR
Rittal 8660025 plus VAT
≈ £87.23  |  ≈ $114.54
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 8660041 VX plinth trim panels, side, 200 mm, for D: 400 mm, Rittal LogoRittal 8660041 VX plinth trim panels, side, 200 mm, for D: 400 mm, The VX plinth trim panel, side, type 8660041, from Rittal is a system accessory for use in the field of enclosures and housings. It serves as a closure cladding on the side of plinth units in the VX ...

Lieske Part No.: 1103910
Mfg Part No: 8660041
Type: VX 8660041
27,37 EUR 28,47 EUR
Rittal 8660041 plus VAT
≈ £22.91  |  ≈ $30.08
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
Rittal 8617830 VX support rail 48 x 26 mm, W: 1200 mm Rittal LogoRittal 8617830 VX support rail 48 x 26 mm, W: 1200 mm The Rittal VX support rail 8617.830 is a robust mounting rail made of sheet steel with a galvanised surface, specifically designed for use in enclosures and housings with a width of 1200 mm. It serves ...

Lieske Part No.: 1440917
Mfg Part No: 8617830
Type: VX 8617.830
93,61 EUR
Rittal 8617830 plus VAT
≈ £78.35  |  ≈ $102.88
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 8619803 VX cable entry plate, W: 1200 mm, Rittal LogoRittal 8619803 VX cable entry plate, W: 1200 mm, The Rittal VX 8619.803 is a cable entry plate made of sheet steel with a zinc-coated surface, specifically designed for enclosures of type VX with a width of 1,200 mm as well as for the VX SE variant.

Lieske Part No.: 1441055
Mfg Part No: 8619803
Type: VX 8619.803
62,02 EUR 62,03 EUR
Rittal 8619803 plus VAT
≈ £51.91  |  ≈ $68.16
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 8619720 VX system chassis 14 x 39 mm, door width: 600 mm Rittal LogoRittal 8619720 VX system chassis 14 x 39 mm, door width: 600 mm The Rittal VX 8619.720 is a system chassis made of sheet steel with a galvanised surface, specifically designed for mounting cable ducts, cable conduit holders, door inserts and similar components in ...

Lieske Part No.: 1441073
Mfg Part No: 8619720
Type: VX 8619.720
42,99 EUR
Rittal 8619720 plus VAT
≈ £35.98  |  ≈ $47.25
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 8617110 VX system chassis 23 x 64 mm W x H x D: 400 mm Rittal LogoRittal 8617110 VX system chassis 23 x 64 mm W x H x D: 400 mm The Rittal VX 8617.110 is a system chassis made of sheet steel with a zinc-coated surface, designed for variable and individual interior fitting of enclosure frames. It serves as a mounting base for ...

Lieske Part No.: 1441093
Mfg Part No: 8617110
Type: VX 8617.110
39,79 EUR 41,02 EUR
Rittal 8617110 plus VAT
≈ £33.30  |  ≈ $43.73
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 8619700 VX system chassis 14 x 39 mm, door width: 400 mm Rittal LogoRittal 8619700 VX system chassis 14 x 39 mm, door width: 400 mm The Rittal VX 8619.700 is a system chassis made of sheet steel with a galvanised surface, specifically designed for use in various enclosure and housing types. It serves as a mounting element for ...

Lieske Part No.: 1441166
Mfg Part No: 8619700
Type: VX 8619.700
33,47 EUR
Rittal 8619700 plus VAT
≈ £28.01  |  ≈ $36.78
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 8619440 VX cable strain relief rail angle profile, W: 1200 mm Rittal LogoRittal 8619440 VX cable strain relief rail angle profile, W: 1200 mm The Rittal VX 8619.440 is a cable strain relief rail in angle profile, designed for strain relief during cable entry into enclosures and plinth systems. The product is made of steel with a zinc-coated ...

Lieske Part No.: 1441177
Mfg Part No: 8619440
Type: VX 8619.440
51,69 EUR
Rittal 8619440 plus VAT
≈ £43.26  |  ≈ $56.81
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
Rittal 2435100 AX comfort handle for lock inserts or half cylinder Rittal LogoRittal 2435100 AX comfort handle for lock inserts or half cylinder The Rittal AX 2435100 is a comfort handle for enclosures and housings, specifically designed for use with lock inserts or half cylinders. It serves as an ergonomic handle mechanism that simplifies the ...

Lieske Part No.: 1598252
Mfg Part No: 2435100
Type: AX 2435100
-6% 37,15 EUR 39,38 EUR
Rittal 2435100 plus VAT
≈ £31.09  |  ≈ $40.83
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
Rittal 2515300 AX circuit diagram pocket made of sheet metal, width: 475 - 575 mm, Rittal LogoRittal 2515300 AX circuit diagram pocket made of sheet metal, width: 475 - 575 mm, The Rittal AX 2515300 is a circuit diagram pocket made of sheet metal, specifically designed for mounting on the door punch strip of enclosures. It is intended for the orderly storage and presentation ...

Lieske Part No.: 1598256
Mfg Part No: 2515300
Type: AX 2515300
26,55 EUR 26,56 EUR
Rittal 2515300 plus VAT
≈ £22.22  |  ≈ $29.18
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 2435400 AX comfort handle, for padlock, lock insert Rittal LogoRittal 2435400 AX comfort handle, for padlock, lock insert The Rittal AX 2435400 is a comfort handle for enclosures and housings, specifically designed for use with AX enclosures as well as other housing types such as TE, stand console CX, and console base CX.

Lieske Part No.: 1598263
Mfg Part No: 2435400
Type: AX 2435400
42,90 EUR
Rittal 2435400 plus VAT
≈ £35.91  |  ≈ $47.15
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2435200 Comfort handle AX for compact enclosures AX Rittal LogoRittal 2435200 Comfort handle AX for compact enclosures AX The Rittal AX 2435200 is a comfort handle for enclosures of the AX system, specifically designed for use with bar locking mechanisms. It features a safety insert with locking E1 and serves as an ...

Lieske Part No.: 1598265
Mfg Part No: 2435200
Type: AX 2435200
51,75 EUR
Rittal 2435200 plus VAT
≈ £43.31  |  ≈ $56.87
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2519020 AX door latch Rittal LogoRittal 2519020 AX door latch The Rittal SZ 2519020 is a door latch for enclosures of the AX system, specifically developed for the secure fixation of the opened door. The product consists of sheet steel with a zinc-coated ...

Lieske Part No.: 1991121
Mfg Part No: 2519020
Type: SZ 2519020
8,24 EUR
Rittal 2519020 plus VAT
≈ £6.90  |  ≈ $9.06
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 6730700 SZ rail W x H: 600 mm, pack of 4 for internal installation CX Rittal LogoRittal 6730700 SZ rail W x H: 600 mm, pack of 4 for internal installation CX The Rittal SZ 6730700 is a rail for internal mounting, specifically designed for the CX console system. It serves as a mounting base for electrical assemblies, switching devices and other components ...

Lieske Part No.: 2145908
Mfg Part No: 6730700
Type: SZ 6730700
-6% 28,75 EUR 30,74 EUR
Rittal 6730700 plus VAT
≈ £24.06  |  ≈ $31.60
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
Searching
Search is performed.
Please be patient ...
Fehlende Felder
Close
Product in the shopcart

The following item has been put into your shopping cart by our system:

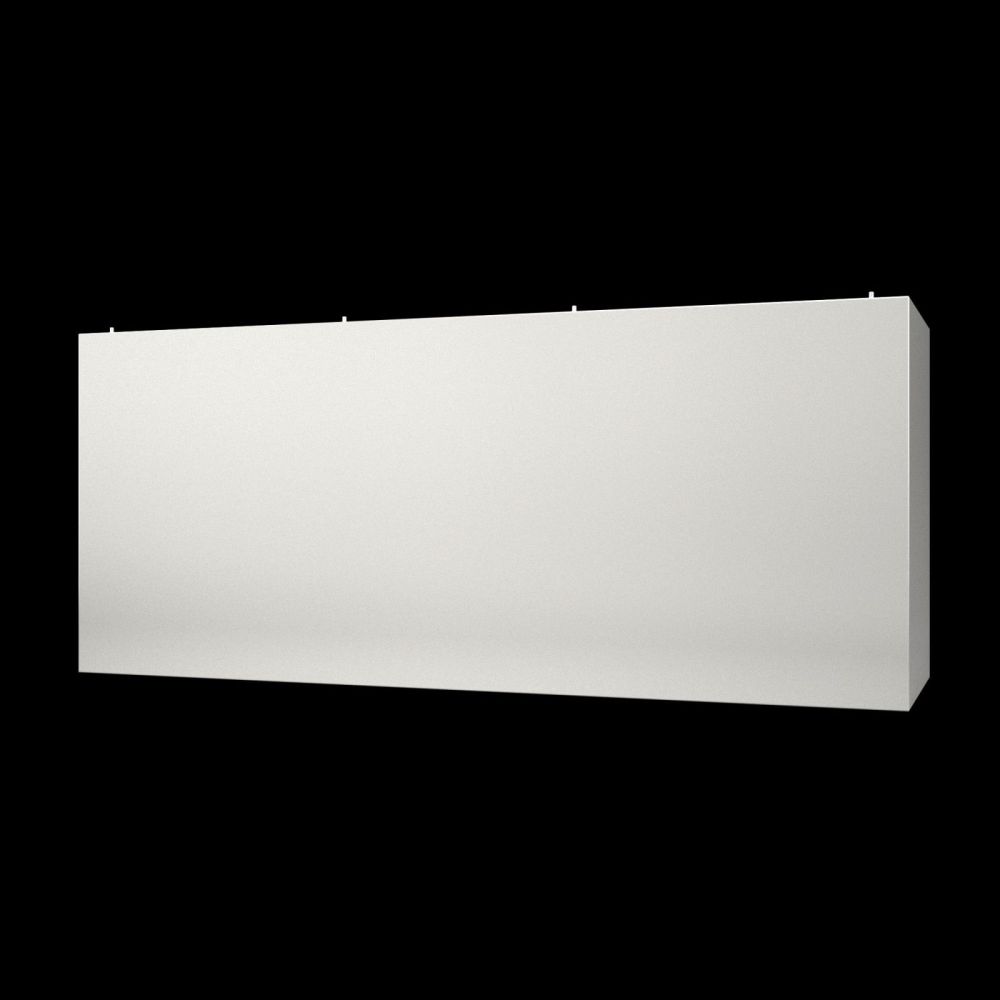

1x Rittal 6702000 console sub-base 1200x675x400 mm
Rittal 6702000 CX console base unit W x H x D: 1200 x 675 x 400 mm
533,60 EUR
Sum of all articles in cart
plus VAT
You can continue shopping and open your cart at any time from the top menu bar or now directly by clicking the button.
Enquiry: Rittal 6702000 console sub-base 1200x675x400 mm
Company name
Name
Homepage
Street
ZIP-Code City
Country
Telephone
Desired quantity
Comment
9 + 6 =
Data protection notice: The data entered here will only be electronically stored and processed for the purpose of responding to your inquiry in accordance with Art. 6 GDPR para. 1b. The basis for this is our privacy policy.
Name and email address are the only mandatory fields.

We use cookies. Some are required to run the shop (e.g. shopping cart and login), others help us improve it (Google Analytics). Statistics cookies are only used with your consent. See our privacy policy for details.
