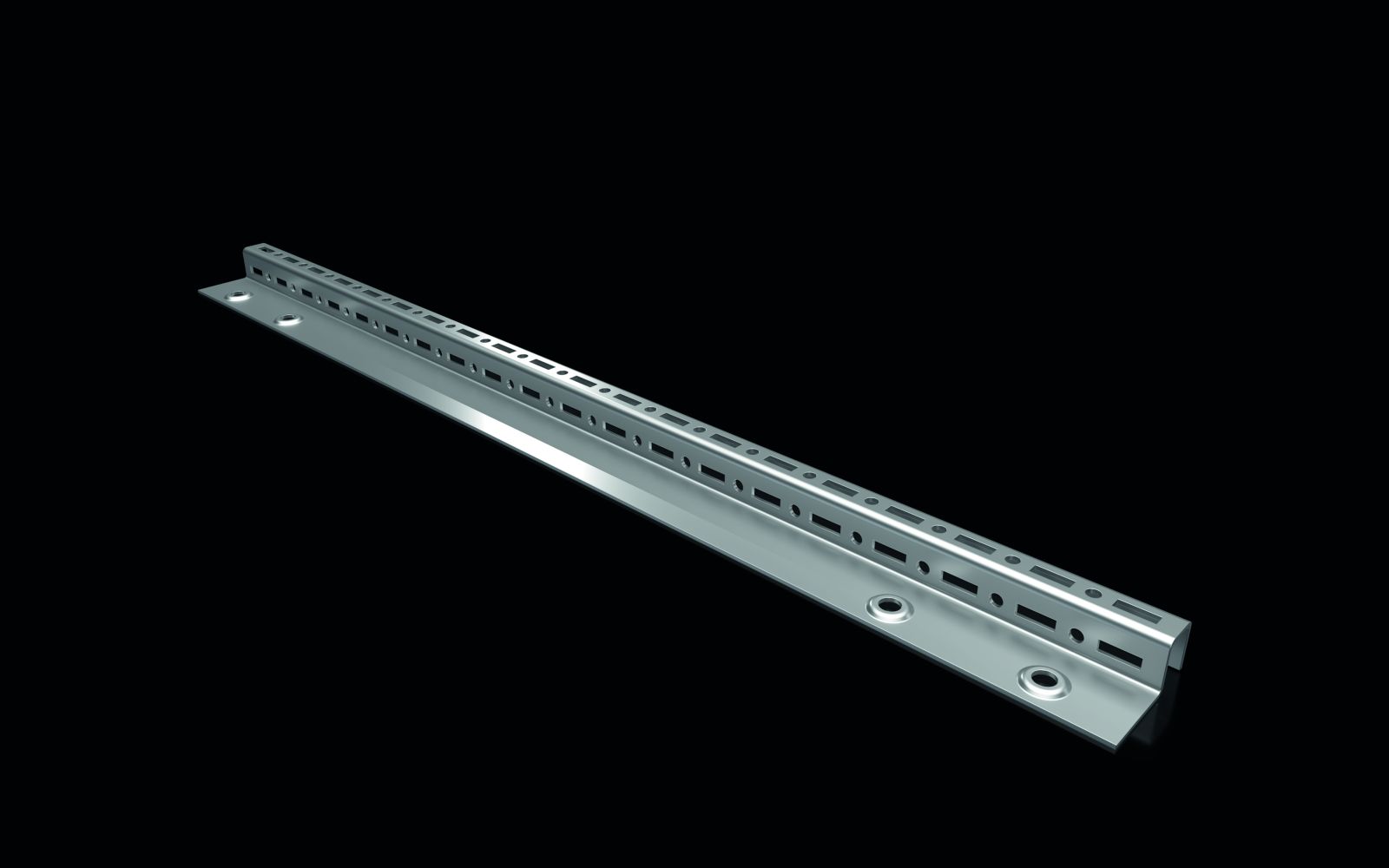

Rittal 6730700 SZ rail W x H: 600 mm, pack of 4 for internal installation CX
|
-6% 28,75 EUR 30,74 EUR |
|
|
( 34,21 EUR incl. VAT ) ≈ £24.06 | ≈ $31.60 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2145908 |
| Mfg Part No: | 6730700 |
| UPC/EAN: | 4028177983571 |
| Weight: | 1.695 kg |
| Type: | SZ 6730700 |
Product information for Rittal 6730700:
Applications
The rail is intended for use in enclosures of the CX console system, particularly in models with a width of 600 mm and a height of 675 mm. It is mounted inside the housing to ensure structured and secure placement of electrical components. The rail is part of a modular system that allows flexible adaptation to different requirements. When mounting 1200 mm wide console top and middle sections as well as lids of the CX system, the use of two rails each 600 mm in length is required, which the SZ 6730700 with 500 mm length does not meet.
Functions and Equipment in Detail
The rail features system perforation on three sides, enabling versatile mounting of components. Installation is carried out using the threaded bolts pre-installed in the housing, ensuring stable and precise positioning of the rail. The delivery includes fastening material required for installation. The rail is designed for use in industrial plants where high mechanical stability and durability are required.
Technology Explained Simply
The use of sheet steel as material ensures high strength and load capacity, while the zinc-coated surface provides a protective layer against moisture and corrosion. The system perforation allows components to be mounted at various positions along the rail, enabling optimal placement and cable routing. Mounting to the existing threaded bolts in the housing ensures secure and vibration-free installation without requiring additional drilling in the housing.
Compatibility and Accessories
The rail is exclusively suitable for the CX console system with the specified dimensions (width 600 mm, height 675 mm). When mounting 1200 mm wide console sections or lids of the CX system, the use of two rails each 600 mm in length is required, which the SZ 6730700 with 500 mm length does not fulfill. The use of the rail requires adherence to the installation instructions or earthing brochure of the respective enclosure or housing system to ensure correct and safe installation.
Mounting and Installation
The rail is mounted onto the threaded bolts pre-installed in the housing. Fastening is done using the fastening material included in the delivery. Installation should be carried out according to the installation instructions or earthing brochure of the respective enclosure or housing system to ensure that electrical and mechanical requirements are met. The rail is designed for use in industrial environments where high mechanical load capacity and durability are required.
Operational Advantages
The rail provides a stable and secure mounting base for electrical assemblies inside the enclosure. The system perforation on three sides enables flexible and precise mounting of components, achieving optimal placement and cable routing. The zinc-coated surface ensures high corrosion resistance, extending the service life of the rail in industrial environments. Mounting to the existing threaded bolts in the housing ensures simple and secure installation without additional drilling.
The packaging unit includes 4 pieces of the rail, sufficient for mounting multiple assemblies in the enclosure. The exact fastening is done using the material included in the delivery, ensuring secure and stable installation. The rail is designed for use in industrial plants where high mechanical stability and durability are required.
| General | |
| Material | steel sheet |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Length | 500 mm |
| Mounting note | For extending 1200 mm wide console top and middle sections as well as cover CX, 2 x the CX internal extension rail with 600 mm length each is required. |
| Note | Please refer to the installation instructions or earthing brochure of the respective cabinet or enclosure system. |
| Suitable for | Cabinet type: Pult-System CX, width: = 600 mm, height: = 675 mm |
