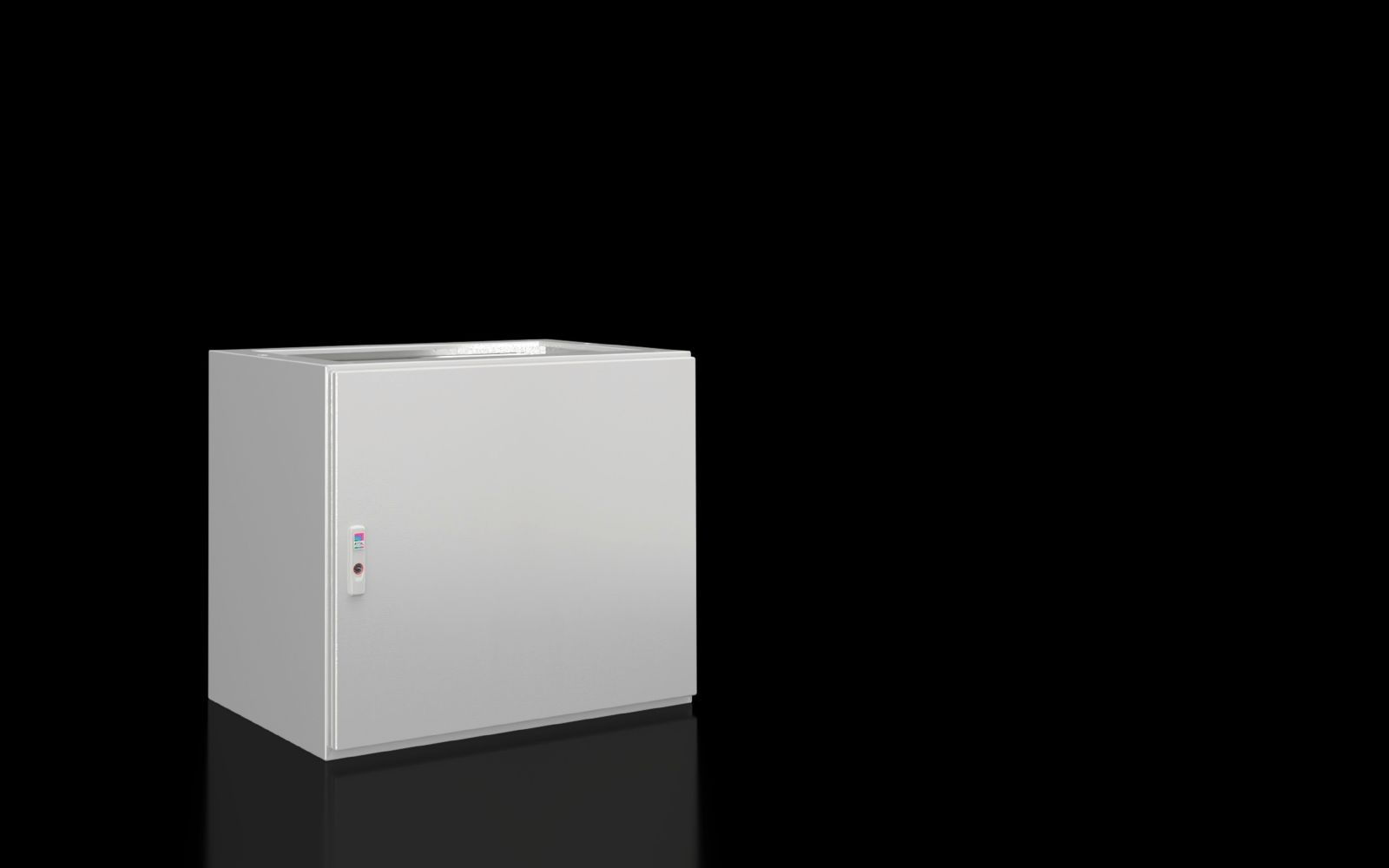

Rittal 6705000 CX console base unit W x H x D: 800 x 675 x 500 mm
|
425,50 EUR 442,52 EUR |
|
|
( 506,34 EUR incl. VAT ) ≈ £356.14 | ≈ $467.62 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 602816 |
| Mfg Part No: | 6705000 |
| UPC/EAN: | 4028177983755 |
| Weight: | 42.875 kg |
| Type: | CX 6705000 |
Product information for Rittal 6705000:
Applications
This console base unit serves as a stable foundation for industrial workstations, control systems or enclosures in indoor environments. It is designed for use in production environments, workshops or technical control rooms where a robust, impact-resistant and dust- and splash-water-protected enclosure is required. The protection rating IP 55 according to IEC 60 529 ensures high protection against dust and splashing water, making it suitable for use in slightly damp or dusty environments. The protection ratings NEMA 1 and NEMA 12 complement its suitability for indoor environments with limited environmental stress.
Functions and equipment in detail
The unit features a front door with a 3-point locking system, ensuring secure and even closure. The lock insert is a 3 mm double bar, integrated into the locking system. The door opens to an angle of up to 130°, providing good access to the interior. The delivery includes the enclosure, door, mounting plate, two-part base plates, and the lock with 3 mm double bar. The base plates facilitate cable routing and are already included in the delivery. The mounting plate has dimensions of 720 mm (width) × 625 mm (height) and serves as a mounting surface for internal components.
Technology explained simply
The material thickness used – 1.5 mm for the enclosure, 2.0 mm for the door, and 2.5 mm for the mounting plate – ensures high mechanical stability. The PU seal provides a tight seal and prevents dust or splashing water from entering. The powder-coated surface in RAL 7035 offers a robust, scratch- and chemical-resistant coating suitable for industrial applications. The IK10 rating means the enclosure is protected against mechanical impacts such as shocks or blows with an energy of up to 5.3 J, which is relevant for use in industrial environments.
Compatibility and accessories
The console base unit is part of the modular CX console system and can be combined with other elements such as console middle sections, console top sections, or end plates to create one- to three-piece console solutions. For a two-piece setup, a console middle section and an end plate for the middle section are required; for a three-piece setup, a console middle section and a console top section are needed. Suitable accessories include, among others, plinth corner pieces, plinth trim panels, lock inserts made of zinc die-cast, mounting brackets, earthing straps, cable entry plates, system chassis, and support rails, which can be used for internal fitting and cable routing.
Installation and mounting
Mounting is done via the integrated mounting plate, which allows secure attachment of internal components. The two-part base plates facilitate cable routing and are already included in the delivery. The enclosure is open at the top, allowing it to be directly connected to further modules. The front door with the 3-point locking system can be easily opened and closed, with the 130° opening angle providing good access. Installation is typically carried out on a flat surface, where the base plates can be used for mounting or cable routing.
Advantages in operation
The console base unit provides a stable, impact-resistant and dust- and splash-water-protected enclosure suitable for use in industrial environments. The modular construction allows flexible expansion and adaptation to different requirements. The integrated base plates and mounting plate facilitate installation and cable routing. The powder-coated surface in RAL 7035 is robust and easy to maintain, increasing operational safety and service life. The IK10 rating protects the unit against mechanical impacts, increasing reliability in industrial use.
| General | |
| Model | Base unit |
| Material | Housing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, continuous foamed PU seal, mounting plate: steel sheet, 2.5 mm |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Housing open at top, door or double door at front, with 3-point locking system, mounting plate, base plates, lock: 3 mm double bar |
| Width | 800 mm |
| Height | 675 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 720 mm x 625 mm |
| Number of doors | 1 |
| Door opening angle | 130° |
| IK code | IK10 |
| Note | To close the console base, an end plate is required. For a 2-part console assembly, a console center section and an end plate for the console center section are required. For a 3-part console assembly, a console center section and a console top section are required. |
| Degree of protection IP according to IEC 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Base material | steel sheet |
| Number of locks | 1 |
| Closure type | 3-point locking system |
| Closure insert | 3 mm double barb |
| Lock | Closure type: 3-point locking system, number of closures: 1, closure insert: 3 mm double barb |
Questions & answers
What is the delivery time of Rittal 6705000 CX console base unit W x H x D: 800 x 675 x 500 mm?
The article Rittal 6705000 CX console base unit W x H x D: 800 x 675 x 500 mm is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 6705000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 6705000 CX console base unit W x H x D: 800 x 675 x 500 mm always at the best possible price. We can give you a discount of 2% on Rittal 6705000 CX console base unit W x H x D: 800 x 675 x 500 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
