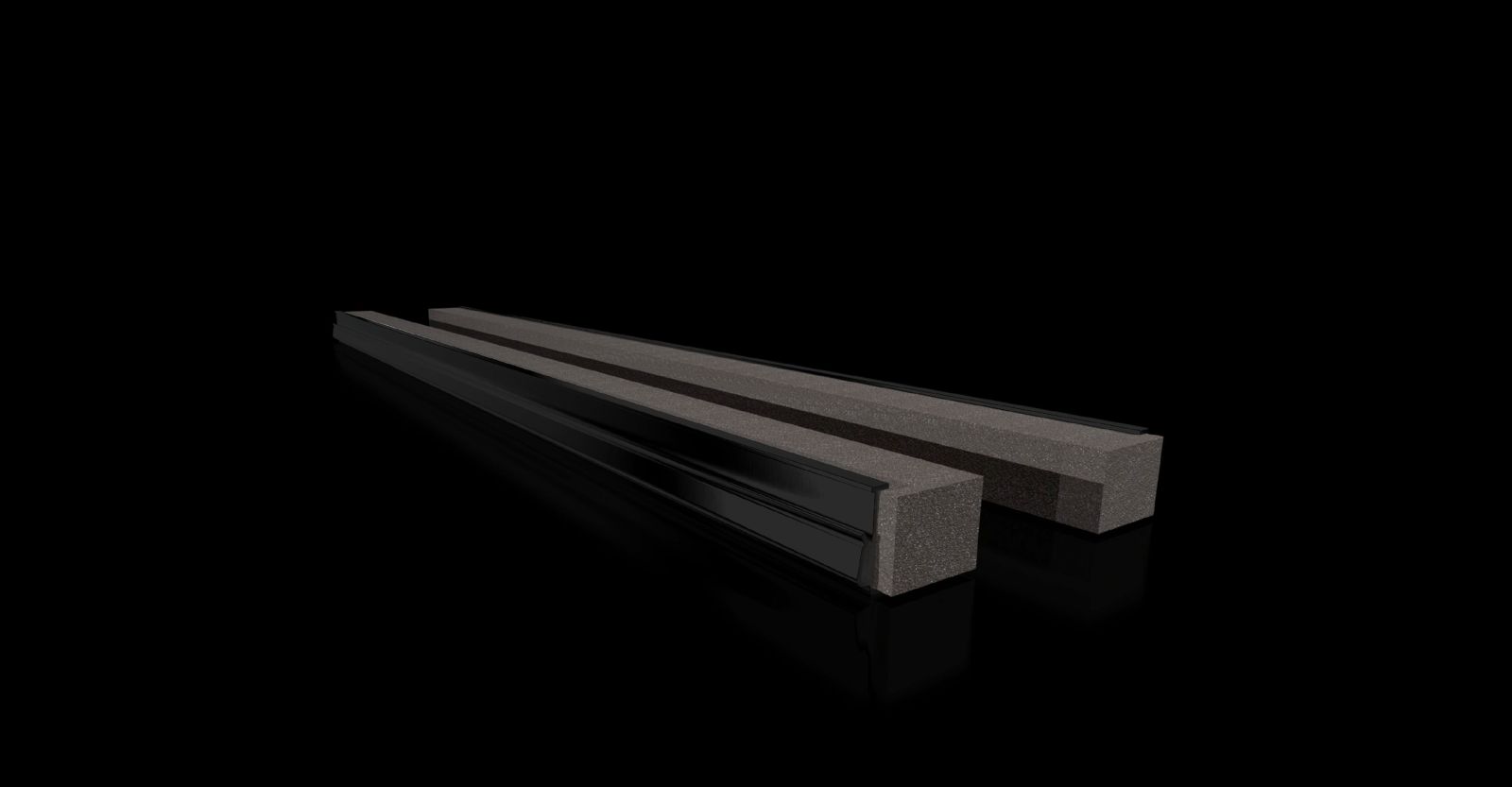

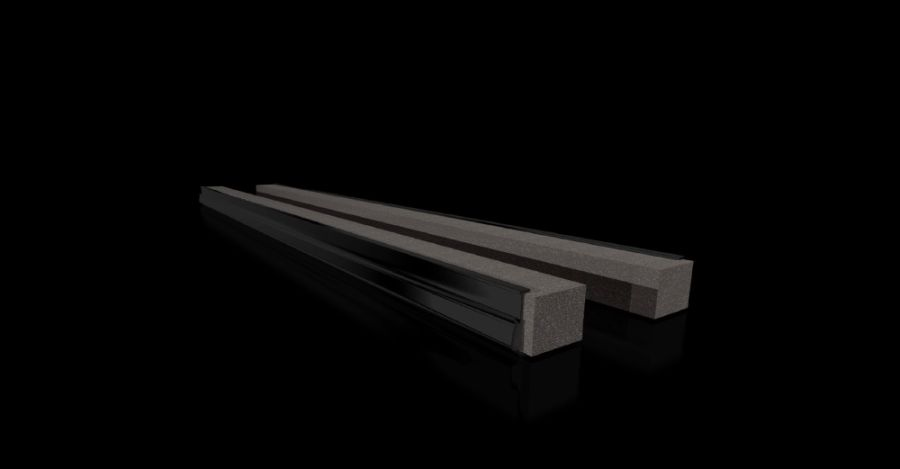

Rittal 8618801 VX profile for cable entry, central, W: 800 mm
|
25,64 EUR |
|
|
( 30,51 EUR incl. VAT ) ≈ £21.46 | ≈ $28.18 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441953 |
| Mfg Part No: | 8618801 |
| UPC/EAN: | 4028177922754 |
| Weight: | 0.24 kg |
| Type: | VX 8618.801 |
Product information for Rittal 8618801:
Applications
This profile is intended for use in industrial enclosures, particularly in systems from the VX, VX SE, CX console base, and CX freestanding console series. It is centrally mounted and specifically designed for enclosures with a width of 800 mm. For enclosure widths of 1000 mm and above, the base group is divided into two sections, allowing a cable entry point to be installed on each side. This enables flexible cable arrangement on both sides of the enclosure.
Functions and Equipment in Detail
The profile is made of rigid PVC, which is flame-retardant and self-extinguishing. The material temperature resistance extends up to +60 °C, making it suitable for industrial environments. The sealing consists of PU foam, which ensures high sealing of the introduced cables. The cross-sectional dimension of the profile is 30 x 25 mm, providing sufficient space for standard cables. The elastic clamping profiles included in the delivery ensure secure cable fixation and support sealing.
Technology Explained Simply
The snap-on profile is directly attached to the base plates of the enclosure without additional mounting aids. The full-surface contact ensures a stable connection and prevents shifting. Combined with a cable strain relief rail, it allows optimal adaptation between cable entry and mounting plate, enabling neat and structured cabling. The PU foam sealing protects against dust and moisture, which is particularly important in industrial applications.
Compatibility and Accessories
The profile is compatible with enclosure types VX (width 800 mm), VX SE, CX console base, and CX freestanding console. It can be used in combination with cable strain relief rails, for example, the VX cable strain relief rail with angle profile in widths 600 mm and 800 mm. These rails support cable routing and improve organization within the enclosure. Additional compatible accessories include C-profile rails TS/SE in width 800 mm.
Installation and Mounting
Mounting is done by snapping the profile onto the pre-fabricated base plates. Two profiles are required per cable entry point. The elastic clamping profiles included in the delivery are used to secure the cables. Installation is simple and requires no additional tools. The pre-advanced mounting position of the mounting plate allows direct cable routing onto the cable strain relief rail.
Operational Advantages
The profile offers easy installation and full-surface contact, ensuring a stable connection. The high sealing provided by PU foam protects the introduced cables from environmental influences. Combined with cable strain relief rails, it enables structured and clear cabling, simplifying maintenance and inspection. The materials are designed for industrial use and offer sufficient temperature resistance up to +60 °C.
| General | |
| Applications | For mounting on floor plates |
| Material | Rigid PVC, Flame retardant, self-extinguishing, temperature resistant up to +60 °C, Seal: PU foam, Cross-section: 30 x 25 mm |
| Scope of delivery | Clip-on profiles, including elastic clamp profiles |
| Note | Two pieces required per cable entry point. For cabinet width 1000 mm and above, the base group is divided into two width sections. Two cable entry points (left/right) can be used. |
| Suitable for | Enclosure type: VX: = 800 mm, Enclosure type: VX SE, Enclosure type: console subunit CX, Enclosure type: freestanding console CX |
