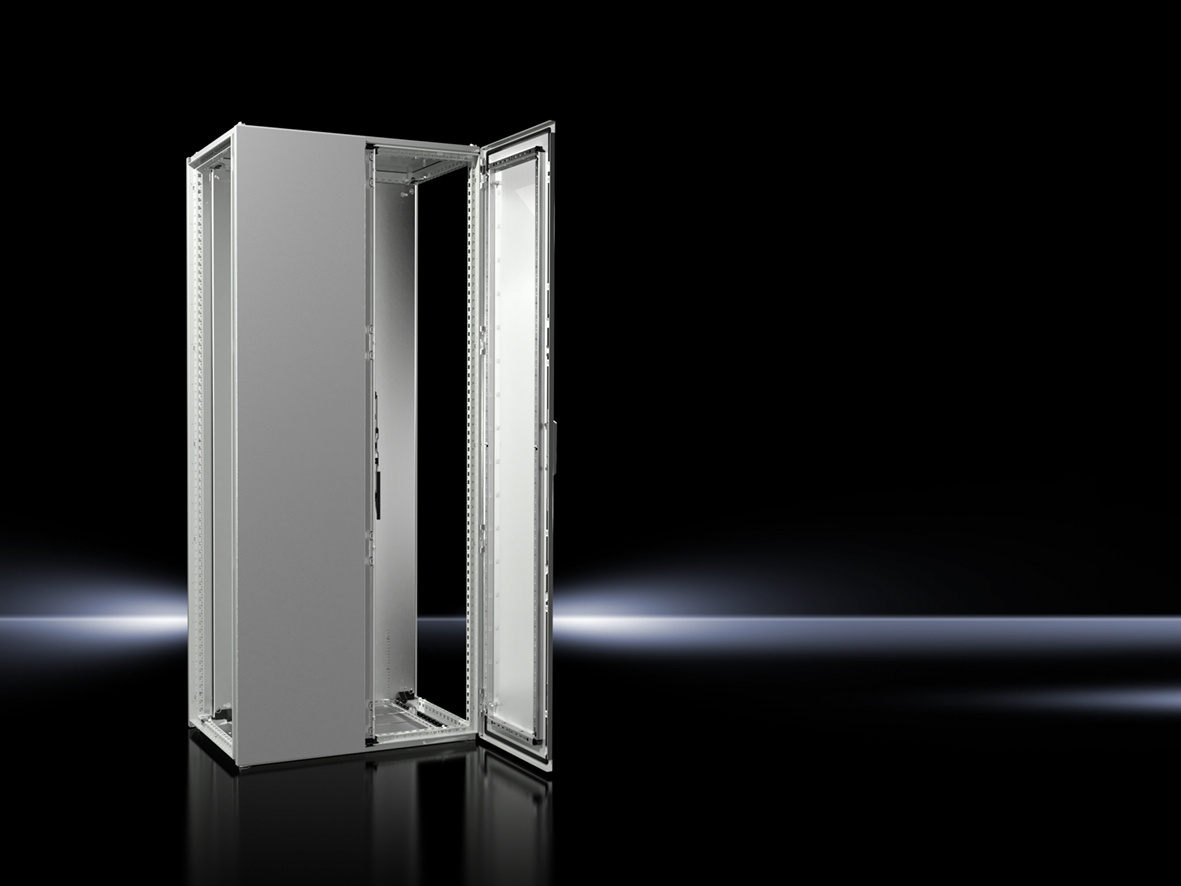

Rittal 8880000 VX bayed enclosure system, 2-door, W x H x D: 800x1800x500 mm
|
673,90 EUR |
|
|
( 801,94 EUR incl. VAT ) ≈ £564.05 | ≈ $740.62 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441157 |
| Mfg Part No: | 8880000 |
| UPC/EAN: | 4028177813908 |
| Weight: | 118.8 kg |
| Type: | VX 8880.000 |
Product information for Rittal 8880000:
Applications
This enclosure system is designed for use in industrial environments where high mechanical load capacity and protection against dust and splashing water are required. It is rated to EN 60 529 with protection class IP 55, ensuring dust-tight and splash-proof conditions. Protection classes NEMA 1 and NEMA 12, as well as type rating according to UL 50E (Type 1, Type 12), make it suitable for indoor use and environments with limited splashing water. The IK code IK10 indicates high mechanical resistance against impacts and vibrations. The enclosure can withstand up to 15,000 N, making it suitable for heavy industrial applications.
Functions and Equipment in Detail
The enclosure system includes an enclosure frame made of 1.5 mm thick sheet steel, two doors made of 2.0 mm sheet steel, a roof plate, a rear panel, divided base plates, and a mounting plate. The doors are fitted with foamed PU foam sealing and feature a bar lock with double bar lock insert according to DIN 43668. The lock door is mounted on the right side and can be tool-free repositioned to the left side. The secondary door is additionally secured with a swing lever for double locking. The door opening is standard 130° and can be tool-free extended to 180°. The clearance from the floor is 17 mm. The rear panel and roof plate are removable and fitted with PU foam sealing. The mounting plate is equipped with integrated plastic gliding pieces and reusable mounting rails to enable depth-adjustable mounting.
Technology Explained Simply
The surface of the enclosure frame is dip-primed, while doors, roof, and rear panel are powder-coated externally using a textured lacquer. The mounting plate and base plates are galvanized, providing an additional corrosion protection layer. The color of the enclosure system is RAL 7035, a gray-beige tone commonly used in industrial environments. Electrical conductivity between frame, rear panel, roof, and base plates ensures automatic equipotential bonding according to DIN 62 208. The base plates are divided into three parts, removable and replaceable, enabling easy maintenance and cleaning.
Compatibility and Accessories
The enclosure system is bayable on all sides and can be expanded with various accessories. Suitable accessories include mounting brackets, levelling feet, cable routing spaces, C-profile rails, transport eyes, dust protection strips, monitor brackets, comfort handles, cable entry ferrules, and multi-locking systems. These components allow individual adaptation to specific requirements in enclosure construction. Mounting plate spacers and partial mounting plates enable flexible use of the mounting surface. The use of cage nuts and metric screws up to M8 is possible across the entire perforation grid.
Mounting and Installation
Mounting is performed via the integrated perforation grid in 25 mm increments, ensuring precise positioning of components. The mounting plate is depth-adjustable and can be adapted using integrated plastic gliding pieces and reusable mounting rails. The base plates are removable and can be detached for transport or maintenance. Fixing to the floor is achieved via the welded base frame with integrated base reinforcement.
Operational Advantages
The enclosure system offers high mechanical stability, reliable protection class, and flexible mounting. The integrated mounting levels and perforation grid simplify internal assembly and reduce installation time. The removable doors, rear panel, and base plates enable easy maintenance and cleaning. Electrical conductivity between components ensures safe equipotential bonding. The use of high-quality materials and robust construction ensure long service life and high reliability in industrial applications.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 800 mm |
| Height | 1.800 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 328.82 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 8880000 VX bayed enclosure system, 2-door, W x H x D: 800x1800x500 mm?
The article Rittal 8880000 VX bayed enclosure system, 2-door, W x H x D: 800x1800x500 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8880000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8880000 VX bayed enclosure system, 2-door, W x H x D: 800x1800x500 mm always at the best possible price. We can give you a discount of 2% on Rittal 8880000 VX bayed enclosure system, 2-door, W x H x D: 800x1800x500 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
