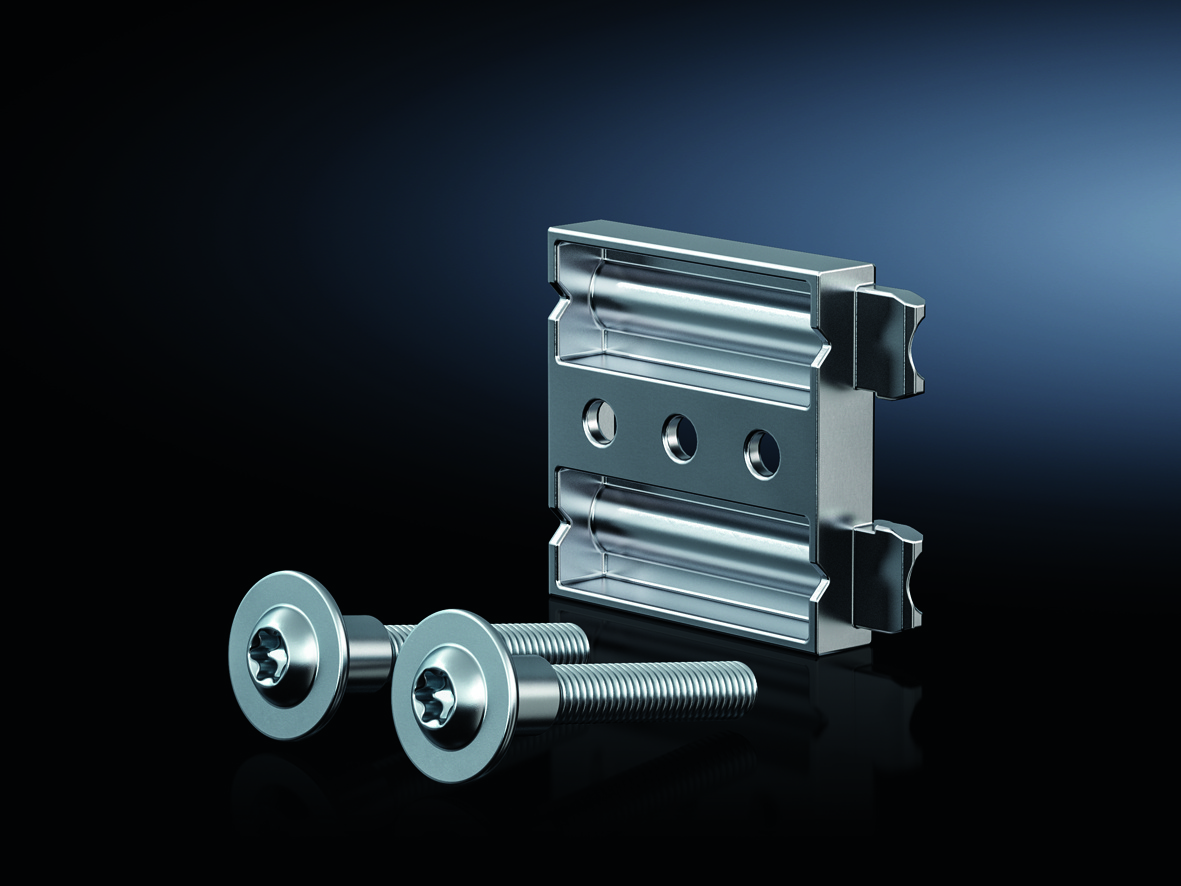

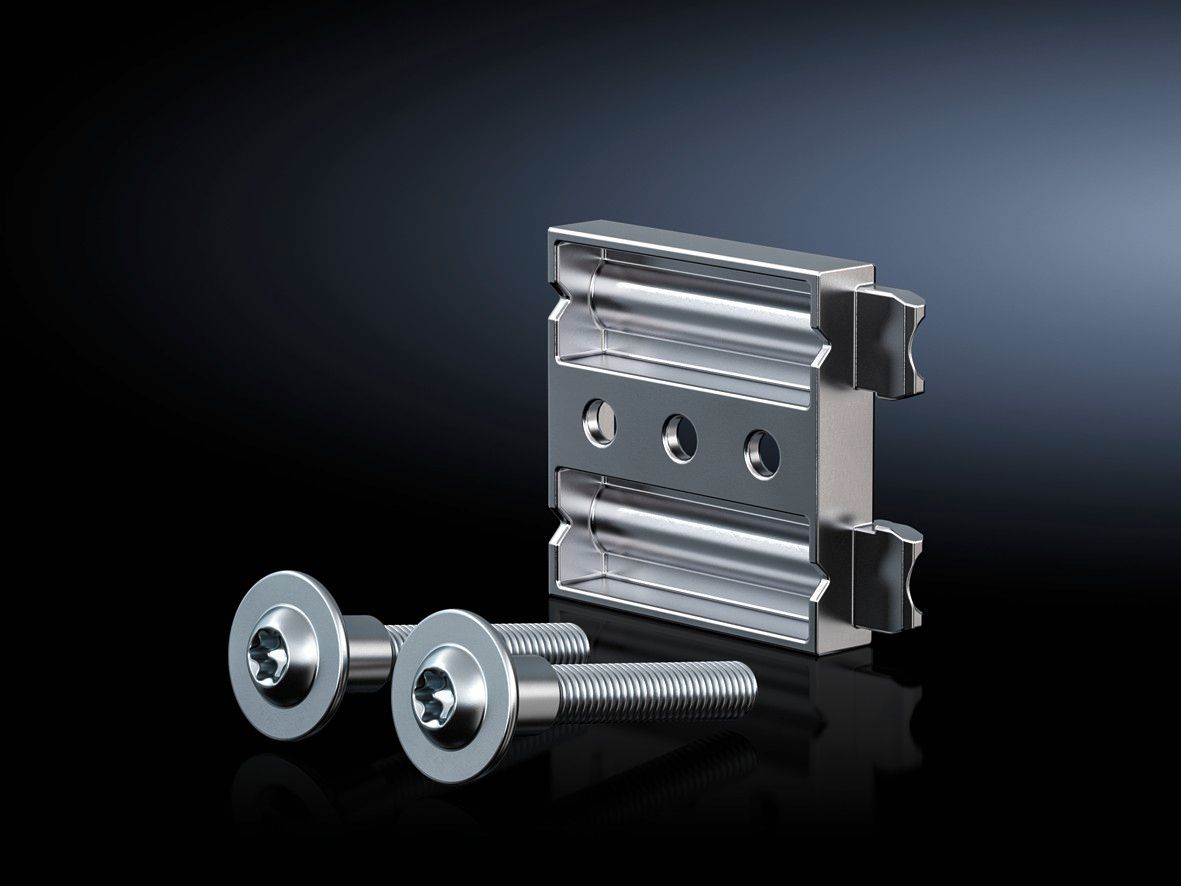

Rittal 8617501 baying block VX internal 6 pcs
|
25,17 EUR 25,18 EUR |
|
|
( 29,95 EUR incl. VAT ) ≈ £21.07 | ≈ $27.66 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440901 |
| Mfg Part No: | 8617501 |
| UPC/EAN: | 4028177919334 |
| Weight: | 0.86 kg |
| Type: | VX 8617.501 |
Product information for Rittal 8617501:
Applications
The baying block is used in industrial plants where multiple enclosures must be mounted side by side. It is particularly suitable for installations with limited space, as it enables a compact, flat connection. Use in environments with higher requirements for protection rating is possible, as the block supports protection rating IP 55 according to IEC 60 529. This means it is dust-tight and protected against water jets from any direction, making it suitable for outdoor use or humid indoor environments. Additionally, it meets type ratings according to UL 50E: Type 1, Type 3R, Type 4, Type 4X, and Type 12, enabling use in various industrial and commercial environments.
Functions and Equipment in Detail
The baying block is flexibly positionable and can be mounted circumferentially at the baying point. Side mounting ensures the enclosure surface is flush with the profile, facilitating the installation of additional components or overbuild units. The delivery includes the internal baying block, the baying seal, and the fastening materials. The seal ensures a watertight and dust-tight connection between enclosures, maintaining the IP 55 protection rating. Fastening is done using the included mounting materials, ensuring a secure and durable connection.
Technology Explained Simply
The block is made of zinc die-cast, a material known for its high strength and corrosion resistance. Using zinc die-cast ensures precise shaping and high mechanical load capacity, which is crucial for industrial applications. The IP 55 protection rating means the block is protected against dust and water jets, making it suitable for use in humid or dusty environments. The UL type ratings (Type 1, 3R, 4, 4X, 12) refer to protection categories according to UL 50E and define in which environments the device may be used, for example, indoors, outdoors, or in environments with splashing water.
Compatibility and Accessories
The baying block is specifically designed for enclosures of type VX and VX IT. It is compatible with corresponding enclosure types and enables secure baying. Suitable accessories include the VX external baying connector, sheet steel (1200 mm) and the VX internal baying bracket (6 pieces). These components complement the baying block and enable a complete, sealing, and mechanically stable connection between multiple enclosures. The combination of internal and external elements ensures a robust and weather-resistant baying.
Mounting and Installation
Mounting is done on the side of the enclosure, with the block mounted circumferentially at the baying point. The included fastening materials allow for easy and secure installation. For enclosures with a width or depth greater than 800 mm, two packaging units are required to ensure a stable connection. The baying seal is used during installation to create a tight connection between enclosures. The packaging unit includes 6 pieces, sufficient for mounting multiple baying points.
Operational Advantages
The baying block provides a stable, tight, and flush connection between enclosures, facilitating the installation of additional components and avoiding collisions. The IP 55 protection rating and UL type ratings enable use in various environments, including humid or dusty rooms. The use of zinc die-cast ensures high mechanical stability and longevity. The combination with suitable accessories such as the external baying connector and internal baying bracket enables a complete, weather-resistant baying that meets the requirements of industrial plants.
| General | |
| Material | zinc die-cast |
| Scope of delivery | Row block, internal, row sealing, including mounting material |
| Note | For mounting cabinets with a width/depth >800 mm, 2 units are required. |
| Suitable for | Housing type: VX, VX IT |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 4X, Type 12 |
| Degree of protection IP according to IEC 60 529 | IP 55 |
