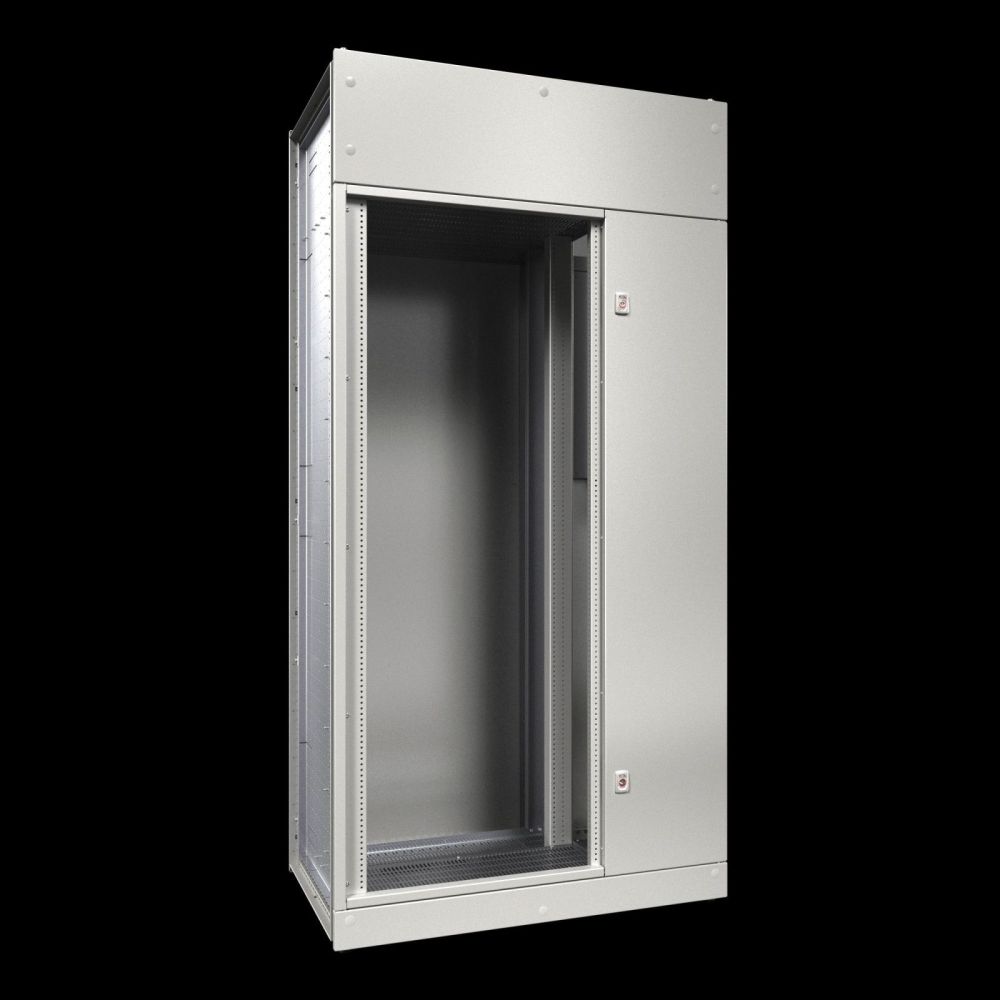

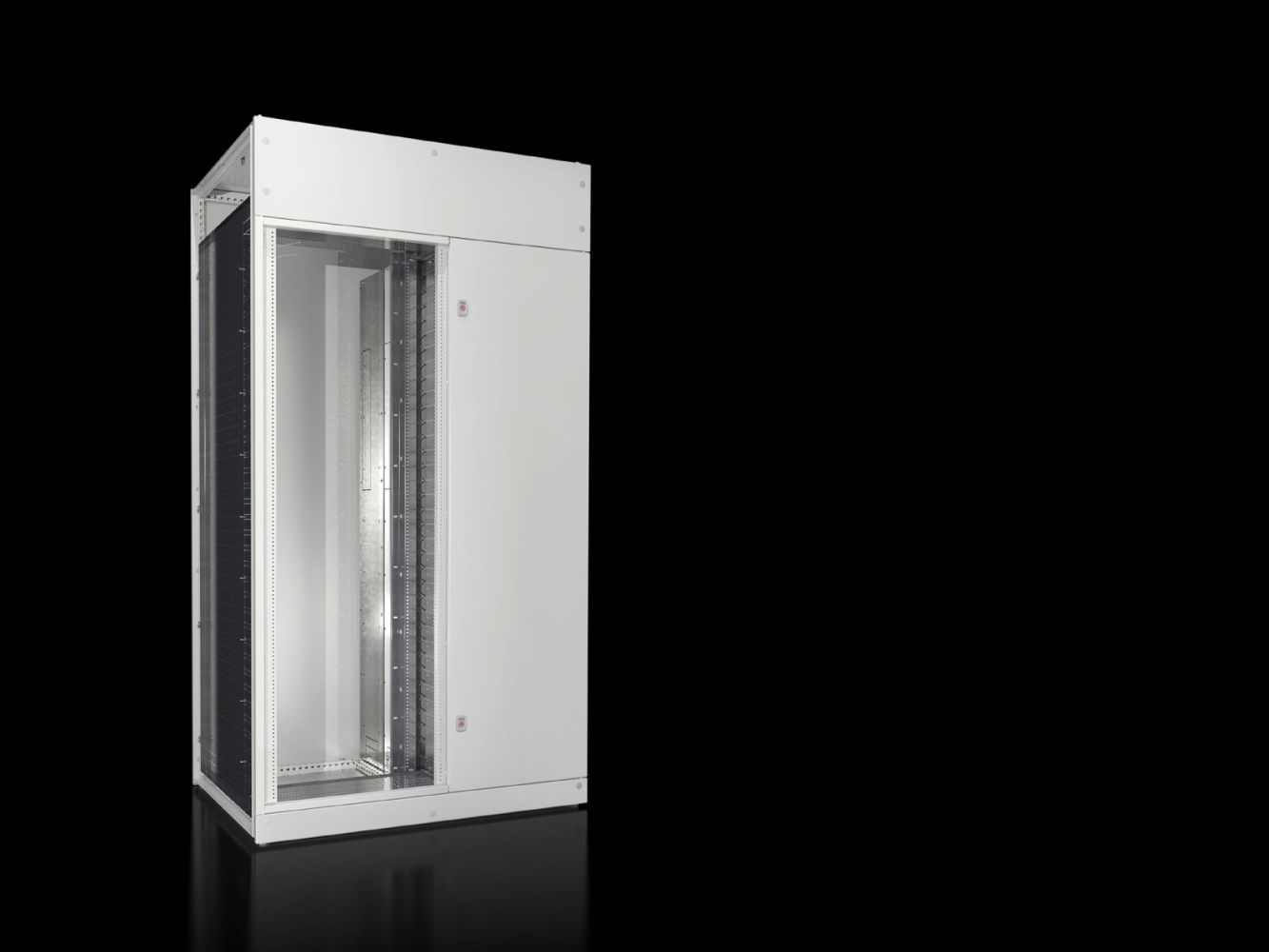

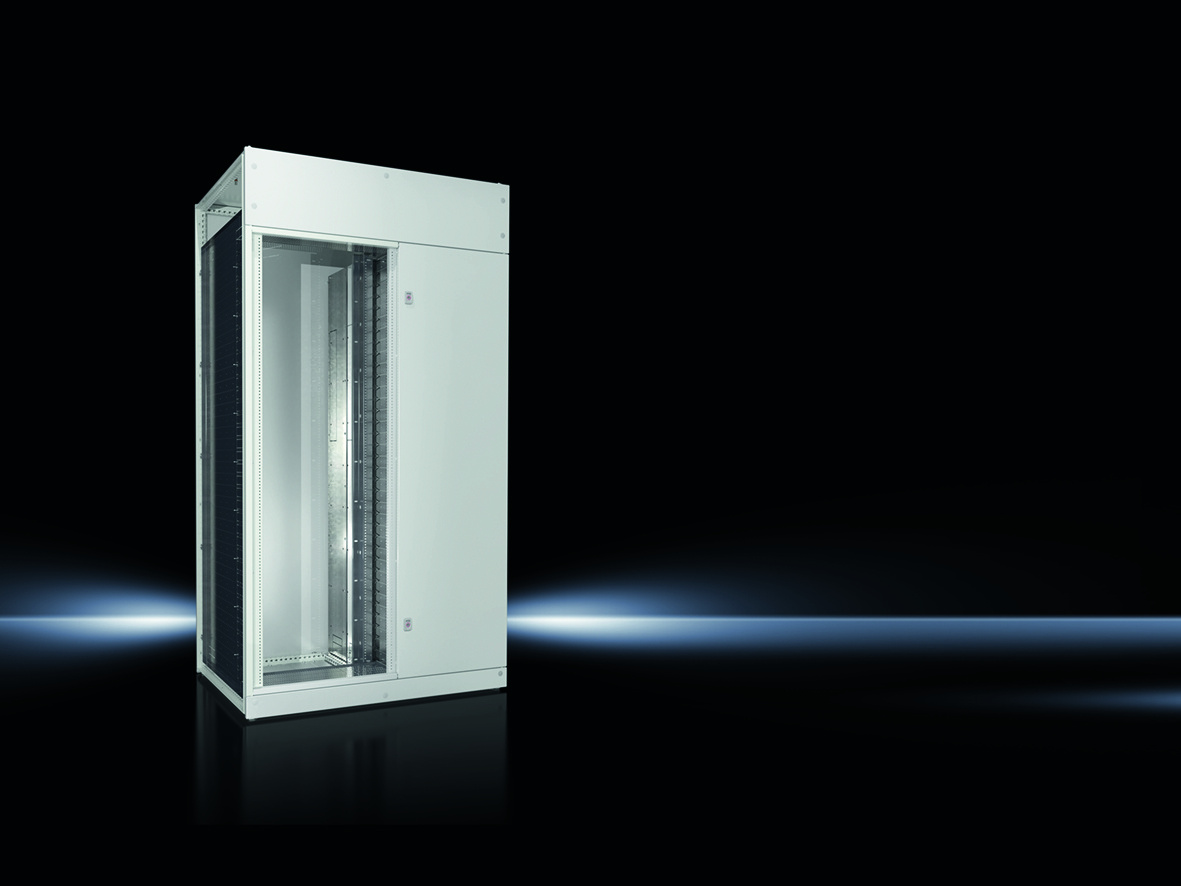

Rittal 9680005 VX enclosure, W x H x D: 1000x2000x600 mm

Your rating:
Average rating
product review for Rittal 9680005 VX enclosure, W x H x D: 1000x2000x600 mm
( 4 / 5 ) 2 ratings
Rittal 9680005
This image may differ from the desired article.
Rittal 9680005Rittal 9680005Rittal 9680005Rittal 9680005Rittal 9680005Rittal 9680005Rittal 9680005
-8% 1.842,30 EUR 1.995,26 EUR
( 2.192,34 EUR incl. VAT )
≈ £1,542.01  |  ≈ $2,024.69
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9680005 VX enclosure, W x H x D: 1000x2000x600 mm
Datasheet:file_download Download
Lieske Part No.:1101088
Mfg Part No: 9680005
UPC/EAN: 4028177937062
Weight:136.2 kg
Type:VX 9680005

Product information for Rittal 9680005:

The Rittal VX 9680005 is a switchgear enclosure from the baying system VX25, designed for the distribution of electrical power using fuse switch disconnectors. The enclosure is made of steel sheet with a wall thickness of 1.5 mm and is intended for use in industrial facilities. The dimensions are 1,000 mm width, 2,000 mm height, and 600 mm depth, making it suitable for medium-sized distribution tasks. The surface of the enclosure frame is dip-primed, while the door, roof, and rear panel are externally powder-coated in the colour RAL 7035. The base plates are galvanized to ensure corrosion protection.

Applications
This enclosure is primarily intended for mounting fuse switch disconnectors, particularly from manufacturers such as ABB SlimLine or Jean Müller SASIL. It serves as a protected functional compartment for electrical distribution in production plants, factories, or industrial buildings. The design allows for baying with additional VX enclosures, enabling a modular and flexible arrangement of distribution units.

Functions and Equipment in Detail

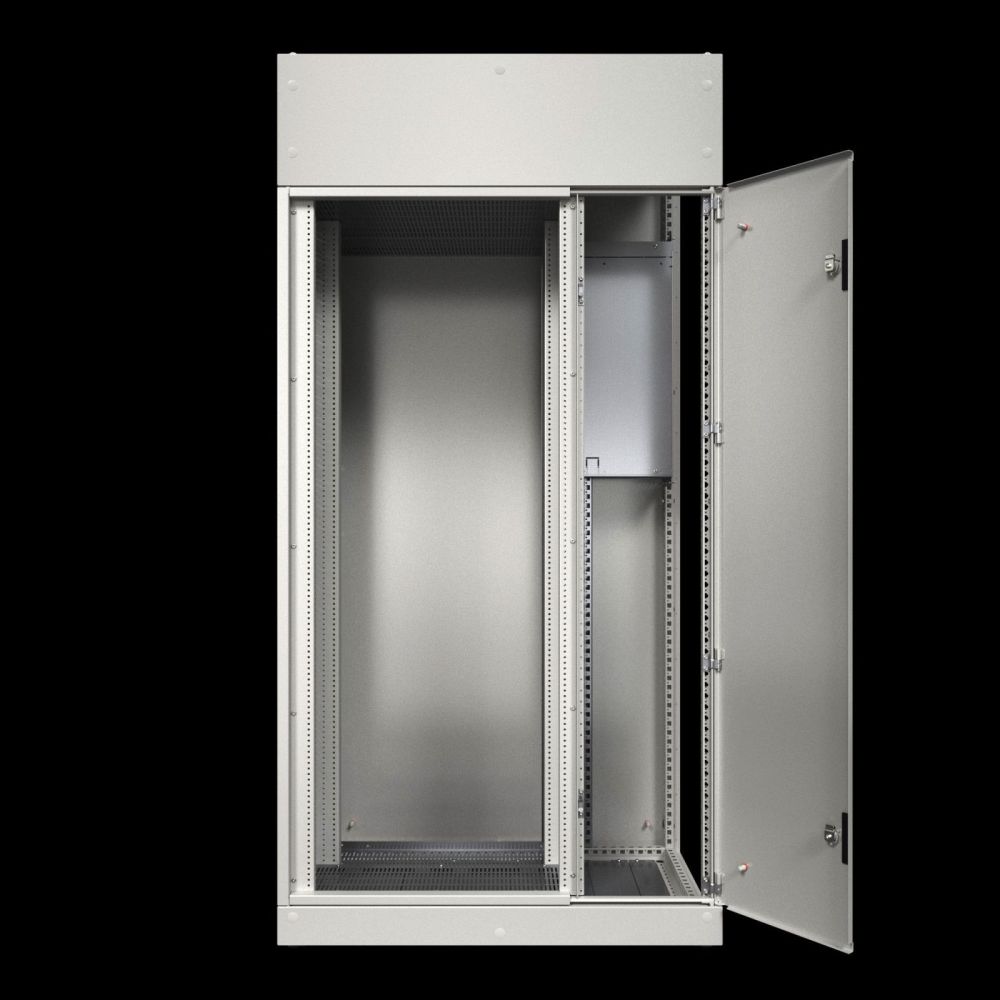

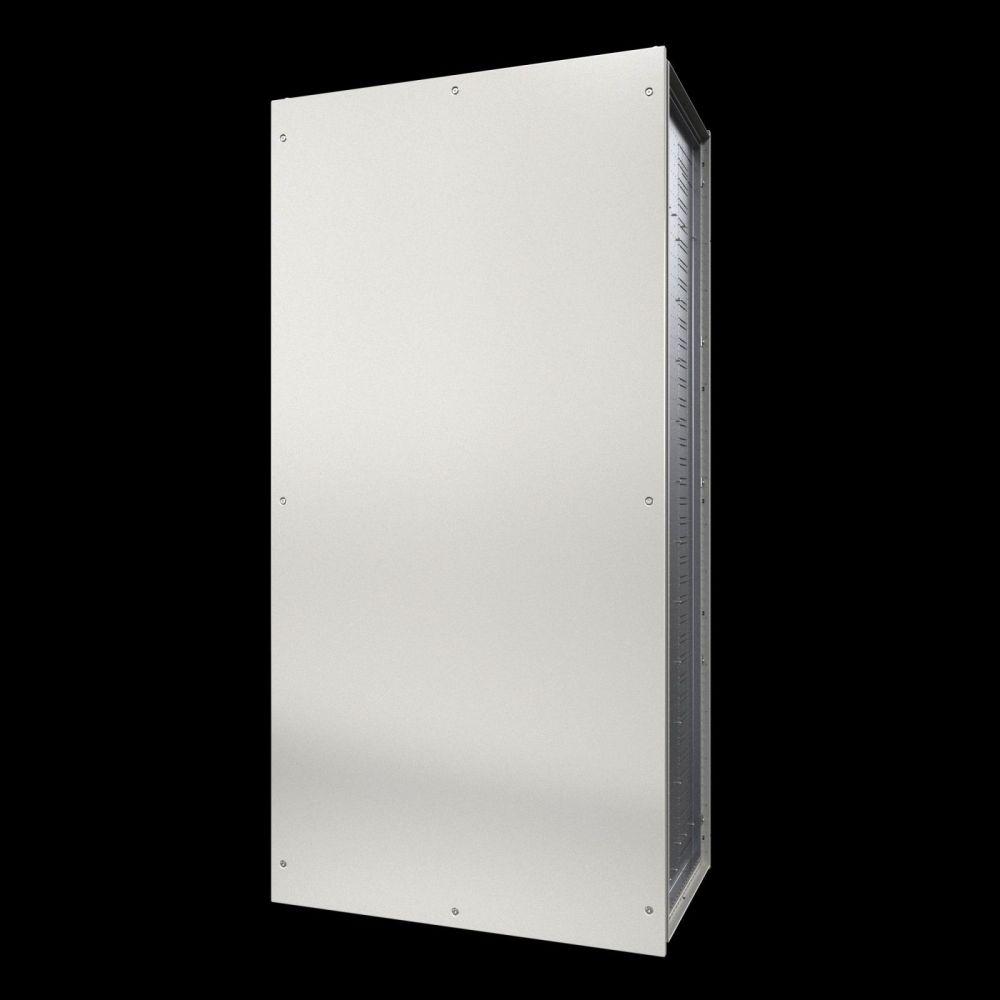

The delivery scope includes the complete enclosure frame, a door, a roof plate, a rear panel, base plates, front trim panels, a lock with 3 mm double bolt, and functional compartment side panels. An integrated mounting frame enables secure installation of switchgear with fuses. The front trim panels serve for shielding and aesthetic design of the front side. The construction is designed to ensure safe and accessible installation of electrical components.

Technology Explained Simply
The protection rating IP up to IP 2X (depending on cladding) means that the enclosure is protected against contact with fingers and against entry of solid foreign objects larger than 12.5 mm. The exact IP class depends on the type of cladding, as additional covers or screw connections may affect the protection function. The testing basis is according to IEC 61 439-1/-2 and IEC 61 641, confirming compliance with international standards for switchgear and distribution enclosures. The use of steel sheet with 1.5 mm thickness ensures sufficient mechanical stability and durability.

Compatibility and Accessories
Various accessories are available for extending and adapting the enclosure. These include plinth trim panels in different heights and positions (front, rear, side), plinth corner pieces with trim panels, and screwable side panels in size 2000×600 mm. External baying connectors (1200 mm), internal baying brackets, and baying blocks enable secure connection of multiple enclosures. A matching roof plate for VX with width 1000 mm and depth 600 mm is also available to enhance the protection rating.

Mounting and Installation
Assembly is carried out by screwing together the individual components. The pre-fabricated front trim panels and mounting frame facilitate installation of the switchgear. The base plates are galvanized, providing a corrosion-resistant foundation. Baying is achieved via the designated baying brackets and blocks, resulting in a stable and neat arrangement of multiple enclosures. The enclosure door is equipped with a 3 mm double bolt lock, ensuring secure locking.

Advantages in Operation
The enclosure offers a modular and expandable structure that can be adapted to different requirements. The use of standard components such as ABB SlimLine or Jean Müller SASIL enables easy integration into existing systems. The robust construction from steel sheet and the powder-coated surface ensure a long service life. The clear structure and pre-fabricated mounting elements reduce installation time and increase safety during commissioning.

The product identification VX 9680005 is unique and corresponds to the manufacturer’s number. The environmental impact is documented by the PCF value (Cradle-to-Gate) of 308.7 kg CO2 eq (Category B), which is approximately calculated based on product weight and self-declared. This value serves as a reference for ecological assessment of the product over its lifecycle.

General
MaterialSheet steel, 1.5 mm
Surface protectionCabinet frame: dip primed, door, roof and rear panel: dip primed, externally powder coated, textured lacquer, base plates: galvanized
ColourRAL 7035
Scope of deliverycabinet frame, door, roof sheet, rear panel, floor sheets, front panels, lock: 3 mm double bar, functional space side walls, mounting frame for switchgear strips with fuses (manufacturer ABB SlimLine/Jean Müller SASIL)
Degree of protection IP according to EN 60 529up to IP 2X (depending on paneling)
Test basisIEC 61 439-1/-2, IEC 61 641
Width1.000 mm
Height2.000 mm
Depth600 mm
PCF/VE (Cradle-to-Gate)308.7 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 9680005, EAN: 4028177937062
