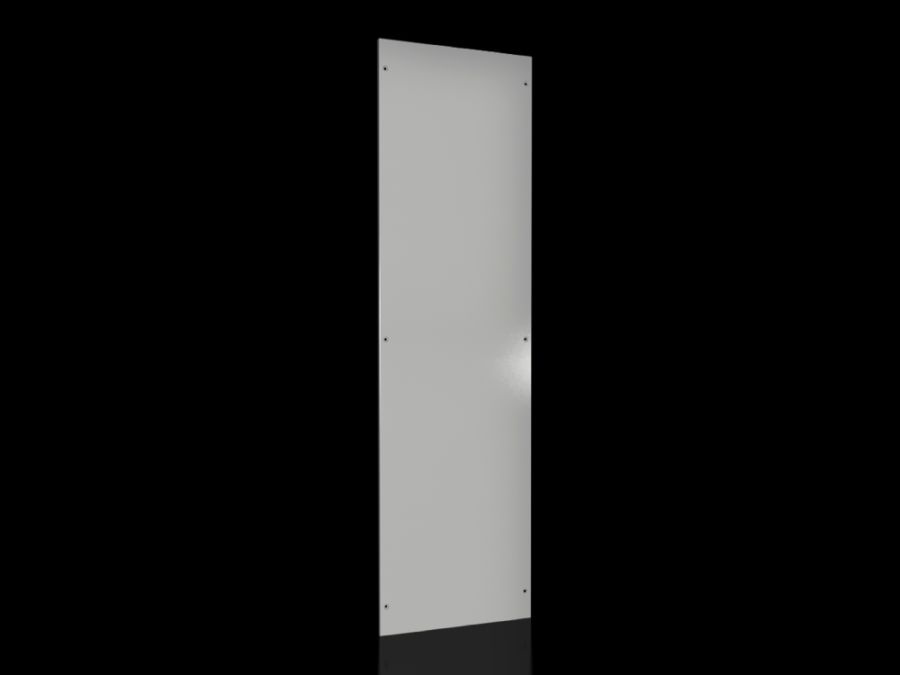

Rittal 8106245 Side panel VX H x D 2000x600 mm screwable 2 pcs

Your rating:
Average rating
product review for Rittal 8106245 Side panel VX H x D 2000x600 mm screwable 2 pcs
( 4.4 / 5 ) 25 ratings
Rittal 8106245
This image may differ from the desired article.
Rittal 8106245Rittal 8106245Rittal 8106245
144,33 EUR 150,11 EUR
( 171,75 EUR incl. VAT )
≈ £120.80  |  ≈ $158.62
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 8106245 Side panel VX H x D 2000x600 mm screwable 2 pcs
Datasheet:file_download Download
Lieske Part No.:1440661
Mfg Part No: 8106245
UPC/EAN: 4028177827417
Weight:29 kg
Type:VX 8106.245

Product information for Rittal 8106245:

Rittal VX 8106.245 is a screw-mounted side panel for enclosures of the VX system, designed for an enclosure height of 2,000 mm and a depth of 600 mm. The component is made of steel sheet with a thickness of 1.5 mm and is designed for use in industrial applications where a robust and reliable construction is required. The surface is dip-primed and externally powder-coated, ensuring high corrosion resistance and a uniform color finish in RAL 7035. The side panel is supplied in a packaging unit of two pieces and includes the necessary mounting hardware, enabling installation without additional purchases.

Applications
This side panel is specifically developed for enclosures of the VX system used in industrial electrical engineering, automation technology, and machine building. It fits enclosures with an exact height of 2,000 mm and a depth of 600 mm, enabling standardized mounting in modular systems. The construction is suitable for environments with high requirements for protection class and EMC protection, particularly in production halls, factories, or outdoor areas where protection against dust, splashing water, and mechanical impacts is required.

Functions and Equipment in Detail
Mounting of the side panel is done by screwing, with clipsable side panel holders enabling time-saving and precise fastening. The holders are designed to support easy positioning in height and depth via an integrated hanging aid. This facilitates one-person installation and reduces mounting effort. A special feature is the automatic equipotential bonding, achieved through flat part holders with internal contact elements. This ensures a reliable earthing connection and enhances the EMC protection of the entire enclosure system. The earthing bolts feature a large, lacquer-free contact surface, ensuring optimal electrical connection and minimizing corrosion effects.

Technology Explained Simply
The side panel is made of steel sheet, providing sufficient mechanical stability to withstand loads in industrial operation. The thickness of 1.5 mm represents a balanced combination of strength and weight. The surface treatment with dip priming and powder coating protects the material against corrosion and ensures long service life, even under harsh operating conditions. The color RAL 7035 is a gray tone commonly used in industrial environments, as it integrates well into the surroundings and offers high visibility.

Compatibility and Accessories
The side panel is specifically designed for enclosures of the VX system with a height of 2,000 mm and a depth of 600 mm. It is compatible with corresponding enclosures and mounting elements of the VX system. As suitable accessories, a VX internal locking mechanism for side panel, galvanized, is offered, enabling additional securing of the side panel within the enclosure. This locking mechanism can be used in applications requiring additional mechanical fixation, for example in mobile or transportable installations.

Mounting and Installation
Installation is done by screwing onto the designated holders inside the enclosure. The clipsable holders allow quick and precise positioning, reducing installation time. The hanging aid supports exact alignment in height and depth, ensuring clean and uniform installation. One-person installation is possible, as the design does not require additional tools or multiple people. The earthing bolts are already integrated and ensure direct contact with the enclosure earthing.

Operational Advantages
The VX 8106.245 offers high mechanical stability and reliable electrical connection through integrated earthing bolts. Protection ratings IP 55 and IP 55 according to IEC 60 529, as well as Type ratings Type 1, Type 3R, Type 4, and Type 12 according to UL 50E, guarantee high protection against dust, splashing water, and mechanical impacts. This makes the side panel suitable for use in harsh environments where high reliability and longevity are required. The simple installation and integrated features such as automatic equipotential bonding and EMC protection reduce maintenance effort and increase the operational safety of the entire enclosure system.

General
MaterialSheet steel, 1.5 mm
Surface protectionDip-coated, powder-coated exterior
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forEnclosure type: VX, height: = 2.000 mm, depth: = 600 mm
Degree of protection IP according to IEC 60 529IP 55, IP 66
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)86.73 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8106245, EAN: 4028177827417
