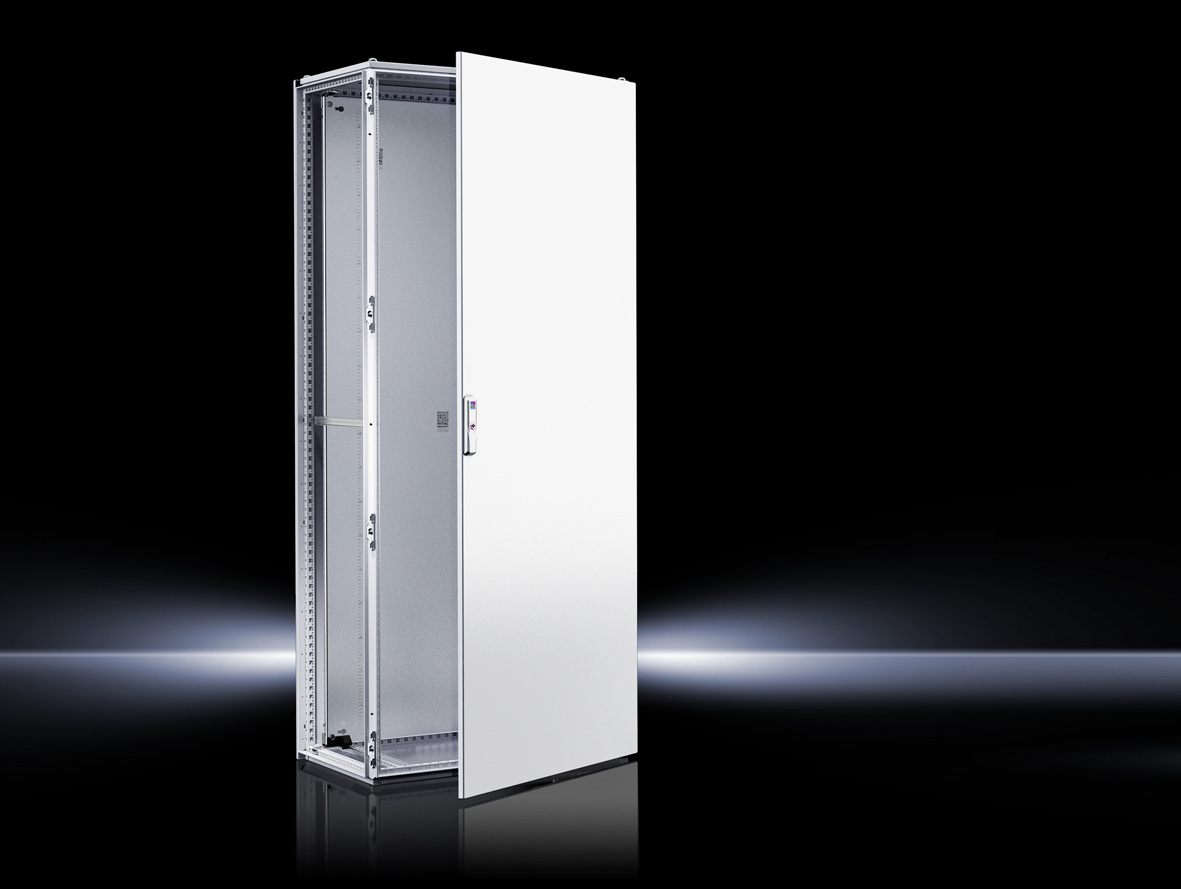

Rittal 8807000 VX bayed enclosure system IP66/NEMA4 800x2000x600 mm
|
918,85 EUR |
|
|
( 1.093,43 EUR incl. VAT ) ≈ £769.08 | ≈ $1,009.82 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441724 |
| Mfg Part No: | 8807000 |
| UPC/EAN: | 4028177924543 |
| Weight: | 140.4 kg |
| Type: | VX 8807.000 |
Product information for Rittal 8807000:
Applications
This enclosure system is globally applicable, as it meets the highest protection requirements according to European and American standards. It is particularly suitable for outdoor areas, humid or dusty environments, and for installations exposed to high mechanical stress. The protection rating IP 66 ensures dust-tightness and protection against strong splashing water, while the NEMA classification NEMA 4 and NEMA 12 confirms suitability for humid, dusty, and slightly contaminated environments. The certification according to UL 50E as Type 1, Type 3R, Type 4, and Type 12 underscores its global applicability.
Functions and Equipment in Detail
The enclosure system consists of an enclosure frame made of sheet steel with a wall thickness of 1.5 mm, complemented by a door made of 2.0 mm sheet steel, fitted with a PU foam seal. The door is standard right-hinged but can be toollessly repositioned to the left side. The locking is achieved via a 3 mm double latch, ensuring secure latching. The door opening angle is 130° and can be toollessly extended to 180°. The clearance from the floor is 17 mm, enabling easy mounting and maintenance.
The mounting plate made of 3.0 mm sheet steel is C-flanged on the sides and is depth-adjustable in 25 mm increments via integrated plastic glides and reusable mounting rails. It features a mounting grid to simplify component positioning. The enclosure system is bayable on all sides and has a load capacity of up to 15,000 N.
Technology Explained Simply
The construction of the enclosure system is based on a symmetrical profile frame structure with closed and profiled hollow profiles. The horizontal profiles feature an additional groove above the seal to improve water drainage. The entire construction is perforated with a 25 mm grid, enabling flexible mounting of components. Integrated blind rivet nuts M6 allow protection-rated fastening of fittings. All profile edges are rounded to minimize injury risks.
The rear panel and roof plate are also made of 1.5 mm sheet steel and fitted with PU foam seals. Both are removable and reinforced with square tube frames. The roof plate is mounted using M12 fastening screws. The rear panel and roof plate are electrically connected to the frame, enabling automatic equipotential bonding according to DIN 62 208 and simplifying grounding.
Compatibility and Accessories
Various accessories are compatible with the enclosure system, extending its functionality. These include levelling feet M12 with an adjustment height of 18–43 mm, transport eyes for freight shipping, SM TFT/monitor mounts with VESA connection, VX comfort handles for half cylinders or lock inserts, side panels sized 2000×600 mm, baying connectors externally (1200 mm), baying brackets and baying blocks internally, as well as various partial mounting plates in different dimensions. These components allow individual adaptation of the enclosure to specific requirements.
Mounting and Installation
Mounting is performed via integrated mounting levels and the 25 mm perforation. The mounting plate is depth-adjustable, allowing adaptation to different mounting heights. The base plates are removable and replaceable, enabling easy maintenance and cleaning. The entire construction is designed for space-saving and quick installation.
Operational Advantages
The Rittal VX 8807.000 offers high mechanical stability and a robust construction that functions reliably even under harsh operating conditions. The integrated mounting plate and flexible perforation simplify component installation. The high protection rating IP 66 and NEMA certifications enable use in demanding environments. The conductive connection between rear panel, roof, and frame ensures safe equipotential bonding. The tool-free repositioning of the door hinge and the extendable door opening increase flexibility during mounting and maintenance.
The surface of the enclosure system is dip-primed and powder-coated with a structured paint in the colour RAL 7035, ensuring high corrosion resistance and long service life. The product is delivered in a packaging unit of 1 piece and has a net weight of 130 kg.
The PCF values (Cradle-to-Gate) amount to 344.9 kg CO2 eq (Category B), with the value being approximately calculated and self-declared based on product weight. Certifications include DNV, UL, and C-UL (listed), confirming international applicability.
The enclosure system is designed for use in industrial plants, automation technology, power supply, and other areas with high protection requirements. The combination of high protection rating, robust material, and flexible mounting design makes it a reliable solution for demanding applications.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame, door, roof, base, rear panel: dip primed and powder coated, textured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Cabinet frame, door, door hinge right, convertible to left, roof sheet, base, rear panel, mounting plate, lock: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 600 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| PCF/VE (Cradle-to-Gate) | 344.9 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
