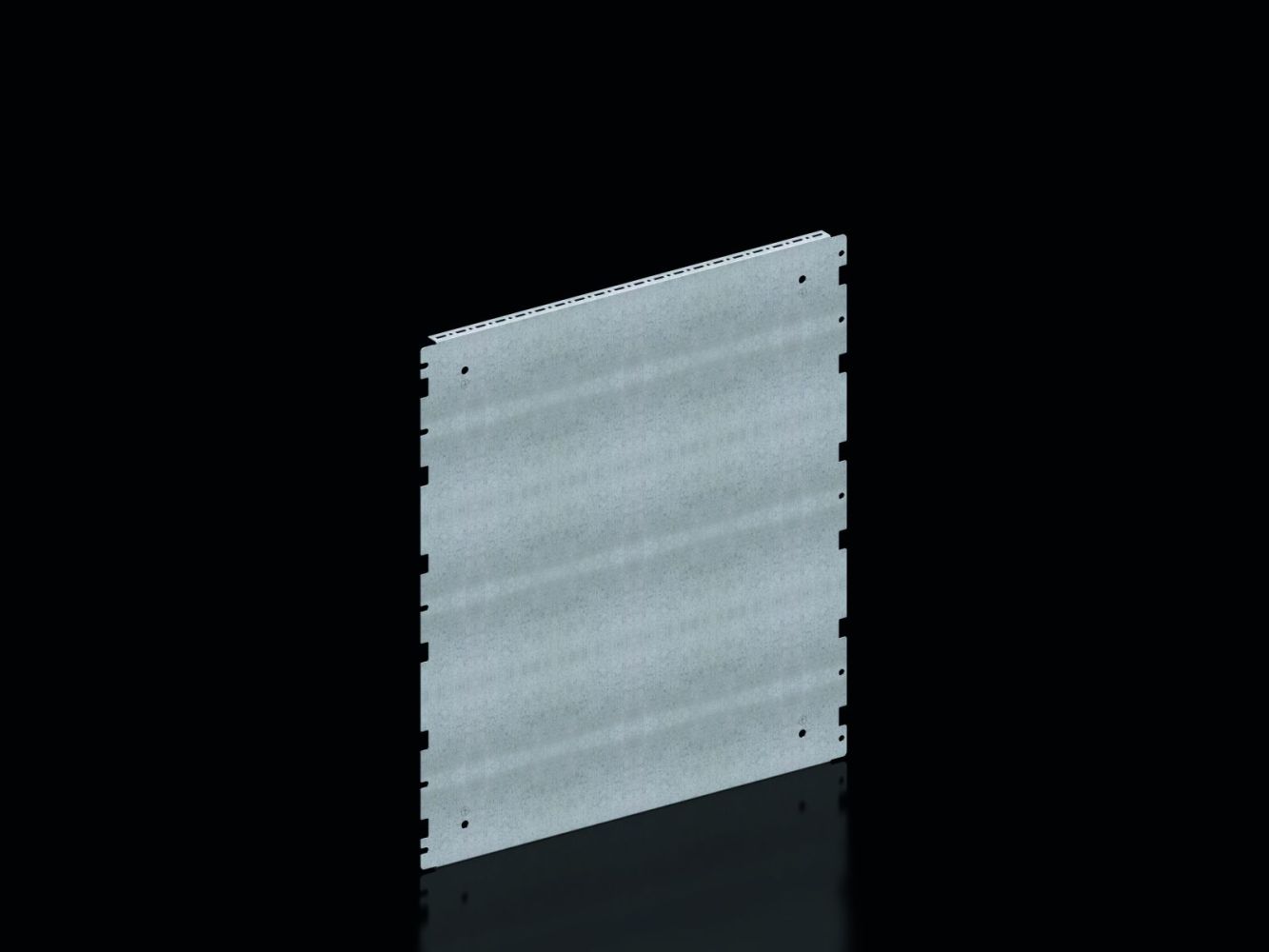

Rittal 8617663 VX partial mounting plate, mounting outside, W x H: 600x600 mm
|
-10% 42,67 EUR 47,60 EUR |
|
|
( 50,78 EUR incl. VAT ) ≈ £35.71 | ≈ $46.89 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1908937 |
| Mfg Part No: | 8617663 |
| UPC/EAN: | 4028177947177 |
| Weight: | 4.14 kg |
| Type: | VX 8617663 |
Product information for Rittal 8617663:
Applications
The partial mounting plate is designed for use in enclosures with a width and depth of 600 mm. It is frequently used in industrial electrical engineering where modular and adaptable internal fitting is required. The plate is suitable, for example, for mounting control devices, fuses, indicator instruments, or network and communication components. The integrated system perforations along the edge facilitate individual component fixation and enable precise positioning.
Functions and Equipment in Detail
The plate is directly mounted onto the enclosure profile, with installation carried out using the included mounting hardware. For VX SE enclosures, an additional VX adapter rail is required to enable mounting to the enclosure profile. Using the adapter rail ensures secure and stable installation. The plate is thus designed for integration into existing enclosure constructions without requiring additional modifications.
Technology Explained Simply
The construction from 1.5 mm thick sheet steel provides sufficient stiffness to safely support larger or heavier components. The zinc-coated surface protects the material from environmental influences such as moisture or minor corrosion, which is particularly beneficial in industrial environments. The dimensions of 600 mm × 600 mm correspond to the standard format for many enclosure types, making the plate universally applicable. The visible dimensions of 538 mm (width) and 598 mm (height) refer to the outer contour of the plate, while the actual mounting surface measures 600 mm × 600 mm.
Compatibility and Accessories
The partial mounting plate is specifically designed for enclosure types VX and VX SE. For VX SE enclosures, the use of a VX adapter rail is required to enable mounting to the enclosure profile. The plate is not intended for other enclosure types unless explicitly stated. Compatibility is limited to enclosures with a width and depth of 600 mm.
Mounting and Installation
Installation is carried out directly onto the enclosure profile using the mounting hardware included in the delivery. For VX SE enclosures, additional installation of a VX adapter rail is necessary to ensure mounting capability. The system perforations along the edge allow for flexible and precise positioning of components to be mounted.
Operational Advantages
The partial mounting plate provides a flexible platform for individual internal assembly, enabling quick component installation without additional parts. The integrated system perforations reduce installation time and increase precision. The use of sheet steel with a zinc-coated surface ensures high mechanical stability and longevity. Compatibility with VX and VX SE enclosure types allows for easy integration into existing systems.
| General | |
| Material | Sheet steel, 1.5 mm |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Mounting options | Mounting is directly onto the cabinet profile |
| Note | In VX SE on cabinet profile in combination with adapter rail VX |
| Width | 538 mm |
| Height | 598 mm |
| Suitable for housing type | VX, VX SE |
| Suitable for | Cabinet type: VX, VX SE, width/depth: 600 mm |
Questions & answers
What is the delivery time of Rittal 8617663 VX partial mounting plate, mounting outside, W x H: 600x600 mm?
The article Rittal 8617663 VX partial mounting plate, mounting outside, W x H: 600x600 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617663 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8617663 VX partial mounting plate, mounting outside, W x H: 600x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617663 VX partial mounting plate, mounting outside, W x H: 600x600 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
