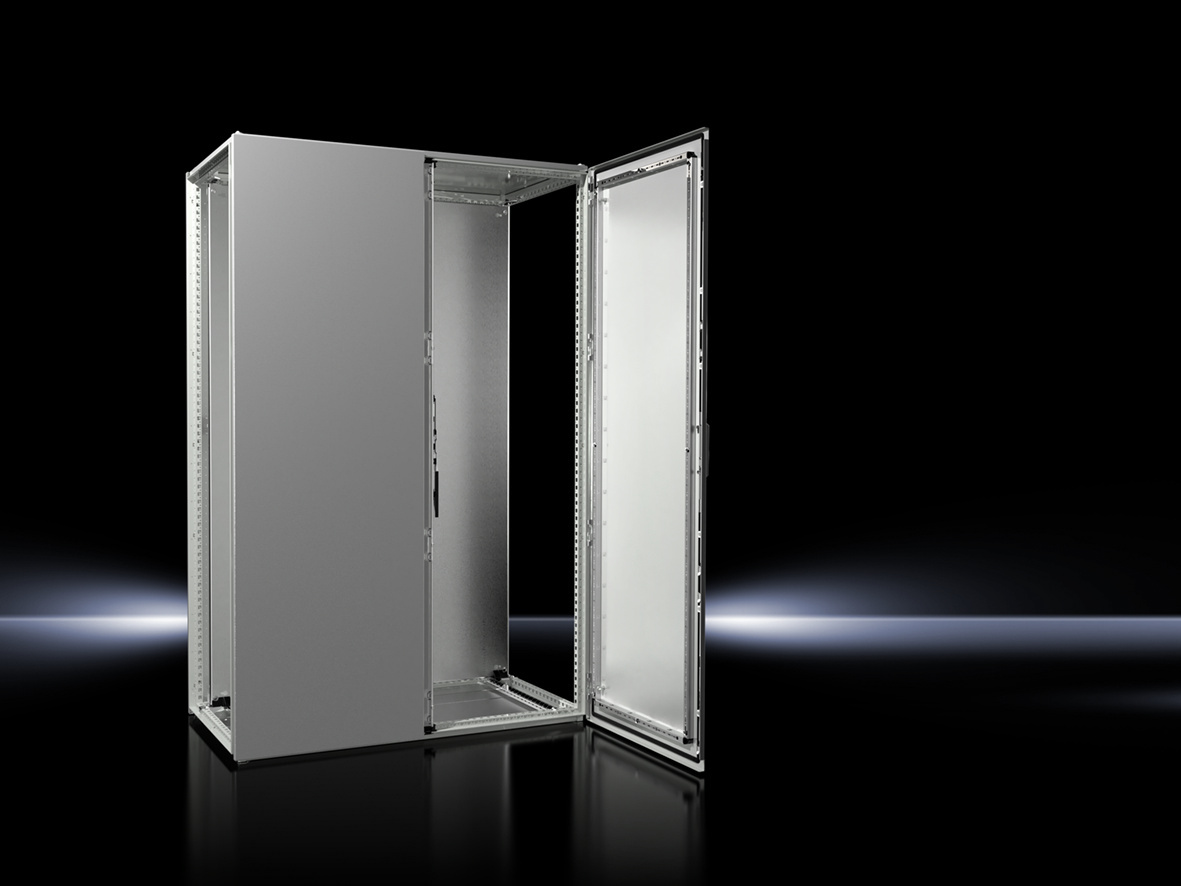

Rittal 8286000 VX bayed enclosure system, 2-door, W x H x D: 1200x1800x600 mm,
|
918,47 EUR 918,72 EUR |
|
|
( 1.092,98 EUR incl. VAT ) ≈ £768.76 | ≈ $1,009.40 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440719 |
| Mfg Part No: | 8286000 |
| UPC/EAN: | 4028177813663 |
| Weight: | 174.4 kg |
| Type: | VX 8286.000 |
Product information for Rittal 8286000:
Applications
This enclosure system is suitable for use in industrial plants, such as in manufacturing technology, automation technology, or power supply. The protection rating IP 55 according to EN 60 529 protects against dust and splashing water, making it suitable for indoor areas with increased contamination risk or occasional moisture. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for dry indoor environments and environments with light dirt. The IK code IK10 guarantees mechanical protection against impact from objects with energy up to 10 Joules, highlighting the robustness of the enclosure.
Functions and Equipment in Detail
The enclosure system includes the enclosure frame, two front doors, a roof plate, a rear panel, divided base plates, a mounting plate, and two mounting rails with dimensions 18 x 39 mm. The doors are fitted with a foamed PU foam seal to ensure a tight seal. Door hinges are standardly arranged on the right side but can be tool-free repositioned to the left side. The lock door is equipped with a four-point locking bar lock, accepting a 3 mm double bar according to DIN 43668. The secondary door is additionally secured with a swing lever for double locking. The door opening angle is 130° and can be tool-free extended to 180°. The clearance from the floor is 17 mm.
Technology Explained Simply
The construction of the enclosure system enables quick and efficient installation. Integrated blind rivet nuts M6 in the frame allow protection-rated fastening of fittings. The horizontal profiles feature an additional groove above the seal, providing additional protection. The entire profile structure has rounded edges, facilitating installation and reducing injury risks. The base plates are divided into three parts, removable and replaceable, simplifying maintenance and cleaning. The rear panel and roof plate are removable and fitted with a PU foam seal to ensure a tight seal. The rear panel includes a positioning aid to facilitate installation.
Compatibility and Accessories
The enclosure system is compatible with various accessories that enable use in different application scenarios. These include levelling feet M12 with an adjustment height of 18–43 mm, mounting plate spacers, C-profile rails 30/15 according to EN 60715, transport eyes, cable routing spaces, base plates, comfort handles, dust protection strips, mounting brackets, cable entry ferrules in various diameters, circuit diagram pockets, multitools, and system chassis. These accessories can be added as required to extend the functionality of the enclosure system.
Installation and Mounting
Mounting is performed via the integrated mounting grid and reusable mounting rails. The mounting plate is depth-adjustable, enabling flexible positioning of components. The base plates are secured to the base frame using integrated fastening elements, which has a load capacity of up to 15,000 N.
Operational Advantages
The enclosure system offers high mechanical stability and reliable protection for installed components. The IP 55 protection rating ensures good protection against dust and splashing water. The integrated mounting plate and depth-adjustable mounting rails enable flexible and efficient installation. Removable doors, rear panel, and roof plate facilitate maintenance and inspection. The automatic equipotential bonding connection between rear panel, roof, base plates, and frame according to DIN 62 208 ensures safe earthing. The surface of the enclosure frame is dip-primed, while doors, roof, and rear panel are externally powder-coated, providing high corrosion resistance. The colour RAL 7035 is a neutral grey tone that integrates well in industrial environments.
The surface of the mounting plate and base plates is galvanized, providing additional corrosion protection. The entire construction is designed for use in industrial plants and offers high reliability and durability. The use of sheet steel in various wall thicknesses (1.5 mm to 3.0 mm) ensures sufficient strength and stability. Integrated plastic glides on the mounting plate allow smooth depth adjustment. The entire construction is designed for modular assembly and can be coupled to other enclosures on all sides, enabling flexible arrangement in production environments.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 1.200 mm |
| Height | 1.800 mm |
| Depth | 600 mm |
| Mounting plate dimensions (W x H) | 1.099 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 455.3 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
