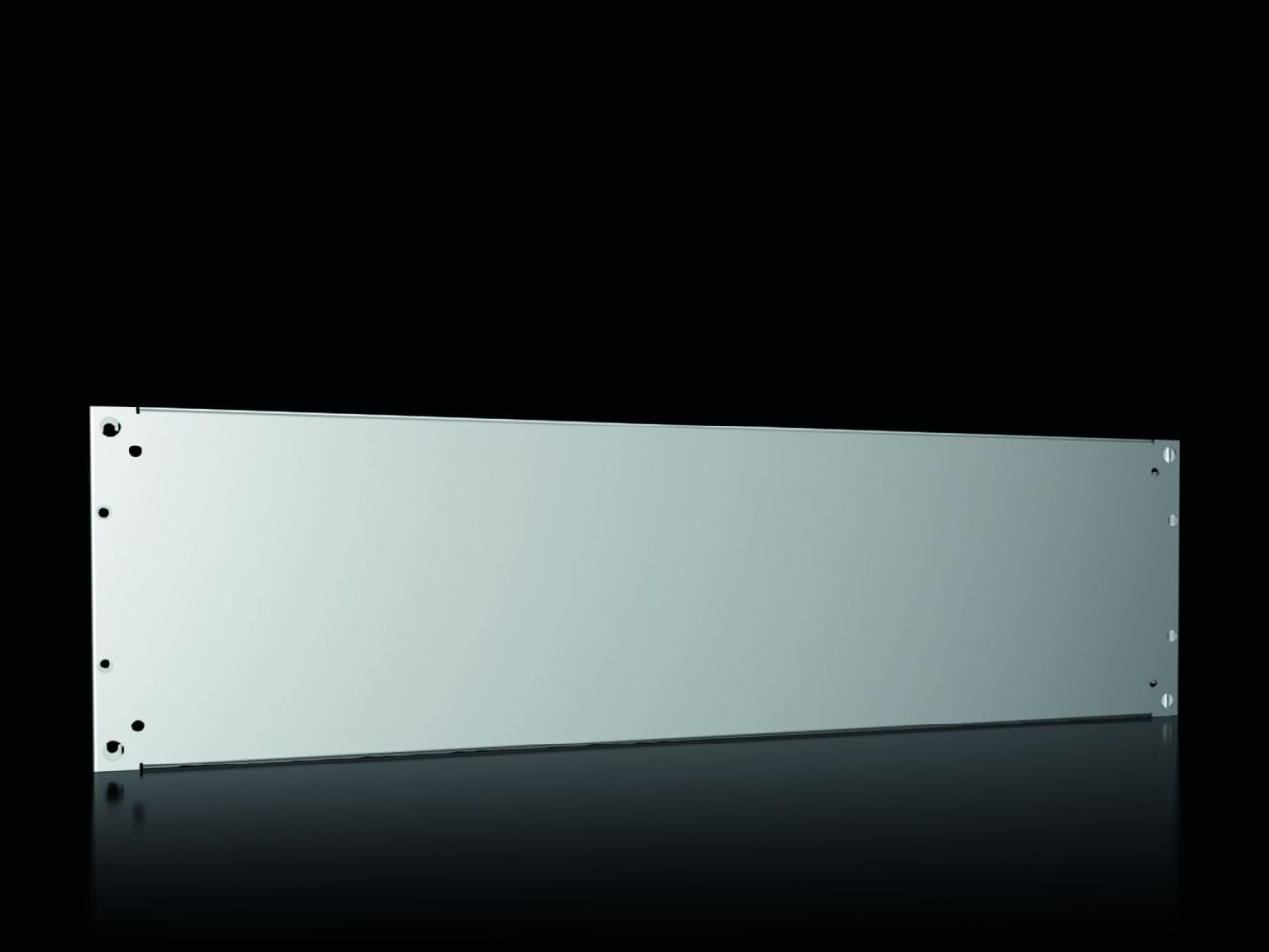

Rittal 8617620 VX partial mounting plate, W x H: 1100x300 mm

Your rating:
Average rating
product review for Rittal 8617620 VX partial mounting plate, W x H: 1100x300 mm
( 4.4 / 5 ) 14 ratings
Rittal 8617620
This image may differ from the desired article.
Rittal 8617620Rittal 8617620Rittal 8617620
65,09 EUR
( 77,46 EUR incl. VAT )
≈ £54.48  |  ≈ $71.53
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8617620 VX partial mounting plate, W x H: 1100x300 mm
Datasheet:file_download Download
Lieske Part No.:1440913
Mfg Part No: 8617620
UPC/EAN: 4028177919471
Weight:8.6 kg
Type:VX 8617.620

Product information for Rittal 8617620:

Rittal VX partial mounting plate, type 8617.620, is a modular system accessory for enclosures of the VX, VX SE and PC series. It is designed for mounting additional electrical or electronic components inside the enclosure and provides a flexible mounting platform for various applications. The plate has dimensions of 1,100 mm width and 300 mm depth and is made of steel sheet with a thickness of 2.5 mm. The surface is zinc-coated, ensuring a corrosion-resistant and durable coating suitable for industrial environments.

Applications
The partial mounting plate is designed for use in enclosures with a width of 400 mm or 1,200 mm and a depth of 400 mm. It is particularly suitable for installations requiring additional mounting surfaces inside the enclosure, such as controls, power electronics, network components or other assemblies. The flexible mounting solution enables optimal use of available space.

Functions and Equipment in Detail
The mounting plate can be installed either vertically as a standing surface or horizontally as a flat base. Fixing is done directly to the enclosure profile. In a pulled-out construction, the plate can be mounted at any mounting level in the enclosure using system chassis. For multi-level arrangements in sequence, a swivelling version with hinge mounting is available, enabling quick access to rear levels. The delivery includes the mounting hardware required for installation.

Technology Explained Simply
The use of steel sheet with a thickness of 2.5 mm ensures high mechanical stability and load capacity. The zinc-coated surface protects against corrosion and is suitable for industrial environments. The dimensions of 1,100 mm width and 300 mm depth match the standard dimensions of the VX enclosure series. The swivelling mounting option enables efficient maintenance and inspection, especially in complex, multi-level arrangements.

Compatibility and Accessories
The partial mounting plate is intended for enclosure types VX, VX SE and PC. For installation in VX SE, PC and IW, the VX adapter rail is required. Compatibility is limited to enclosures with a width of 400 mm or 1,200 mm and a depth of 400 mm. The plate is part of a modular system that allows flexible adaptation to different requirements.

Mounting and Installation
Mounting is done either directly to the enclosure profile or via system chassis in a pulled-out construction. The fixing is simple and does not require special tools. In multi-level mounting, the plates can be mounted swivelling via hinges to facilitate access to rear levels. The designated mounting points and included mounting hardware enable a secure and stable installation.

Advantages in Operation
The partial mounting plate provides a flexible and stable mounting surface inside the enclosure. The swivelling version facilitates maintenance and inspection, especially in complex installations. The use of zinc-coated steel sheet ensures a long service life and resistance to corrosion. Compatibility with standard series VX, VX SE and PC enables easy integration into existing systems.

General
MaterialSheet steel, 2.5 mm
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Mounting optionsInstallation can be either vertical as upright mounting surface or horizontal as flat floor; mounting is directly to cabinet profile; with pre-assembled construction, mounting is via system chassis at any mounting level within the cabinet; with multi-level installation of partial mounting plates in sequence, these can be hinged for quick access to rear levels
NoteFor installation in VX SE, PC, IW, the VX adapter rail is required
Width1.100 mm
Depth300 mm
Suitable for housing typeVX, VX SE, PC
Suitable forEnclosure type: VX, VX SE, PC, width: = 400 mm, = 1.200 mm, depth: = 400 mm
PCF/VE (Cradle-to-Gate)32.8 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8617620, EAN: 4028177919471
