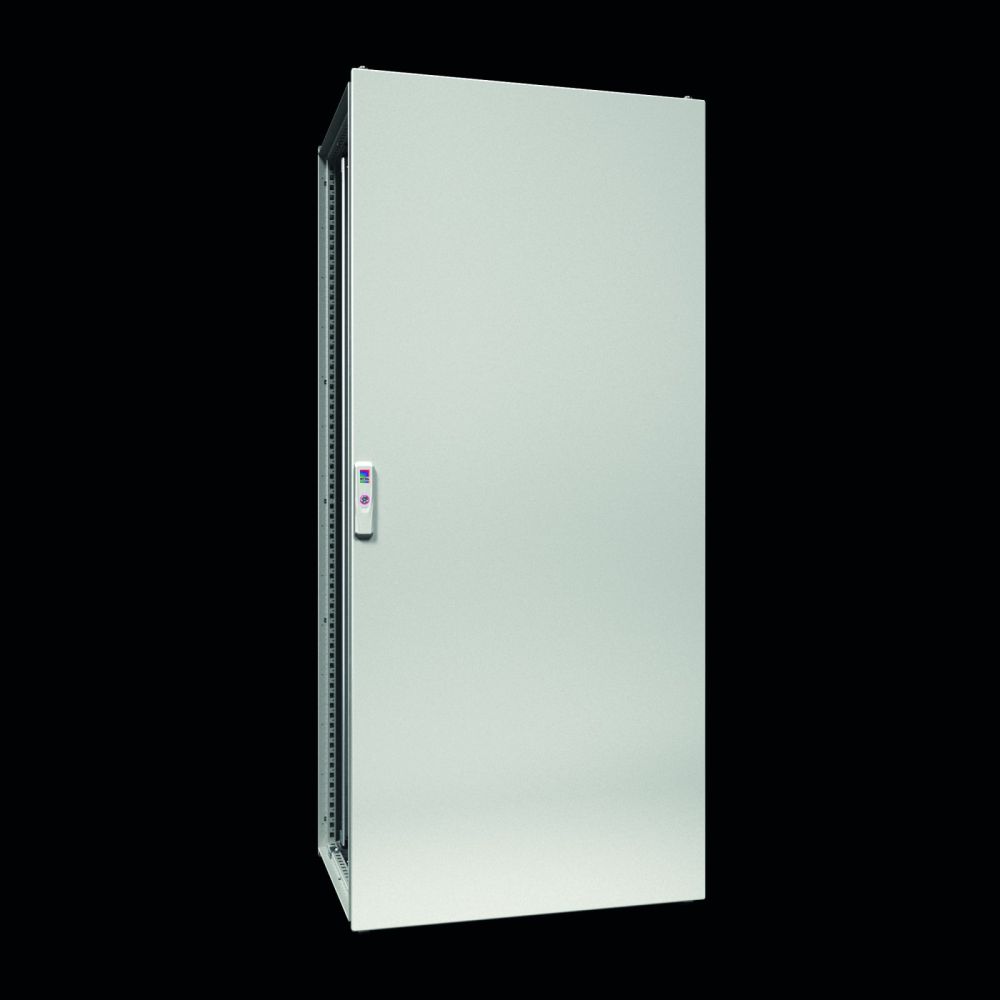

Rittal 8486000 VX bayed enclosure system, 1-door, W x H x D: 400x1800x600 mm
|
568,10 EUR |
|
|
( 676,04 EUR incl. VAT ) ≈ £475.50 | ≈ $624.34 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440950 |
| Mfg Part No: | 8486000 |
| UPC/EAN: | 4028177919310 |
| Weight: | 69.6 kg |
| Type: | VX 8486.000 |
Product information for Rittal 8486000:
Applications
This enclosure system is designed for use in industrial environments where high mechanical stability and protection against dust and splashing water are required. It is suitable for installing control and switching devices, such as PLC systems, frequency converters, fuse boxes, or network devices. The protection class IP 55 according to EN 60 529 ensures protection against dust and splashing water from all directions, making it suitable for outdoor use or damp indoor areas. The protection classes NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for dry and damp indoor environments as well as environments with slight contamination risk. The IK code IK10 indicates high mechanical resistance against impact and shock, qualifying the enclosure for demanding industrial operating conditions.
Functions and Equipment in Detail
The enclosure system consists of an enclosure frame made of sheet steel with a wall thickness of 1.5 mm, featuring a dip-primed surface. The door, roof, and rear panel are also made of sheet steel, with the door having a wall thickness of 2.0 mm to ensure higher stability. The rear panel and roof are fitted with PU foam seals to enable a tight seal. The base plates are divided into three parts, removable and replaceable, allowing for easy cleaning and maintenance. The mounting plate made of sheet steel with a wall thickness of 3.0 mm is side C-bent and depth-adjustable in 25 mm increments, enabling flexible positioning of components. The mounting plate is equipped with integrated plastic gliding pieces and reusable mounting rails, facilitating easy and secure installation of devices. The mounting plate has dimensions of 299 mm (W) × 1,696 mm (H).
Technology Explained Simply
The construction of the enclosure system is based on a symmetrical profile frame structure with closed and profiled hollow profiles, which are perforated in a 25 mm grid. This enables flexible and space-saving installation of components. The horizontal profiles feature an additional groove above the seal, serving as protection against splashing water. The frame profiles are fitted with integrated blind rivet nuts M6, enabling protection-class-compliant fastening of fittings. The entire construction is designed to withstand a load of up to 15,000 N, ensuring high mechanical stability. The rear panel, roof, and base plates are electrically conductive to the frame, enabling automatic equipotential bonding according to DIN 62 208 and enhancing electrical safety. The outer surface of the door, roof, and rear panel is powder-coated with a textured paint in the color RAL 7035, ensuring high corrosion resistance and optical quality. The mounting plate and base plates are galvanized, providing an additional corrosion protection layer.
Compatibility and Accessories
The enclosure system is designed for use with various accessories, enabling individual adaptation to specific requirements. Compatible accessories include levelling feet M12 with an adjustment height of 18–43 mm, transport eyes for freight shipping, VX comfort handles for various locking systems (e.g. half cylinder, ASSA, padlock), mounting brackets, multi-locking systems for padlocks, circuit diagram pockets, plug-through grommets IP 55, multitools, partial mounting plates in various sizes (e.g. 900x300 mm, 700x300 mm, 500x300 mm, 1100x300 mm), VX mounting rails 18 x 38 mm, partition panels, support rollers, and 180° hinges. These accessories enable flexible and application-specific equipping of the enclosure system.
Installation and Mounting
The installation of the enclosure system is carried out via the integrated base frame with base reinforcement, enabling fastening to the floor. The mounting plate is depth-adjustable in 25 mm increments, ensuring precise positioning of components. The mounting rails are reusable and enable flexible installation of devices. The rear panel, roof, and base plates are removable, enabling easy maintenance and cleaning. The door hinges are interchangeable, allowing the door to be mounted on the left or right side.
Operational Advantages
The Rittal VX 8486.000 offers high mechanical stability, reliable protection class IP 55, and flexible mounting options. The modular construction enables easy expansion and adaptation to different requirements. The integrated mounting plate with depth-adjustable rails and mounting grid facilitates installation of components. The conductive connection of flat parts to the frame ensures automatic equipotential bonding, enhancing electrical safety. The use of sheet steel with various surface treatments (dip-primed, powder-coated, galvanized) ensures high corrosion resistance and durability. The toolless extension of the door opening to 180° improves access to internal components and facilitates maintenance. The protection classes NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for a wide range of industrial applications. The PCF value (Cradle-to-Gate) of 205.38 kg CO2 eq (Cat B) provides an overview of the product’s ecological footprint, with category B indicating an approximate calculation based on product weight.
The enclosure system is available in the color RAL 7035, offering a neutral, industrial appearance. The delivery includes the enclosure frame, door, roof plate, rear panel, base plates, mounting plate, two mounting rails 18 x 39 mm, and the lock with 3 mm double-lip. The mounting plate features an integrated mounting grid, facilitating component positioning. The entire construction is designed to provide high mechanical load capacity and reliable protection, making it suitable for use in demanding industrial environments.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 400 mm |
| Height | 1.800 mm |
| Depth | 600 mm |
| Mounting plate dimensions (W x H) | 299 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 205.38 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
