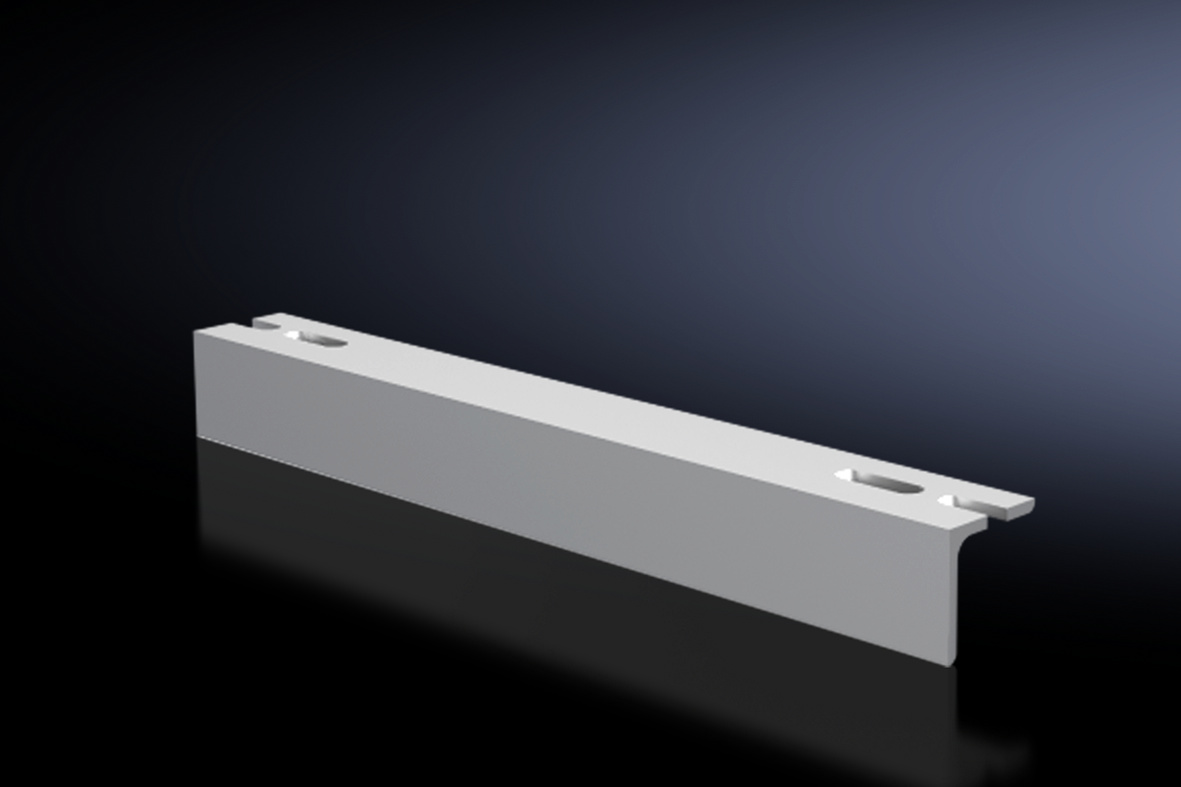

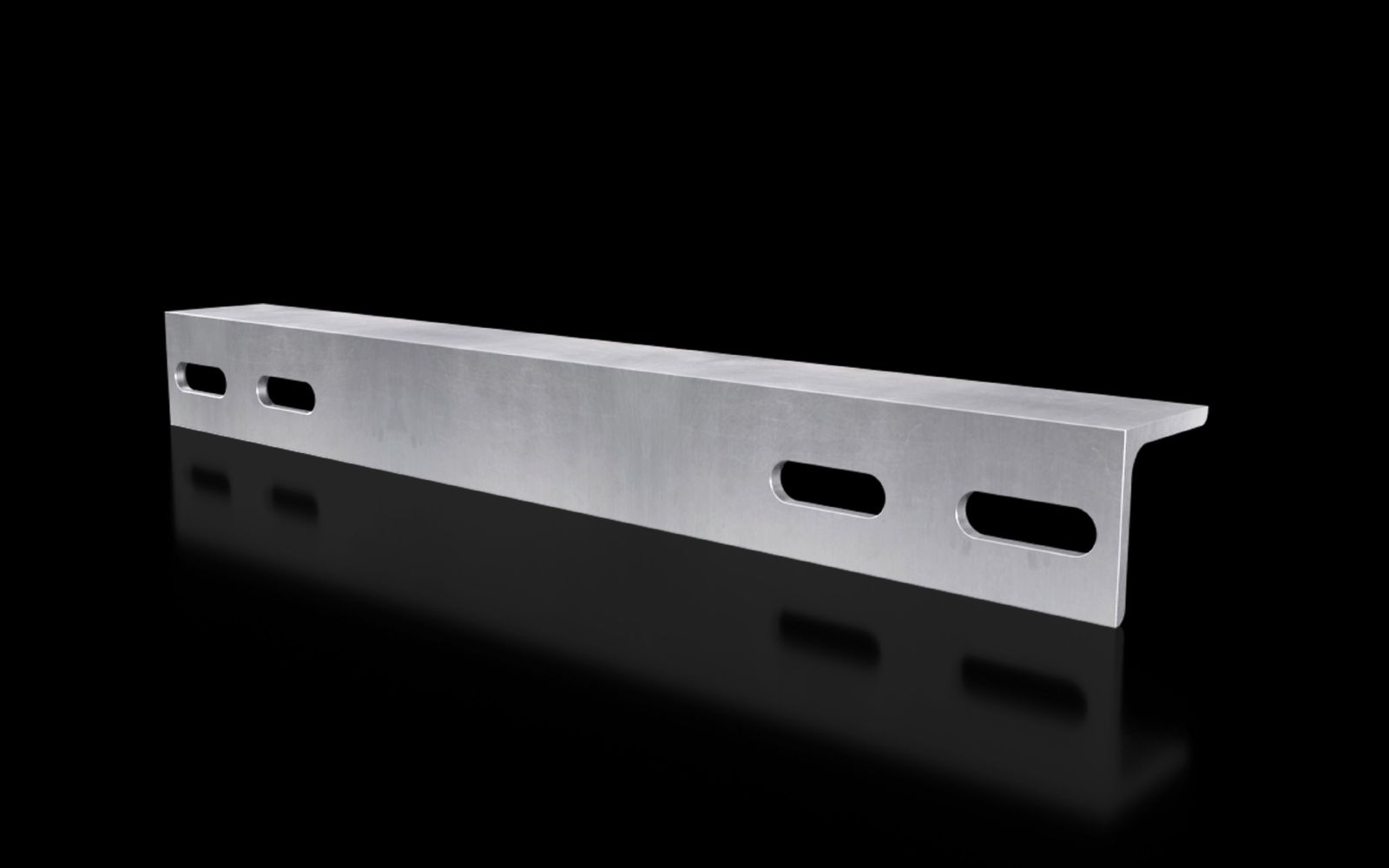

Rittal 8619400 VX cable strain relief rail angle profile, W: 400 mm

Your rating:
Average rating
product review for Rittal 8619400 VX cable strain relief rail angle profile, W: 400 mm
( 4 / 5 ) 6 ratings
Rittal 8619400
This image may differ from the desired article.
Rittal 8619400Rittal 8619400Rittal 8619400
28,56 EUR 28,59 EUR
( 33,99 EUR incl. VAT )
≈ £23.90  |  ≈ $31.39
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8619400 VX cable strain relief rail angle profile, W: 400 mm
Datasheet:file_download Download
Lieske Part No.:1441181
Mfg Part No: 8619400
UPC/EAN: 4028177921924
Weight:2.34 kg
Type:VX 8619.400

Product information for Rittal 8619400:

The Rittal VX 8619.400 is a cable strain relief rail in angle profile, specifically designed for enclosures and plinth systems with a width of 400 mm. It serves to relieve tension during cable entry into electrical enclosures and plinth constructions, reducing mechanical stress on cables and connections. The product is made of steel and is zinc-plated, ensuring high corrosion resistance and durability in industrial environments. The rail is supplied in a packaging unit of two pieces and includes mounting hardware to enable quick and secure installation.

Applications

The cable strain relief rail VX 8619.400 is intended for use in various enclosure and plinth systems, particularly with a width of 400 mm. It is compatible with the systems VX, TS, VX SE, AX, PC, as well as the VX plinth system. Mounting is depth-variable on the 25 mm grid, either on the horizontal enclosure profile or in the plinth area. This allows for flexible adaptation to different enclosure configurations and cable routes.

Functions and Equipment in Detail

The rail is designed as an angle profile, allowing it to fit perfectly into the corners of enclosures and plinths. The length is 354 mm, providing sufficient coverage for most standard cable entries. The zinc-plated surface offers effective protection against moisture and corrosion, especially in environments with high humidity or aggressive atmospheres.

Technology Explained Simply

Tension relief is achieved by mechanically guiding the cables along the rail, transferring pulling forces that occur during equipment installation or removal, or due to vibrations, to the rail rather than to the cable connections. The depth-variable mounting on the 25 mm grid provides flexibility in positioning, allowing the rail to be optimally adapted to the respective enclosure depth. The use of steel as material ensures high mechanical stability and load-bearing capacity.

Compatibility and Accessories

The cable strain relief rail is designed for enclosures and plinths with a width of 400 mm. It can be mounted in the base of enclosures with a width of 400 mm, as well as in enclosures with a width of 400 mm in combination with the AX internal mounting rail and the AX base extension rail. When used in the VX plinth system, mounting in combination with a holding or spacing piece is recommended. Suitable accessories include the VX plinth extension angle plinth trim panel in heights of 100 mm and 200 mm, which provide additional coverage and a visual finishing function.

Mounting and Installation

Mounting is performed on the horizontal enclosure wall or in the plinth area, with the rail positioned on the 25 mm grid. Fixing is done using the included mounting material, ensuring a secure and durable anchoring. The depth-variable mounting allows adaptation to different enclosure configurations without requiring additional tools or components.

Advantages in Operation

The cable strain relief rail reduces mechanical stress on cables, thereby extending their service life. The zinc-plated surface ensures high corrosion resistance, which is particularly beneficial in humid or industrial environments. The flexible mounting on the 25 mm grid allows individual adaptation to the respective enclosure configuration, achieving optimal cable routing and tension relief. The inclusion of mounting material accelerates the installation process and reduces the effort required for additional purchases.

General
MaterialSteel
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Mounting options VXIn cabinet width 400 mm, in floor
Mounting options AXIn housing width 400 mm, in combination with the rail for indoor installation AX and floor installation rail for AX
Mounting options AX stainless steelIn housing width 400 mm, in combination with the rail for indoor installation AX and floor installation rail for AX
Mounting options VX socketIn socket width/depth 400 mm, in combination with holding/distance piece
Suitable forVX socket system
Length354 mm
Suitable for width= 400 mm


Product data sheet
Datasheet for Rittal 8619400, EAN: 4028177921924

Questions & answers

What is the delivery time of Rittal 8619400 VX cable strain relief rail angle profile, W: 400 mm?

The article Rittal 8619400 VX cable strain relief rail angle profile, W: 400 mm is currently in stock

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619400 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8619400 VX cable strain relief rail angle profile, W: 400 mm always at the best possible price. We can give you a discount of 2% on Rittal 8619400 VX cable strain relief rail angle profile, W: 400 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
