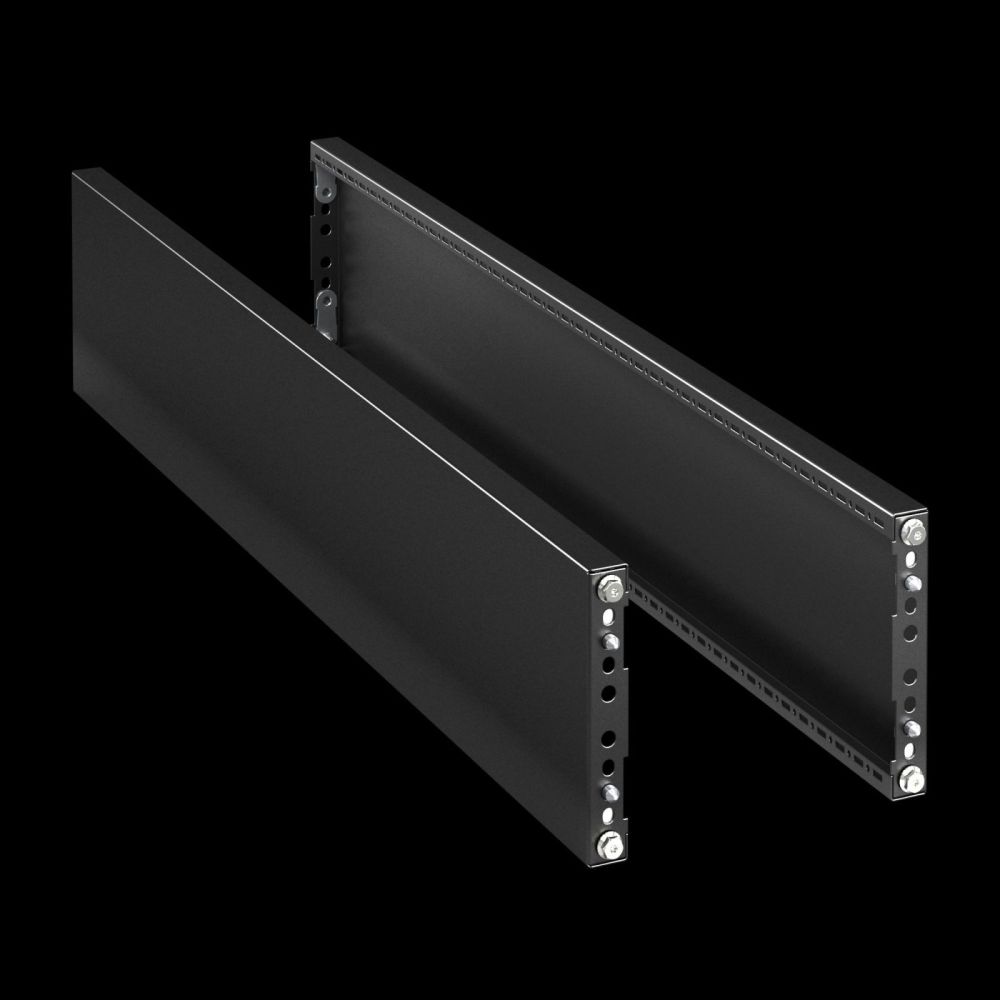

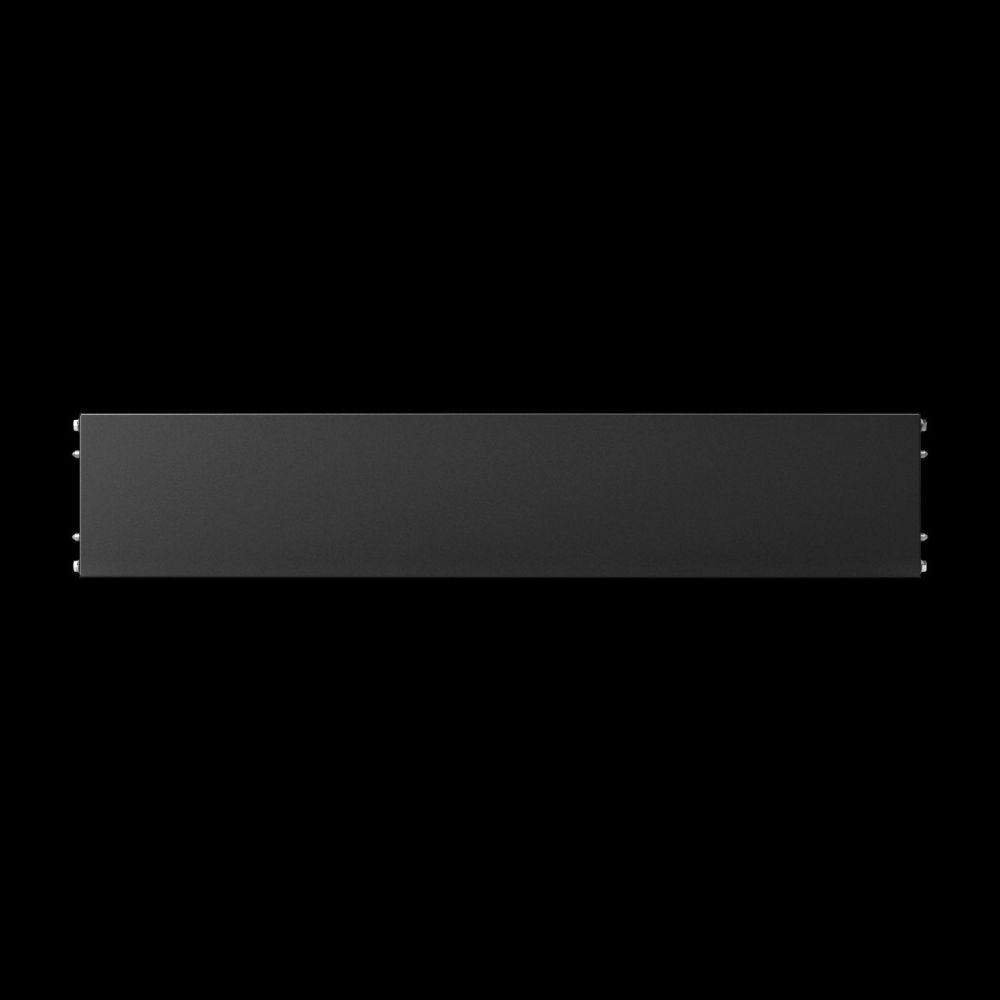

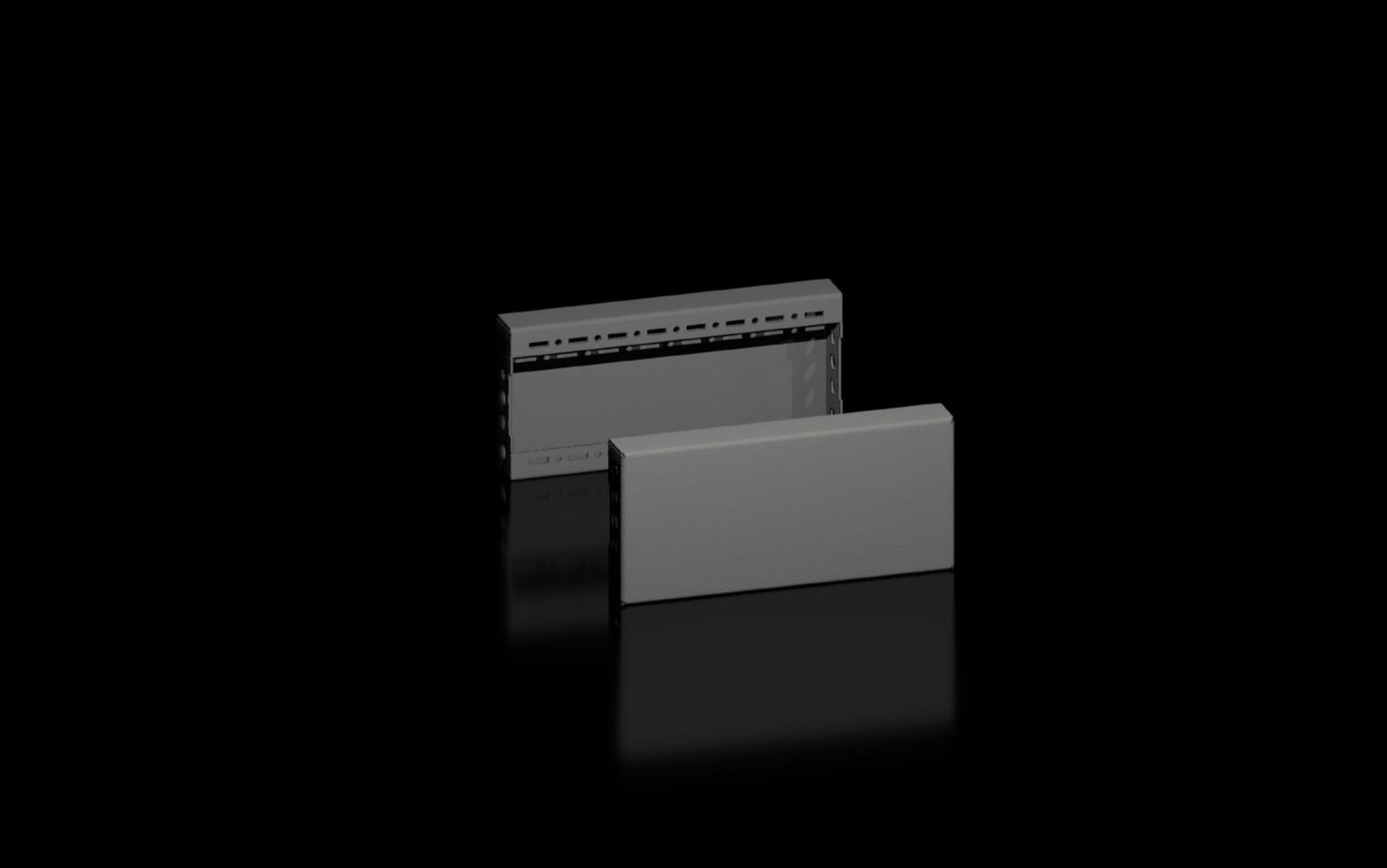

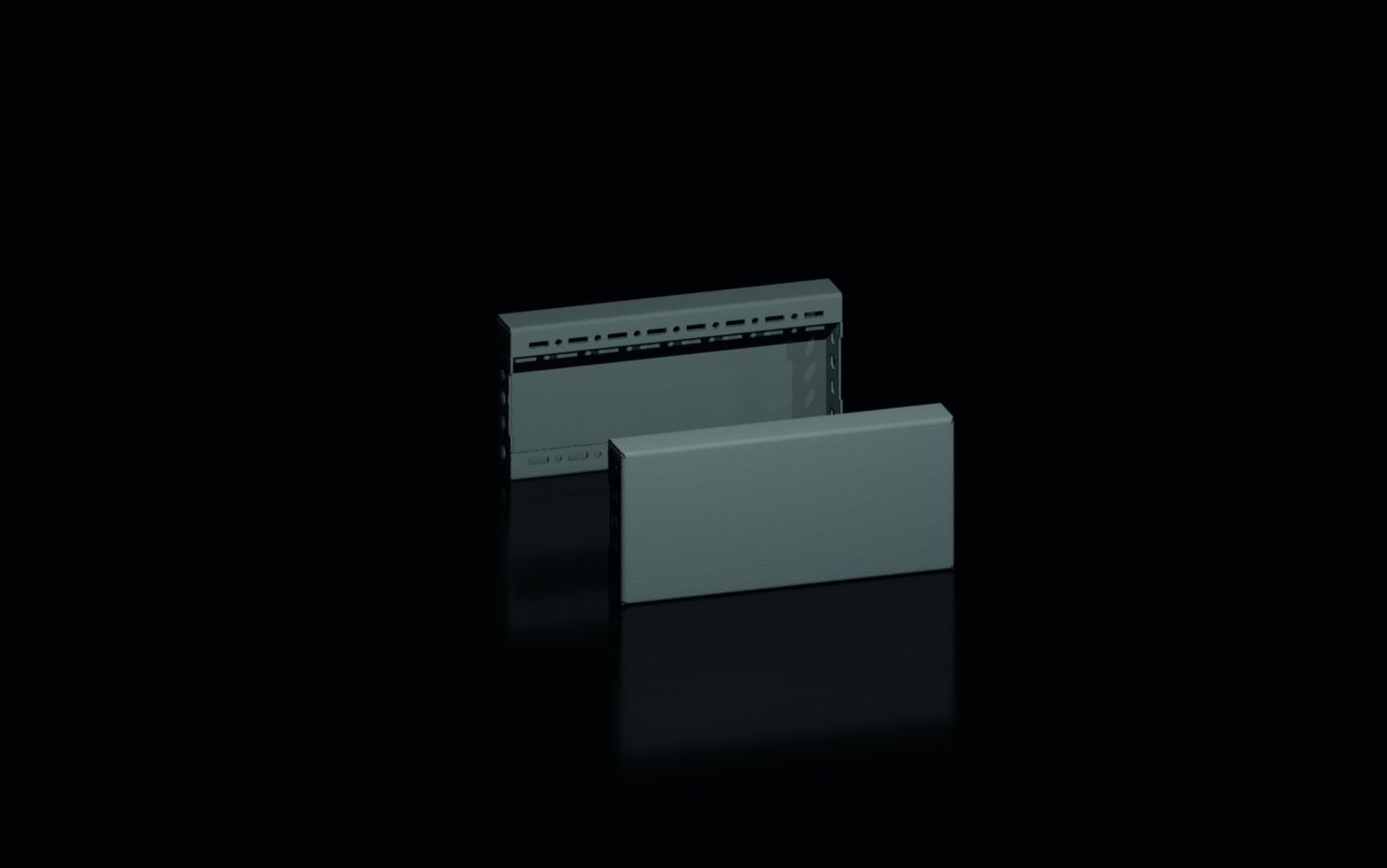

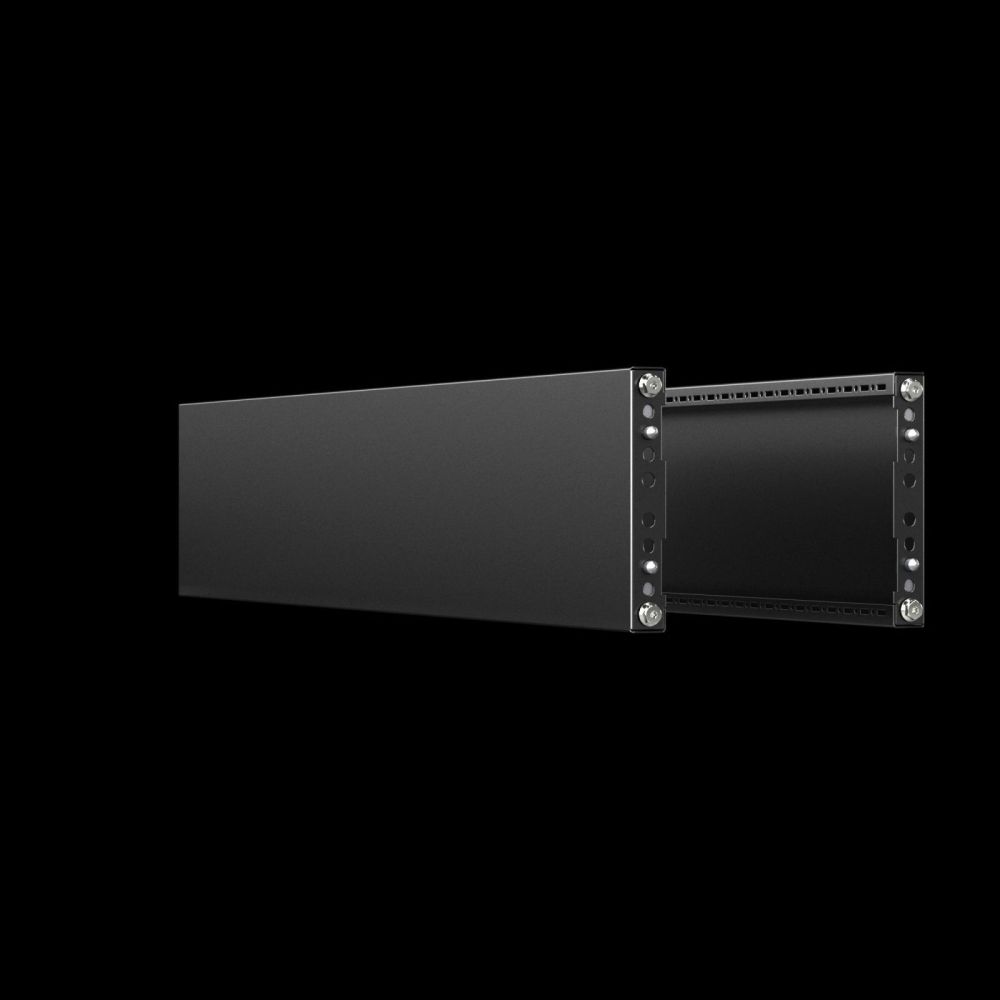

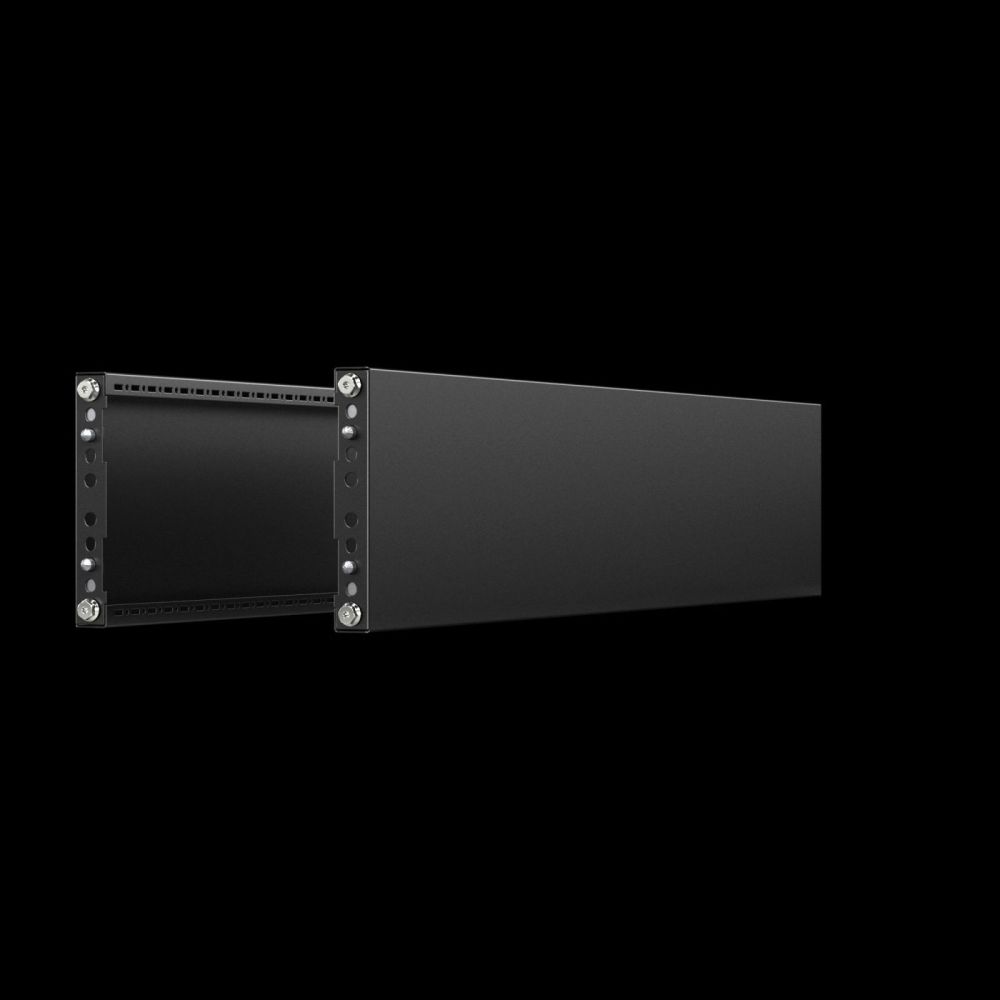

Rittal 8660031 VX plinth trim panels, side, H: 100 mm, for D: 400 mm,

Your rating:
Average rating
product review for Rittal 8660031 VX plinth trim panels, side, H: 100 mm, for D: 400 mm,
( 4 / 5 ) 1 ratings
Rittal 8660031
This image may differ from the desired article.
Rittal 8660031Rittal 8660031Rittal 8660031Rittal 8660031Rittal 8660031Rittal 8660031
19,85 EUR
( 23,62 EUR incl. VAT )
≈ £16.61  |  ≈ $21.82
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 8660031 VX plinth trim panels, side, H: 100 mm, for D: 400 mm,
Datasheet:file_download Download
Lieske Part No.:1062787
Mfg Part No: 8660031
UPC/EAN: 4028177978218
Weight:1.152 kg
Type:VX 8660031

Product information for Rittal 8660031:

The VX plinth trim panel, side, type 8660031, from Rittal is a system accessory for finishing and stabilisation tasks on plinth units in industrial and enclosure construction. The product serves as a side finishing panel for plinth systems with a depth of 400 mm and is made of sheet steel. The panel has a height of 100 mm and is available in the colour RAL 9005 (black). It is designed for use with various enclosure types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW and CX. The design is closed, ensuring complete coverage of the side surfaces.

Applications

The plinth trim panel is primarily used for optical and mechanical finishing of plinth units. It serves not only aesthetic enhancement but also stabilisation of bayed plinths, especially in systems where multiple units are mounted side by side. On plinths with a total height of 200 mm, either a single 200 mm high panel or two 100 mm high panels can be mounted, enabling flexible design. The panel is therefore suitable for applications in industrial environments where proper and secure mounting of enclosures and plinth systems is required.

Functions and equipment in detail

The panel is supplied with fastening material, enabling installation on the designated plinth systems. The use of sheet steel ensures high mechanical strength and durability. The RAL 9005 colour provides a uniform visual appearance that integrates well in industrial environments. The closed design prevents dust or foreign objects from entering the side surfaces of the plinth unit.

Technology explained clearly

The panel is specifically designed for plinth systems with a depth of 400 mm. The height of 100 mm allows for modular arrangement, especially when multiple plinths are arranged side by side. The choice of sheet steel provides sufficient strength to ensure mechanical stability without being excessively heavy. The RAL 9005 colour is a standard industrial colour that can be easily coordinated with other components. The inclusion of fastening material reduces installation effort and ensures quick installation.

Compatibility and accessories

The panel is compatible with enclosure types VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW and CX, provided the depth is 400 mm. Suitable accessories include, among others, TS mounting brackets for external mounting plane BT 400 mm, plinth baying brackets for VX plinth system, VX plinth expansion angles, VX optional panel fastening, VX system chassis 23 x 64 mm W x H x D: 400 mm, and VX cable strain relief rail, angle profile, W: 400 mm. These components enhance the functionality of the plinth system and support mounting, stabilisation and cable routing.

Mounting and installation

Installation is carried out using the included fastening material at the designated mounting points of the plinth systems. The panel is attached to the side of the plinth unit, with precise positioning ensured by the pre-drilled holes and mounting aids.

Advantages in operation

The use of the plinth trim panel improves the appearance of plinth systems and contributes to stabilisation, especially when multiple units are arranged side by side. The closed design protects against dust and foreign objects, increasing the longevity of the installation. Compatibility with various enclosure types and modular design enable flexible adaptation to different requirements in industrial and enclosure construction. The inclusion of fastening material reduces installation effort and ensures quick and secure installation.

Type rating according to UL 50E

The product meets the requirements of the type rating according to UL 50E, specifically Type 1 and Type 12. Type 1 is suitable for indoor use, while Type 12 provides additional protection against splashing water and dust, making it suitable for industrial environments with higher requirements for ambient conditions.

General
Materialsteel sheet
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Height100 mm
Suitable forCabinet type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, depth: = 400 mm
Type rating according to UL 50EType 1, Type 12
Weight/PU1,11 kg
PCF/VE (Cradle-to-Gate)5.31 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8660031, EAN: 4028177978218

Questions & answers

What is the delivery time of Rittal 8660031 VX plinth trim panels, side, H: 100 mm, for D: 400 mm, ?

The article Rittal 8660031 VX plinth trim panels, side, H: 100 mm, for D: 400 mm, is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660031 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8660031 VX plinth trim panels, side, H: 100 mm, for D: 400 mm, always at the best possible price. We can give you a discount of 2% on Rittal 8660031 VX plinth trim panels, side, H: 100 mm, for D: 400 mm, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
