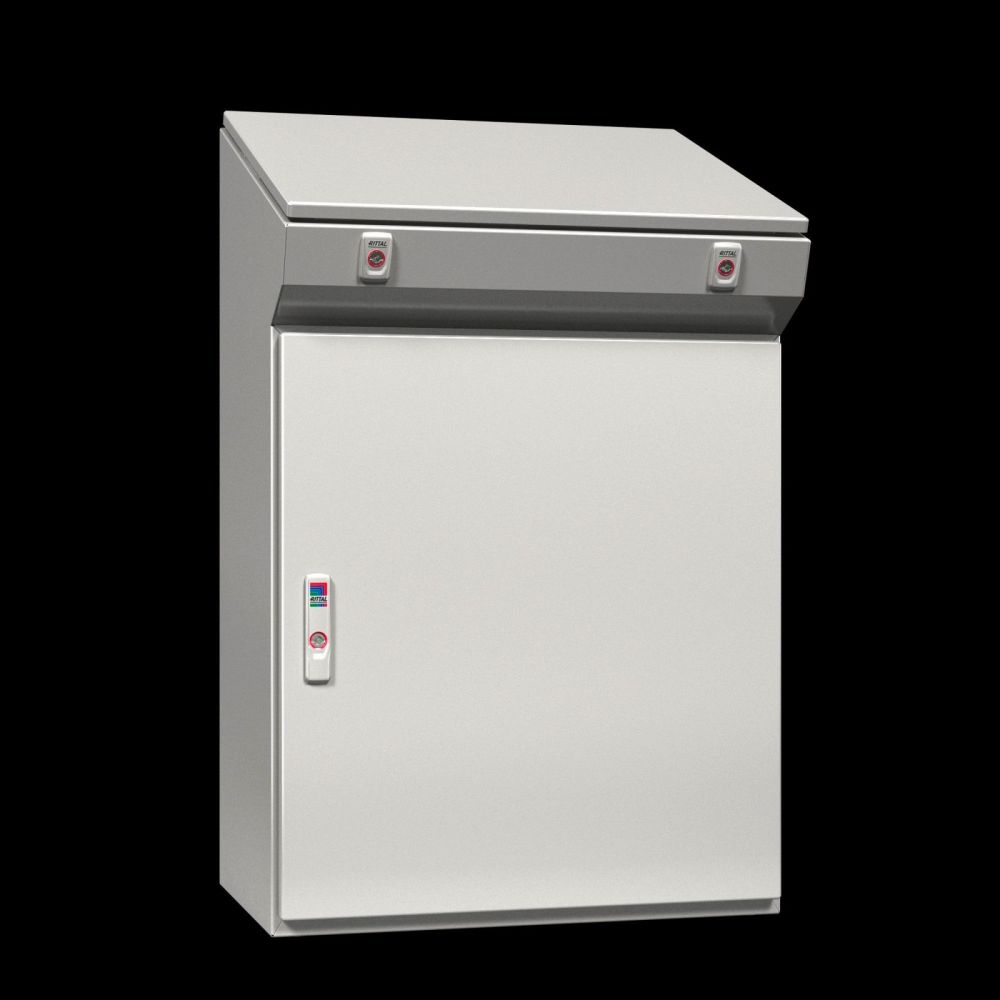

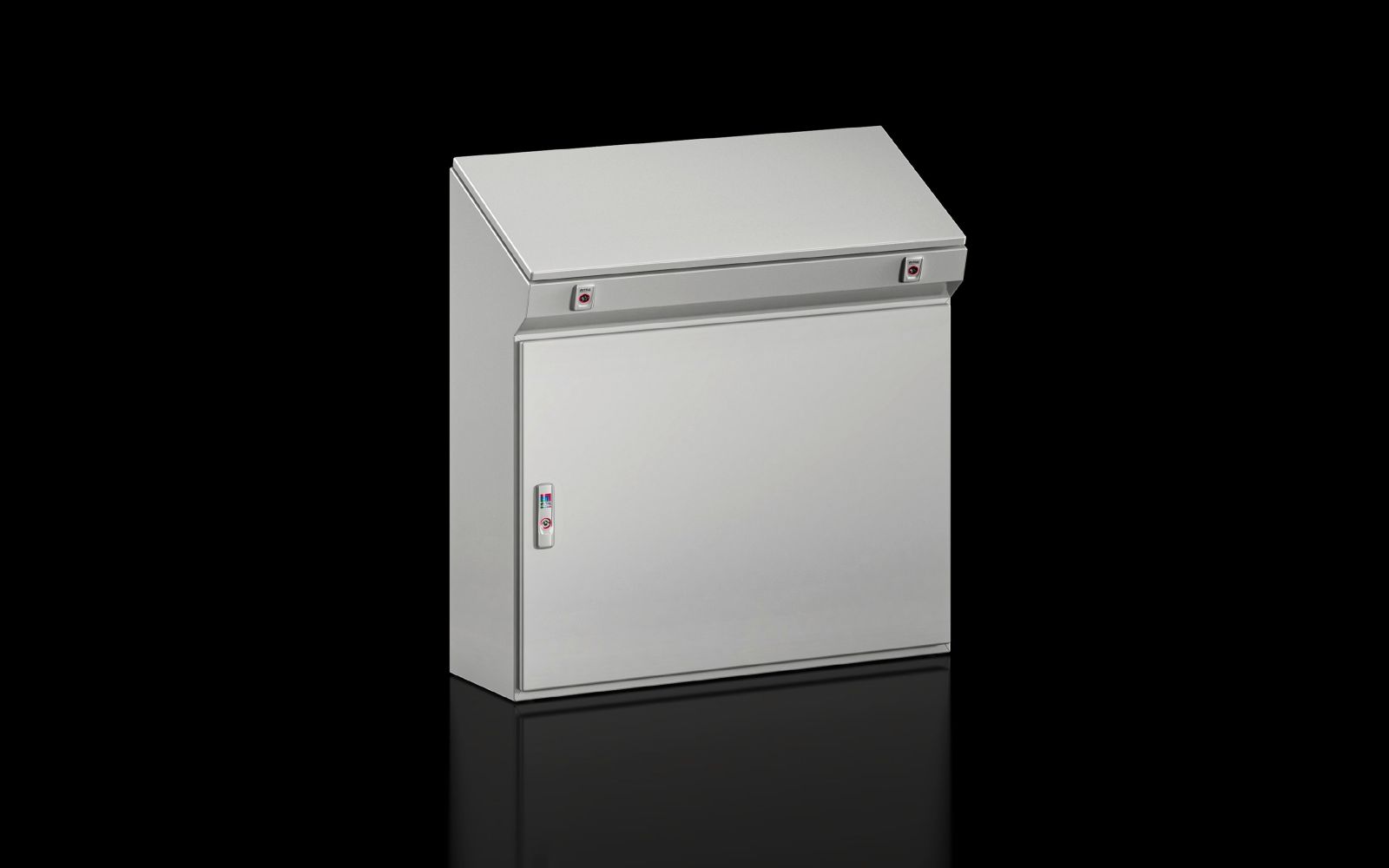

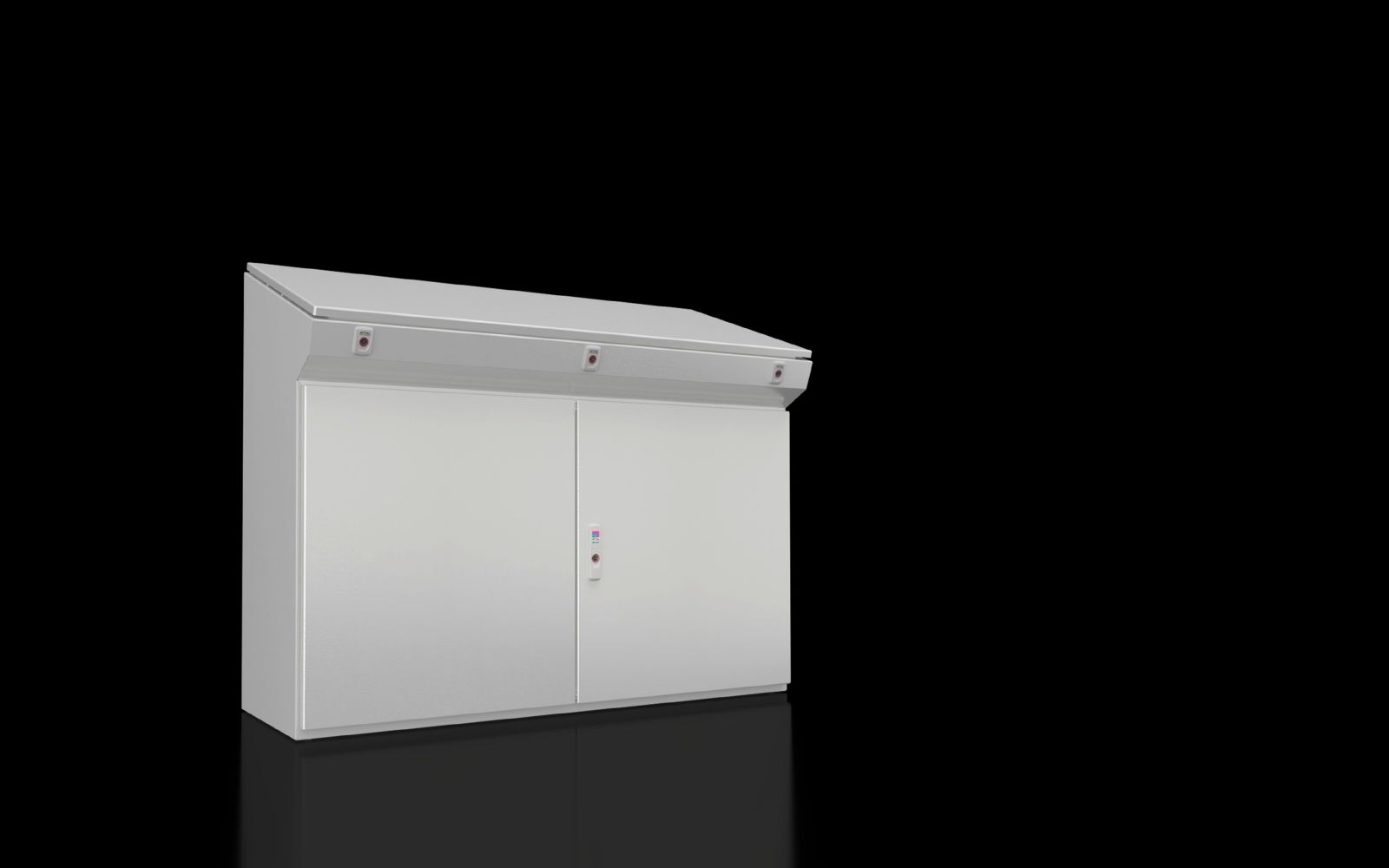

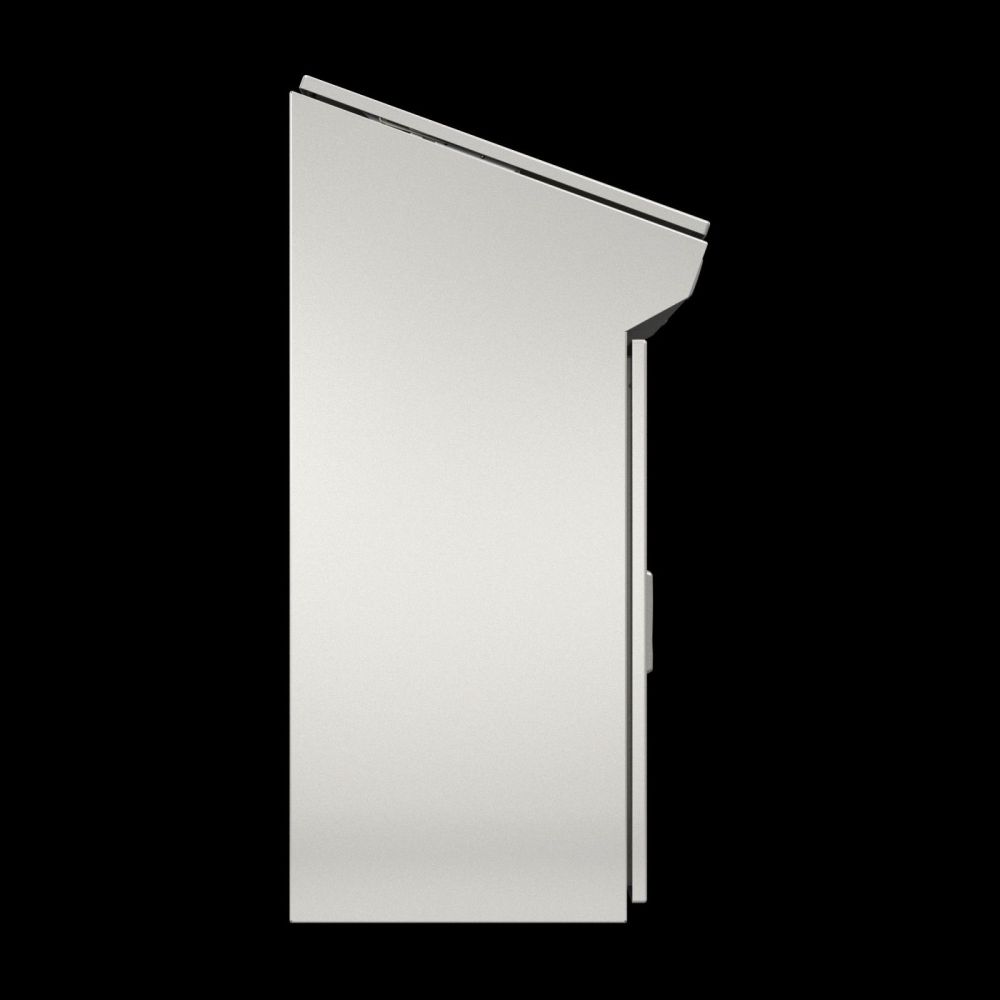

Rittal 6742000 CX stand console W x H x D: 1200x970x400 mm sheet metal

Your rating:
Average rating
product review for Rittal 6742000 CX stand console W x H x D: 1200x970x400 mm sheet metal
( 4.6 / 5 ) 5 ratings
Rittal 6742000
This image may differ from the desired article.
Rittal 6742000Rittal 6742000Rittal 6742000Rittal 6742000Rittal 6742000Rittal 6742000Rittal 6742000Rittal 6742000
695,75 EUR 723,58 EUR
( 827,94 EUR incl. VAT )
≈ £582.34  |  ≈ $764.63
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 6742000 CX stand console W x H x D: 1200x970x400 mm sheet metal
Datasheet:file_download Download
Lieske Part No.:643171
Mfg Part No: 6742000
UPC/EAN: 4028177983625
Weight:86.75 kg
Type:CX 6742000

Product information for Rittal 6742000:

The Rittal CX 6742000 is a unified steel sheet stand console, designed for use in industrial environments where a robust and user-friendly control and monitoring unit is required. The enclosure has dimensions of 1,200 mm width, 970 mm height, and 400 mm depth, and is made of steel sheet, with the enclosure 1.5 mm thick, the door and console lid 2.0 mm thick, and the mounting plate 2.5 mm thick. The surface of the enclosure, lid, and door is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035. The mounting plate is galvanised. The construction is designed for high mechanical load capacity, confirmed by the IK code IK10, which provides protection against mechanical impacts such as shocks and vibrations up to a certain energy level.

Applications
This stand console is suitable for applications requiring secure and accessible operation of control and regulation technology. It is frequently used in production plants, manufacturing halls, machine controls, or in process automation, where a high degree of protection against dust and splashing water is necessary. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water from any direction, making it suitable for use in humid or dusty environments. Additionally, the device complies with protection ratings NEMA 1 and NEMA 12, confirming its suitability for indoor use and lightly contaminated environments.

Functions and Equipment in Detail

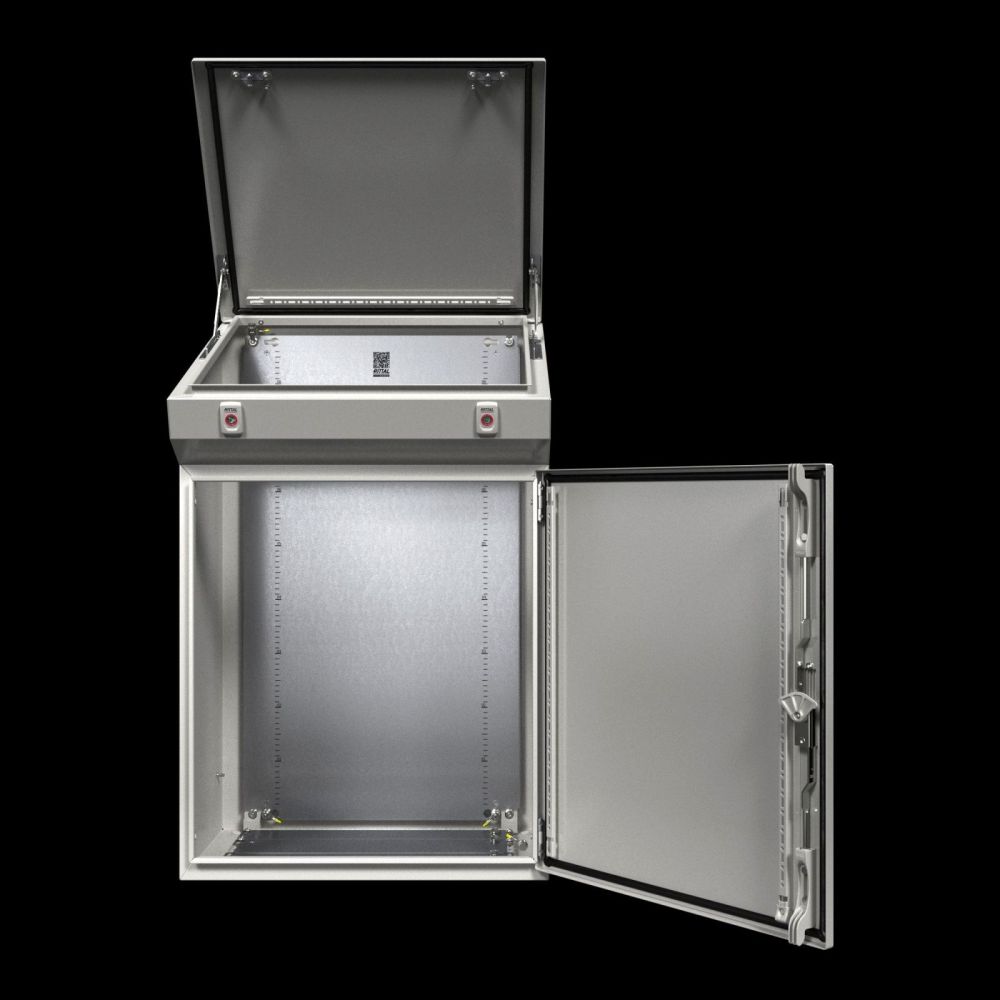

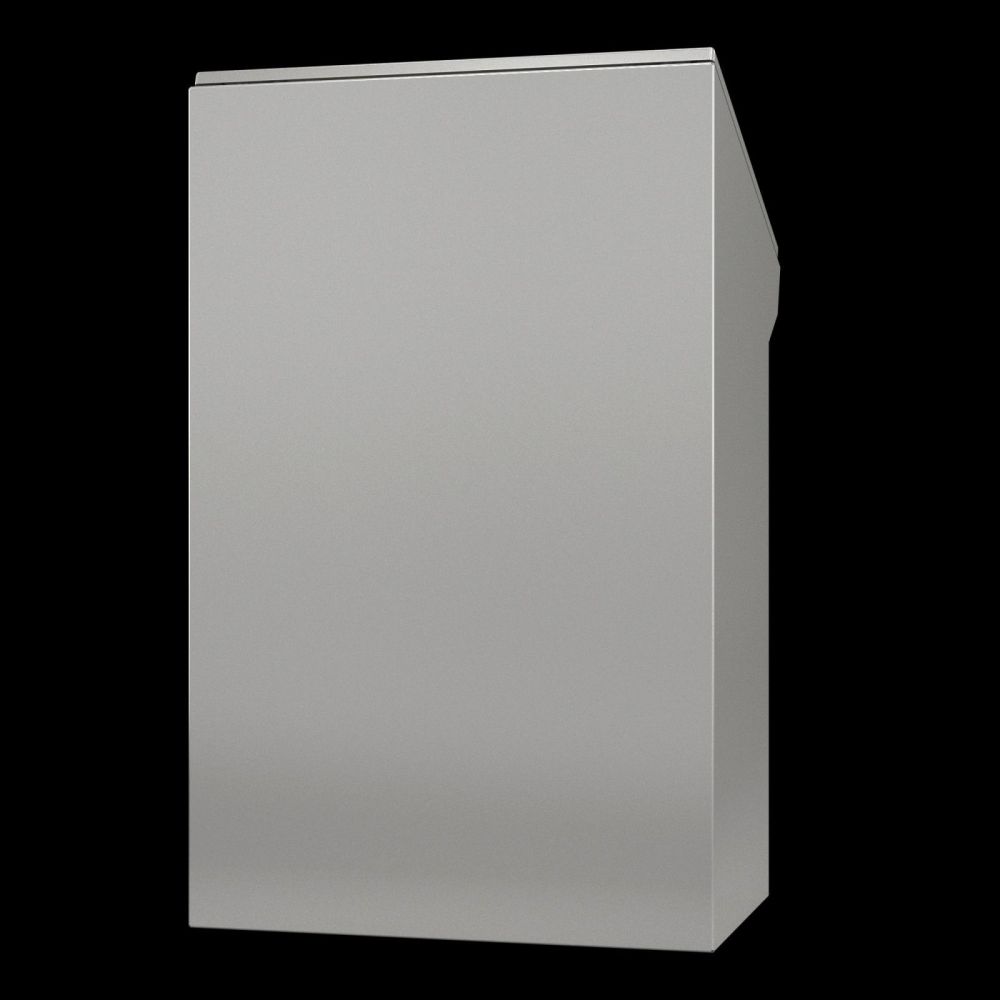

The enclosure is closed at the rear and sides, achieving a high level of protection against environmental influences. At the front, a double door with a 3-point locking system is integrated, ensuring secure and even locking. The lid is hinged at the rear and features latching locks that allow for secure fastening. Two stands with automatic locking ensure stable positioning of the console. Unlocking occurs automatically on the left and manually on the right. A base sheet is also included, providing additional stability and protection against contamination from below. The locking mechanism is a 3 mm double bar, ensuring secure and robust locking.

Technology Explained Simply

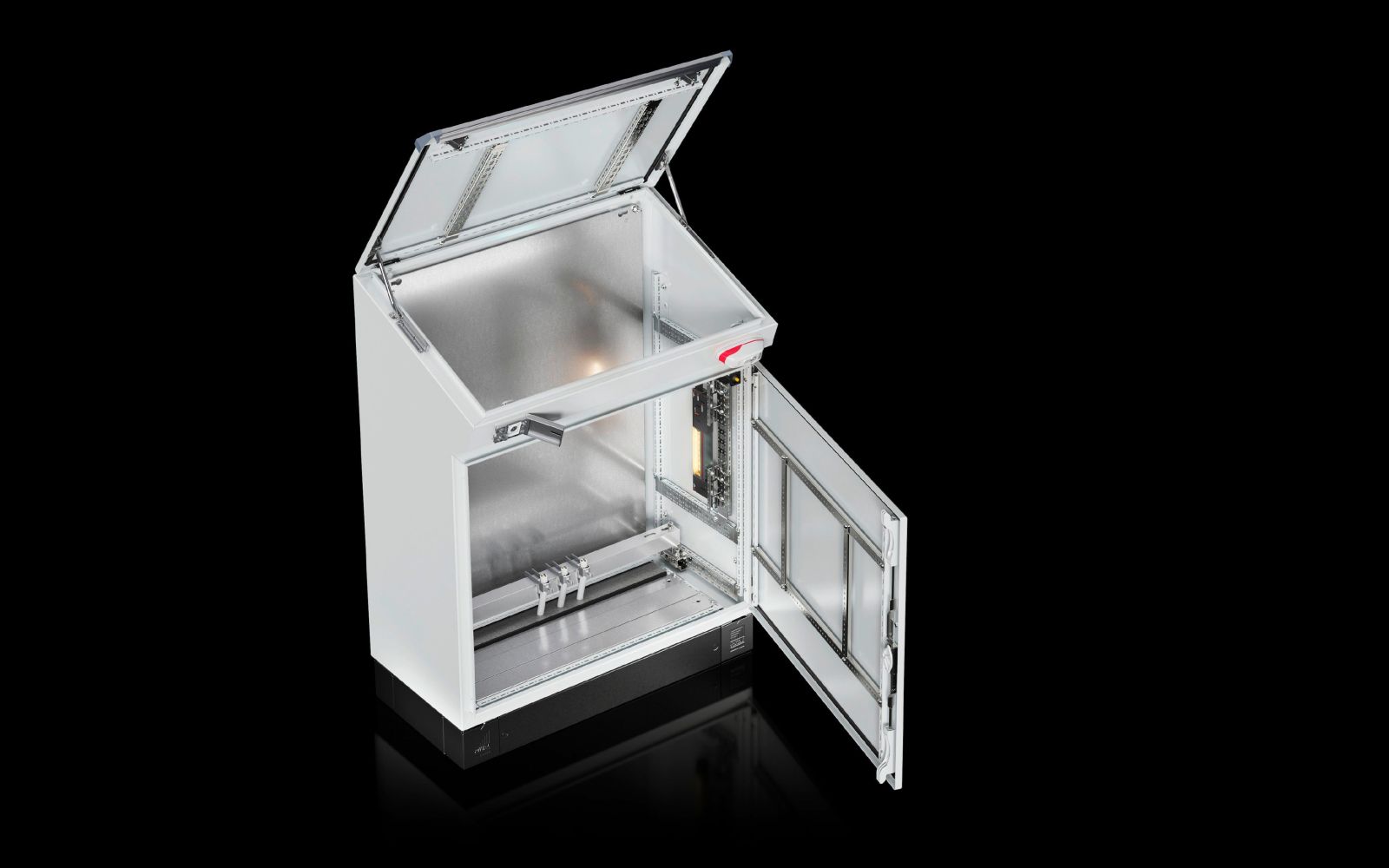

The mounting plate has dimensions of 1,120 mm width and 900 mm height, offering sufficient space for mounting control devices, operating panels, or other electronic components. The depth of the enclosure is 495 mm at the top and 400 mm at the bottom, allowing for flexible arrangement of devices. The continuously foamed PU sealing ensures a tight seal and prevents ingress of dust and moisture. The powder-coated surface in RAL 7035 offers high resistance to corrosion and mechanical stress. The galvanisation of the mounting plate also protects against corrosion and ensures a long service life.

Compatibility and Accessories
The stand console can be supplemented with various accessories to enhance functionality and protection. These include, for example, zinc die-cast lock box covers, rails for internal installation, plinth corner pieces with trim panels in various heights, plinth trim panels, support rails, cable entry plates, system chassis in various dimensions, cable strain relief rails, and door latches. These components allow for individual adaptation to specific requirements in the areas of mounting, cable management, and safety.

Mounting and Installation
Mounting is simple and quick due to the integrated mounting plate and predefined dimensions. The pre-fabricated mounting points and stable construction facilitate installation. The stands ensure secure positioning on the floor. The provided locks and automatic locking of the stands simplify installation and ensure secure stability.

Advantages in Operation
The stand console offers high mechanical stability and high protection against environmental influences. The robust construction from steel sheet and the powder-coated surface ensure a long service life. The integrated mounting plate and predefined dimensions simplify installation and maintenance. The protection rating IP 55 and IK class IK10 make the device suitable for demanding industrial environments. The combination of safety, functionality, and robustness makes the Rittal CX 6742000 a reliable solution for industrial control and monitoring technology.

General
ModelConsole
MaterialEnclosure: steel sheet 1.5 mm, door and panel cover: steel sheet 2.0 mm, continuous foamed PU seal, mounting plate: steel sheet, 2.5 mm
Surface protectionHousing, cover and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized
ColourRAL 7035

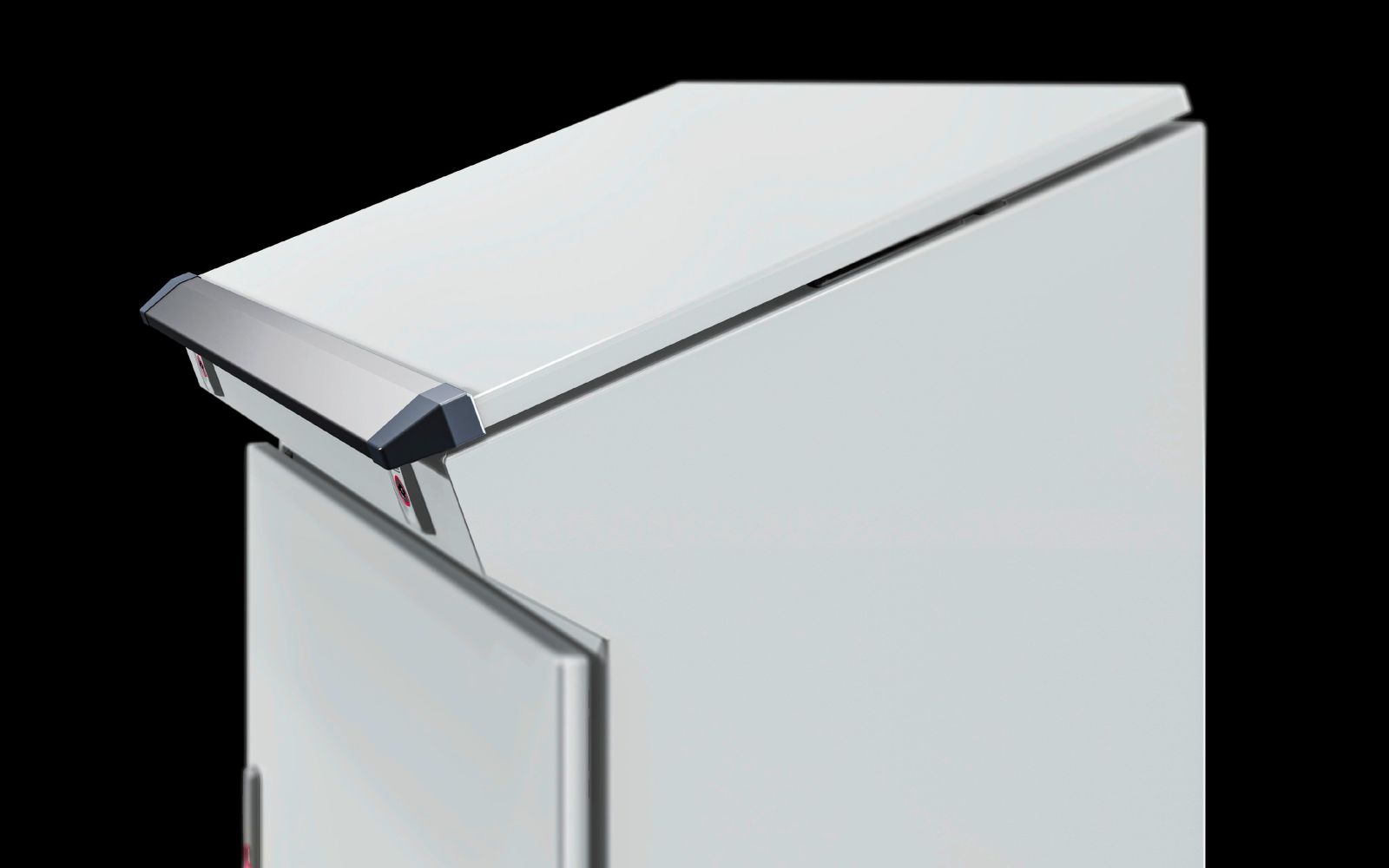

Scope of deliveryEnclosure, rear and side closed, door or double door front, with 3-point locking system, mounting plate, lid with pre-press locks, hinged at rear, 2 stands with automatic locking. Unlocking left automatic, right manual., base sheet, lock: 3 mm double bar
Width1.200 mm
Height970 mm
Depth400 mm
Mounting plate dimensions (W x H)1.120 mm x 900 mm
Depth top495 mm
Depth bottom400 mm
Number of doors2
IK codeIK10
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 1, NEMA 12
Base materialsteel sheet


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 6742000, EAN: 4028177983625

Questions & answers

What is the delivery time of Rittal 6742000 CX stand console W x H x D: 1200x970x400 mm sheet metal?

The article Rittal 6742000 CX stand console W x H x D: 1200x970x400 mm sheet metal is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 6742000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 6742000 CX stand console W x H x D: 1200x970x400 mm sheet metal always at the best possible price. We can give you a discount of 2% on Rittal 6742000 CX stand console W x H x D: 1200x970x400 mm sheet metal if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
